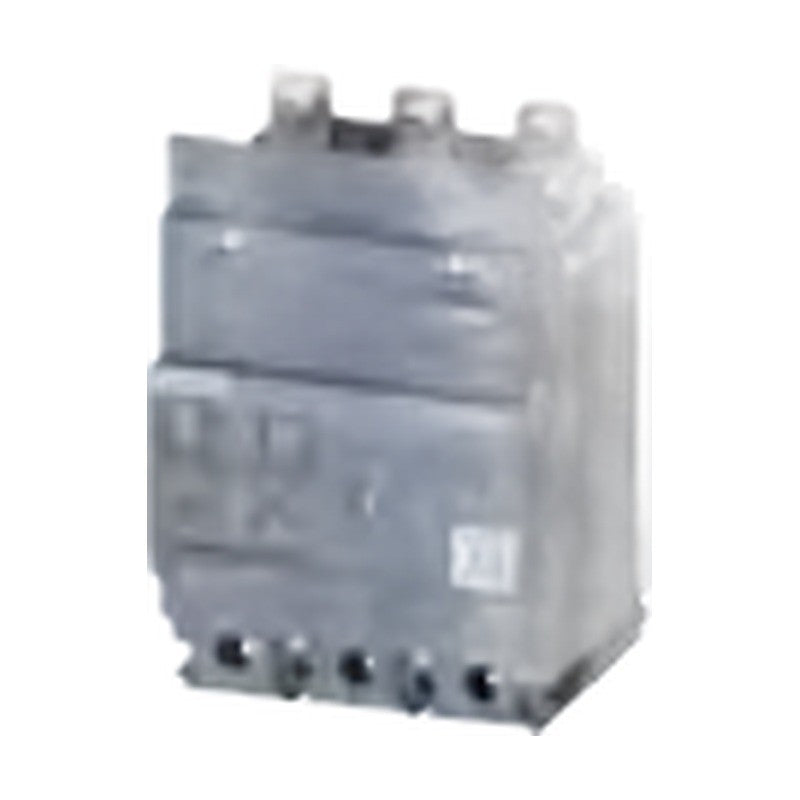

Siemens SENTRON 3VA residual current devices RCD310-RCD820

Siemens SENTRON 3VA residual current devices RCD310-RCD820

Residual current devices for SENTRON 3VA1 and 3VA2 molded case circuit breakers to IEC 60947-2 annex B and DIN VDE 0664-400.

Key features

  • RCD310/RCD510 mounted on the left side of the breaker
  • RCD320/RCD520/RCD520B/RCD820 mounted below the trip unit
  • Type A pulse current sensitive, Type B/B+ universal current sensitive (RCD520B)
  • Rated residual response current up to 30 A (RCD820), selectable non-tripping time
  • Pre-alarm and trip alarm contacts; RCD820 with remote test/reset and communication

Specifications

Brand Siemens
Product type Molded case circuit breaker accessory
Catalogue chapter LV 10 chapter 2, Molded Case Circuit Breakers
Applicable frames 3VA11-12, 3VA20-24
Ordering Article numbers as printed in LV 10
Product line SENTRON 3VA molded case circuit breakers
Standard IEC 60947-2 annex B, DIN VDE 0664-400
Source Siemens Catalog LV 10 · 2026, p. 236-237
3VA9113-0RS20 Type: RCD510 | Poles: 3-pole | Sensitivity: Type A | IΔn: 0.03 … 5 A | Δt: 0 … 3 s | Frame: 3VA11
3VA9213-0RS20 Type: RCD510 | Poles: 3-pole | Sensitivity: Type A | IΔn: 0.03 … 5 A | Δt: 0 … 3 s | Frame: 3VA12
3VA9114-0RS10 Type: RCD310 | Poles: 4-pole | Sensitivity: Type A | IΔn: 0.03 … 5 A | Δt: Instantaneous | Frame: 3VA11
3VA9114-0RS20 Type: RCD510 | Poles: 4-pole | Sensitivity: Type A | IΔn: 0.03 … 5 A | Δt: 0 … 3 s | Frame: 3VA11
3VA9214-0RS20 Type: RCD510 | Poles: 4-pole | Sensitivity: Type A | IΔn: 0.03 … 5 A | Δt: 0 … 3 s | Frame: 3VA12
3VA9113-0RL20 Type: RCD520 | Poles: 3-pole | Sensitivity: Type A | IΔn: 0.03 … 5 A | Δt: 0 … 3 s | Frame: 3VA11
3VA9213-0RL20 Type: RCD520 | Poles: 3-pole | Sensitivity: Type A | IΔn: 0.03 … 5 A | Δt: 0 … 3 s | Frame: 3VA12
3VA9113-0RL21 Type: RCD520B | Poles: 3-pole | Sensitivity: Type B / B+ | IΔn: 0.03…5 A (B+: 0.03…0.3 A) | Δt: 0 … 10 s | Frame: 3VA11
3VA9123-0RL30 Type: RCD820 | Poles: 3-pole | Sensitivity: Type A | IΔn: 0.03 … 30 A | Δt: 0 … 10 s | Frame: 3VA20-21
3VA9223-0RL30 Type: RCD820 | Poles: 3-pole | Sensitivity: Type A | IΔn: 0.03 … 30 A | Δt: 0 … 10 s | Frame: 3VA22
3VA9323-0RL30 Type: RCD820 | Poles: 3-pole | Sensitivity: Type A | IΔn: 0.03 … 30 A | Δt: 0 … 10 s | Frame: 3VA23
3VA9423-0RL30 Type: RCD820 | Poles: 3-pole | Sensitivity: Type A | IΔn: 0.03 … 30 A | Δt: 0 … 10 s | Frame: 3VA24
3VA9114-0RL10 Type: RCD320 | Poles: 4-pole | Sensitivity: Type A | IΔn: 0.03 … 5 A | Δt: Instantaneous | Frame: 3VA11
3VA9114-0RL20 Type: RCD520 | Poles: 4-pole | Sensitivity: Type A | IΔn: 0.03 … 5 A | Δt: 0 … 3 s | Frame: 3VA11
3VA9214-0RL20 Type: RCD520 | Poles: 4-pole | Sensitivity: Type A | IΔn: 0.03 … 5 A | Δt: 0 … 3 s | Frame: 3VA12
3VA9114-0RL21 Type: RCD520B | Poles: 4-pole | Sensitivity: Type B / B+ | IΔn: 0.03…5 A (B+: 0.03…0.3 A) | Δt: 0 … 10 s | Frame: 3VA11
3VA9124-0RL30 Type: RCD820 | Poles: 4-pole | Sensitivity: Type A | IΔn: 0.03 … 30 A | Δt: 0 … 10 s | Frame: 3VA20-21
3VA9224-0RL30 Type: RCD820 | Poles: 4-pole | Sensitivity: Type A | IΔn: 0.03 … 30 A | Δt: 0 … 10 s | Frame: 3VA22
3VA9324-0RL30 Type: RCD820 | Poles: 4-pole | Sensitivity: Type A | IΔn: 0.03 … 30 A | Δt: 0 … 10 s | Frame: 3VA23
3VA9424-0RL30 Type: RCD820 | Poles: 4-pole | Sensitivity: Type A | IΔn: 0.03 … 30 A | Δt: 0 … 10 s | Frame: 3VA24
3VA9988-0BR10 Type: For RCD310 or RCD510 | Frame: 3VA11-12
3VA9927-0RC00 Type: For RCD820 | Frame: 3VA20-24
Residual Current DevicesSiemens
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 3VA residual current devices RCD310-RCD820

Brand Siemens·Residual Current Devices

Available part numbers (22)

3VA9113-0RS20, 3VA9213-0RS20, 3VA9114-0RS10, 3VA9114-0RS20, 3VA9214-0RS20, 3VA9113-0RL20, 3VA9213-0RL20, 3VA9113-0RL21, 3VA9123-0RL30, 3VA9223-0RL30 + 12 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3VA9113-0RS20Type: RCD510 | Poles: 3-pole | Sensitivity: Type A | IΔn: 0.03 … 5 A | Δt: 0 … 3 s | Frame: 3VA11
3VA9213-0RS20Type: RCD510 | Poles: 3-pole | Sensitivity: Type A | IΔn: 0.03 … 5 A | Δt: 0 … 3 s | Frame: 3VA12
3VA9114-0RS10Type: RCD310 | Poles: 4-pole | Sensitivity: Type A | IΔn: 0.03 … 5 A | Δt: Instantaneous | Frame: 3VA11
3VA9114-0RS20Type: RCD510 | Poles: 4-pole | Sensitivity: Type A | IΔn: 0.03 … 5 A | Δt: 0 … 3 s | Frame: 3VA11
3VA9214-0RS20Type: RCD510 | Poles: 4-pole | Sensitivity: Type A | IΔn: 0.03 … 5 A | Δt: 0 … 3 s | Frame: 3VA12
3VA9113-0RL20Type: RCD520 | Poles: 3-pole | Sensitivity: Type A | IΔn: 0.03 … 5 A | Δt: 0 … 3 s | Frame: 3VA11
3VA9213-0RL20Type: RCD520 | Poles: 3-pole | Sensitivity: Type A | IΔn: 0.03 … 5 A | Δt: 0 … 3 s | Frame: 3VA12
3VA9113-0RL21Type: RCD520B | Poles: 3-pole | Sensitivity: Type B / B+ | IΔn: 0.03…5 A (B+: 0.03…0.3 A) | Δt: 0 … 10 s | Frame: 3VA11
3VA9123-0RL30Type: RCD820 | Poles: 3-pole | Sensitivity: Type A | IΔn: 0.03 … 30 A | Δt: 0 … 10 s | Frame: 3VA20-21
3VA9223-0RL30Type: RCD820 | Poles: 3-pole | Sensitivity: Type A | IΔn: 0.03 … 30 A | Δt: 0 … 10 s | Frame: 3VA22
3VA9323-0RL30Type: RCD820 | Poles: 3-pole | Sensitivity: Type A | IΔn: 0.03 … 30 A | Δt: 0 … 10 s | Frame: 3VA23
3VA9423-0RL30Type: RCD820 | Poles: 3-pole | Sensitivity: Type A | IΔn: 0.03 … 30 A | Δt: 0 … 10 s | Frame: 3VA24
3VA9114-0RL10Type: RCD320 | Poles: 4-pole | Sensitivity: Type A | IΔn: 0.03 … 5 A | Δt: Instantaneous | Frame: 3VA11
3VA9114-0RL20Type: RCD520 | Poles: 4-pole | Sensitivity: Type A | IΔn: 0.03 … 5 A | Δt: 0 … 3 s | Frame: 3VA11
3VA9214-0RL20Type: RCD520 | Poles: 4-pole | Sensitivity: Type A | IΔn: 0.03 … 5 A | Δt: 0 … 3 s | Frame: 3VA12
3VA9114-0RL21Type: RCD520B | Poles: 4-pole | Sensitivity: Type B / B+ | IΔn: 0.03…5 A (B+: 0.03…0.3 A) | Δt: 0 … 10 s | Frame: 3VA11
3VA9124-0RL30Type: RCD820 | Poles: 4-pole | Sensitivity: Type A | IΔn: 0.03 … 30 A | Δt: 0 … 10 s | Frame: 3VA20-21
3VA9224-0RL30Type: RCD820 | Poles: 4-pole | Sensitivity: Type A | IΔn: 0.03 … 30 A | Δt: 0 … 10 s | Frame: 3VA22
3VA9324-0RL30Type: RCD820 | Poles: 4-pole | Sensitivity: Type A | IΔn: 0.03 … 30 A | Δt: 0 … 10 s | Frame: 3VA23
3VA9424-0RL30Type: RCD820 | Poles: 4-pole | Sensitivity: Type A | IΔn: 0.03 … 30 A | Δt: 0 … 10 s | Frame: 3VA24
3VA9988-0BR10Type: For RCD310 or RCD510 | Frame: 3VA11-12
3VA9927-0RC00Type: For RCD820 | Frame: 3VA20-24
