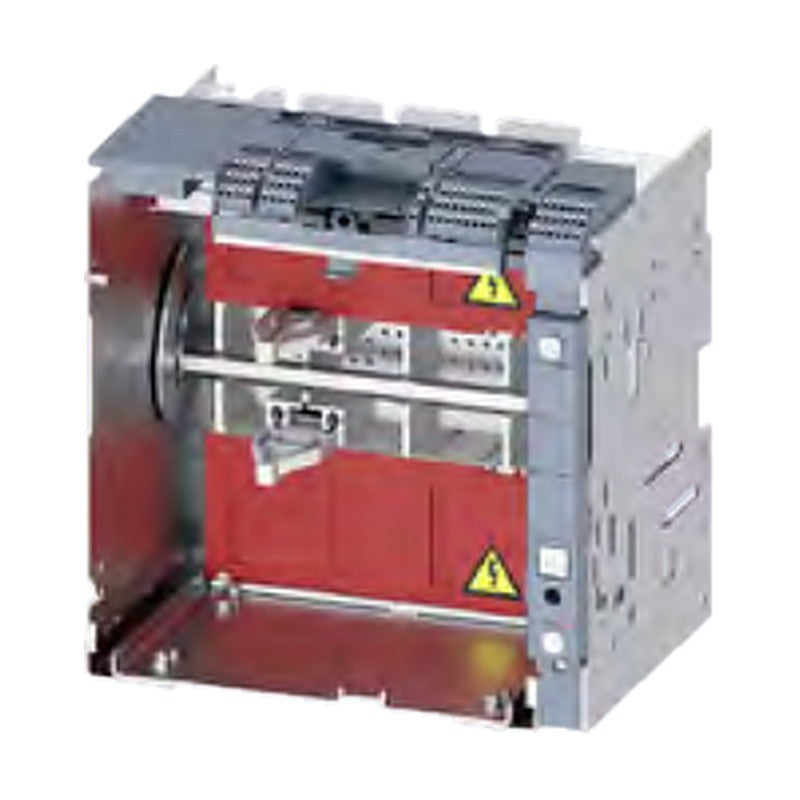

Siemens SENTRON 3VA27 guide frames, ETUs and trip unit accessories

Siemens SENTRON 3VA27 guide frames, ETUs and trip unit accessories

Guide frames, electronic trip units ETU320-ETU660, rating plugs, metering, CB bus and test modules for SENTRON 3VA27 MCCBs up to 1600 A.

Key features

  • Guide frames up to 1600 A, 3-pole and 4-pole, for rear, front and broadened connections
  • Electronic trip units ETU320/350/360 (rotary coding switches) and ETU650/660 (display)
  • Rating plugs 400 A to 1600 A incl. L = OFF and Rc versions
  • Metering functions MF Basic/Advanced, CTs and Rc-CT summation transformers
  • CB bus communications modules (PROFIBUS, PROFINET, Modbus TCP/RTU), IOM modules, test devices

Specifications

Brand Siemens
Product type Molded case circuit breaker accessory
Catalogue chapter LV 10 chapter 2, Molded Case Circuit Breakers
Ordering Article numbers as printed in LV 10
Product line SENTRON 3VA27 molded case circuit breakers
Frame 3VA27
Source Siemens Catalog LV 10 · 2026, p. 256-259
3VW8116-7AA01 Item: Guide frame (without breaker) | Version: 3-pole | Type: Rear vertical
3VW8116-7AB01 Item: Guide frame (without breaker) | Version: 3-pole | Type: Rear horizontal
3VW8116-7AE01 Item: Guide frame (without breaker) | Version: 3-pole | Type: Front straight bus connectors extended
3VW8116-7AF01 Item: Guide frame (without breaker) | Version: 3-pole | Type: Broadened bus connectors
3VW8116-7AG01 Item: Guide frame (without breaker) | Version: 3-pole | Type: Rear broadened bus connectors
3VW8116-7BA01 Item: Guide frame (without breaker) | Version: 4-pole | Type: Rear vertical
3VW8116-7BB01 Item: Guide frame (without breaker) | Version: 4-pole | Type: Rear horizontal
3VW8116-7BE01 Item: Guide frame (without breaker) | Version: 4-pole | Type: Front straight bus connectors extended
3VW8116-7BF01 Item: Guide frame (without breaker) | Version: 4-pole | Type: Broadened bus connectors
3VW8116-7BG01 Item: Guide frame (without breaker) | Version: 4-pole | Type: Rear broadened bus connectors
3VW9011-0AA61 Item: Rating plugs | Version: Rating plug | Detail: 1600 A | Accessory for: ETU320/350/360/650/660 | Mechanism: Stored energy + handle
3VW9011-0LF61 Item: Rating plugs | Version: Rating plug, L = OFF | Detail: 1600 A | Accessory for: ETU 6-series | Mechanism: Stored energy + handle
AccessoriesSiemens
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 3VA27 guide frames, ETUs and trip unit accessories

Brand Siemens·Accessories

Available part numbers (12)

3VW8116-7AA01, 3VW8116-7AB01, 3VW8116-7AE01, 3VW8116-7AF01, 3VW8116-7AG01, 3VW8116-7BA01, 3VW8116-7BB01, 3VW8116-7BE01, 3VW8116-7BF01, 3VW8116-7BG01 + 2 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3VW8116-7AA01Item: Guide frame (without breaker) | Version: 3-pole | Type: Rear vertical
3VW8116-7AB01Item: Guide frame (without breaker) | Version: 3-pole | Type: Rear horizontal
3VW8116-7AE01Item: Guide frame (without breaker) | Version: 3-pole | Type: Front straight bus connectors extended
3VW8116-7AF01Item: Guide frame (without breaker) | Version: 3-pole | Type: Broadened bus connectors
3VW8116-7AG01Item: Guide frame (without breaker) | Version: 3-pole | Type: Rear broadened bus connectors
3VW8116-7BA01Item: Guide frame (without breaker) | Version: 4-pole | Type: Rear vertical
3VW8116-7BB01Item: Guide frame (without breaker) | Version: 4-pole | Type: Rear horizontal
3VW8116-7BE01Item: Guide frame (without breaker) | Version: 4-pole | Type: Front straight bus connectors extended
3VW8116-7BF01Item: Guide frame (without breaker) | Version: 4-pole | Type: Broadened bus connectors
3VW8116-7BG01Item: Guide frame (without breaker) | Version: 4-pole | Type: Rear broadened bus connectors
3VW9011-0AA61Item: Rating plugs | Version: Rating plug | Detail: 1600 A | Accessory for: ETU320/350/360/650/660 | Mechanism: Stored energy + handle
3VW9011-0LF61Item: Rating plugs | Version: Rating plug, L = OFF | Detail: 1600 A | Accessory for: ETU 6-series | Mechanism: Stored energy + handle
