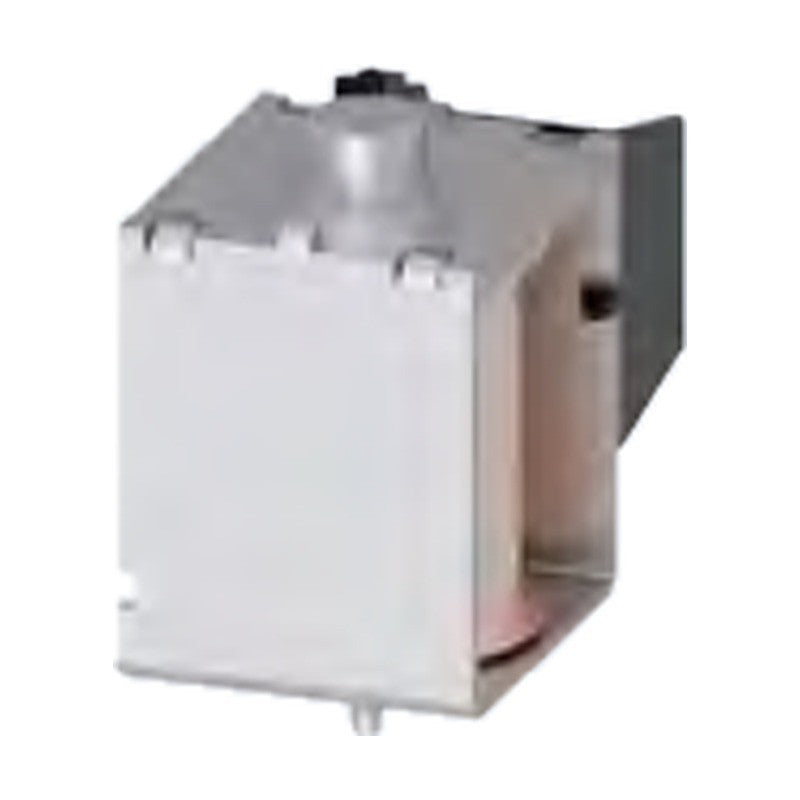

Siemens SENTRON 3WA Auxiliary Releases & Spring Charging Motors

Siemens SENTRON 3WA Auxiliary Releases & Spring Charging Motors

Closing coils, shunt trips, undervoltage releases, capacitor trip device and spring charging motors for SENTRON 3WA air circuit breakers.

Key features

  • Closing coils CC and shunt trips ST, 100% OP (uninterrupted duty) and 5% OP (momentary duty)
  • Communication-capable CC-COM / ST-COM for ready4COM breakers
  • Undervoltage releases UVR (instantaneous / short-time delayed) and UVR-t with 0.2-3.2 s delay
  • Spring charging motors 24 V DC up to 208-240 V AC / 220-250 V DC
  • Article numbers also apply to 3WL circuit breakers

Specifications

Brand Siemens
Product line SENTRON
Product family SENTRON 3WA11-3WA13 (also 3WL)
Accessory group Auxiliary releases and operating mechanism
Product type Air circuit breaker accessories
Ordering Quote on request
Source Siemens Catalog LV 10 · 2026, p. 101-102
3WA9111-0AD02 Accessory: Closing coil CC / shunt trip ST | Version: 100% OP, switching time ≤ 80 ms | Voltage: 24 … 30 V DC
3WA9111-0AD04 Accessory: Closing coil CC / shunt trip ST | Version: 100% OP, switching time ≤ 80 ms | Voltage: 48 … 60 V DC
3WA9111-0AD05 Accessory: Closing coil CC / shunt trip ST | Version: 100% OP, switching time ≤ 80 ms | Voltage: 110 ... 127 V AC/110 ... 125 V DC
3WA9111-0AD06 Accessory: Closing coil CC / shunt trip ST | Version: 100% OP, switching time ≤ 80 ms | Voltage: 208 ... 240 V AC/220 ... 250 V DC
3WA9111-0AD32 Accessory: Closing coil CC-COM / shunt trip ST-COM | Version: 100% OP ready4COM, 80 ms (COM 120 ms) | Voltage: 24 … 30 V DC
3WA9111-0AD34 Accessory: Closing coil CC-COM / shunt trip ST-COM | Version: 100% OP ready4COM, 80 ms (COM 120 ms) | Voltage: 48 … 60 V DC
3WA9111-0AD35 Accessory: Closing coil CC-COM / shunt trip ST-COM | Version: 100% OP ready4COM, 80 ms (COM 120 ms) | Voltage: 110 ... 127 V AC/110 ... 125 V DC
3WA9111-0AD36 Accessory: Closing coil CC-COM / shunt trip ST-COM | Version: 100% OP ready4COM, 80 ms (COM 120 ms) | Voltage: 208 ... 240 V AC/220 ... 250 V DC
3WA9111-0AD12 Accessory: Closing coil CC | Version: 5% OP, switching time 50 ms | Voltage: 24 … 30 V DC
3WA9111-0AD14 Accessory: Closing coil CC | Version: 5% OP, switching time 50 ms | Voltage: 48 … 60 V DC
3WA9111-0AD15 Accessory: Closing coil CC | Version: 5% OP, switching time 50 ms | Voltage: 110 ... 127 V AC/110 ... 125 V DC
3WA9111-0AD16 Accessory: Closing coil CC | Version: 5% OP, switching time 50 ms | Voltage: 208 ... 240 V AC/220 ... 250 V DC
3WA9111-0AD22 Accessory: Shunt trip ST | Version: 5% OP, switching time 50 ms | Voltage: 24 … 30 V DC
3WA9111-0AD24 Accessory: Shunt trip ST | Version: 5% OP, switching time 50 ms | Voltage: 48 … 60 V DC
3WA9111-0AD25 Accessory: Shunt trip ST | Version: 5% OP, switching time 50 ms | Voltage: 110 ... 127 V AC/110 ... 125 V DC
3WA9111-0AD26 Accessory: Shunt trip ST | Version: 5% OP, switching time 50 ms | Voltage: 208 ... 240 V AC/220 ... 250 V DC
3WA9111-0AD81 Accessory: Capacitor trip device | Voltage: 208…240 V AC / 220…250 V DC
3WA9111-0AE02 Accessory: Undervoltage release UVR | Version: UVR, instantaneous / delayed ≤ 0.2 s | Voltage: 24 … 30 V DC
3WA9111-0AE04 Accessory: Undervoltage release UVR | Version: UVR, instantaneous / delayed ≤ 0.2 s | Voltage: 48 … 60 V DC
3WA9111-0AE05 Accessory: Undervoltage release UVR | Version: UVR, instantaneous / delayed ≤ 0.2 s | Voltage: 110 ... 127 V AC/110 ... 125 V DC
3WA9111-0AE06 Accessory: Undervoltage release UVR | Version: UVR, instantaneous / delayed ≤ 0.2 s | Voltage: 208 ... 240 V AC/220 ... 250 V DC
3WA9111-0AE07 Accessory: Undervoltage release UVR | Version: UVR, instantaneous / delayed ≤ 0.2 s | Voltage: 380 … 415 V AC
3WA9111-0AE13 Accessory: Undervoltage release UVR | Version: UVR-t, adjustable delay 0.2 … 3.2 s | Voltage: 48 V DC
3WA9111-0AE14 Accessory: Undervoltage release UVR | Version: UVR-t, adjustable delay 0.2 … 3.2 s | Voltage: 60 V DC
3WA9111-0AE15 Accessory: Undervoltage release UVR | Version: UVR-t, adjustable delay 0.2 … 3.2 s | Voltage: 110 ... 127 V AC/110 ... 125 V DC
3WA9111-0AE16 Accessory: Undervoltage release UVR | Version: UVR-t, adjustable delay 0.2 … 3.2 s | Voltage: 208 ... 240 V AC/220 ... 250 V DC
3WA9111-0AE17 Accessory: Undervoltage release UVR | Version: UVR-t, adjustable delay 0.2 … 3.2 s | Voltage: 380 … 415 V AC
3WA9111-0AF02 Accessory: Spring charging motor | Voltage: 24 … 30 V DC
3WA9111-0AF04 Accessory: Spring charging motor | Voltage: 48 … 60 V DC
3WA9111-0AF05 Accessory: Spring charging motor | Voltage: 110 ... 127 V AC/110 ... 125 V DC
3WA9111-0AF06 Accessory: Spring charging motor | Voltage: 208 ... 240 V AC/220 ... 250 V DC
AccessoriesSiemens
31 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 3WA Auxiliary Releases & Spring Charging Motors

Brand Siemens·Accessories

Available part numbers (31)

3WA9111-0AD02, 3WA9111-0AD04, 3WA9111-0AD05, 3WA9111-0AD06, 3WA9111-0AD32, 3WA9111-0AD34, 3WA9111-0AD35, 3WA9111-0AD36, 3WA9111-0AD12, 3WA9111-0AD14 + 21 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3WA9111-0AD02Accessory: Closing coil CC / shunt trip ST | Version: 100% OP, switching time ≤ 80 ms | Voltage: 24 … 30 V DC
3WA9111-0AD04Accessory: Closing coil CC / shunt trip ST | Version: 100% OP, switching time ≤ 80 ms | Voltage: 48 … 60 V DC
3WA9111-0AD05Accessory: Closing coil CC / shunt trip ST | Version: 100% OP, switching time ≤ 80 ms | Voltage: 110 ... 127 V AC/110 ... 125 V DC
3WA9111-0AD06Accessory: Closing coil CC / shunt trip ST | Version: 100% OP, switching time ≤ 80 ms | Voltage: 208 ... 240 V AC/220 ... 250 V DC
3WA9111-0AD32Accessory: Closing coil CC-COM / shunt trip ST-COM | Version: 100% OP ready4COM, 80 ms (COM 120 ms) | Voltage: 24 … 30 V DC
3WA9111-0AD34Accessory: Closing coil CC-COM / shunt trip ST-COM | Version: 100% OP ready4COM, 80 ms (COM 120 ms) | Voltage: 48 … 60 V DC
3WA9111-0AD35Accessory: Closing coil CC-COM / shunt trip ST-COM | Version: 100% OP ready4COM, 80 ms (COM 120 ms) | Voltage: 110 ... 127 V AC/110 ... 125 V DC
3WA9111-0AD36Accessory: Closing coil CC-COM / shunt trip ST-COM | Version: 100% OP ready4COM, 80 ms (COM 120 ms) | Voltage: 208 ... 240 V AC/220 ... 250 V DC
3WA9111-0AD12Accessory: Closing coil CC | Version: 5% OP, switching time 50 ms | Voltage: 24 … 30 V DC
3WA9111-0AD14Accessory: Closing coil CC | Version: 5% OP, switching time 50 ms | Voltage: 48 … 60 V DC
3WA9111-0AD15Accessory: Closing coil CC | Version: 5% OP, switching time 50 ms | Voltage: 110 ... 127 V AC/110 ... 125 V DC
3WA9111-0AD16Accessory: Closing coil CC | Version: 5% OP, switching time 50 ms | Voltage: 208 ... 240 V AC/220 ... 250 V DC
3WA9111-0AD22Accessory: Shunt trip ST | Version: 5% OP, switching time 50 ms | Voltage: 24 … 30 V DC
3WA9111-0AD24Accessory: Shunt trip ST | Version: 5% OP, switching time 50 ms | Voltage: 48 … 60 V DC
3WA9111-0AD25Accessory: Shunt trip ST | Version: 5% OP, switching time 50 ms | Voltage: 110 ... 127 V AC/110 ... 125 V DC
3WA9111-0AD26Accessory: Shunt trip ST | Version: 5% OP, switching time 50 ms | Voltage: 208 ... 240 V AC/220 ... 250 V DC
3WA9111-0AD81Accessory: Capacitor trip device | Voltage: 208…240 V AC / 220…250 V DC
3WA9111-0AE02Accessory: Undervoltage release UVR | Version: UVR, instantaneous / delayed ≤ 0.2 s | Voltage: 24 … 30 V DC
3WA9111-0AE04Accessory: Undervoltage release UVR | Version: UVR, instantaneous / delayed ≤ 0.2 s | Voltage: 48 … 60 V DC
3WA9111-0AE05Accessory: Undervoltage release UVR | Version: UVR, instantaneous / delayed ≤ 0.2 s | Voltage: 110 ... 127 V AC/110 ... 125 V DC
3WA9111-0AE06Accessory: Undervoltage release UVR | Version: UVR, instantaneous / delayed ≤ 0.2 s | Voltage: 208 ... 240 V AC/220 ... 250 V DC
3WA9111-0AE07Accessory: Undervoltage release UVR | Version: UVR, instantaneous / delayed ≤ 0.2 s | Voltage: 380 … 415 V AC
3WA9111-0AE13Accessory: Undervoltage release UVR | Version: UVR-t, adjustable delay 0.2 … 3.2 s | Voltage: 48 V DC
3WA9111-0AE14Accessory: Undervoltage release UVR | Version: UVR-t, adjustable delay 0.2 … 3.2 s | Voltage: 60 V DC
3WA9111-0AE15Accessory: Undervoltage release UVR | Version: UVR-t, adjustable delay 0.2 … 3.2 s | Voltage: 110 ... 127 V AC/110 ... 125 V DC
3WA9111-0AE16Accessory: Undervoltage release UVR | Version: UVR-t, adjustable delay 0.2 … 3.2 s | Voltage: 208 ... 240 V AC/220 ... 250 V DC
3WA9111-0AE17Accessory: Undervoltage release UVR | Version: UVR-t, adjustable delay 0.2 … 3.2 s | Voltage: 380 … 415 V AC
3WA9111-0AF02Accessory: Spring charging motor | Voltage: 24 … 30 V DC
3WA9111-0AF04Accessory: Spring charging motor | Voltage: 48 … 60 V DC
3WA9111-0AF05Accessory: Spring charging motor | Voltage: 110 ... 127 V AC/110 ... 125 V DC
3WA9111-0AF06Accessory: Spring charging motor | Voltage: 208 ... 240 V AC/220 ... 250 V DC
