• Siemens SENTRON 3WA CubicleBUS Modules, Voltage Tap & SICAM
1 1

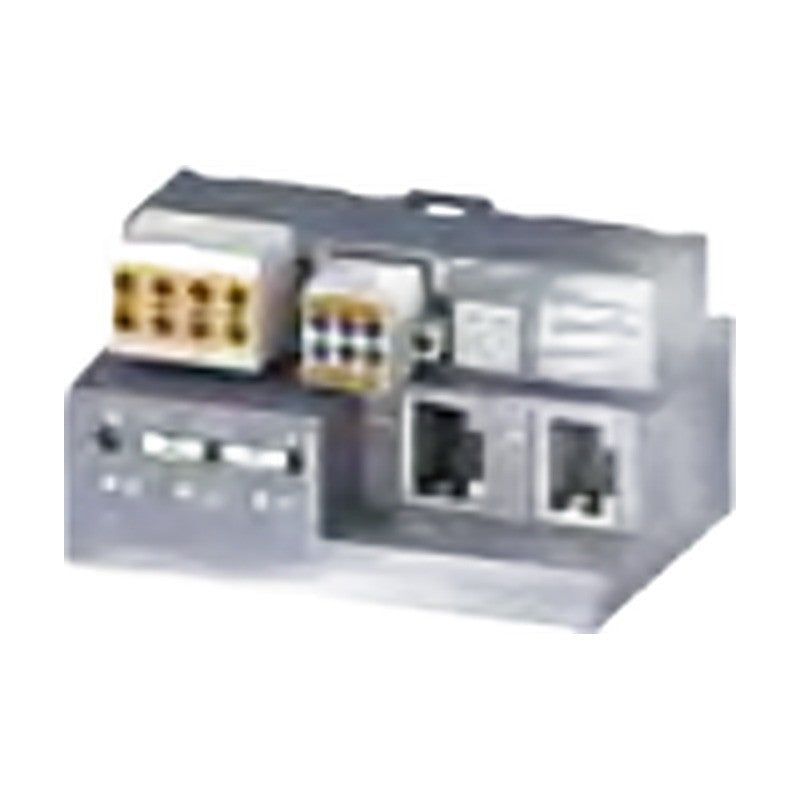

Siemens SENTRON 3WA CubicleBUS Modules, Voltage Tap & SICAM

Siemens SENTRON 3WA CubicleBUS Modules, Voltage Tap & SICAM

CubicleBUS communication and I/O modules, internal voltage tap parts and SICAM A8000 IEC 61850 interfaces for SENTRON 3WA air circuit breakers.

Key features

  • COM190 PROFINET IO/Modbus TCP and COM150 Modbus RTU communications modules
  • IOM230 / IOM350 digital I/O modules, ZSI200 zone-selective interlocking, adapters and terminating resistor
  • Internal voltage tap conversion and retrofit sets, VTM680/VTM640 voltage tap modules
  • Retrofit kit for an external voltage transformer
  • SICAM A8000 CP-8021/8031/8050 and PS-8620/8622 for IEC 61850 connection

Specifications

Brand Siemens
Product line SENTRON
Product family SENTRON 3WA11-3WA13 air circuit breakers
Accessory group Communication, voltage tap and interfaces
Product type Air circuit breaker accessories
Ordering Quote on request
Source Siemens Catalog LV 10 · 2026, p. 104-109
3WA9111-0EC13 Accessory: COM190 PROFINET IO/Modbus TCP module | Version: Second module, incl. adapters/cables
3WA9111-0EC15 Accessory: COM150 Modbus RTU module | Version: Second module, incl. adapters/cables
3WA9111-0EC11 Accessory: IOM230 digital I/O module (2 DI/3 DQ) | Version: Output NO, 0.2 A at 110-230 V AC
3WA9111-0EC12 Accessory: IOM350 digital I/O module (3 DI/5 DQ) | Version: DIN rail, output CO, 10 A
3WA9111-0EC50 Accessory: CubicleBUS terminating resistor | Version: For the last module
3WA9111-0EC60 Accessory: CubicleBUS module adapter | Version: For secondary disconnect terminal
3WA9111-0EC61 Accessory: CubicleBUS module adapter | Version: For DIN rail
3WA9111-0EC10 Accessory: ZSI200 zone-selective interlocking | Version: Incl. adapters, cables, terminator
3WA9111-0EK11 Accessory: Voltage tap conversion set | Version: From bottom to top | Poles: 3-pole | Size: 1
3WA9111-0EK12 Accessory: Voltage tap conversion set | Version: From bottom to top | Poles: 3-pole | Size: 2
3WA9111-0EK13 Accessory: Voltage tap conversion set | Version: From bottom to top | Poles: 3-pole | Size: 3
3WA9111-0EK21 Accessory: Voltage tap conversion set | Version: From bottom to top | Poles: 4-pole | Size: 1
3WA9111-0EK22 Accessory: Voltage tap conversion set | Version: From bottom to top | Poles: 4-pole | Size: 2
3WA9111-0EK23 Accessory: Voltage tap conversion set | Version: From bottom to top | Poles: 4-pole | Size: 3
3WA9111-0EK31 Accessory: Voltage tap conversion set | Version: From top to bottom | Poles: 3-pole | Size: 1
3WA9111-0EK32 Accessory: Voltage tap conversion set | Version: From top to bottom | Poles: 3-pole | Size: 2
3WA9111-0EK33 Accessory: Voltage tap conversion set | Version: From top to bottom | Poles: 3-pole | Size: 3
3WA9111-0EK41 Accessory: Voltage tap conversion set | Version: From top to bottom | Poles: 4-pole | Size: 1
3WA9111-0EK42 Accessory: Voltage tap conversion set | Version: From top to bottom | Poles: 4-pole | Size: 2
3WA9111-0EK43 Accessory: Voltage tap conversion set | Version: From top to bottom | Poles: 4-pole | Size: 3
3WA9111-0EK51 Accessory: Voltage tap retrofit (lower paths) | Poles: 3-pole | Size: 1 | Breaking capacity: N, S, M, H, C (VTM680, ETU600 supply)
3WA9111-0EK52 Accessory: Voltage tap retrofit (lower paths) | Poles: 3-pole | Size: 2 | Breaking capacity: N, S, M, H, C (VTM680, ETU600 supply)
3WA9111-0EK53 Accessory: Voltage tap retrofit (lower paths) | Poles: 3-pole | Size: 3 | Breaking capacity: N, S, M, H, C (VTM680, ETU600 supply)
3WA9111-0EK61 Accessory: Voltage tap retrofit (lower paths) | Poles: 4-pole | Size: 1 | Breaking capacity: N, S, M, H, C (VTM680, ETU600 supply)
3WA9111-0EK62 Accessory: Voltage tap retrofit (lower paths) | Poles: 4-pole | Size: 2 | Breaking capacity: N, S, M, H, C (VTM680, ETU600 supply)
3WA9111-0EK63 Accessory: Voltage tap retrofit (lower paths) | Poles: 4-pole | Size: 3 | Breaking capacity: N, S, M, H, C (VTM680, ETU600 supply)
3WA9111-0EK55 Accessory: Voltage tap retrofit (lower paths) | Poles: 3-pole | Size: 1 | Breaking capacity: E (VTM640)
3WA9111-0EK56 Accessory: Voltage tap retrofit (lower paths) | Poles: 3-pole | Size: 2 | Breaking capacity: E (VTM640)
3WA9111-0EK57 Accessory: Voltage tap retrofit (lower paths) | Poles: 3-pole | Size: 3 | Breaking capacity: E (VTM640)
3WA9111-0EK65 Accessory: Voltage tap retrofit (lower paths) | Poles: 4-pole | Size: 1 | Breaking capacity: E (VTM640)
3WA9111-0EK66 Accessory: Voltage tap retrofit (lower paths) | Poles: 4-pole | Size: 2 | Breaking capacity: E (VTM640)
3WA9111-0EK67 Accessory: Voltage tap retrofit (lower paths) | Poles: 4-pole | Size: 3 | Breaking capacity: E (VTM640)
3WA9111-0EK81 Accessory: External voltage transformer kit | Version: Incl. VTM640 voltage tap module | Size: 2, 3
3WA9111-0EM12 Accessory: Voltage tap module | Version: VTM680, ETU600 power supply | Breaking capacity: N, S, M, H, C
3WA9111-0EM11 Accessory: Voltage tap module | Version: VTM640 | Breaking capacity: E
6MF2802-1AA00 Accessory: SICAM A8000 IEC 61850 interface | Version: SICAM CP-8021 (1 × 3WA + 1 × 3VA)
6MF2803-1AA00 Accessory: SICAM A8000 IEC 61850 interface | Version: SICAM CP-8031 (1 × 3WA + 8 × 3VA)
6MF2805-0AA00 Accessory: SICAM A8000 IEC 61850 interface | Version: SICAM CP-8050 (up to 3 × 3WA)
6MF2862-0AA00 Accessory: SICAM A8000 IEC 61850 interface | Version: SICAM PS-8620 power supply | Voltage: 24 … 60 V DC (12 W)
6MF2862-2AA00 Accessory: SICAM A8000 IEC 61850 interface | Version: SICAM PS-8622 power supply | Voltage: 110 … 220 V DC (12 W)
AccessoriesSiemens
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 3WA CubicleBUS Modules, Voltage Tap & SICAM

Brand Siemens·Accessories

Available part numbers (40)

3WA9111-0EC13, 3WA9111-0EC15, 3WA9111-0EC11, 3WA9111-0EC12, 3WA9111-0EC50, 3WA9111-0EC60, 3WA9111-0EC61, 3WA9111-0EC10, 3WA9111-0EK11, 3WA9111-0EK12 + 30 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3WA9111-0EC13Accessory: COM190 PROFINET IO/Modbus TCP module | Version: Second module, incl. adapters/cables
3WA9111-0EC15Accessory: COM150 Modbus RTU module | Version: Second module, incl. adapters/cables
3WA9111-0EC11Accessory: IOM230 digital I/O module (2 DI/3 DQ) | Version: Output NO, 0.2 A at 110-230 V AC
3WA9111-0EC12Accessory: IOM350 digital I/O module (3 DI/5 DQ) | Version: DIN rail, output CO, 10 A
3WA9111-0EC50Accessory: CubicleBUS terminating resistor | Version: For the last module
3WA9111-0EC60Accessory: CubicleBUS module adapter | Version: For secondary disconnect terminal
3WA9111-0EC61Accessory: CubicleBUS module adapter | Version: For DIN rail
3WA9111-0EC10Accessory: ZSI200 zone-selective interlocking | Version: Incl. adapters, cables, terminator
3WA9111-0EK11Accessory: Voltage tap conversion set | Version: From bottom to top | Poles: 3-pole | Size: 1
3WA9111-0EK12Accessory: Voltage tap conversion set | Version: From bottom to top | Poles: 3-pole | Size: 2
3WA9111-0EK13Accessory: Voltage tap conversion set | Version: From bottom to top | Poles: 3-pole | Size: 3
3WA9111-0EK21Accessory: Voltage tap conversion set | Version: From bottom to top | Poles: 4-pole | Size: 1
3WA9111-0EK22Accessory: Voltage tap conversion set | Version: From bottom to top | Poles: 4-pole | Size: 2
3WA9111-0EK23Accessory: Voltage tap conversion set | Version: From bottom to top | Poles: 4-pole | Size: 3
3WA9111-0EK31Accessory: Voltage tap conversion set | Version: From top to bottom | Poles: 3-pole | Size: 1
3WA9111-0EK32Accessory: Voltage tap conversion set | Version: From top to bottom | Poles: 3-pole | Size: 2
3WA9111-0EK33Accessory: Voltage tap conversion set | Version: From top to bottom | Poles: 3-pole | Size: 3
3WA9111-0EK41Accessory: Voltage tap conversion set | Version: From top to bottom | Poles: 4-pole | Size: 1
3WA9111-0EK42Accessory: Voltage tap conversion set | Version: From top to bottom | Poles: 4-pole | Size: 2
3WA9111-0EK43Accessory: Voltage tap conversion set | Version: From top to bottom | Poles: 4-pole | Size: 3
3WA9111-0EK51Accessory: Voltage tap retrofit (lower paths) | Poles: 3-pole | Size: 1 | Breaking capacity: N, S, M, H, C (VTM680, ETU600 supply)
3WA9111-0EK52Accessory: Voltage tap retrofit (lower paths) | Poles: 3-pole | Size: 2 | Breaking capacity: N, S, M, H, C (VTM680, ETU600 supply)
3WA9111-0EK53Accessory: Voltage tap retrofit (lower paths) | Poles: 3-pole | Size: 3 | Breaking capacity: N, S, M, H, C (VTM680, ETU600 supply)
3WA9111-0EK61Accessory: Voltage tap retrofit (lower paths) | Poles: 4-pole | Size: 1 | Breaking capacity: N, S, M, H, C (VTM680, ETU600 supply)
3WA9111-0EK62Accessory: Voltage tap retrofit (lower paths) | Poles: 4-pole | Size: 2 | Breaking capacity: N, S, M, H, C (VTM680, ETU600 supply)
3WA9111-0EK63Accessory: Voltage tap retrofit (lower paths) | Poles: 4-pole | Size: 3 | Breaking capacity: N, S, M, H, C (VTM680, ETU600 supply)
3WA9111-0EK55Accessory: Voltage tap retrofit (lower paths) | Poles: 3-pole | Size: 1 | Breaking capacity: E (VTM640)
3WA9111-0EK56Accessory: Voltage tap retrofit (lower paths) | Poles: 3-pole | Size: 2 | Breaking capacity: E (VTM640)
3WA9111-0EK57Accessory: Voltage tap retrofit (lower paths) | Poles: 3-pole | Size: 3 | Breaking capacity: E (VTM640)
3WA9111-0EK65Accessory: Voltage tap retrofit (lower paths) | Poles: 4-pole | Size: 1 | Breaking capacity: E (VTM640)
3WA9111-0EK66Accessory: Voltage tap retrofit (lower paths) | Poles: 4-pole | Size: 2 | Breaking capacity: E (VTM640)
3WA9111-0EK67Accessory: Voltage tap retrofit (lower paths) | Poles: 4-pole | Size: 3 | Breaking capacity: E (VTM640)
3WA9111-0EK81Accessory: External voltage transformer kit | Version: Incl. VTM640 voltage tap module | Size: 2, 3
3WA9111-0EM12Accessory: Voltage tap module | Version: VTM680, ETU600 power supply | Breaking capacity: N, S, M, H, C
3WA9111-0EM11Accessory: Voltage tap module | Version: VTM640 | Breaking capacity: E
6MF2802-1AA00Accessory: SICAM A8000 IEC 61850 interface | Version: SICAM CP-8021 (1 × 3WA + 1 × 3VA)
6MF2803-1AA00Accessory: SICAM A8000 IEC 61850 interface | Version: SICAM CP-8031 (1 × 3WA + 8 × 3VA)
6MF2805-0AA00Accessory: SICAM A8000 IEC 61850 interface | Version: SICAM CP-8050 (up to 3 × 3WA)
6MF2862-0AA00Accessory: SICAM A8000 IEC 61850 interface | Version: SICAM PS-8620 power supply | Voltage: 24 … 60 V DC (12 W)
6MF2862-2AA00Accessory: SICAM A8000 IEC 61850 interface | Version: SICAM PS-8622 power supply | Voltage: 110 … 220 V DC (12 W)
