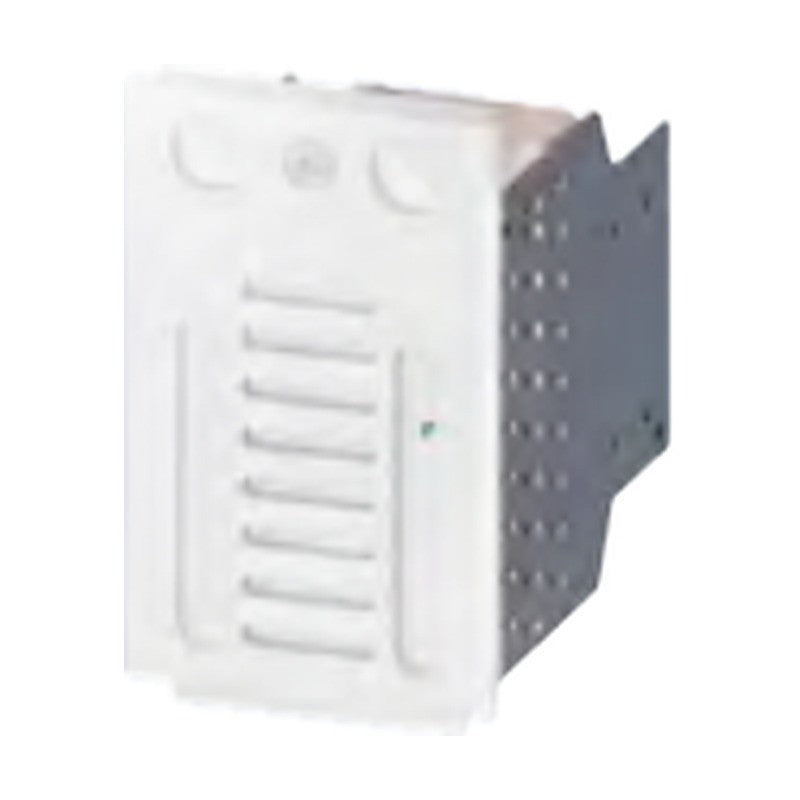

Siemens SENTRON 3WA Arc Chutes, Main Contacts & Mechanical Parts

Siemens SENTRON 3WA Arc Chutes, Main Contacts & Mechanical Parts

Arc chutes, main contact elements, covers, coding, grounding connections and conversion kits for SENTRON 3WA air circuit breakers.

Key features

  • Arc chutes for 690 V AC, 1000 V AC, 600 V DC and 1000 V DC versions and arc chute covers
  • Main contact element sets for AC breakers and DC non-automatic breakers
  • Door sealing frame, IP55 protective cover and coding for withdrawable version
  • Grounding connections between guide frame and breaker, support bracket
  • Conversion kits from fixed-mounted to withdrawable breakers

Specifications

Brand Siemens
Product line SENTRON
Product family SENTRON 3WA11-3WA13 air circuit breakers
Accessory group Mechanical accessories and spare parts
Product type Air circuit breaker accessories
Ordering Quote on request
Source Siemens Catalog LV 10 · 2026, p. 103-108
3WA9111-0AP01 Accessory: Door sealing frame | Version: Spare part for option T40
3WA9111-0AP03 Accessory: Protective cover IP55 | Version: Hood, removable
3WA9111-0AS01 Accessory: Arc chute | Size: 1 | Breaking capacity: N, S | Voltage: 690 V AC
3WA9111-0AS02 Accessory: Arc chute | Size: 1 | Breaking capacity: M | Voltage: 690 V AC
3WA9111-0AS10 Accessory: Arc chute | Size: 2 | Breaking capacity: S, M, H | Voltage: 690 V AC
3WA9111-0AS11 Accessory: Arc chute | Size: 2 | Breaking capacity: C | Voltage: 690 V AC
3WA9111-0AS17 Accessory: Arc chute | Size: 3 | Breaking capacity: H | Voltage: 690 V AC
3WA9111-0AS18 Accessory: Arc chute | Size: 3 | Breaking capacity: C (690 V), E (1000 V) | Voltage: 690 V AC / 1000 V AC
3WA9111-0AS04 Accessory: Arc chute | Size: 1 | Breaking capacity: E, fixed-mounted | Voltage: 1000 V AC
3WA9111-0AS05 Accessory: Arc chute | Size: 1 | Breaking capacity: E, withdrawable | Voltage: 1000 V AC
3WA9111-0AS12 Accessory: Arc chute | Size: 2 | Breaking capacity: E | Voltage: 1000 V AC
3WA9111-0AS13 Accessory: Arc chute | Size: 2 | Breaking capacity: D | Voltage: 600 V DC
3WA9111-0AS14 Accessory: Arc chute | Size: 2 | Breaking capacity: E | Voltage: 1000 V DC
3WA9111-0AS31 Accessory: Arc chute cover | Poles: 3-pole | Size: 1
3WA9111-0AS32 Accessory: Arc chute cover | Poles: 3-pole | Size: 2
3WA9111-0AS33 Accessory: Arc chute cover | Poles: 3-pole | Size: 3
3WA9111-0AS41 Accessory: Arc chute cover | Poles: 4-pole | Size: 1
3WA9111-0AS42 Accessory: Arc chute cover | Poles: 4-pole | Size: 2
3WA9111-0AS43 Accessory: Arc chute cover | Poles: 4-pole | Size: 3
3WA9111-0AR11 Accessory: Coding for withdrawable version | Size: 1, 2
3WA9111-0AR12 Accessory: Coding for withdrawable version | Size: 3
3WA9111-0BG01 Accessory: Grounding connection | Version: For guide frames | Size: 1, 2
3WA9111-0BG02 Accessory: Grounding connection | Version: For guide frames | Size: 3
3WA9111-0BG11 Accessory: Grounding connection | Version: For withdrawable circuit breakers | Poles: 3-pole | Size: 1
3WA9111-0BG21 Accessory: Grounding connection | Version: For withdrawable circuit breakers | Poles: 4-pole | Size: 1
3WA9111-0BG12 Accessory: Grounding connection | Version: For withdrawable circuit breakers | Poles: 3-pole | Size: 2
3WA9111-0BG22 Accessory: Grounding connection | Version: For withdrawable circuit breakers | Poles: 4-pole | Size: 2
3WA9111-0BG13 Accessory: Grounding connection | Version: For withdrawable circuit breakers | Poles: 3-pole | Size: 3
3WA9111-0BG23 Accessory: Grounding connection | Version: For withdrawable circuit breakers | Poles: 4-pole | Size: 3
3WA9111-0BB50 Accessory: Support bracket | Version: Fixed-mounted, vertical plane, SZ 1/2
3WA9111-0BC11 Accessory: Fixed-to-withdrawable conversion kit | Poles: 3-pole | Size: 1
3WA9111-0BC12 Accessory: Fixed-to-withdrawable conversion kit | Poles: 3-pole | Size: 2
3WA9111-0BC13 Accessory: Fixed-to-withdrawable conversion kit | Poles: 3-pole | Size: 3
3WA9111-0BC14 Accessory: Fixed-to-withdrawable conversion kit | Poles: 4-pole | Size: 1
3WA9111-0BC15 Accessory: Fixed-to-withdrawable conversion kit | Poles: 4-pole | Size: 2
3WA9111-0BC16 Accessory: Fixed-to-withdrawable conversion kit | Poles: 4-pole | Size: 3
3WA9111-0AQ01 Accessory: Main contact elements (AC CB) | Poles: 3 | Size: 1 | Breaking capacity: N | Rating: ≤ 1000 A
3WA9111-0AQ02 Accessory: Main contact elements (AC CB) | Poles: 3 | Size: 1 | Breaking capacity: N | Rating: 1250 A
3WA9111-0AQ04 Accessory: Main contact elements (AC CB) | Poles: 3 | Size: 1 | Breaking capacity: N (1600 A); S | Rating: 1250 … 1600 A
3WA9111-0AQ03 Accessory: Main contact elements (AC CB) | Poles: 3 | Size: 1 | Breaking capacity: S | Rating: ≤ 1000 A
3WA9111-0AQ05 Accessory: Main contact elements (AC CB) | Poles: 3 | Size: 1 | Breaking capacity: N, S | Rating: 2000 … 2500 A
3WA9111-0AQ08 Accessory: Main contact elements (AC CB) | Poles: 3 | Size: 2 | Breaking capacity: S, M, H, E | Rating: 2000 A
3WA9111-0AQ11 Accessory: Main contact elements (AC CB) | Poles: 3 | Size: 2 | Breaking capacity: S, M, H, E | Rating: 2500 A
3WA9111-0AQ13 Accessory: Main contact elements (AC CB) | Poles: 3 | Size: 2 | Breaking capacity: S, M, H, E | Rating: 3200 A
3WA9111-0AQ15 Accessory: Main contact elements (AC CB) | Poles: 3 | Size: 2 | Breaking capacity: S, M, H, E | Rating: 4000 A
3WA9111-0AQ20 Accessory: Main contact elements (AC CB) | Poles: 3 | Size: 3 | Breaking capacity: H | Rating: 4000 A
3WA9111-0AQ22 Accessory: Main contact elements (AC CB) | Poles: 3 | Size: 3 | Breaking capacity: H | Rating: 5000 … 6300 A
3WA9111-0AQ51 Accessory: Main contact elements (AC CB) | Poles: 4 | Size: 1 | Breaking capacity: N | Rating: ≤ 1000 A
3WA9111-0AQ52 Accessory: Main contact elements (AC CB) | Poles: 4 | Size: 1 | Breaking capacity: N | Rating: 1250 A
3WA9111-0AQ54 Accessory: Main contact elements (AC CB) | Poles: 4 | Size: 1 | Breaking capacity: N (1600 A); S | Rating: 1250 … 1600 A
3WA9111-0AQ53 Accessory: Main contact elements (AC CB) | Poles: 4 | Size: 1 | Breaking capacity: S | Rating: ≤ 1000 A
3WA9111-0AQ55 Accessory: Main contact elements (AC CB) | Poles: 4 | Size: 1 | Breaking capacity: N, S | Rating: 2000 … 2500 A
3WA9111-0AQ58 Accessory: Main contact elements (AC CB) | Poles: 4 | Size: 2 | Breaking capacity: S, M, H, E | Rating: 2000 A
3WA9111-0AQ61 Accessory: Main contact elements (AC CB) | Poles: 4 | Size: 2 | Breaking capacity: S, M, H, E | Rating: 2500 A
3WA9111-0AQ63 Accessory: Main contact elements (AC CB) | Poles: 4 | Size: 2 | Breaking capacity: S, M, H, E | Rating: 3200 A
3WA9111-0AQ65 Accessory: Main contact elements (AC CB) | Poles: 4 | Size: 2 | Breaking capacity: S, M, H, E | Rating: 4000 A
3WA9111-0AQ70 Accessory: Main contact elements (AC CB) | Poles: 4 | Size: 3 | Breaking capacity: H | Rating: 4000 A
3WA9111-0AQ72 Accessory: Main contact elements (AC CB) | Poles: 4 | Size: 3 | Breaking capacity: H | Rating: 5000 … 6300 A
3WA9111-0AQ17 Accessory: Main contact elements (DC non-auto) | Poles: 3 | Size: 2 | Breaking capacity: D, E | Rating: 1000/2000 A
3WA9111-0AQ18 Accessory: Main contact elements (DC non-auto) | Poles: 3 | Size: 2 | Breaking capacity: D, E | Rating: 4000 A
3WA9111-0AQ67 Accessory: Main contact elements (DC non-auto) | Poles: 4 | Size: 2 | Breaking capacity: D, E | Rating: 1000/2000 A
3WA9111-0AQ68 Accessory: Main contact elements (DC non-auto) | Poles: 4 | Size: 2 | Breaking capacity: D, E | Rating: 4000 A
AccessoriesSiemens
62 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 3WA Arc Chutes, Main Contacts & Mechanical Parts

Brand Siemens·Accessories

Available part numbers (62)

3WA9111-0AP01, 3WA9111-0AP03, 3WA9111-0AS01, 3WA9111-0AS02, 3WA9111-0AS10, 3WA9111-0AS11, 3WA9111-0AS17, 3WA9111-0AS18, 3WA9111-0AS04, 3WA9111-0AS05 + 52 more — see full table ↓
