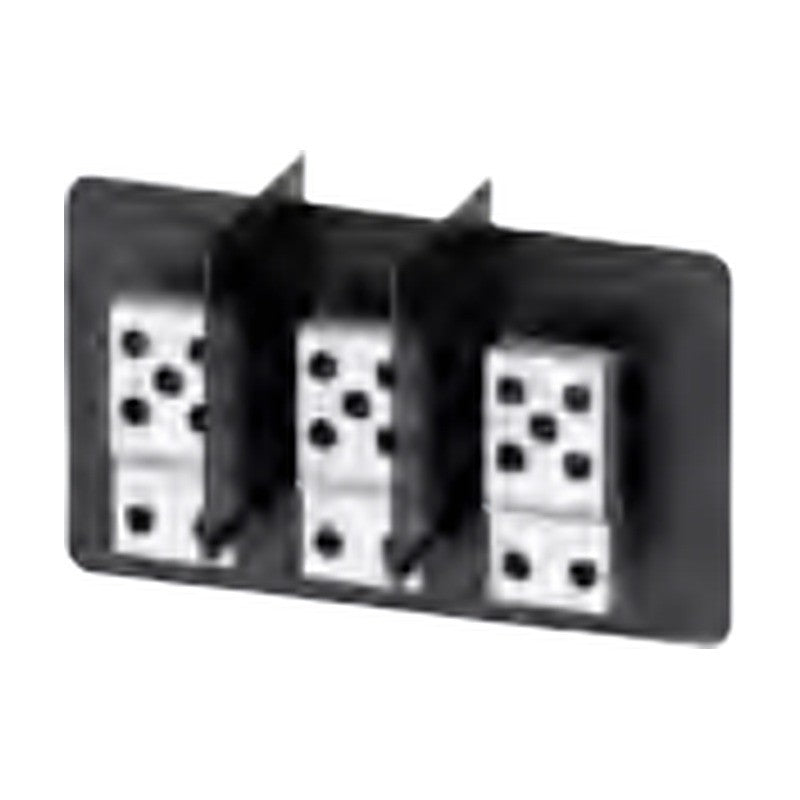

Siemens SENTRON 3WL10 Main Connections, Covers & Phase Barriers

Siemens SENTRON 3WL10 Main Connections, Covers & Phase Barriers

Front, rear and Cu/Al cable main connections, terminal covers, phase barriers and mounting supports for SENTRON 3WL10 air circuit breakers.

Key features

  • Front and rear main connections to IEC 60947-2 for fixed-mounted and withdrawable versions
  • Extended and broadened connections incl. insulation plate and phase barriers
  • Cu/Al circular conductor terminals 4 × 240 mm²
  • Terminal covers and phase barriers 100/200 mm for fixed-mounted breakers
  • Floor mounting supports, side wall extension kit and push-in auxiliary supply connectors

Specifications

Brand Siemens
Product line SENTRON
Product family SENTRON 3WL10 air circuit breakers
Accessory group Accessories for connection
Product type Air circuit breaker accessories
Ordering Quote on request
Source Siemens Catalog LV 10 · 2026, p. 168-169
3VW9011-0AL01 Accessory: Front main connection | Version: Fixed-mounted, front | Poles: 3-pole/3 units
3VW9011-0AL02 Accessory: Front main connection | Version: Fixed-mounted, front | Poles: 4-pole/4 units
3VW9011-0AL77 Accessory: Front main connection | Version: Fixed, extended, standard barriers | Poles: 3-pole/3 units
3VW9011-0AL78 Accessory: Front main connection | Version: Fixed, extended, standard barriers | Poles: 4-pole/4 units
3VW9011-0AL73 Accessory: Front main connection | Version: Fixed, broadened, top | Poles: 3-pole/3 units
3VW9011-0AL75 Accessory: Front main connection | Version: Fixed, broadened, bottom | Poles: 3-pole/3 units
3VW9011-0AL74 Accessory: Front main connection | Version: Fixed, broadened, top/bottom | Poles: 4-pole/4 units
3VW9011-0AN01 Accessory: Front main connection | Version: Withdrawable, guide frame flange | Poles: 3-pole/3 units
3VW9011-0AN02 Accessory: Front main connection | Version: Withdrawable, guide frame flange | Poles: 4-pole/4 units
3VW9011-0AN73 Accessory: Front main connection | Version: Withdrawable, broadened | Poles: 3-pole/3 units
3VW9011-0AN74 Accessory: Front main connection | Version: Withdrawable, broadened | Poles: 4-pole/4 units
3VW9011-0AL32 Accessory: Rear main connection | Version: Fixed, rotatable horiz./vert. | Poles: 3-pole/3 units
3VW9011-0AL33 Accessory: Rear main connection | Version: Fixed, rotatable horiz./vert. | Poles: 4-pole/4 units
3VW9011-0AN32 Accessory: Rear main connection | Version: Withdr., rotatable horiz./vert. | Poles: 3-pole/3 units
3VW9011-0AN33 Accessory: Rear main connection | Version: Withdr., rotatable horiz./vert. | Poles: 4-pole/4 units
3VW9011-0AN75 Accessory: Rear main connection | Version: Withdr., broadened rear horizontal | Poles: 3-pole/3 units
3VW9011-0AN76 Accessory: Rear main connection | Version: Withdr., broadened rear horizontal | Poles: 4-pole/4 units
3VW9011-0AL71 Accessory: Cu/Al cable connection | Version: Fixed, front, 4 × 240 mm² terminals | Poles: 3-pole/3 units
3VW9011-0AL72 Accessory: Cu/Al cable connection | Version: Fixed, front, 4 × 240 mm² terminals | Poles: 4-pole/4 units
3VW9011-0AN71 Accessory: Cu/Al cable connection | Version: Withdr., rear, 4 × 240 mm² cable lugs | Poles: 3-pole/3 units
3VW9011-0AN72 Accessory: Cu/Al cable connection | Version: Withdr., rear, 4 × 240 mm² cable lugs | Poles: 4-pole/4 units
3VW9011-0AB11 Accessory: Push-in auxiliary supply connector | Version: Push-in
3VW9723-0WD30 Accessory: Terminal cover (fixed-mounted) | Version: Standard | Poles: 3-pole/2 units
3VW9724-0WD40 Accessory: Terminal cover (fixed-mounted) | Version: Standard | Poles: 4-pole/2 units
3VW9723-0WF30 Accessory: Terminal cover (fixed-mounted) | Version: Extended | Poles: 3-pole/2 units
3VW9724-0WF40 Accessory: Terminal cover (fixed-mounted) | Version: Extended | Poles: 4-pole/2 units
3VW9723-0WA00 Accessory: Phase barrier (fixed-mounted) | Version: 100 mm (standard) | Poles: 3-pole/4 units
3VW9724-0WA10 Accessory: Phase barrier (fixed-mounted) | Version: 100 mm (standard) | Poles: 4-pole/6 units
3VW9723-0WA01 Accessory: Phase barrier (fixed-mounted) | Version: 200 mm (extended) | Poles: 3-pole/4 units
3VW9724-0WA11 Accessory: Phase barrier (fixed-mounted) | Version: 200 mm (extended) | Poles: 4-pole/6 units
3VW9011-0BB51 Accessory: Floor mounting support | Version: Standard (CB feet), Z option A07
3VW9011-0BB52 Accessory: Floor mounting support | Version: Extended, switch position transm., S56
3VW9011-0BB53 Accessory: Side wall extension kit | Version: Fixed-mounted, Z option S57
AccessoriesSiemens
33 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 3WL10 Main Connections, Covers & Phase Barriers

Brand Siemens·Accessories

Available part numbers (33)

3VW9011-0AL01, 3VW9011-0AL02, 3VW9011-0AL77, 3VW9011-0AL78, 3VW9011-0AL73, 3VW9011-0AL75, 3VW9011-0AL74, 3VW9011-0AN01, 3VW9011-0AN02, 3VW9011-0AN73 + 23 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3VW9011-0AL01Accessory: Front main connection | Version: Fixed-mounted, front | Poles: 3-pole/3 units
3VW9011-0AL02Accessory: Front main connection | Version: Fixed-mounted, front | Poles: 4-pole/4 units
3VW9011-0AL77Accessory: Front main connection | Version: Fixed, extended, standard barriers | Poles: 3-pole/3 units
3VW9011-0AL78Accessory: Front main connection | Version: Fixed, extended, standard barriers | Poles: 4-pole/4 units
3VW9011-0AL73Accessory: Front main connection | Version: Fixed, broadened, top | Poles: 3-pole/3 units
3VW9011-0AL75Accessory: Front main connection | Version: Fixed, broadened, bottom | Poles: 3-pole/3 units
3VW9011-0AL74Accessory: Front main connection | Version: Fixed, broadened, top/bottom | Poles: 4-pole/4 units
3VW9011-0AN01Accessory: Front main connection | Version: Withdrawable, guide frame flange | Poles: 3-pole/3 units
3VW9011-0AN02Accessory: Front main connection | Version: Withdrawable, guide frame flange | Poles: 4-pole/4 units
3VW9011-0AN73Accessory: Front main connection | Version: Withdrawable, broadened | Poles: 3-pole/3 units
3VW9011-0AN74Accessory: Front main connection | Version: Withdrawable, broadened | Poles: 4-pole/4 units
3VW9011-0AL32Accessory: Rear main connection | Version: Fixed, rotatable horiz./vert. | Poles: 3-pole/3 units
3VW9011-0AL33Accessory: Rear main connection | Version: Fixed, rotatable horiz./vert. | Poles: 4-pole/4 units
3VW9011-0AN32Accessory: Rear main connection | Version: Withdr., rotatable horiz./vert. | Poles: 3-pole/3 units
3VW9011-0AN33Accessory: Rear main connection | Version: Withdr., rotatable horiz./vert. | Poles: 4-pole/4 units
3VW9011-0AN75Accessory: Rear main connection | Version: Withdr., broadened rear horizontal | Poles: 3-pole/3 units
3VW9011-0AN76Accessory: Rear main connection | Version: Withdr., broadened rear horizontal | Poles: 4-pole/4 units
3VW9011-0AL71Accessory: Cu/Al cable connection | Version: Fixed, front, 4 × 240 mm² terminals | Poles: 3-pole/3 units
3VW9011-0AL72Accessory: Cu/Al cable connection | Version: Fixed, front, 4 × 240 mm² terminals | Poles: 4-pole/4 units
3VW9011-0AN71Accessory: Cu/Al cable connection | Version: Withdr., rear, 4 × 240 mm² cable lugs | Poles: 3-pole/3 units
3VW9011-0AN72Accessory: Cu/Al cable connection | Version: Withdr., rear, 4 × 240 mm² cable lugs | Poles: 4-pole/4 units
3VW9011-0AB11Accessory: Push-in auxiliary supply connector | Version: Push-in
3VW9723-0WD30Accessory: Terminal cover (fixed-mounted) | Version: Standard | Poles: 3-pole/2 units
3VW9724-0WD40Accessory: Terminal cover (fixed-mounted) | Version: Standard | Poles: 4-pole/2 units
3VW9723-0WF30Accessory: Terminal cover (fixed-mounted) | Version: Extended | Poles: 3-pole/2 units
3VW9724-0WF40Accessory: Terminal cover (fixed-mounted) | Version: Extended | Poles: 4-pole/2 units
3VW9723-0WA00Accessory: Phase barrier (fixed-mounted) | Version: 100 mm (standard) | Poles: 3-pole/4 units
3VW9724-0WA10Accessory: Phase barrier (fixed-mounted) | Version: 100 mm (standard) | Poles: 4-pole/6 units
3VW9723-0WA01Accessory: Phase barrier (fixed-mounted) | Version: 200 mm (extended) | Poles: 3-pole/4 units
3VW9724-0WA11Accessory: Phase barrier (fixed-mounted) | Version: 200 mm (extended) | Poles: 4-pole/6 units
3VW9011-0BB51Accessory: Floor mounting support | Version: Standard (CB feet), Z option A07
3VW9011-0BB52Accessory: Floor mounting support | Version: Extended, switch position transm., S56
3VW9011-0BB53Accessory: Side wall extension kit | Version: Fixed-mounted, Z option S57
