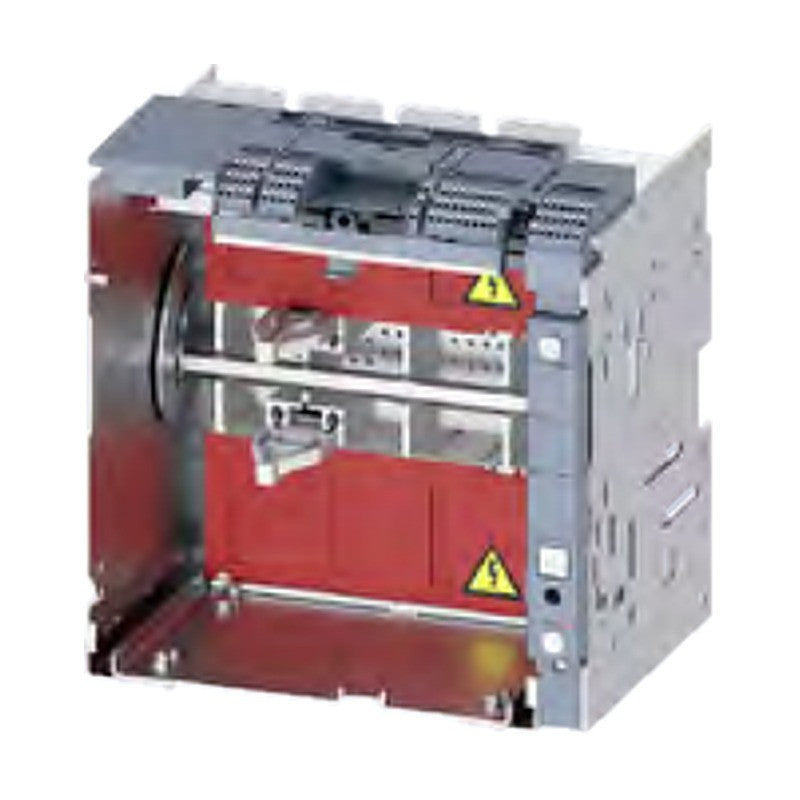

Siemens SENTRON 3WL10 Guide Frames (3-/4-pole, up to 1250 A)

Siemens SENTRON 3WL10 Guide Frames (3-/4-pole, up to 1250 A)

Guide frames for ordering separately without circuit breaker for SENTRON 3WL10 withdrawable air circuit breakers up to 1250 A.

Key features

  • For 3WL10 withdrawable breakers up to 1250 A
  • 3-pole and 4-pole versions
  • Rear vertical, rear horizontal, 4 × 240 mm² Cu/Al cable lug or extended front connection bars
  • PSS Standard position signaling always included in the frame
  • Options can be added with -Z order codes (not built)

Specifications

Brand Siemens
Product line SENTRON
Product family SENTRON 3WL10 air circuit breakers
Accessory group Guide frames
Product type Air circuit breaker accessories
Rating ≤ 1250 A
Accessory Guide frame
Ordering Quote on request
Source Siemens Catalog LV 10 · 2026, p. 164
3VW8112-0AA01 Version: Rear vertical | Poles: 3-pole
3VW8112-0AB01 Version: Rear horizontal | Poles: 3-pole
3VW8112-0AD01 Version: 4 × 240 mm² Cu/Al cable lug | Poles: 3-pole
3VW8112-0AE01 Version: Front connection bars, extended | Poles: 3-pole
3VW8112-0BA01 Version: Rear vertical | Poles: 4-pole
3VW8112-0BB01 Version: Rear horizontal | Poles: 4-pole
3VW8112-0BD01 Version: 4 × 240 mm² Cu/Al cable lug | Poles: 4-pole
3VW8112-0BE01 Version: Front connection bars, extended | Poles: 4-pole
AccessoriesSiemens
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 3WL10 Guide Frames (3-/4-pole, up to 1250 A)

Brand Siemens·Accessories

Available part numbers (8)

3VW8112-0AA01, 3VW8112-0AB01, 3VW8112-0AD01, 3VW8112-0AE01, 3VW8112-0BA01, 3VW8112-0BB01, 3VW8112-0BD01, 3VW8112-0BE01

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3VW8112-0AA01Version: Rear vertical | Poles: 3-pole
3VW8112-0AB01Version: Rear horizontal | Poles: 3-pole
3VW8112-0AD01Version: 4 × 240 mm² Cu/Al cable lug | Poles: 3-pole
3VW8112-0AE01Version: Front connection bars, extended | Poles: 3-pole
3VW8112-0BA01Version: Rear vertical | Poles: 4-pole
3VW8112-0BB01Version: Rear horizontal | Poles: 4-pole
3VW8112-0BD01Version: 4 × 240 mm² Cu/Al cable lug | Poles: 4-pole
3VW8112-0BE01Version: Front connection bars, extended | Poles: 4-pole
