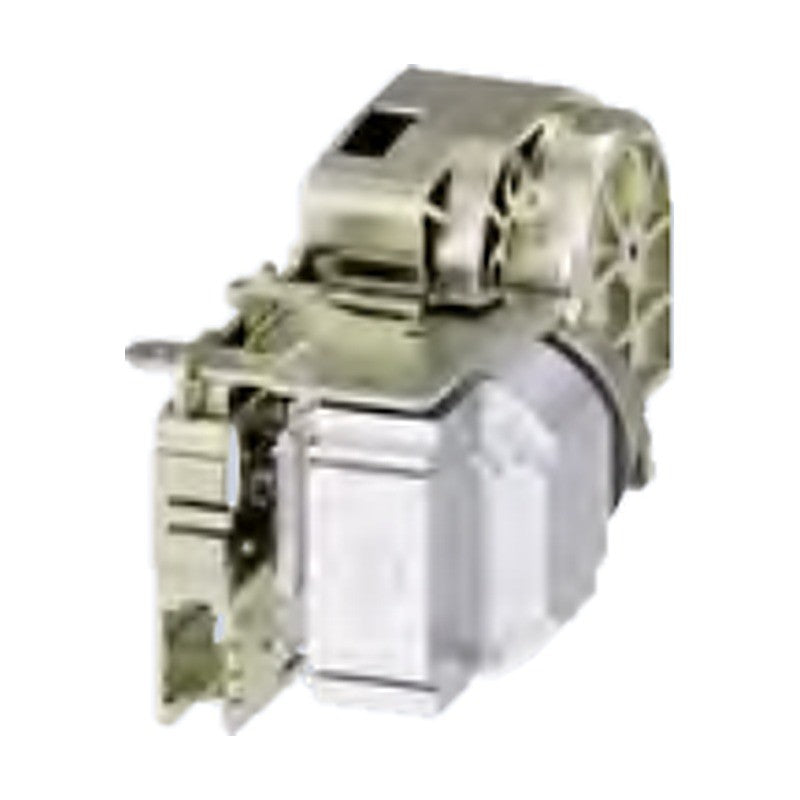

Siemens SENTRON 3WL10 Releases, Motor & Signaling Switches

Spring charging motors, closing coils, shunt trips, undervoltage releases and auxiliary/signaling switches for SENTRON 3WL10 air circuit breakers.

Key features

Spring charging motors 24-30 V to 220-250 V AC/DC and 5-digit operating cycles counter
Closing coils CC / shunt trips ST from 24 V AC/DC to 415-440 V AC
Undervoltage releases UVR and external UVR time-delay devices (0.5-3 s)
Ready-to-close, auxiliary ON/OFF, tripped, spring charge and position signaling switches (standard or digital)
TD320 function test unit and fixings for external AUX 15 CO switches

Specifications

Brand	Siemens
Product line	SENTRON
Product family	SENTRON 3WL10 air circuit breakers
Accessory group	Motor, auxiliary releases and switches
Product type	Air circuit breaker accessories
Ordering	Quote on request
Source	Siemens Catalog LV 10 · 2026, p. 170-171

3VW9011-0AF01		Accessory: Spring charging motor (MO) \| Voltage: 24 ... 30 V AC/DC
3VW9011-0AF02		Accessory: Spring charging motor (MO) \| Voltage: 48 ... 60 V AC/DC
3VW9011-0AF03		Accessory: Spring charging motor (MO) \| Voltage: 100 ... 130 V AC/DC
3VW9011-0AF04		Accessory: Spring charging motor (MO) \| Voltage: 220 ... 250 V AC/DC
3VW9011-0AH07		Accessory: Operating cycles counter MOC \| Version: 5 digits, with spring charging motor
3VW9011-0AD01		Accessory: Closing coil CC / shunt trip ST \| Voltage: 24 V AC/DC
3VW9011-0AD02		Accessory: Closing coil CC / shunt trip ST \| Voltage: 30 V AC/DC
3VW9011-0AD03		Accessory: Closing coil CC / shunt trip ST \| Voltage: 48 V AC/DC
3VW9011-0AD04		Accessory: Closing coil CC / shunt trip ST \| Voltage: 60 V AC/DC
3VW9011-0AD05		Accessory: Closing coil CC / shunt trip ST \| Voltage: 110 ... 120 V AC/DC
3VW9011-0AD06		Accessory: Closing coil CC / shunt trip ST \| Voltage: 120 ... 127 V AC/DC
3VW9011-0AD07		Accessory: Closing coil CC / shunt trip ST \| Voltage: 220 ... 240 V AC/DC
3VW9011-0AD08		Accessory: Closing coil CC / shunt trip ST \| Voltage: 240 ... 250 V AC/DC
3VW9011-0AD17		Accessory: Closing coil CC / shunt trip ST \| Voltage: 380 … 400 V AC
3VW9011-0AD18		Accessory: Closing coil CC / shunt trip ST \| Voltage: 415 … 440 V AC
3VW9011-0AT31		Accessory: TD320 function test unit \| Version: For all closing coils/shunt trips
3VW9011-0AH01		Accessory: Auxiliary/signaling switch \| Version: Ready-to-close signal RTC \| Contacts: 1 CO standard
3VW9011-0AH02		Accessory: Auxiliary/signaling switch \| Version: Ready-to-close signal RTC \| Contacts: 1 CO digital
3VW9011-0AG01		Accessory: Auxiliary/signaling switch \| Version: Auxiliary switch ON/OFF AUX \| Contacts: 4 CO standard
3VW9011-0AG02		Accessory: Auxiliary/signaling switch \| Version: Auxiliary switch ON/OFF AUX \| Contacts: 4 CO digital
3VW9011-0AG03		Accessory: Auxiliary/signaling switch \| Version: Auxiliary switch ON/OFF AUX \| Contacts: 2 CO standard + 2 CO digital
3VW9011-0AG05		Accessory: Auxiliary/signaling switch \| Version: External auxiliary switch ON/OFF AUX \| Contacts: 15 CO standard
3VW9011-0AG06		Accessory: Auxiliary/signaling switch \| Version: External auxiliary switch ON/OFF AUX \| Contacts: 15 CO digital
3VW9011-0AH14		Accessory: Auxiliary/signaling switch \| Version: Tripped signaling switch S24 \| Contacts: 1 CO standard
3VW9011-0AH15		Accessory: Auxiliary/signaling switch \| Version: Tripped signaling switch S24 \| Contacts: 1 CO digital
3VW9011-0AH10		Accessory: Auxiliary/signaling switch \| Version: Spring charge signaling switch S21 \| Contacts: 1 CO standard
3VW9011-0AH08		Accessory: Auxiliary/signaling switch \| Version: Spring charge signaling switch S21 \| Contacts: 1 CO digital
3VW9011-0AH11		Accessory: Auxiliary/signaling switch \| Version: Position signaling switch PSS \| Contacts: 2 CO / 2 CO / 2 CO standard
3VW9011-0AH12		Accessory: Auxiliary/signaling switch \| Version: Position signaling switch PSS \| Contacts: 2 CO / 2 CO / 2 CO digital
3VW9011-0AG15		Accessory: Fixing for AUX 15 CO \| Version: Fixed-mounted CB, rear panel/floor
3VW9011-0AG17		Accessory: Fixing for AUX 15 CO \| Version: For guide frames
3VW9011-0AE01		Accessory: Undervoltage release UVR \| Voltage: 24 V AC/DC
3VW9011-0AE02		Accessory: Undervoltage release UVR \| Voltage: 30 V AC/DC
3VW9011-0AE03		Accessory: Undervoltage release UVR \| Voltage: 48 V AC/DC
3VW9011-0AE04		Accessory: Undervoltage release UVR \| Voltage: 60 V AC/DC
3VW9011-0AE05		Accessory: Undervoltage release UVR \| Voltage: 110 ... 120 V AC/DC
3VW9011-0AE06		Accessory: Undervoltage release UVR \| Voltage: 120 ... 127 V AC/DC
3VW9011-0AE07		Accessory: Undervoltage release UVR \| Voltage: 220 ... 240 V AC/DC
3VW9011-0AE08		Accessory: Undervoltage release UVR \| Voltage: 240 ... 250 V AC/DC
3VW9011-0AE17		Accessory: Undervoltage release UVR \| Voltage: 380 … 400 V AC
3VW9011-0AE18		Accessory: Undervoltage release UVR \| Voltage: 415 … 440 V AC
3VW9011-0AE10		Accessory: UVR external time-delay device \| Voltage: 24 ... 30 V AC/DC
3VW9011-0AE11		Accessory: UVR external time-delay device \| Voltage: 48 V AC/DC
3VW9011-0AE15		Accessory: UVR external time-delay device \| Voltage: 60 V AC/DC
3VW9011-0AE12		Accessory: UVR external time-delay device \| Voltage: 110 ... 127 V AC/DC
3VW9011-0AE13		Accessory: UVR external time-delay device \| Voltage: 220 ... 250 V AC/DC

AccessoriesSiemens

46 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 3WL10 Releases, Motor & Signaling Switches

Brand Siemens·Accessories

Available part numbers (46)

3VW9011-0AF01, 3VW9011-0AF02, 3VW9011-0AF03, 3VW9011-0AF04, 3VW9011-0AH07, 3VW9011-0AD01, 3VW9011-0AD02, 3VW9011-0AD03, 3VW9011-0AD04, 3VW9011-0AD05 + 36 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	3VW9011-0AF01	Accessory: Spring charging motor (MO) \| Voltage: 24 ... 30 V AC/DC
	3VW9011-0AF02	Accessory: Spring charging motor (MO) \| Voltage: 48 ... 60 V AC/DC
	3VW9011-0AF03	Accessory: Spring charging motor (MO) \| Voltage: 100 ... 130 V AC/DC
	3VW9011-0AF04	Accessory: Spring charging motor (MO) \| Voltage: 220 ... 250 V AC/DC
	3VW9011-0AH07	Accessory: Operating cycles counter MOC \| Version: 5 digits, with spring charging motor
	3VW9011-0AD01	Accessory: Closing coil CC / shunt trip ST \| Voltage: 24 V AC/DC
	3VW9011-0AD02	Accessory: Closing coil CC / shunt trip ST \| Voltage: 30 V AC/DC
	3VW9011-0AD03	Accessory: Closing coil CC / shunt trip ST \| Voltage: 48 V AC/DC
	3VW9011-0AD04	Accessory: Closing coil CC / shunt trip ST \| Voltage: 60 V AC/DC
	3VW9011-0AD05	Accessory: Closing coil CC / shunt trip ST \| Voltage: 110 ... 120 V AC/DC
	3VW9011-0AD06	Accessory: Closing coil CC / shunt trip ST \| Voltage: 120 ... 127 V AC/DC
	3VW9011-0AD07	Accessory: Closing coil CC / shunt trip ST \| Voltage: 220 ... 240 V AC/DC
	3VW9011-0AD08	Accessory: Closing coil CC / shunt trip ST \| Voltage: 240 ... 250 V AC/DC
	3VW9011-0AD17	Accessory: Closing coil CC / shunt trip ST \| Voltage: 380 … 400 V AC
	3VW9011-0AD18	Accessory: Closing coil CC / shunt trip ST \| Voltage: 415 … 440 V AC
	3VW9011-0AT31	Accessory: TD320 function test unit \| Version: For all closing coils/shunt trips
	3VW9011-0AH01	Accessory: Auxiliary/signaling switch \| Version: Ready-to-close signal RTC \| Contacts: 1 CO standard
	3VW9011-0AH02	Accessory: Auxiliary/signaling switch \| Version: Ready-to-close signal RTC \| Contacts: 1 CO digital
	3VW9011-0AG01	Accessory: Auxiliary/signaling switch \| Version: Auxiliary switch ON/OFF AUX \| Contacts: 4 CO standard
	3VW9011-0AG02	Accessory: Auxiliary/signaling switch \| Version: Auxiliary switch ON/OFF AUX \| Contacts: 4 CO digital
	3VW9011-0AG03	Accessory: Auxiliary/signaling switch \| Version: Auxiliary switch ON/OFF AUX \| Contacts: 2 CO standard + 2 CO digital
	3VW9011-0AG05	Accessory: Auxiliary/signaling switch \| Version: External auxiliary switch ON/OFF AUX \| Contacts: 15 CO standard
	3VW9011-0AG06	Accessory: Auxiliary/signaling switch \| Version: External auxiliary switch ON/OFF AUX \| Contacts: 15 CO digital
	3VW9011-0AH14	Accessory: Auxiliary/signaling switch \| Version: Tripped signaling switch S24 \| Contacts: 1 CO standard
	3VW9011-0AH15	Accessory: Auxiliary/signaling switch \| Version: Tripped signaling switch S24 \| Contacts: 1 CO digital
	3VW9011-0AH10	Accessory: Auxiliary/signaling switch \| Version: Spring charge signaling switch S21 \| Contacts: 1 CO standard
	3VW9011-0AH08	Accessory: Auxiliary/signaling switch \| Version: Spring charge signaling switch S21 \| Contacts: 1 CO digital
	3VW9011-0AH11	Accessory: Auxiliary/signaling switch \| Version: Position signaling switch PSS \| Contacts: 2 CO / 2 CO / 2 CO standard
	3VW9011-0AH12	Accessory: Auxiliary/signaling switch \| Version: Position signaling switch PSS \| Contacts: 2 CO / 2 CO / 2 CO digital
	3VW9011-0AG15	Accessory: Fixing for AUX 15 CO \| Version: Fixed-mounted CB, rear panel/floor
	3VW9011-0AG17	Accessory: Fixing for AUX 15 CO \| Version: For guide frames
	3VW9011-0AE01	Accessory: Undervoltage release UVR \| Voltage: 24 V AC/DC
	3VW9011-0AE02	Accessory: Undervoltage release UVR \| Voltage: 30 V AC/DC
	3VW9011-0AE03	Accessory: Undervoltage release UVR \| Voltage: 48 V AC/DC
	3VW9011-0AE04	Accessory: Undervoltage release UVR \| Voltage: 60 V AC/DC
	3VW9011-0AE05	Accessory: Undervoltage release UVR \| Voltage: 110 ... 120 V AC/DC
	3VW9011-0AE06	Accessory: Undervoltage release UVR \| Voltage: 120 ... 127 V AC/DC
	3VW9011-0AE07	Accessory: Undervoltage release UVR \| Voltage: 220 ... 240 V AC/DC
	3VW9011-0AE08	Accessory: Undervoltage release UVR \| Voltage: 240 ... 250 V AC/DC
	3VW9011-0AE17	Accessory: Undervoltage release UVR \| Voltage: 380 … 400 V AC
	3VW9011-0AE18	Accessory: Undervoltage release UVR \| Voltage: 415 … 440 V AC
	3VW9011-0AE10	Accessory: UVR external time-delay device \| Voltage: 24 ... 30 V AC/DC
	3VW9011-0AE11	Accessory: UVR external time-delay device \| Voltage: 48 V AC/DC
	3VW9011-0AE15	Accessory: UVR external time-delay device \| Voltage: 60 V AC/DC
	3VW9011-0AE12	Accessory: UVR external time-delay device \| Voltage: 110 ... 127 V AC/DC
	3VW9011-0AE13	Accessory: UVR external time-delay device \| Voltage: 220 ... 250 V AC/DC
