• Siemens 4AC32 Bell Transformers (230 V AC, 8-18 VA)
1 1

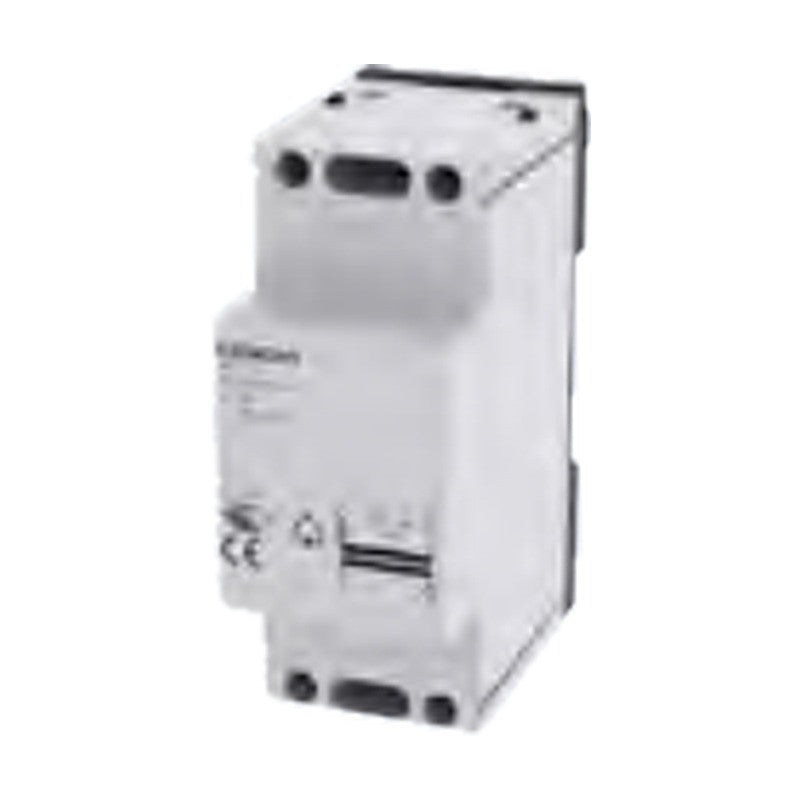

Siemens 4AC32 Bell Transformers (230 V AC, 8-18 VA)

Siemens 4AC32 Bell Transformers (230 V AC, 8-18 VA)

Siemens 4AC32 bell transformers for 230 V AC supply provide 8, 12 or 24 V AC for bells and signalling devices in distribution boards.

Key features

  • Rated operational power 8, 14 or 18 VA
  • Secondary voltages 8 V, 12 V and 24 V AC depending on type
  • Safe separation, creepage distances and clearances > 6 mm
  • Protection class II, IP20, 2 MW modular design

Specifications

Series 4AC32
Primary voltage 230 V AC, 50 Hz
Standards EN 61558-1, EN 61558-2-8
Insulation class E
Degree of protection IP20
Mounting DIN rail
Source Siemens Catalog LV 10 · 2026, p. 890-891
4AC3208-0 Power: 8 VA | Outputs: 8 V 1.0 A | Width: 2 MW
4AC3208-1 Power: 8 VA | Outputs: 12 V 0.6 A (8 V tap) | Width: 2 MW
4AC3214-0 Power: 14 VA | Outputs: 8 V 2.0 A / 12 V 1.3 A / 24 V 0.6 A | Width: 2 MW
4AC3218-0 Power: 18 VA | Outputs: 12 V 1.5 A (8 V tap) | Width: 2 MW
AccessoriesSiemens
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens 4AC32 Bell Transformers (230 V AC, 8-18 VA)

Brand Siemens·Accessories

Available part numbers (4)

4AC3208-0, 4AC3208-1, 4AC3214-0, 4AC3218-0

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
4AC3208-0Power: 8 VA | Outputs: 8 V 1.0 A | Width: 2 MW
4AC3208-1Power: 8 VA | Outputs: 12 V 0.6 A (8 V tap) | Width: 2 MW
4AC3214-0Power: 14 VA | Outputs: 8 V 2.0 A / 12 V 1.3 A / 24 V 0.6 A | Width: 2 MW
4AC3218-0Power: 18 VA | Outputs: 12 V 1.5 A (8 V tap) | Width: 2 MW
