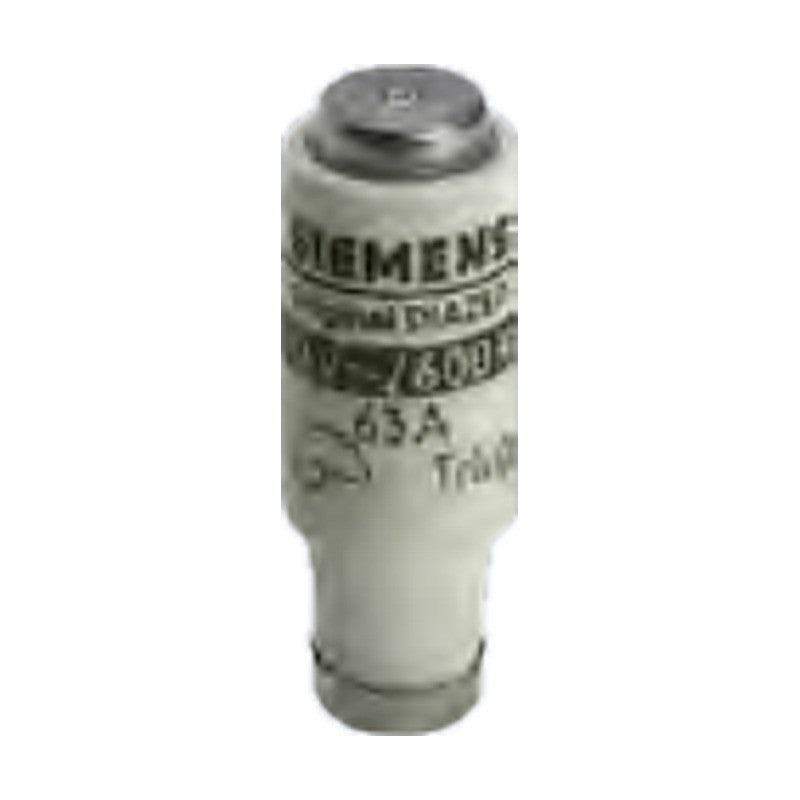

Siemens SENTRON DIAZED fuse links 5SA/5SB/5SC/5SD (DII-DIV, TNDz)

Siemens SENTRON DIAZED fuse links 5SA/5SB/5SC/5SD (DII-DIV, TNDz)

SENTRON DIAZED fuse links in sizes DII (E27), DIII (E33), DIV (R 1 1/4") and TNDz (E16), operational class gG, quick and slow.

Key features

  • Sizes DII E27, DIII E33, DIV R 1 1/4" and TNDz E16
  • Operational class gG plus quick (750 V) and slow (TNDz) versions
  • Rated currents 2 A to 100 A
  • Versions for 500 V, 690 V/600 V and 750 V
  • Color-coded identification indicators

Specifications

Brand Siemens SENTRON
System DIAZED
Manufacturer Siemens
Product type Fuses & Fuse Holders
Catalog chapter Fuse Systems
Source Siemens Catalog LV 10 · 2026, p. 559
5SB211 Size: DII (E27) | Class: gG | Rated current: 2 A | Color: Pink | Un AC/DC: 500 V/500 V
5SA211 Size: TNDz (E16) | Class: slow | Rated current: 2 A | Color: Pink | Un AC/DC: 500 V/500 V
5SD8002 Size: DIII (E33) | Class: gG | Rated current: 2 A | Color: Pink | Un AC/DC: 690 V/600 V
5SD601 Size: DIII (E33) | Class: quick | Rated current: 2 A | Color: Pink | Un AC/DC: 750 V/750 V
5SB221 Size: DII (E27) | Class: gG | Rated current: 4 A | Color: Brown | Un AC/DC: 500 V/500 V
5SA221 Size: TNDz (E16) | Class: slow | Rated current: 4 A | Color: Brown | Un AC/DC: 500 V/500 V
5SD8004 Size: DIII (E33) | Class: gG | Rated current: 4 A | Color: Brown | Un AC/DC: 690 V/600 V
5SD602 Size: DIII (E33) | Class: quick | Rated current: 4 A | Color: Brown | Un AC/DC: 750 V/750 V
5SB231 Size: DII (E27) | Class: gG | Rated current: 6 A | Color: Green | Un AC/DC: 500 V/500 V
5SA231 Size: TNDz (E16) | Class: slow | Rated current: 6 A | Color: Green | Un AC/DC: 500 V/500 V
5SD8006 Size: DIII (E33) | Class: gG | Rated current: 6 A | Color: Green | Un AC/DC: 690 V/600 V
5SD603 Size: DIII (E33) | Class: quick | Rated current: 6 A | Color: Green | Un AC/DC: 750 V/750 V
5SB251 Size: DII (E27) | Class: gG | Rated current: 10 A | Color: Red | Un AC/DC: 500 V/500 V
5SA251 Size: TNDz (E16) | Class: slow | Rated current: 10 A | Color: Red | Un AC/DC: 500 V/500 V
5SD8010 Size: DIII (E33) | Class: gG | Rated current: 10 A | Color: Red | Un AC/DC: 690 V/600 V
5SD604 Size: DIII (E33) | Class: quick | Rated current: 10 A | Color: Red | Un AC/DC: 750 V/750 V
5SB2611 Size: DII (E27) | Class: gG | Rated current: 16 A | Color: Gray | Un AC/DC: 500 V/440 V
5SA2611 Size: TNDz (E16) | Class: slow | Rated current: 16 A | Color: Gray | Un AC/DC: 500 V/440 V
5SD8016 Size: DIII (E33) | Class: gG | Rated current: 16 A | Color: Gray | Un AC/DC: 690 V/600 V
5SD605 Size: DIII (E33) | Class: quick | Rated current: 16 A | Color: Gray | Un AC/DC: 750 V/750 V
5SB2711 Size: DII (E27) | Class: gG | Rated current: 20 A | Color: Blue | Un AC/DC: 500 V/440 V
5SA2711 Size: TNDz (E16) | Class: slow | Rated current: 20 A | Color: Blue | Un AC/DC: 500 V/440 V
5SD8020 Size: DIII (E33) | Class: gG | Rated current: 20 A | Color: Blue | Un AC/DC: 690 V/600 V
5SD606 Size: DIII (E33) | Class: quick | Rated current: 20 A | Color: Blue | Un AC/DC: 750 V/750 V
5SB2811 Size: DII (E27) | Class: gG | Rated current: 25 A | Color: Yellow | Un AC/DC: 500 V/440 V
5SA2811 Size: TNDz (E16) | Class: slow | Rated current: 25 A | Color: Yellow | Un AC/DC: 500 V/440 V
5SD8025 Size: DIII (E33) | Class: gG | Rated current: 25 A | Color: Yellow | Un AC/DC: 690 V/600 V
5SD607 Size: DIII (E33) | Class: quick | Rated current: 25 A | Color: Yellow | Un AC/DC: 750 V/750 V
5SB4011 Size: DIII (E33) | Class: gG | Rated current: 32 A | Color: Violet | Un AC/DC: 500 V/440 V
5SB4111 Size: DIII (E33) | Class: gG | Rated current: 35 A | Color: Black | Un AC/DC: 500 V/440 V
5SD8035 Size: DIII (E33) | Class: gG | Rated current: 35 A | Color: Black | Un AC/DC: 690 V/600 V
5SD608 Size: DIII (E33) | Class: quick | Rated current: 35 A | Color: Black | Un AC/DC: 750 V/750 V
5SB4211 Size: DIII (E33) | Class: gG | Rated current: 50 A | Color: White | Un AC/DC: 500 V/440 V
5SD8050 Size: DIII (E33) | Class: gG | Rated current: 50 A | Color: White | Un AC/DC: 690 V/600 V
5SD610 Size: DIII (E33) | Class: quick | Rated current: 50 A | Color: White | Un AC/DC: 750 V/750 V
5SB4311 Size: DIII (E33) | Class: gG | Rated current: 63 A | Color: Copper | Un AC/DC: 500 V/440 V
5SD8063 Size: DIII (E33) | Class: gG | Rated current: 63 A | Color: Copper | Un AC/DC: 690 V/600 V
5SD611 Size: DIII (E33) | Class: quick | Rated current: 63 A | Color: Copper | Un AC/DC: 750 V/750 V
5SC211 Size: DIV (R 1 1/4") | Class: gG | Rated current: 80 A | Color: Silver | Un AC/DC: 500 V/400 V
5SC221 Size: DIV (R 1 1/4") | Class: gG | Rated current: 100 A | Color: Red | Un AC/DC: 500 V/400 V
Fuses & Fuse HoldersSiemens
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON DIAZED fuse links 5SA/5SB/5SC/5SD (DII-DIV, TNDz)

Brand Siemens·Fuses & Fuse Holders

Available part numbers (40)

5SB211, 5SA211, 5SD8002, 5SD601, 5SB221, 5SA221, 5SD8004, 5SD602, 5SB231, 5SA231 + 30 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5SB211Size: DII (E27) | Class: gG | Rated current: 2 A | Color: Pink | Un AC/DC: 500 V/500 V
5SA211Size: TNDz (E16) | Class: slow | Rated current: 2 A | Color: Pink | Un AC/DC: 500 V/500 V
5SD8002Size: DIII (E33) | Class: gG | Rated current: 2 A | Color: Pink | Un AC/DC: 690 V/600 V
5SD601Size: DIII (E33) | Class: quick | Rated current: 2 A | Color: Pink | Un AC/DC: 750 V/750 V
5SB221Size: DII (E27) | Class: gG | Rated current: 4 A | Color: Brown | Un AC/DC: 500 V/500 V
5SA221Size: TNDz (E16) | Class: slow | Rated current: 4 A | Color: Brown | Un AC/DC: 500 V/500 V
5SD8004Size: DIII (E33) | Class: gG | Rated current: 4 A | Color: Brown | Un AC/DC: 690 V/600 V
5SD602Size: DIII (E33) | Class: quick | Rated current: 4 A | Color: Brown | Un AC/DC: 750 V/750 V
5SB231Size: DII (E27) | Class: gG | Rated current: 6 A | Color: Green | Un AC/DC: 500 V/500 V
5SA231Size: TNDz (E16) | Class: slow | Rated current: 6 A | Color: Green | Un AC/DC: 500 V/500 V
5SD8006Size: DIII (E33) | Class: gG | Rated current: 6 A | Color: Green | Un AC/DC: 690 V/600 V
5SD603Size: DIII (E33) | Class: quick | Rated current: 6 A | Color: Green | Un AC/DC: 750 V/750 V
5SB251Size: DII (E27) | Class: gG | Rated current: 10 A | Color: Red | Un AC/DC: 500 V/500 V
5SA251Size: TNDz (E16) | Class: slow | Rated current: 10 A | Color: Red | Un AC/DC: 500 V/500 V
5SD8010Size: DIII (E33) | Class: gG | Rated current: 10 A | Color: Red | Un AC/DC: 690 V/600 V
5SD604Size: DIII (E33) | Class: quick | Rated current: 10 A | Color: Red | Un AC/DC: 750 V/750 V
5SB2611Size: DII (E27) | Class: gG | Rated current: 16 A | Color: Gray | Un AC/DC: 500 V/440 V
5SA2611Size: TNDz (E16) | Class: slow | Rated current: 16 A | Color: Gray | Un AC/DC: 500 V/440 V
5SD8016Size: DIII (E33) | Class: gG | Rated current: 16 A | Color: Gray | Un AC/DC: 690 V/600 V
5SD605Size: DIII (E33) | Class: quick | Rated current: 16 A | Color: Gray | Un AC/DC: 750 V/750 V
5SB2711Size: DII (E27) | Class: gG | Rated current: 20 A | Color: Blue | Un AC/DC: 500 V/440 V
5SA2711Size: TNDz (E16) | Class: slow | Rated current: 20 A | Color: Blue | Un AC/DC: 500 V/440 V
5SD8020Size: DIII (E33) | Class: gG | Rated current: 20 A | Color: Blue | Un AC/DC: 690 V/600 V
5SD606Size: DIII (E33) | Class: quick | Rated current: 20 A | Color: Blue | Un AC/DC: 750 V/750 V
5SB2811Size: DII (E27) | Class: gG | Rated current: 25 A | Color: Yellow | Un AC/DC: 500 V/440 V
5SA2811Size: TNDz (E16) | Class: slow | Rated current: 25 A | Color: Yellow | Un AC/DC: 500 V/440 V
5SD8025Size: DIII (E33) | Class: gG | Rated current: 25 A | Color: Yellow | Un AC/DC: 690 V/600 V
5SD607Size: DIII (E33) | Class: quick | Rated current: 25 A | Color: Yellow | Un AC/DC: 750 V/750 V
5SB4011Size: DIII (E33) | Class: gG | Rated current: 32 A | Color: Violet | Un AC/DC: 500 V/440 V
5SB4111Size: DIII (E33) | Class: gG | Rated current: 35 A | Color: Black | Un AC/DC: 500 V/440 V
5SD8035Size: DIII (E33) | Class: gG | Rated current: 35 A | Color: Black | Un AC/DC: 690 V/600 V
5SD608Size: DIII (E33) | Class: quick | Rated current: 35 A | Color: Black | Un AC/DC: 750 V/750 V
5SB4211Size: DIII (E33) | Class: gG | Rated current: 50 A | Color: White | Un AC/DC: 500 V/440 V
5SD8050Size: DIII (E33) | Class: gG | Rated current: 50 A | Color: White | Un AC/DC: 690 V/600 V
5SD610Size: DIII (E33) | Class: quick | Rated current: 50 A | Color: White | Un AC/DC: 750 V/750 V
5SB4311Size: DIII (E33) | Class: gG | Rated current: 63 A | Color: Copper | Un AC/DC: 500 V/440 V
5SD8063Size: DIII (E33) | Class: gG | Rated current: 63 A | Color: Copper | Un AC/DC: 690 V/600 V
5SD611Size: DIII (E33) | Class: quick | Rated current: 63 A | Color: Copper | Un AC/DC: 750 V/750 V
5SC211Size: DIV (R 1 1/4") | Class: gG | Rated current: 80 A | Color: Silver | Un AC/DC: 500 V/400 V
5SC221Size: DIV (R 1 1/4") | Class: gG | Rated current: 100 A | Color: Red | Un AC/DC: 500 V/400 V
