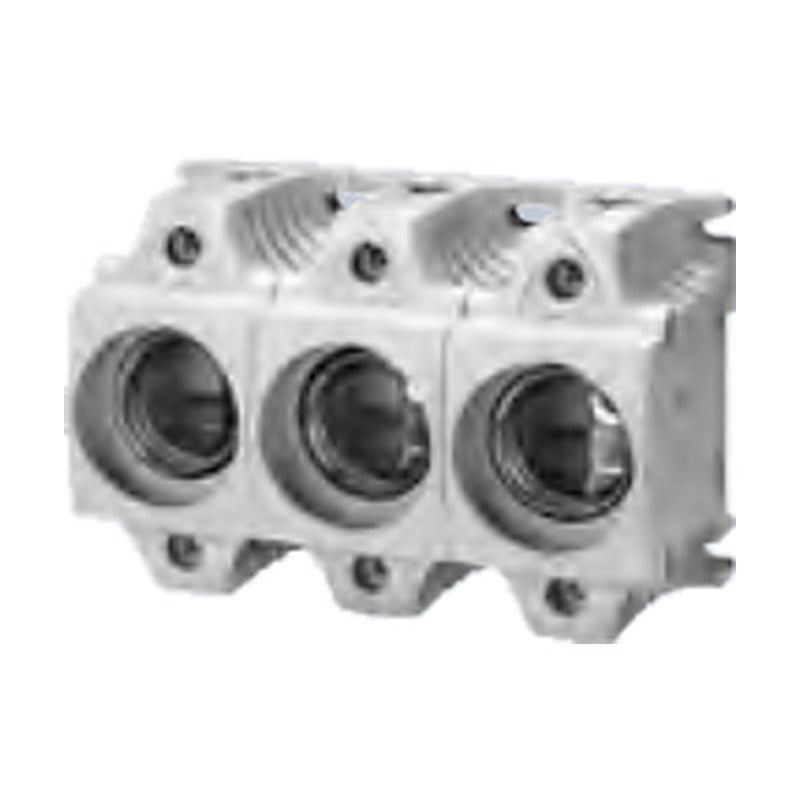

Siemens SENTRON 5SF DIAZED fuse bases and accessories (DII/DIII)

SENTRON DIAZED fuse bases DII (25 A) and DIII (63 A) in molded plastic and ceramic with screw caps, screw adapters and accessories.

Key features

Molded plastic bases with box terminal, 1P and 3P
Ceramic bases with clamp-type, saddle or screw head contacts
DIII versions for 690 V AC/600 V DC and 750 V
Screw caps, screw adapters 2 ... 63 A, reduction sleeves and cover rings
Screw adapter key for DII/DIII

Specifications

Brand	Siemens SENTRON
System	DIAZED
Manufacturer	Siemens
Product type	Fuses & Fuse Holders
Catalog chapter	Fuse Systems
Source	Siemens Catalog LV 10 · 2026, p. 544-545

5SF1060		Item: Fuse base \| Material: Molded plastic \| Size: DII \| Rated current: 25 A \| Un: 500 V/500 V \| Version: 1P, box terminal
5SF5068		Item: Fuse base \| Material: Molded plastic \| Size: DII \| Rated current: 25 A \| Un: 500 V/500 V \| Version: 3P, box terminal
5SF1260		Item: Fuse base \| Material: Molded plastic \| Size: DIII \| Rated current: 63 A \| Un: 500 V/500 V \| Version: 1P, box terminal
5SF5268		Item: Fuse base \| Material: Molded plastic \| Size: DIII \| Rated current: 63 A \| Un: 500 V/500 V \| Version: 3P, box terminal
5SF1005		Item: Fuse base \| Material: Ceramic \| Size: DII \| Rated current: 25 A \| Un: 500 V/500 V \| Version: 1P, clamp-type both sides
5SF1205		Item: Fuse base \| Material: Ceramic \| Size: DIII \| Rated current: 63 A \| Un: 500 V/500 V \| Version: 1P, clamp-type / saddle terminal
5SF4230		Item: Fuse base \| Material: Ceramic \| Size: DIII \| Rated current: 63 A \| Un: 750 V/750 V \| Version: 1P, screw head contact both sides
5SH1112		Item: Screw cap \| Material: Molded plastic \| Size: NDz \| Rated current: - \| Un: 500 V/500 V \| Version: Inspection hole
5SH1221		Item: Screw cap \| Material: Molded plastic \| Size: DII \| Rated current: - \| Un: 500 V/500 V \| Version: Inspection hole
5SH1231		Item: Screw cap \| Material: Molded plastic \| Size: DIII \| Rated current: - \| Un: 500 V/500 V \| Version: Inspection hole
5SH112		Item: Screw cap \| Material: Ceramic \| Size: DII \| Rated current: - \| Un: 500 V/500 V \| Version: No inspection hole
5SH113		Item: Screw cap \| Material: Ceramic \| Size: DIII \| Rated current: - \| Un: 500 V/500 V \| Version: No inspection hole
5SH122		Item: Screw cap \| Material: Ceramic \| Size: DII \| Rated current: - \| Un: 500 V/500 V \| Version: Inspection hole, sealable
5SH123		Item: Screw cap \| Material: Ceramic \| Size: DIII \| Rated current: - \| Un: 500 V/500 V \| Version: Inspection hole, sealable
5SH1170		Item: Screw cap \| Material: Ceramic \| Size: DIII \| Rated current: - \| Un: 690 V/600 V \| Version: Extended version
5SH1161		Item: Screw cap \| Material: Ceramic \| Size: DIII \| Rated current: - \| Un: 750 V/750 V \| Version: With fine thread
5SH310		Item: Screw adapter \| Material: - \| Size: DII \| Rated current: 2 A \| Un: - \| Version: Screw adapter
5SH311		Item: Screw adapter \| Material: - \| Size: DII \| Rated current: 4 A \| Un: - \| Version: Screw adapter
5SH312		Item: Screw adapter \| Material: - \| Size: DII \| Rated current: 6 A \| Un: - \| Version: Screw adapter
5SH313		Item: Screw adapter \| Material: - \| Size: DII \| Rated current: 10 A \| Un: - \| Version: Screw adapter
5SH314		Item: Screw adapter \| Material: - \| Size: DII \| Rated current: 16 A \| Un: - \| Version: Screw adapter
5SH315		Item: Screw adapter \| Material: - \| Size: DII \| Rated current: 20 A \| Un: - \| Version: Screw adapter
5SH316		Item: Screw adapter \| Material: - \| Size: DII \| Rated current: 25 A \| Un: - \| Version: Screw adapter
5SH327		Item: Screw adapter \| Material: - \| Size: DIII \| Rated current: 32 A \| Un: - \| Version: Screw adapter
5SH317		Item: Screw adapter \| Material: - \| Size: DIII \| Rated current: 35 A \| Un: - \| Version: Screw adapter
5SH318		Item: Screw adapter \| Material: - \| Size: DIII \| Rated current: 50 A \| Un: - \| Version: Screw adapter
5SH320		Item: Screw adapter \| Material: - \| Size: DIII \| Rated current: 63 A \| Un: - \| Version: Screw adapter
5SH302		Item: Reduction sleeve \| Material: - \| Size: DII in DIII \| Rated current: - \| Un: - \| Version: For screw caps
5SH3703		Item: Screw adapter key \| Material: - \| Size: DII/DIII \| Rated current: - \| Un: - \| Version: Key
5SH3401		Item: Cover ring \| Material: Molded plastic \| Size: DII \| Rated current: - \| Un: - \| Version: Cover ring
5SH3411		Item: Cover ring \| Material: Molded plastic \| Size: DIII \| Rated current: - \| Un: - \| Version: Cover ring
