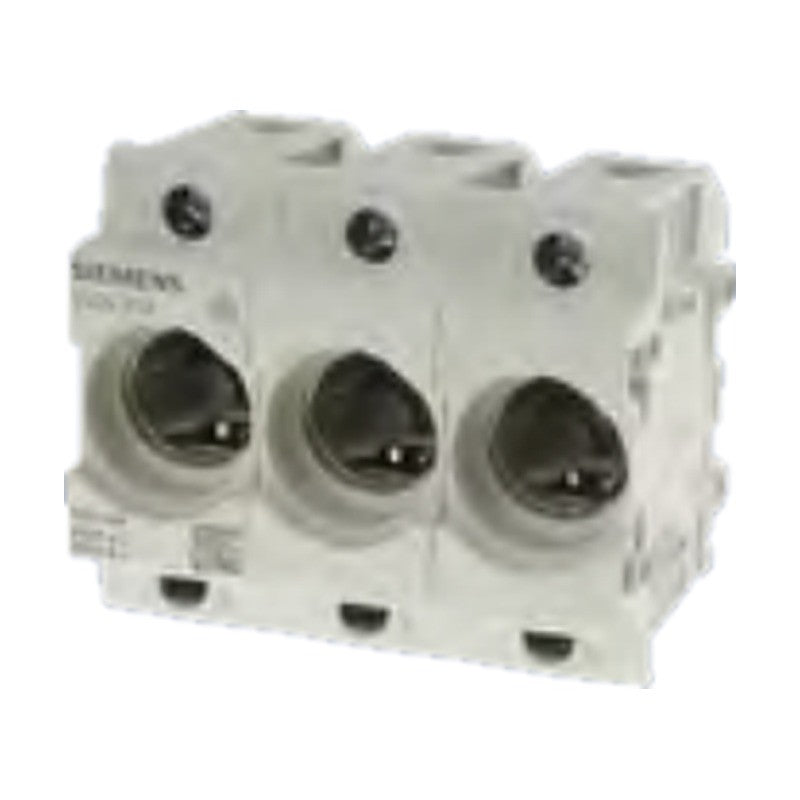

Siemens SENTRON 5SG NEOZED fuse bases and accessories (D01-D03)

Siemens SENTRON 5SG NEOZED fuse bases and accessories (D01-D03)

SENTRON NEOZED fuse bases D01 to D03 in molded plastic and ceramic, with screw caps, adapter sleeves and further accessories.

Key features

  • Comfort bases and standard molded-plastic bases, 1P and 3P
  • Versions with LED signal detector
  • Ceramic bases with clamp-type, saddle or screw head terminals
  • Screw caps, color-coded adapter sleeves, covers and retaining springs
  • Sizes D01 (16 A), D02 (63 A), D03 (100 A)

Specifications

Brand Siemens SENTRON
System NEOZED
Manufacturer Siemens
Product type Fuses & Fuse Holders
Catalog chapter Fuse Systems
Source Siemens Catalog LV 10 · 2026, p. 542-543
5SG1301 Item: Fuse base | Material: Molded plastic (comfort) | Size: D01 | Rated current: 16 A | Version: 1P, Comfort base
5SG5301 Item: Fuse base | Material: Molded plastic (comfort) | Size: D01 | Rated current: 16 A | Version: 3P, Comfort base
5SG1701 Item: Fuse base | Material: Molded plastic (comfort) | Size: D02 | Rated current: 63 A | Version: 1P, Comfort base
5SG5701 Item: Fuse base | Material: Molded plastic (comfort) | Size: D02 | Rated current: 63 A | Version: 3P, Comfort base
5SG1302 Item: Fuse base | Material: Molded plastic | Size: D01 | Rated current: 16 A | Version: 1P, Without LED signal detector
5SG5302 Item: Fuse base | Material: Molded plastic | Size: D01 | Rated current: 16 A | Version: 3P, Without LED signal detector
5SG1702 Item: Fuse base | Material: Molded plastic | Size: D02 | Rated current: 63 A | Version: 1P, Without LED signal detector
5SG5702 Item: Fuse base | Material: Molded plastic | Size: D02 | Rated current: 63 A | Version: 3P, Without LED signal detector
5SG1302-1 Item: Fuse base | Material: Molded plastic | Size: D01 | Rated current: 16 A | Version: 1P, With LED signal detector
5SG5302-1 Item: Fuse base | Material: Molded plastic | Size: D01 | Rated current: 16 A | Version: 3P, With LED signal detector
5SG1702-1 Item: Fuse base | Material: Molded plastic | Size: D02 | Rated current: 63 A | Version: 1P, With LED signal detector
5SG5702-1 Item: Fuse base | Material: Molded plastic | Size: D02 | Rated current: 63 A | Version: 3P, With LED signal detector
5SG1553 Item: Fuse base | Material: Ceramic | Size: D01 | Rated current: 16 A | Version: 1P, Clamp-type terminal both sides
5SG5553 Item: Fuse base | Material: Ceramic | Size: D01 | Rated current: 16 A | Version: 3P, Clamp-type terminal both sides
5SG1653 Item: Fuse base | Material: Ceramic | Size: D02 | Rated current: 63 A | Version: 1P, Saddle terminal both sides
5SG5653 Item: Fuse base | Material: Ceramic | Size: D02 | Rated current: 63 A | Version: 3P, Saddle terminal both sides
5SG1693 Item: Fuse base | Material: Ceramic | Size: D02 | Rated current: 63 A | Version: 1P, Screw head contact / clamp-type
5SG5693 Item: Fuse base | Material: Ceramic | Size: D02 | Rated current: 63 A | Version: 3P, Screw head contact / clamp-type
5SG1812 Item: Fuse base | Material: Ceramic | Size: D03 | Rated current: 100 A | Version: 1P, Screw head contact / clamp-type
5SH4116 Item: Screw cap | Material: Molded plastic | Size: D01 | Rated current: - | Version: Screw cap, inspection hole
5SH4163 Item: Screw cap | Material: Molded plastic | Size: D02 | Rated current: - | Version: Screw cap, inspection hole
5SH4316 Item: Screw cap | Material: Ceramic | Size: D01 | Rated current: - | Version: Screw cap, no hole, sealable
5SH4363 Item: Screw cap | Material: Ceramic | Size: D02 | Rated current: - | Version: Screw cap, no hole, sealable
5SH4100 Item: Screw cap | Material: Ceramic | Size: D03 | Rated current: - | Version: Screw cap, no inspection hole
5SH4317 Item: Screw cap | Material: Ceramic | Size: D01 | Rated current: - | Version: Screw cap, inspection hole
5SH4362 Item: Screw cap | Material: Ceramic | Size: D02 | Rated current: - | Version: Screw cap, inspection hole
5SH5002 Item: Adapter sleeve | Material: - | Size: D01 | Rated current: 2 A | Version: Pink
5SH5004 Item: Adapter sleeve | Material: - | Size: D01 | Rated current: 4 A | Version: Brown
5SH5006 Item: Adapter sleeve | Material: - | Size: D01 | Rated current: 6 A | Version: Green
5SH5010 Item: Adapter sleeve | Material: - | Size: D01 | Rated current: 10/13 A | Version: Red
5SH5020 Item: Adapter sleeve | Material: - | Size: D02 | Rated current: 20 A | Version: Blue
5SH5025 Item: Adapter sleeve | Material: - | Size: D02 | Rated current: 25 A | Version: Yellow
5SH5032 Item: Adapter sleeve | Material: - | Size: D02 | Rated current: 32 A | Version: Violet
5SH5035 Item: Adapter sleeve | Material: - | Size: D02 | Rated current: 35/40 A | Version: Black
5SH5050 Item: Adapter sleeve | Material: - | Size: D02 | Rated current: 50 A | Version: White
5SH5080 Item: Adapter sleeve | Material: - | Size: D03 | Rated current: 80 A | Version: Silver
5SH5402 Item: Adapter sleeve | Material: - | Size: D01 in D02 | Rated current: 2 A | Version: Pink
5SH5404 Item: Adapter sleeve | Material: - | Size: D01 in D02 | Rated current: 4 A | Version: Brown
5SH5406 Item: Adapter sleeve | Material: - | Size: D01 in D02 | Rated current: 6 A | Version: Green
5SH5410 Item: Adapter sleeve | Material: - | Size: D01 in D02 | Rated current: 10/13 A | Version: Red
5SH5416 Item: Adapter sleeve | Material: - | Size: D01 in D02 | Rated current: 16 A | Version: Gray
5SH5233 Item: NEOZED cover | Material: - | Size: D03 | Rated current: - | Version: Cover
5SH5100 Item: Adapter sleeve fitter | Material: - | Size: - | Rated current: - | Version: Fitting tool
5SH5400 Item: Retaining spring | Material: - | Size: D01 in D02 | Rated current: 2 ... 16 A | Version: For D02 screw caps
