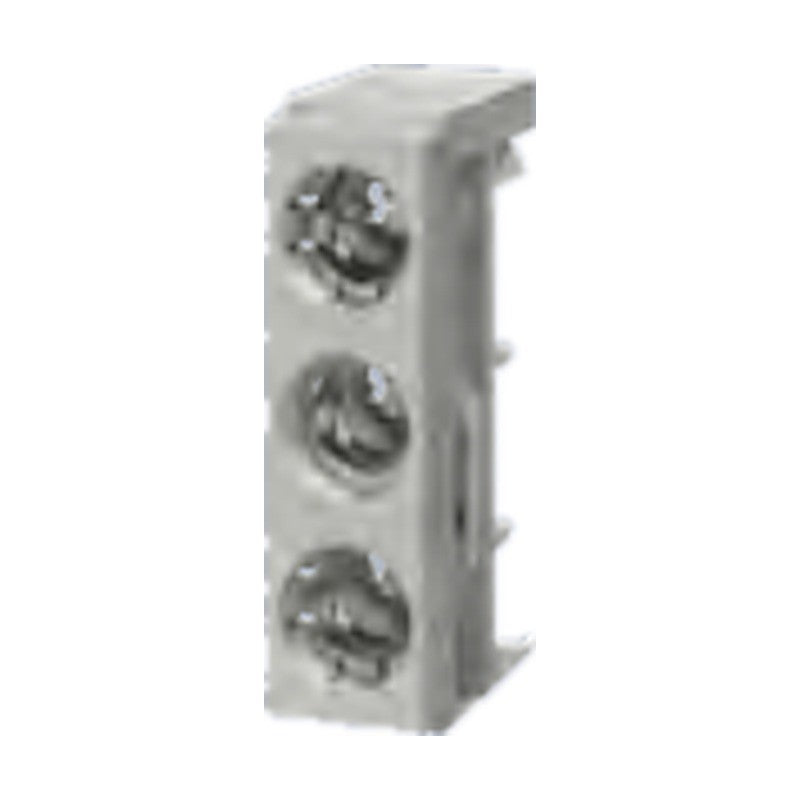

Siemens SENTRON 5SG6/5SF6 bus-mounting fuse bases (NEOZED/DIAZED)

SENTRON 3-pole bus-mounting fuse bases in NEOZED and DIAZED design for 60 mm busbar systems, with optional touch protection covers.

Key features

3-pole bases for direct mounting on 60 mm busbar systems
NEOZED D02 63 A and DIAZED DII 25 A / DIII 63 A
Versions with touch protection cover
Covers in standard, extra wide and double width

Specifications

Brand	Siemens SENTRON
Poles	3P
Busbar system	60 mm
Manufacturer	Siemens
Product type	Fuses & Fuse Holders
Source	Siemens Catalog LV 10 · 2026, p. 546

5SG6208		Item: Bus-mounting base 3P \| Design: NEOZED \| Size: D02 \| Rated current: 63 A \| Busbar system: 60 mm compact \| Version: Touch protection cover, 2 MW
5SG6202		Item: Bus-mounting base 3P \| Design: NEOZED \| Size: D02 \| Rated current: 63 A \| Busbar system: 60 mm \| Version: Standard, 1.5 MW
5SG6206		Item: Bus-mounting base 3P \| Design: NEOZED \| Size: D02 \| Rated current: 63 A \| Busbar system: 60 mm \| Version: Touch protection cover, 1.5 MW
5SG6207		Item: Bus-mounting base 3P \| Design: NEOZED \| Size: D02 \| Rated current: 63 A \| Busbar system: 60 mm \| Version: Touch protection cover, 2 MW
5SF6015		Item: Bus-mounting base 3P \| Design: DIAZED \| Size: DII \| Rated current: 25 A \| Busbar system: 60 mm \| Version: Standard
5SF6020		Item: Bus-mounting base 3P \| Design: DIAZED \| Size: DII \| Rated current: 25 A \| Busbar system: 60 mm \| Version: Touch protection cover
5SF6215		Item: Bus-mounting base 3P \| Design: DIAZED \| Size: DIII \| Rated current: 63 A \| Busbar system: 60 mm \| Version: Standard
5SF6220		Item: Bus-mounting base 3P \| Design: DIAZED \| Size: DIII \| Rated current: 63 A \| Busbar system: 60 mm \| Version: Touch protection cover
5SH5241		Item: Cover for bus-mounting base \| Design: NEOZED \| Size: D02 \| Rated current: - \| Busbar system: 60 mm \| Version: Standard, 1.5 MW
5SH5242		Item: Cover for bus-mounting base \| Design: NEOZED \| Size: D02 \| Rated current: - \| Busbar system: 60 mm \| Version: Extra wide, 2 MW
5SH5243		Item: Cover for bus-mounting base \| Design: NEOZED \| Size: D02 \| Rated current: - \| Busbar system: 60 mm \| Version: Double width, 3 MW
5SH2042		Item: Cover for bus-mounting base \| Design: DIAZED \| Size: DII \| Rated current: - \| Busbar system: 60 mm \| Version: Standard
5SH2242		Item: Cover for bus-mounting base \| Design: DIAZED \| Size: DIII \| Rated current: - \| Busbar system: 60 mm \| Version: Standard

Fuses & Fuse HoldersSiemens

13 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 5SG6/5SF6 bus-mounting fuse bases (NEOZED/DIAZED)

Brand Siemens·Fuses & Fuse Holders

Available part numbers (13)

5SG6208, 5SG6202, 5SG6206, 5SG6207, 5SF6015, 5SF6020, 5SF6215, 5SF6220, 5SH5241, 5SH5242 + 3 more — see full table ↓
