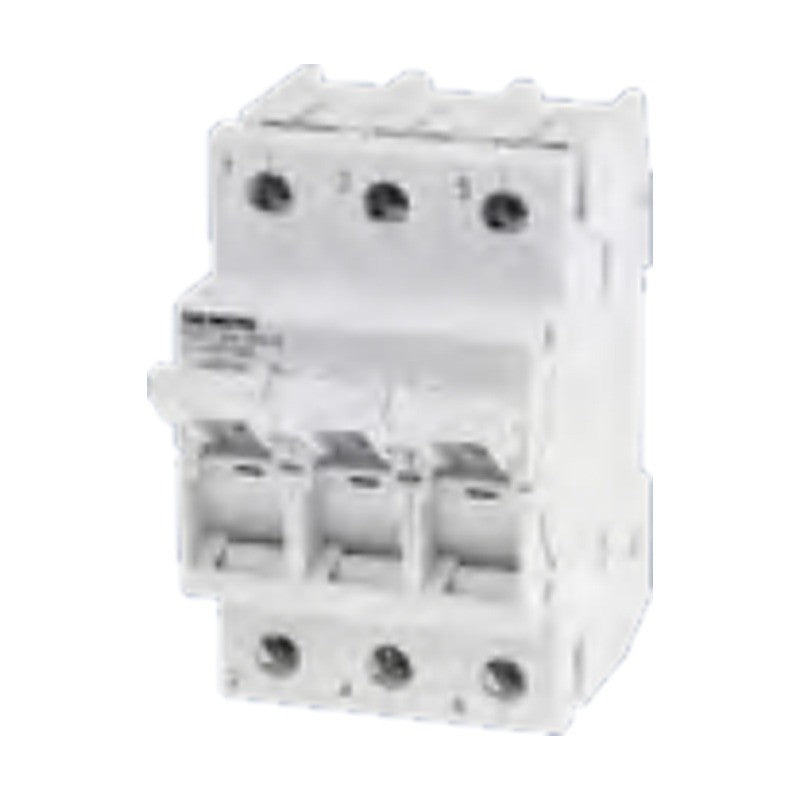

Siemens SENTRON 5SG7 MINIZED fuse switch disconnectors (D01/D02)

SENTRON MINIZED D01 fuse switch disconnectors and D02 switch disconnectors with fuses for NEOZED fuse links in modular installation design.

Key features

MINIZED D01 fuse switch disconnectors 2 ... 16 A, no adapter sleeves required
MINIZED D02 switch disconnectors with fuses up to 63 A
1P, 1P+N, 2P, 3P and 3P+N versions
Auxiliary switches, also with TEST button, and 5ST3 COM AS+FC
Electronic fuse monitor 5TT3170 for all LV fuse systems

Specifications

Brand	Siemens SENTRON
Series	MINIZED 5SG7
Fuse system	NEOZED D01/D02
Mounting	DIN rail
Manufacturer	Siemens
Source	Siemens Catalog LV 10 · 2026, p. 538-539

5SG7611-0KK06		Type: Fuse switch disconnector \| Size: D01 \| Rated current: 2 ... 6 A \| Poles: 1P
5SG7611-0KK10		Type: Fuse switch disconnector \| Size: D01 \| Rated current: 10 A \| Poles: 1P
5SG7611-0KK16		Type: Fuse switch disconnector \| Size: D01 \| Rated current: 16 A \| Poles: 1P
5SG7651-0KK16		Type: Fuse switch disconnector \| Size: D01 \| Rated current: 16 A \| Poles: 1P+N
5SG7621-0KK16		Type: Fuse switch disconnector \| Size: D01 \| Rated current: 16 A \| Poles: 2P
5SG7631-0KK06		Type: Fuse switch disconnector \| Size: D01 \| Rated current: 2 ... 6 A \| Poles: 3P
5SG7631-0KK10		Type: Fuse switch disconnector \| Size: D01 \| Rated current: 10 A \| Poles: 3P
5SG7631-0KK16		Type: Fuse switch disconnector \| Size: D01 \| Rated current: 16 A \| Poles: 3P
5SG7661-0KK16		Type: Fuse switch disconnector \| Size: D01 \| Rated current: 16 A \| Poles: 3P+N
5SG7133-8BA25		Type: Switch disconnector with fuses (AT) \| Size: D02 \| Rated current: 25 A \| Poles: 3P
5SG7133-8BA35		Type: Switch disconnector with fuses (AT) \| Size: D02 \| Rated current: 35 A \| Poles: 3P
5SG7133-8BA50		Type: Switch disconnector with fuses (AT) \| Size: D02 \| Rated current: 50 A \| Poles: 3P
5SG7113		Type: Switch disconnector with fuses \| Size: D02 \| Rated current: 63 A \| Poles: 1P
5SG7153		Type: Switch disconnector with fuses \| Size: D02 \| Rated current: 63 A \| Poles: 1P+N
5SG7123		Type: Switch disconnector with fuses \| Size: D02 \| Rated current: 63 A \| Poles: 2P
5SG7133		Type: Switch disconnector with fuses \| Size: D02 \| Rated current: 63 A \| Poles: 3P
5SG7163		Type: Switch disconnector with fuses \| Size: D02 \| Rated current: 63 A \| Poles: 3P+N
5SH5527		Type: Reducer for D01 links in D02 devices \| Size: - \| Rated current: - \| Poles: -
5TT3170		Type: Electronic fuse monitor 230 V AC, 4 A \| Size: - \| Rated current: - \| Poles: -

Fuses & Fuse HoldersSiemens

19 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 5SG7 MINIZED fuse switch disconnectors (D01/D02)

Brand Siemens·Fuses & Fuse Holders

Available part numbers (19)

5SG7611-0KK06, 5SG7611-0KK10, 5SG7611-0KK16, 5SG7651-0KK16, 5SG7621-0KK16, 5SG7631-0KK06, 5SG7631-0KK10, 5SG7631-0KK16, 5SG7661-0KK16, 5SG7133-8BA25 + 9 more — see full table ↓
