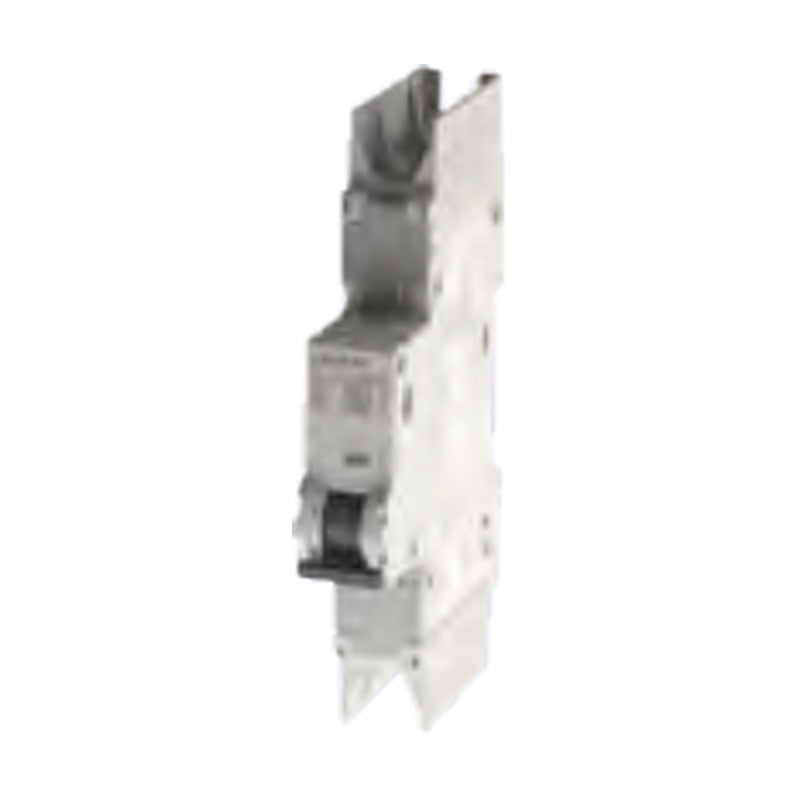

Siemens SENTRON 5SJ4..HG.. MCBs acc. to UL 489, 14/10 kA (B, C, D)

Siemens SENTRON 5SJ4..HG.. MCBs acc. to UL 489, 14/10 kA (B, C, D)

SENTRON 5SJ4..HG.. miniature circuit breakers according to UL 489 for branch circuit protection in North American applications.

Key features

  • Approved to UL 489 for branch circuit protection
  • 240 V AC and 480Y/277 V AC versions
  • Rated currents 0.3 to 63 A, characteristics B, C and D
  • Versions 1P "same polarity only", 1P, 2P and 3P
  • Combinable with UL 489 auxiliary switches, fault signal contacts and shunt trips

Specifications

Brand Siemens
Product line SENTRON
Rated short-circuit breaking capacity 14/10 kA (UL 489)
Standard IEC/EN 60947-2, UL 489
Accessories AS, FC, ST acc. to UL 489
Mounting 35 mm DIN rail
Source Siemens Catalog LV 10 · 2026, p. 308-309
5SJ4114-7HG40 Rated current: 0.3 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4114-8HG40 Rated current: 0.3 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4114-7HG41 Rated current: 0.3 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4114-7HG42 Rated current: 0.3 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4114-8HG41 Rated current: 0.3 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4114-8HG42 Rated current: 0.3 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4105-7HG40 Rated current: 0.5 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4105-8HG40 Rated current: 0.5 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4105-7HG41 Rated current: 0.5 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4105-7HG42 Rated current: 0.5 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4105-8HG41 Rated current: 0.5 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4105-8HG42 Rated current: 0.5 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4101-7HG40 Rated current: 1 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4101-8HG40 Rated current: 1 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4101-7HG41 Rated current: 1 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4101-7HG42 Rated current: 1 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4101-8HG41 Rated current: 1 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4101-8HG42 Rated current: 1 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4115-7HG40 Rated current: 1.6 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4115-8HG40 Rated current: 1.6 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4115-7HG41 Rated current: 1.6 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4115-7HG42 Rated current: 1.6 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4115-8HG41 Rated current: 1.6 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4115-8HG42 Rated current: 1.6 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4102-7HG40 Rated current: 2 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4102-8HG40 Rated current: 2 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4102-7HG41 Rated current: 2 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4102-7HG42 Rated current: 2 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4102-8HG41 Rated current: 2 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4102-8HG42 Rated current: 2 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4103-7HG40 Rated current: 3 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4103-8HG40 Rated current: 3 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4103-7HG41 Rated current: 3 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4103-7HG42 Rated current: 3 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4103-8HG41 Rated current: 3 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4103-8HG42 Rated current: 3 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4104-7HG40 Rated current: 4 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4104-8HG40 Rated current: 4 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4104-7HG41 Rated current: 4 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4104-7HG42 Rated current: 4 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4104-8HG41 Rated current: 4 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4104-8HG42 Rated current: 4 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4111-7HG40 Rated current: 5 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4111-8HG40 Rated current: 5 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4111-7HG41 Rated current: 5 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4111-7HG42 Rated current: 5 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4111-8HG41 Rated current: 5 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4111-8HG42 Rated current: 5 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4106-6HG40 Rated current: 6 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4106-7HG40 Rated current: 6 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4106-8HG40 Rated current: 6 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4106-7HG41 Rated current: 6 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4106-7HG42 Rated current: 6 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4106-8HG41 Rated current: 6 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4106-8HG42 Rated current: 6 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4108-7HG40 Rated current: 8 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4108-8HG40 Rated current: 8 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4108-7HG41 Rated current: 8 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4108-7HG42 Rated current: 8 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4108-8HG41 Rated current: 8 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4108-8HG42 Rated current: 8 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4110-6HG40 Rated current: 10 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4110-7HG40 Rated current: 10 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4110-8HG40 Rated current: 10 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4110-7HG41 Rated current: 10 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4110-7HG42 Rated current: 10 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4110-8HG41 Rated current: 10 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4110-8HG42 Rated current: 10 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4113-6HG40 Rated current: 13 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4113-7HG40 Rated current: 13 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4113-8HG40 Rated current: 13 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4113-7HG41 Rated current: 13 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4113-7HG42 Rated current: 13 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4113-8HG41 Rated current: 13 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4113-8HG42 Rated current: 13 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4118-6HG40 Rated current: 15 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4118-7HG40 Rated current: 15 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4118-8HG40 Rated current: 15 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4118-7HG41 Rated current: 15 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4118-7HG42 Rated current: 15 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4118-8HG41 Rated current: 15 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4118-8HG42 Rated current: 15 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4116-6HG40 Rated current: 16 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4116-7HG40 Rated current: 16 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4116-8HG40 Rated current: 16 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4116-7HG41 Rated current: 16 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4116-7HG42 Rated current: 16 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4116-8HG41 Rated current: 16 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4116-8HG42 Rated current: 16 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4120-6HG40 Rated current: 20 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4120-7HG40 Rated current: 20 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4120-8HG40 Rated current: 20 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4120-7HG41 Rated current: 20 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4120-7HG42 Rated current: 20 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4120-8HG41 Rated current: 20 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4120-8HG42 Rated current: 20 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4125-6HG40 Rated current: 25 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4125-7HG40 Rated current: 25 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4125-8HG40 Rated current: 25 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4125-7HG41 Rated current: 25 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4125-7HG42 Rated current: 25 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4125-8HG41 Rated current: 25 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4125-8HG42 Rated current: 25 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4130-6HG40 Rated current: 30 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4130-7HG40 Rated current: 30 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4130-8HG40 Rated current: 30 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4130-7HG41 Rated current: 30 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4130-7HG42 Rated current: 30 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4130-8HG41 Rated current: 30 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4130-8HG42 Rated current: 30 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4132-6HG40 Rated current: 32 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4132-7HG40 Rated current: 32 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4132-8HG40 Rated current: 32 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4132-7HG41 Rated current: 32 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4132-7HG42 Rated current: 32 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4132-8HG41 Rated current: 32 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4132-8HG42 Rated current: 32 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4135-6HG40 Rated current: 35 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4135-7HG40 Rated current: 35 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4135-8HG40 Rated current: 35 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4135-7HG41 Rated current: 35 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4135-7HG42 Rated current: 35 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4135-8HG41 Rated current: 35 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4140-6HG40 Rated current: 40 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4140-7HG40 Rated current: 40 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4140-8HG40 Rated current: 40 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4140-7HG41 Rated current: 40 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4140-7HG42 Rated current: 40 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4140-8HG41 Rated current: 40 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4145-6HG40 Rated current: 45 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4145-7HG40 Rated current: 45 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4145-8HG40 Rated current: 45 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4145-7HG41 Rated current: 45 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4145-8HG41 Rated current: 45 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4150-6HG40 Rated current: 50 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4150-7HG40 Rated current: 50 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4150-8HG40 Rated current: 50 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4150-7HG41 Rated current: 50 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4150-8HG41 Rated current: 50 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4160-6HG40 Rated current: 60 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4160-7HG40 Rated current: 60 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4160-8HG40 Rated current: 60 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4160-7HG41 Rated current: 60 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4160-8HG41 Rated current: 60 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4163-6HG40 Rated current: 63 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4163-7HG40 Rated current: 63 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4163-8HG40 Rated current: 63 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4163-7HG41 Rated current: 63 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4163-8HG41 Rated current: 63 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4214-7HG41 Rated current: 0.3 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4214-7HG42 Rated current: 0.3 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4214-8HG41 Rated current: 0.3 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4214-8HG42 Rated current: 0.3 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4314-7HG41 Rated current: 0.3 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4314-7HG42 Rated current: 0.3 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4314-8HG41 Rated current: 0.3 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4314-8HG42 Rated current: 0.3 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4205-7HG41 Rated current: 0.5 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4205-7HG42 Rated current: 0.5 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4205-8HG41 Rated current: 0.5 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4205-8HG42 Rated current: 0.5 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4305-7HG41 Rated current: 0.5 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4305-7HG42 Rated current: 0.5 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4305-8HG41 Rated current: 0.5 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4305-8HG42 Rated current: 0.5 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4201-7HG41 Rated current: 1 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4201-7HG42 Rated current: 1 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4201-8HG41 Rated current: 1 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4201-8HG42 Rated current: 1 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4301-7HG41 Rated current: 1 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4301-7HG42 Rated current: 1 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4301-8HG41 Rated current: 1 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4301-8HG42 Rated current: 1 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4215-7HG41 Rated current: 1.6 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4215-7HG42 Rated current: 1.6 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4215-8HG41 Rated current: 1.6 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4215-8HG42 Rated current: 1.6 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4315-7HG41 Rated current: 1.6 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4315-7HG42 Rated current: 1.6 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4315-8HG41 Rated current: 1.6 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4315-8HG42 Rated current: 1.6 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4202-7HG41 Rated current: 2 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4202-7HG42 Rated current: 2 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4202-8HG41 Rated current: 2 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4202-8HG42 Rated current: 2 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4302-7HG41 Rated current: 2 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4302-7HG42 Rated current: 2 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4302-8HG41 Rated current: 2 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4302-8HG42 Rated current: 2 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4203-7HG41 Rated current: 3 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4203-7HG42 Rated current: 3 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4203-8HG41 Rated current: 3 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4203-8HG42 Rated current: 3 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4303-7HG41 Rated current: 3 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4303-7HG42 Rated current: 3 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4303-8HG41 Rated current: 3 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4303-8HG42 Rated current: 3 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4204-7HG41 Rated current: 4 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4204-7HG42 Rated current: 4 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4204-8HG41 Rated current: 4 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4204-8HG42 Rated current: 4 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4304-7HG41 Rated current: 4 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4304-7HG42 Rated current: 4 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4304-8HG41 Rated current: 4 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4304-8HG42 Rated current: 4 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4211-7HG41 Rated current: 5 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4211-7HG42 Rated current: 5 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4211-8HG41 Rated current: 5 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4211-8HG42 Rated current: 5 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4311-7HG41 Rated current: 5 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4311-7HG42 Rated current: 5 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4311-8HG41 Rated current: 5 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4311-8HG42 Rated current: 5 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4206-7HG41 Rated current: 6 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4206-7HG42 Rated current: 6 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4206-8HG41 Rated current: 6 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4206-8HG42 Rated current: 6 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4306-7HG41 Rated current: 6 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4306-7HG42 Rated current: 6 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4306-8HG41 Rated current: 6 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4306-8HG42 Rated current: 6 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4208-7HG41 Rated current: 8 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4208-7HG42 Rated current: 8 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4208-8HG41 Rated current: 8 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4208-8HG42 Rated current: 8 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4308-7HG41 Rated current: 8 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4308-7HG42 Rated current: 8 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4308-8HG41 Rated current: 8 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4308-8HG42 Rated current: 8 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4210-7HG41 Rated current: 10 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4210-7HG42 Rated current: 10 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4210-8HG41 Rated current: 10 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4210-8HG42 Rated current: 10 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4310-7HG41 Rated current: 10 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4310-7HG42 Rated current: 10 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4310-8HG41 Rated current: 10 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4310-8HG42 Rated current: 10 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4213-7HG41 Rated current: 13 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4213-7HG42 Rated current: 13 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4213-8HG41 Rated current: 13 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4213-8HG42 Rated current: 13 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4313-7HG41 Rated current: 13 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4313-7HG42 Rated current: 13 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4313-8HG41 Rated current: 13 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4313-8HG42 Rated current: 13 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4218-7HG41 Rated current: 15 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4218-7HG42 Rated current: 15 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4218-8HG41 Rated current: 15 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4218-8HG42 Rated current: 15 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4318-7HG41 Rated current: 15 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4318-7HG42 Rated current: 15 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4318-8HG41 Rated current: 15 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4318-8HG42 Rated current: 15 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4216-7HG41 Rated current: 16 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4216-7HG42 Rated current: 16 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4216-8HG41 Rated current: 16 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4216-8HG42 Rated current: 16 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4316-7HG41 Rated current: 16 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4316-7HG42 Rated current: 16 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4316-8HG41 Rated current: 16 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4316-8HG42 Rated current: 16 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4220-7HG41 Rated current: 20 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4220-7HG42 Rated current: 20 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4220-8HG41 Rated current: 20 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4220-8HG42 Rated current: 20 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4320-7HG41 Rated current: 20 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4320-7HG42 Rated current: 20 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4320-8HG41 Rated current: 20 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4320-8HG42 Rated current: 20 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4225-7HG41 Rated current: 25 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4225-7HG42 Rated current: 25 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4225-8HG41 Rated current: 25 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4225-8HG42 Rated current: 25 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4325-7HG41 Rated current: 25 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4325-7HG42 Rated current: 25 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4325-8HG41 Rated current: 25 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4325-8HG42 Rated current: 25 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4230-7HG41 Rated current: 30 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4230-7HG42 Rated current: 30 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4230-8HG41 Rated current: 30 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4230-8HG42 Rated current: 30 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4330-7HG41 Rated current: 30 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4330-7HG42 Rated current: 30 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4330-8HG41 Rated current: 30 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4330-8HG42 Rated current: 30 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4232-7HG41 Rated current: 32 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4232-7HG42 Rated current: 32 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4232-8HG41 Rated current: 32 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4232-8HG42 Rated current: 32 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4332-7HG41 Rated current: 32 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4332-7HG42 Rated current: 32 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4332-8HG41 Rated current: 32 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4332-8HG42 Rated current: 32 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4235-7HG41 Rated current: 35 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4235-7HG42 Rated current: 35 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4235-8HG41 Rated current: 35 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4335-7HG41 Rated current: 35 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4335-7HG42 Rated current: 35 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4335-8HG41 Rated current: 35 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4240-7HG41 Rated current: 40 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4240-7HG42 Rated current: 40 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4240-8HG41 Rated current: 40 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4340-7HG41 Rated current: 40 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4340-7HG42 Rated current: 40 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4340-8HG41 Rated current: 40 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4245-7HG41 Rated current: 45 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4245-8HG41 Rated current: 45 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4345-7HG41 Rated current: 45 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4345-8HG41 Rated current: 45 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4250-7HG41 Rated current: 50 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4250-8HG41 Rated current: 50 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4350-7HG41 Rated current: 50 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4350-8HG41 Rated current: 50 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4260-7HG41 Rated current: 60 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4260-8HG41 Rated current: 60 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4360-7HG41 Rated current: 60 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4360-8HG41 Rated current: 60 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4263-7HG41 Rated current: 63 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4263-8HG41 Rated current: 63 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4363-7HG41 Rated current: 63 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4363-8HG41 Rated current: 63 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
Miniature Circuit BreakersSiemens
321 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 5SJ4..HG.. MCBs acc. to UL 489, 14/10 kA (B, C, D)

Brand Siemens·Miniature Circuit Breakers

Available part numbers (321)

5SJ4114-7HG40, 5SJ4114-8HG40, 5SJ4114-7HG41, 5SJ4114-7HG42, 5SJ4114-8HG41, 5SJ4114-8HG42, 5SJ4105-7HG40, 5SJ4105-8HG40, 5SJ4105-7HG41, 5SJ4105-7HG42 + 311 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5SJ4114-7HG40Rated current: 0.3 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4114-8HG40Rated current: 0.3 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4114-7HG41Rated current: 0.3 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4114-7HG42Rated current: 0.3 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4114-8HG41Rated current: 0.3 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4114-8HG42Rated current: 0.3 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4105-7HG40Rated current: 0.5 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4105-8HG40Rated current: 0.5 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4105-7HG41Rated current: 0.5 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4105-7HG42Rated current: 0.5 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4105-8HG41Rated current: 0.5 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4105-8HG42Rated current: 0.5 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4101-7HG40Rated current: 1 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4101-8HG40Rated current: 1 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4101-7HG41Rated current: 1 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4101-7HG42Rated current: 1 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4101-8HG41Rated current: 1 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4101-8HG42Rated current: 1 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4115-7HG40Rated current: 1.6 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4115-8HG40Rated current: 1.6 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4115-7HG41Rated current: 1.6 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4115-7HG42Rated current: 1.6 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4115-8HG41Rated current: 1.6 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4115-8HG42Rated current: 1.6 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4102-7HG40Rated current: 2 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4102-8HG40Rated current: 2 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4102-7HG41Rated current: 2 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4102-7HG42Rated current: 2 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4102-8HG41Rated current: 2 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4102-8HG42Rated current: 2 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4103-7HG40Rated current: 3 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4103-8HG40Rated current: 3 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4103-7HG41Rated current: 3 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4103-7HG42Rated current: 3 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4103-8HG41Rated current: 3 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4103-8HG42Rated current: 3 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4104-7HG40Rated current: 4 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4104-8HG40Rated current: 4 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4104-7HG41Rated current: 4 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4104-7HG42Rated current: 4 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4104-8HG41Rated current: 4 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4104-8HG42Rated current: 4 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4111-7HG40Rated current: 5 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4111-8HG40Rated current: 5 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4111-7HG41Rated current: 5 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4111-7HG42Rated current: 5 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4111-8HG41Rated current: 5 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4111-8HG42Rated current: 5 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4106-6HG40Rated current: 6 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4106-7HG40Rated current: 6 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4106-8HG40Rated current: 6 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4106-7HG41Rated current: 6 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4106-7HG42Rated current: 6 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4106-8HG41Rated current: 6 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4106-8HG42Rated current: 6 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4108-7HG40Rated current: 8 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4108-8HG40Rated current: 8 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4108-7HG41Rated current: 8 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4108-7HG42Rated current: 8 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4108-8HG41Rated current: 8 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4108-8HG42Rated current: 8 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4110-6HG40Rated current: 10 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4110-7HG40Rated current: 10 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4110-8HG40Rated current: 10 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4110-7HG41Rated current: 10 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4110-7HG42Rated current: 10 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4110-8HG41Rated current: 10 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4110-8HG42Rated current: 10 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4113-6HG40Rated current: 13 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4113-7HG40Rated current: 13 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4113-8HG40Rated current: 13 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4113-7HG41Rated current: 13 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4113-7HG42Rated current: 13 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4113-8HG41Rated current: 13 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4113-8HG42Rated current: 13 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4118-6HG40Rated current: 15 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4118-7HG40Rated current: 15 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4118-8HG40Rated current: 15 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4118-7HG41Rated current: 15 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4118-7HG42Rated current: 15 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4118-8HG41Rated current: 15 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4118-8HG42Rated current: 15 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4116-6HG40Rated current: 16 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4116-7HG40Rated current: 16 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4116-8HG40Rated current: 16 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4116-7HG41Rated current: 16 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4116-7HG42Rated current: 16 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4116-8HG41Rated current: 16 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4116-8HG42Rated current: 16 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4120-6HG40Rated current: 20 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4120-7HG40Rated current: 20 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4120-8HG40Rated current: 20 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4120-7HG41Rated current: 20 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4120-7HG42Rated current: 20 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4120-8HG41Rated current: 20 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4120-8HG42Rated current: 20 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4125-6HG40Rated current: 25 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4125-7HG40Rated current: 25 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4125-8HG40Rated current: 25 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4125-7HG41Rated current: 25 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4125-7HG42Rated current: 25 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4125-8HG41Rated current: 25 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4125-8HG42Rated current: 25 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4130-6HG40Rated current: 30 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4130-7HG40Rated current: 30 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4130-8HG40Rated current: 30 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4130-7HG41Rated current: 30 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4130-7HG42Rated current: 30 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4130-8HG41Rated current: 30 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4130-8HG42Rated current: 30 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4132-6HG40Rated current: 32 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4132-7HG40Rated current: 32 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4132-8HG40Rated current: 32 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4132-7HG41Rated current: 32 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4132-7HG42Rated current: 32 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4132-8HG41Rated current: 32 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4132-8HG42Rated current: 32 A | Poles: 1P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4135-6HG40Rated current: 35 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4135-7HG40Rated current: 35 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4135-8HG40Rated current: 35 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4135-7HG41Rated current: 35 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4135-7HG42Rated current: 35 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4135-8HG41Rated current: 35 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4140-6HG40Rated current: 40 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4140-7HG40Rated current: 40 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4140-8HG40Rated current: 40 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4140-7HG41Rated current: 40 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4140-7HG42Rated current: 40 A | Poles: 1P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 1 MW
5SJ4140-8HG41Rated current: 40 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4145-6HG40Rated current: 45 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4145-7HG40Rated current: 45 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4145-8HG40Rated current: 45 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4145-7HG41Rated current: 45 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4145-8HG41Rated current: 45 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4150-6HG40Rated current: 50 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4150-7HG40Rated current: 50 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4150-8HG40Rated current: 50 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4150-7HG41Rated current: 50 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4150-8HG41Rated current: 50 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4160-6HG40Rated current: 60 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4160-7HG40Rated current: 60 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4160-8HG40Rated current: 60 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4160-7HG41Rated current: 60 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4160-8HG41Rated current: 60 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4163-6HG40Rated current: 63 A | Poles: 1P same polarity only | Characteristic: B | Rated voltage: 240 V AC | Width: 1 MW
5SJ4163-7HG40Rated current: 63 A | Poles: 1P same polarity only | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4163-8HG40Rated current: 63 A | Poles: 1P same polarity only | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4163-7HG41Rated current: 63 A | Poles: 1P | Characteristic: C | Rated voltage: 240 V AC | Width: 1 MW
5SJ4163-8HG41Rated current: 63 A | Poles: 1P | Characteristic: D | Rated voltage: 240 V AC | Width: 1 MW
5SJ4214-7HG41Rated current: 0.3 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4214-7HG42Rated current: 0.3 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4214-8HG41Rated current: 0.3 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4214-8HG42Rated current: 0.3 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4314-7HG41Rated current: 0.3 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4314-7HG42Rated current: 0.3 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4314-8HG41Rated current: 0.3 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4314-8HG42Rated current: 0.3 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4205-7HG41Rated current: 0.5 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4205-7HG42Rated current: 0.5 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4205-8HG41Rated current: 0.5 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4205-8HG42Rated current: 0.5 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4305-7HG41Rated current: 0.5 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4305-7HG42Rated current: 0.5 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4305-8HG41Rated current: 0.5 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4305-8HG42Rated current: 0.5 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4201-7HG41Rated current: 1 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4201-7HG42Rated current: 1 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4201-8HG41Rated current: 1 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4201-8HG42Rated current: 1 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4301-7HG41Rated current: 1 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4301-7HG42Rated current: 1 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4301-8HG41Rated current: 1 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4301-8HG42Rated current: 1 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4215-7HG41Rated current: 1.6 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4215-7HG42Rated current: 1.6 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4215-8HG41Rated current: 1.6 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4215-8HG42Rated current: 1.6 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4315-7HG41Rated current: 1.6 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4315-7HG42Rated current: 1.6 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4315-8HG41Rated current: 1.6 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4315-8HG42Rated current: 1.6 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4202-7HG41Rated current: 2 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4202-7HG42Rated current: 2 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4202-8HG41Rated current: 2 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4202-8HG42Rated current: 2 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4302-7HG41Rated current: 2 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4302-7HG42Rated current: 2 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4302-8HG41Rated current: 2 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4302-8HG42Rated current: 2 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4203-7HG41Rated current: 3 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4203-7HG42Rated current: 3 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4203-8HG41Rated current: 3 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4203-8HG42Rated current: 3 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4303-7HG41Rated current: 3 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4303-7HG42Rated current: 3 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4303-8HG41Rated current: 3 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4303-8HG42Rated current: 3 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4204-7HG41Rated current: 4 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4204-7HG42Rated current: 4 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4204-8HG41Rated current: 4 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4204-8HG42Rated current: 4 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4304-7HG41Rated current: 4 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4304-7HG42Rated current: 4 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4304-8HG41Rated current: 4 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4304-8HG42Rated current: 4 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4211-7HG41Rated current: 5 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4211-7HG42Rated current: 5 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4211-8HG41Rated current: 5 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4211-8HG42Rated current: 5 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4311-7HG41Rated current: 5 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4311-7HG42Rated current: 5 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4311-8HG41Rated current: 5 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4311-8HG42Rated current: 5 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4206-7HG41Rated current: 6 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4206-7HG42Rated current: 6 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4206-8HG41Rated current: 6 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4206-8HG42Rated current: 6 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4306-7HG41Rated current: 6 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4306-7HG42Rated current: 6 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4306-8HG41Rated current: 6 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4306-8HG42Rated current: 6 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4208-7HG41Rated current: 8 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4208-7HG42Rated current: 8 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4208-8HG41Rated current: 8 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4208-8HG42Rated current: 8 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4308-7HG41Rated current: 8 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4308-7HG42Rated current: 8 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4308-8HG41Rated current: 8 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4308-8HG42Rated current: 8 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4210-7HG41Rated current: 10 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4210-7HG42Rated current: 10 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4210-8HG41Rated current: 10 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4210-8HG42Rated current: 10 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4310-7HG41Rated current: 10 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4310-7HG42Rated current: 10 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4310-8HG41Rated current: 10 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4310-8HG42Rated current: 10 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4213-7HG41Rated current: 13 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4213-7HG42Rated current: 13 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4213-8HG41Rated current: 13 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4213-8HG42Rated current: 13 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4313-7HG41Rated current: 13 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4313-7HG42Rated current: 13 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4313-8HG41Rated current: 13 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4313-8HG42Rated current: 13 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4218-7HG41Rated current: 15 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4218-7HG42Rated current: 15 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4218-8HG41Rated current: 15 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4218-8HG42Rated current: 15 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4318-7HG41Rated current: 15 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4318-7HG42Rated current: 15 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4318-8HG41Rated current: 15 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4318-8HG42Rated current: 15 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4216-7HG41Rated current: 16 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4216-7HG42Rated current: 16 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4216-8HG41Rated current: 16 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4216-8HG42Rated current: 16 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4316-7HG41Rated current: 16 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4316-7HG42Rated current: 16 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4316-8HG41Rated current: 16 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4316-8HG42Rated current: 16 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4220-7HG41Rated current: 20 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4220-7HG42Rated current: 20 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4220-8HG41Rated current: 20 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4220-8HG42Rated current: 20 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4320-7HG41Rated current: 20 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4320-7HG42Rated current: 20 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4320-8HG41Rated current: 20 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4320-8HG42Rated current: 20 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4225-7HG41Rated current: 25 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4225-7HG42Rated current: 25 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4225-8HG41Rated current: 25 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4225-8HG42Rated current: 25 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4325-7HG41Rated current: 25 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4325-7HG42Rated current: 25 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4325-8HG41Rated current: 25 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4325-8HG42Rated current: 25 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4230-7HG41Rated current: 30 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4230-7HG42Rated current: 30 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4230-8HG41Rated current: 30 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4230-8HG42Rated current: 30 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4330-7HG41Rated current: 30 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4330-7HG42Rated current: 30 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4330-8HG41Rated current: 30 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4330-8HG42Rated current: 30 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4232-7HG41Rated current: 32 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4232-7HG42Rated current: 32 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4232-8HG41Rated current: 32 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4232-8HG42Rated current: 32 A | Poles: 2P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4332-7HG41Rated current: 32 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4332-7HG42Rated current: 32 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4332-8HG41Rated current: 32 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4332-8HG42Rated current: 32 A | Poles: 3P | Characteristic: D | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4235-7HG41Rated current: 35 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4235-7HG42Rated current: 35 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4235-8HG41Rated current: 35 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4335-7HG41Rated current: 35 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4335-7HG42Rated current: 35 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4335-8HG41Rated current: 35 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4240-7HG41Rated current: 40 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4240-7HG42Rated current: 40 A | Poles: 2P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 2 MW
5SJ4240-8HG41Rated current: 40 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4340-7HG41Rated current: 40 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4340-7HG42Rated current: 40 A | Poles: 3P | Characteristic: C | Rated voltage: 480Y/277 V AC | Width: 3 MW
5SJ4340-8HG41Rated current: 40 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4245-7HG41Rated current: 45 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4245-8HG41Rated current: 45 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4345-7HG41Rated current: 45 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4345-8HG41Rated current: 45 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4250-7HG41Rated current: 50 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4250-8HG41Rated current: 50 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4350-7HG41Rated current: 50 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4350-8HG41Rated current: 50 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4260-7HG41Rated current: 60 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4260-8HG41Rated current: 60 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4360-7HG41Rated current: 60 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4360-8HG41Rated current: 60 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW
5SJ4263-7HG41Rated current: 63 A | Poles: 2P | Characteristic: C | Rated voltage: 240 V AC | Width: 2 MW
5SJ4263-8HG41Rated current: 63 A | Poles: 2P | Characteristic: D | Rated voltage: 240 V AC | Width: 2 MW
5SJ4363-7HG41Rated current: 63 A | Poles: 3P | Characteristic: C | Rated voltage: 240 V AC | Width: 3 MW
5SJ4363-8HG41Rated current: 63 A | Poles: 3P | Characteristic: D | Rated voltage: 240 V AC | Width: 3 MW

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
