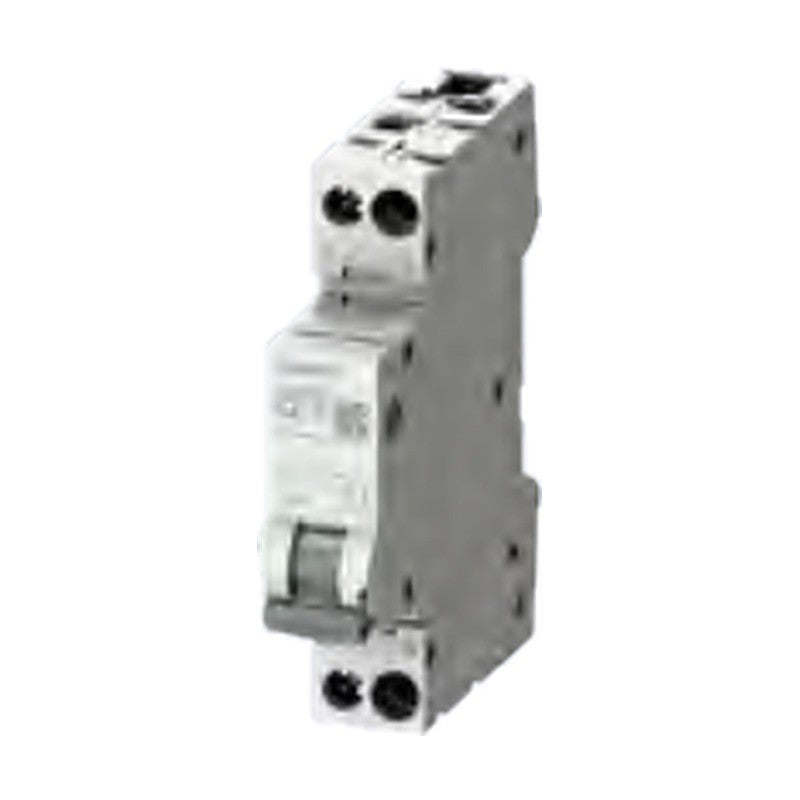

Siemens SENTRON 5SL30 Compact MCBs 1P+N 4.5 kA (C)

Siemens SENTRON 5SL30 Compact MCBs 1P+N 4.5 kA (C)

SENTRON 5SL30 compact 1P+N miniature circuit breakers with 4.5 kA breaking capacity in 2 MW width.

Key features

  • 1P+N in 2 MW width, characteristic C
  • Rated currents 2 to 40 A
  • N pole right or N pole left (KL versions)
  • Combinable with auxiliary switches, fault signal contacts and AS+FC

Specifications

Brand Siemens
Product line SENTRON
Rated short-circuit breaking capacity 4.5 kA
Standard IEC/EN 60898-1
Rated voltage 230 V AC
Mounting 35 mm DIN rail
Source Siemens Catalog LV 10 · 2026, p. 288
5SL3002-7 Rated current: 2 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 2 MW
5SL3002-7KL Rated current: 2 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 2 MW
5SL3004-7 Rated current: 4 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 2 MW
5SL3004-7KL Rated current: 4 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 2 MW
5SL3006-7 Rated current: 6 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 2 MW
5SL3006-7KL Rated current: 6 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 2 MW
5SL3008-7 Rated current: 8 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 2 MW
5SL3008-7KL Rated current: 8 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 2 MW
5SL3010-7 Rated current: 10 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 2 MW
5SL3010-7KL Rated current: 10 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 2 MW
5SL3013-7 Rated current: 13 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 2 MW
5SL3013-7KL Rated current: 13 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 2 MW
5SL3016-7 Rated current: 16 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 2 MW
5SL3016-7KL Rated current: 16 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 2 MW
5SL3020-7 Rated current: 20 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 2 MW
5SL3020-7KL Rated current: 20 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 2 MW
5SL3025-7 Rated current: 25 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 2 MW
5SL3025-7KL Rated current: 25 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 2 MW
5SL3032-7 Rated current: 32 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 2 MW
5SL3032-7KL Rated current: 32 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 2 MW
5SL3040-7 Rated current: 40 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 2 MW
5SL3040-7KL Rated current: 40 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 2 MW
Miniature Circuit BreakersSiemens
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 5SL30 Compact MCBs 1P+N 4.5 kA (C)

Brand Siemens·Miniature Circuit Breakers

Available part numbers (22)

5SL3002-7, 5SL3002-7KL, 5SL3004-7, 5SL3004-7KL, 5SL3006-7, 5SL3006-7KL, 5SL3008-7, 5SL3008-7KL, 5SL3010-7, 5SL3010-7KL + 12 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5SL3002-7Rated current: 2 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 2 MW
5SL3002-7KLRated current: 2 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 2 MW
5SL3004-7Rated current: 4 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 2 MW
5SL3004-7KLRated current: 4 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 2 MW
5SL3006-7Rated current: 6 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 2 MW
5SL3006-7KLRated current: 6 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 2 MW
5SL3008-7Rated current: 8 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 2 MW
5SL3008-7KLRated current: 8 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 2 MW
5SL3010-7Rated current: 10 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 2 MW
5SL3010-7KLRated current: 10 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 2 MW
5SL3013-7Rated current: 13 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 2 MW
5SL3013-7KLRated current: 13 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 2 MW
5SL3016-7Rated current: 16 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 2 MW
5SL3016-7KLRated current: 16 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 2 MW
5SL3020-7Rated current: 20 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 2 MW
5SL3020-7KLRated current: 20 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 2 MW
5SL3025-7Rated current: 25 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 2 MW
5SL3025-7KLRated current: 25 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 2 MW
5SL3032-7Rated current: 32 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 2 MW
5SL3032-7KLRated current: 32 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 2 MW
5SL3040-7Rated current: 40 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 2 MW
5SL3040-7KLRated current: 40 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 2 MW
