• Siemens SENTRON 5SL58 Compact DC MCBs 2P 6 kA, 110 V DC (C)
1 1

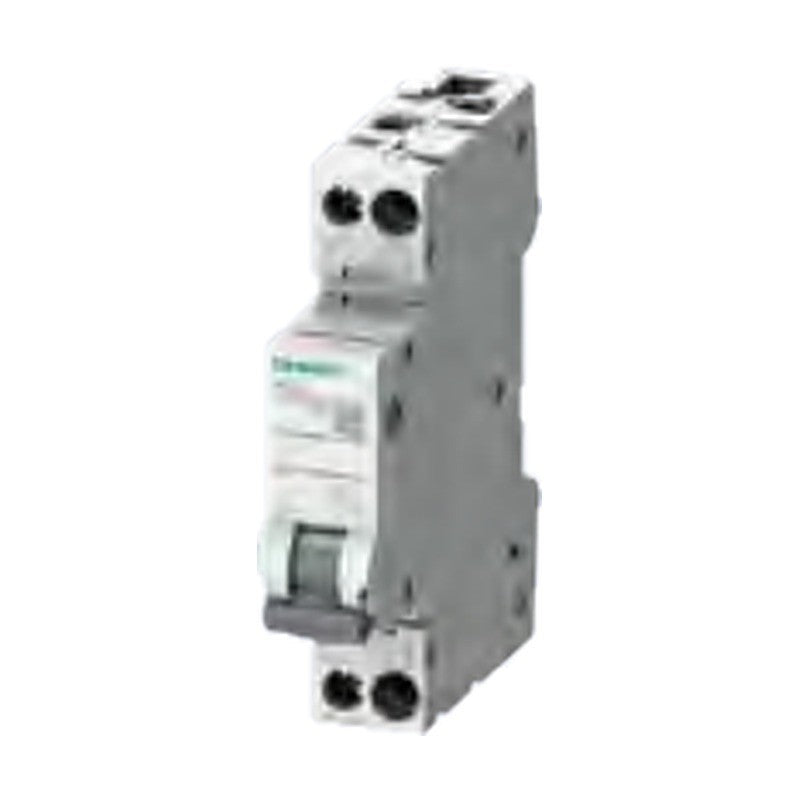

Siemens SENTRON 5SL58 Compact DC MCBs 2P 6 kA, 110 V DC (C)

Siemens SENTRON 5SL58 Compact DC MCBs 2P 6 kA, 110 V DC (C)

SENTRON 5SL58 compact 2-pole DC miniature circuit breakers with 6 kA breaking capacity in 1 MW width.

Key features

  • 2P DC miniature circuit breaker in only 1 MW width
  • Rated voltage 110 V DC, characteristic C
  • Rated currents 1 to 25 A
  • Combinable with auxiliary switches, fault signal contacts and AS+FC

Specifications

Brand Siemens
Product line SENTRON
Rated short-circuit breaking capacity 6 kA DC
Standard IEC 60898-3
Rated voltage 110 V DC
Width 1 MW
Mounting 35 mm DIN rail
Source Siemens Catalog LV 10 · 2026, p. 292
5SL5801-7 Rated current: 1 A | Poles: 2P | Characteristic: C
5SL5802-7 Rated current: 2 A | Poles: 2P | Characteristic: C
5SL5803-7 Rated current: 3 A | Poles: 2P | Characteristic: C
5SL5804-7 Rated current: 4 A | Poles: 2P | Characteristic: C
5SL5806-7 Rated current: 6 A | Poles: 2P | Characteristic: C
5SL5808-7 Rated current: 8 A | Poles: 2P | Characteristic: C
5SL5810-7 Rated current: 10 A | Poles: 2P | Characteristic: C
5SL5813-7 Rated current: 13 A | Poles: 2P | Characteristic: C
5SL5818-7 Rated current: 15 A | Poles: 2P | Characteristic: C
5SL5816-7 Rated current: 16 A | Poles: 2P | Characteristic: C
5SL5820-7 Rated current: 20 A | Poles: 2P | Characteristic: C
5SL5825-7 Rated current: 25 A | Poles: 2P | Characteristic: C
Miniature Circuit BreakersSiemens
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 5SL58 Compact DC MCBs 2P 6 kA, 110 V DC (C)

Brand Siemens·Miniature Circuit Breakers

Available part numbers (12)

5SL5801-7, 5SL5802-7, 5SL5803-7, 5SL5804-7, 5SL5806-7, 5SL5808-7, 5SL5810-7, 5SL5813-7, 5SL5818-7, 5SL5816-7 + 2 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5SL5801-7Rated current: 1 A | Poles: 2P | Characteristic: C
5SL5802-7Rated current: 2 A | Poles: 2P | Characteristic: C
5SL5803-7Rated current: 3 A | Poles: 2P | Characteristic: C
5SL5804-7Rated current: 4 A | Poles: 2P | Characteristic: C
5SL5806-7Rated current: 6 A | Poles: 2P | Characteristic: C
5SL5808-7Rated current: 8 A | Poles: 2P | Characteristic: C
5SL5810-7Rated current: 10 A | Poles: 2P | Characteristic: C
5SL5813-7Rated current: 13 A | Poles: 2P | Characteristic: C
5SL5818-7Rated current: 15 A | Poles: 2P | Characteristic: C
5SL5816-7Rated current: 16 A | Poles: 2P | Characteristic: C
5SL5820-7Rated current: 20 A | Poles: 2P | Characteristic: C
5SL5825-7Rated current: 25 A | Poles: 2P | Characteristic: C
