• Siemens SENTRON 5SL6 COM MCBs 1P+N 6 kA with EM / RCM (B, C)
1 1

Siemens SENTRON 5SL6 COM MCBs 1P+N 6 kA with EM / RCM (B, C)

Siemens SENTRON 5SL6 COM MCBs 1P+N 6 kA with EM / RCM (B, C)

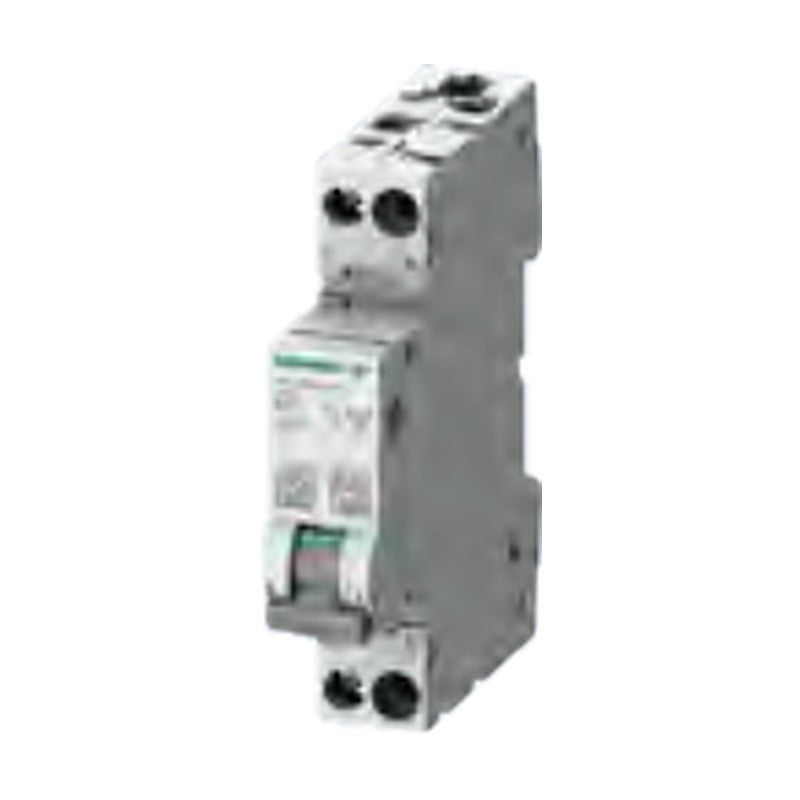

SENTRON 5SL6 COM compact 1P+N miniature circuit breakers with energy monitoring, optional residual current monitoring and wireless communication.

Key features

  • 1P+N compact MCB in 1 MW with integrated measuring functions
  • MC versions: energy monitoring (EM)
  • MF versions: residual current monitoring (RCM) and energy monitoring
  • Wireless communication to SENTRON Powercenter 1000 data transceiver (essential accessory)
  • Rated currents 2 to 32 A, characteristics B and C

Specifications

Brand Siemens
Product line SENTRON
Rated short-circuit breaking capacity 6 kA
Standard IEC/EN 60898-1
Rated voltage 230 V AC
Communication Radio link to SENTRON Powercenter 1000
Mounting 35 mm DIN rail
Source Siemens Catalog LV 10 · 2026, p. 310-313
5SL6002-6MC Rated current: 2 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6002-7MC Rated current: 2 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6004-6MC Rated current: 4 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6004-7MC Rated current: 4 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6006-6MC Rated current: 6 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6006-7MC Rated current: 6 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6008-7MC Rated current: 8 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6010-6MC Rated current: 10 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6010-7MC Rated current: 10 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6013-6MC Rated current: 13 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6013-7MC Rated current: 13 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6016-6MC Rated current: 16 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6016-7MC Rated current: 16 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6020-6MC Rated current: 20 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6020-7MC Rated current: 20 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6025-6MC Rated current: 25 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6025-7MC Rated current: 25 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6032-6MC Rated current: 32 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6032-7MC Rated current: 32 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6002-7MF Rated current: 2 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6004-7MF Rated current: 4 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6006-6MF Rated current: 6 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6006-7MF Rated current: 6 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6008-7MF Rated current: 8 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6010-6MF Rated current: 10 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6010-7MF Rated current: 10 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6013-6MF Rated current: 13 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6013-7MF Rated current: 13 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6016-6MF Rated current: 16 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6016-7MF Rated current: 16 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6020-6MF Rated current: 20 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6020-7MF Rated current: 20 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6025-6MF Rated current: 25 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6025-7MF Rated current: 25 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6032-6MF Rated current: 32 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6032-7MF Rated current: 32 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
Miniature Circuit BreakersSiemens
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 5SL6 COM MCBs 1P+N 6 kA with EM / RCM (B, C)

Brand Siemens·Miniature Circuit Breakers

Available part numbers (36)

5SL6002-6MC, 5SL6002-7MC, 5SL6004-6MC, 5SL6004-7MC, 5SL6006-6MC, 5SL6006-7MC, 5SL6008-7MC, 5SL6010-6MC, 5SL6010-7MC, 5SL6013-6MC + 26 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5SL6002-6MCRated current: 2 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6002-7MCRated current: 2 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6004-6MCRated current: 4 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6004-7MCRated current: 4 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6006-6MCRated current: 6 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6006-7MCRated current: 6 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6008-7MCRated current: 8 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6010-6MCRated current: 10 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6010-7MCRated current: 10 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6013-6MCRated current: 13 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6013-7MCRated current: 13 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6016-6MCRated current: 16 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6016-7MCRated current: 16 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6020-6MCRated current: 20 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6020-7MCRated current: 20 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6025-6MCRated current: 25 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6025-7MCRated current: 25 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6032-6MCRated current: 32 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6032-7MCRated current: 32 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with energy monitoring (EM)
5SL6002-7MFRated current: 2 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6004-7MFRated current: 4 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6006-6MFRated current: 6 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6006-7MFRated current: 6 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6008-7MFRated current: 8 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6010-6MFRated current: 10 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6010-7MFRated current: 10 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6013-6MFRated current: 13 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6013-7MFRated current: 13 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6016-6MFRated current: 16 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6016-7MFRated current: 16 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6020-6MFRated current: 20 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6020-7MFRated current: 20 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6025-6MFRated current: 25 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6025-7MFRated current: 25 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6032-6MFRated current: 32 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
5SL6032-7MFRated current: 32 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW | Function: COM with RCM and EM
