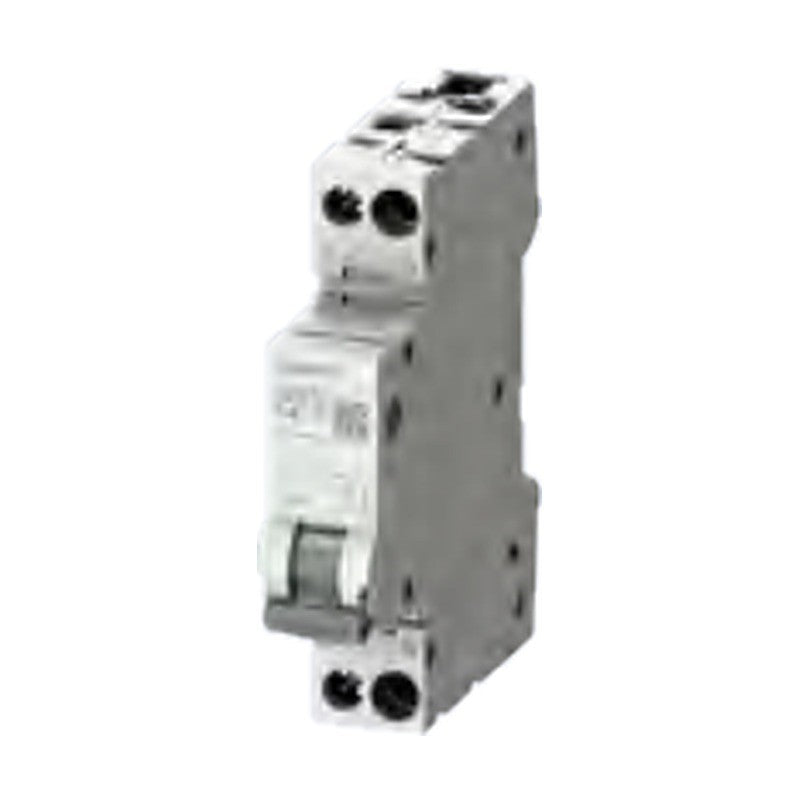

Siemens SENTRON 5SL60 Compact MCBs 1P+N 6 kA in 1 MW (B, C)

Siemens SENTRON 5SL60 Compact MCBs 1P+N 6 kA in 1 MW (B, C)

SENTRON 5SL60 compact 1P+N miniature circuit breakers with 6 kA breaking capacity in only 1 MW width.

Key features

  • 1P+N in 1 MW (18 mm) width, characteristics B and C
  • Rated currents 2 to 40 A
  • N pole right or N pole left (KL versions)
  • Combinable with 5SM6 AFDD (not KL types), AS, FC, AS+FC and RCA

Specifications

Brand Siemens
Product line SENTRON
Rated short-circuit breaking capacity 6 kA
Standard IEC/EN 60898-1
Rated voltage 230 V AC
Mounting 35 mm DIN rail
Source Siemens Catalog LV 10 · 2026, p. 290
5SL6002-7 Rated current: 2 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW
5SL6002-7KL Rated current: 2 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 1 MW
5SL6004-7 Rated current: 4 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW
5SL6004-7KL Rated current: 4 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 1 MW
5SL6006-6 Rated current: 6 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW
5SL6006-7 Rated current: 6 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW
5SL6006-7KL Rated current: 6 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 1 MW
5SL6008-7 Rated current: 8 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW
5SL6008-7KL Rated current: 8 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 1 MW
5SL6010-6 Rated current: 10 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW
5SL6010-7 Rated current: 10 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW
5SL6010-7KL Rated current: 10 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 1 MW
5SL6013-6 Rated current: 13 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW
5SL6013-7 Rated current: 13 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW
5SL6013-7KL Rated current: 13 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 1 MW
5SL6016-6 Rated current: 16 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW
5SL6016-7 Rated current: 16 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW
5SL6016-7KL Rated current: 16 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 1 MW
5SL6020-6 Rated current: 20 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW
5SL6020-7 Rated current: 20 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW
5SL6020-7KL Rated current: 20 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 1 MW
5SL6025-6 Rated current: 25 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW
5SL6025-7 Rated current: 25 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW
5SL6025-7KL Rated current: 25 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 1 MW
5SL6032-6 Rated current: 32 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW
5SL6032-7 Rated current: 32 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW
5SL6032-7KL Rated current: 32 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 1 MW
5SL6040-6 Rated current: 40 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW
5SL6040-7 Rated current: 40 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW
5SL6040-7KL Rated current: 40 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 1 MW
Miniature Circuit BreakersSiemens
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 5SL60 Compact MCBs 1P+N 6 kA in 1 MW (B, C)

Brand Siemens·Miniature Circuit Breakers

Available part numbers (30)

5SL6002-7, 5SL6002-7KL, 5SL6004-7, 5SL6004-7KL, 5SL6006-6, 5SL6006-7, 5SL6006-7KL, 5SL6008-7, 5SL6008-7KL, 5SL6010-6 + 20 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5SL6002-7Rated current: 2 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW
5SL6002-7KLRated current: 2 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 1 MW
5SL6004-7Rated current: 4 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW
5SL6004-7KLRated current: 4 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 1 MW
5SL6006-6Rated current: 6 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW
5SL6006-7Rated current: 6 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW
5SL6006-7KLRated current: 6 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 1 MW
5SL6008-7Rated current: 8 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW
5SL6008-7KLRated current: 8 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 1 MW
5SL6010-6Rated current: 10 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW
5SL6010-7Rated current: 10 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW
5SL6010-7KLRated current: 10 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 1 MW
5SL6013-6Rated current: 13 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW
5SL6013-7Rated current: 13 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW
5SL6013-7KLRated current: 13 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 1 MW
5SL6016-6Rated current: 16 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW
5SL6016-7Rated current: 16 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW
5SL6016-7KLRated current: 16 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 1 MW
5SL6020-6Rated current: 20 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW
5SL6020-7Rated current: 20 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW
5SL6020-7KLRated current: 20 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 1 MW
5SL6025-6Rated current: 25 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW
5SL6025-7Rated current: 25 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW
5SL6025-7KLRated current: 25 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 1 MW
5SL6032-6Rated current: 32 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW
5SL6032-7Rated current: 32 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW
5SL6032-7KLRated current: 32 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 1 MW
5SL6040-6Rated current: 40 A | Poles: 1P+N | Characteristic: B | N pole: N pole right | Width: 1 MW
5SL6040-7Rated current: 40 A | Poles: 1P+N | Characteristic: C | N pole: N pole right | Width: 1 MW
5SL6040-7KLRated current: 40 A | Poles: 1P+N | Characteristic: C | N pole: N pole left | Width: 1 MW
