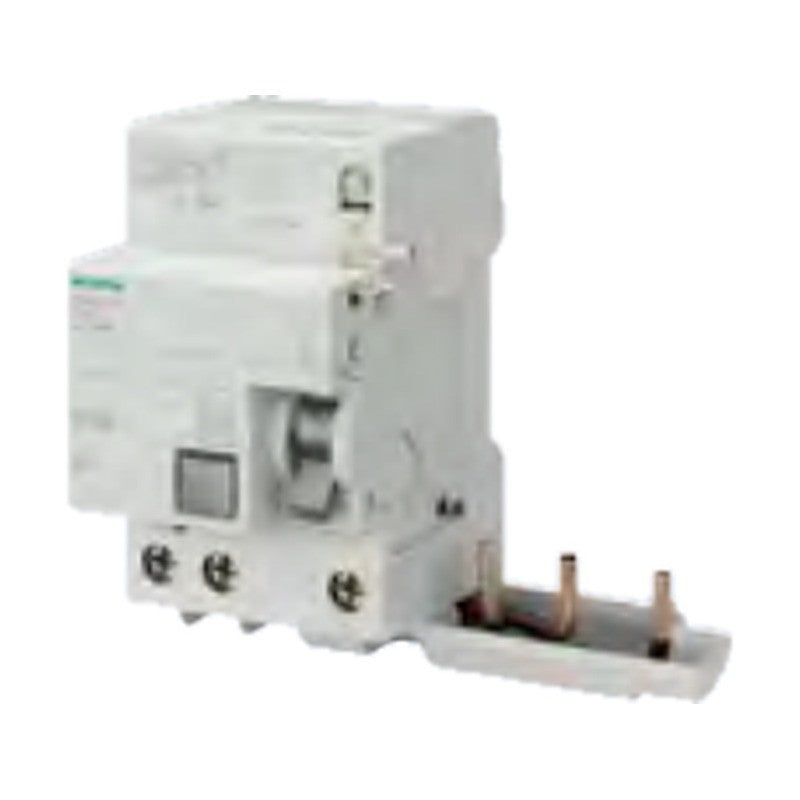

Siemens SENTRON 5SM2 RC Units 3-pole (Type A, AC)

Siemens SENTRON 5SM2 RC Units 3-pole (Type A, AC)

Siemens 5SM2 3-pole RC units for assembly with 5SY, 5SL4 or 5SP4 miniature circuit breakers to form a residual current operated circuit breaker.

Key features

  • Add-on RC units for 5SY, 5SL4 and 5SP4 miniature circuit breakers (B and C characteristics for 5SP4)
  • Types A, AC; instantaneous, super resistant [K], selective [S] and SIGRES versions
  • Rated residual currents from 10 mA to 1000 mA; rated current ranges 0.3 … 40 A, 0.3 … 63 A and 80 … 100 A
  • Combinable with auxiliary switches, fault signal contacts, shunt trips and undervoltage releases
  • Not suitable for use with 5SY5 (and type A/F not with 5SY8) miniature circuit breakers

Specifications

Series SENTRON 5SM2 RC unit
Poles 3-pole
Rated voltage 400 V AC
Mounting width 3 MW
Rated frequency 50/60 Hz
Ambient temperature -25 … +45 °C
Source Siemens Catalog LV 10 · 2026, p. 4/36
5SM2332-6 For MCB: 5SY | Version: Instantaneous | Type: A | IΔn: 30 mA | In: 0.3 … 40 A
5SM2332-6KK01 For MCB: 5SY | Version: Super resistant [K] | Type: A | IΔn: 30 mA | In: 0.3 … 40 A
5SM2333-6 For MCB: 5SL4 | Version: Instantaneous | Type: A | IΔn: 30 mA | In: 0.3 … 40 A
5SM2335-6 For MCB: 5SY | Version: Instantaneous | Type: A | IΔn: 30 mA | In: 0.3 … 63 A
5SM2335-6KK01 For MCB: 5SY | Version: Super resistant [K] | Type: A | IΔn: 30 mA | In: 0.3 … 63 A
5SM2336-6 For MCB: 5SL4 | Version: Instantaneous | Type: A | IΔn: 30 mA | In: 0.3 … 63 A
5SM2435-6 For MCB: 5SY | Version: Instantaneous | Type: A | IΔn: 100 mA | In: 0.3 … 63 A
5SM2632-6 For MCB: 5SY | Version: Instantaneous | Type: A | IΔn: 300 mA | In: 0.3 … 40 A
5SM2633-6 For MCB: 5SL4 | Version: Instantaneous | Type: A | IΔn: 300 mA | In: 0.3 … 40 A
5SM2635-6 For MCB: 5SY | Version: Instantaneous | Type: A | IΔn: 300 mA | In: 0.3 … 63 A
5SM2635-8 For MCB: 5SY | Version: Selective [S] | Type: A | IΔn: 300 mA | In: 0.3 … 63 A
5SM2636-6 For MCB: 5SL4 | Version: Instantaneous | Type: A | IΔn: 300 mA | In: 0.3 … 63 A
5SM2636-8 For MCB: 5SL4 | Version: Selective [S] | Type: A | IΔn: 300 mA | In: 0.3 … 63 A
5SM2735-6 For MCB: 5SY | Version: Instantaneous | Type: A | IΔn: 500 mA | In: 0.3 … 63 A
5SM2735-8 For MCB: 5SY | Version: Selective [S] | Type: A | IΔn: 500 mA | In: 0.3 … 63 A
5SM2832-8 For MCB: 5SY | Version: Selective [S] | Type: A | IΔn: 1000 mA | In: 0.3 … 40 A
5SM2835-8 For MCB: 5SY | Version: Selective [S] | Type: A | IΔn: 1000 mA | In: 0.3 … 63 A
5SM2332-0 For MCB: 5SY | Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 0.3 … 40 A
5SM2333-0 For MCB: 5SL4 | Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 0.3 … 40 A
5SM2335-0 For MCB: 5SY | Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 0.3 … 63 A
5SM2336-0 For MCB: 5SL4 | Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 0.3 … 63 A
5SM2632-0 For MCB: 5SY | Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 0.3 … 40 A
5SM2633-0 For MCB: 5SL4 | Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 0.3 … 40 A
5SM2635-0 For MCB: 5SY | Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 0.3 … 63 A
5SM2636-0 For MCB: 5SL4 | Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 0.3 … 63 A
5SM2735-0 For MCB: 5SY | Version: Instantaneous | Type: AC | IΔn: 500 mA | In: 0.3 … 63 A
Residual Current DevicesSiemens
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 5SM2 RC Units 3-pole (Type A, AC)

Brand Siemens·Residual Current Devices

Available part numbers (26)

5SM2332-6, 5SM2332-6KK01, 5SM2333-6, 5SM2335-6, 5SM2335-6KK01, 5SM2336-6, 5SM2435-6, 5SM2632-6, 5SM2633-6, 5SM2635-6 + 16 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5SM2332-6For MCB: 5SY | Version: Instantaneous | Type: A | IΔn: 30 mA | In: 0.3 … 40 A
5SM2332-6KK01For MCB: 5SY | Version: Super resistant [K] | Type: A | IΔn: 30 mA | In: 0.3 … 40 A
5SM2333-6For MCB: 5SL4 | Version: Instantaneous | Type: A | IΔn: 30 mA | In: 0.3 … 40 A
5SM2335-6For MCB: 5SY | Version: Instantaneous | Type: A | IΔn: 30 mA | In: 0.3 … 63 A
5SM2335-6KK01For MCB: 5SY | Version: Super resistant [K] | Type: A | IΔn: 30 mA | In: 0.3 … 63 A
5SM2336-6For MCB: 5SL4 | Version: Instantaneous | Type: A | IΔn: 30 mA | In: 0.3 … 63 A
5SM2435-6For MCB: 5SY | Version: Instantaneous | Type: A | IΔn: 100 mA | In: 0.3 … 63 A
5SM2632-6For MCB: 5SY | Version: Instantaneous | Type: A | IΔn: 300 mA | In: 0.3 … 40 A
5SM2633-6For MCB: 5SL4 | Version: Instantaneous | Type: A | IΔn: 300 mA | In: 0.3 … 40 A
5SM2635-6For MCB: 5SY | Version: Instantaneous | Type: A | IΔn: 300 mA | In: 0.3 … 63 A
5SM2635-8For MCB: 5SY | Version: Selective [S] | Type: A | IΔn: 300 mA | In: 0.3 … 63 A
5SM2636-6For MCB: 5SL4 | Version: Instantaneous | Type: A | IΔn: 300 mA | In: 0.3 … 63 A
5SM2636-8For MCB: 5SL4 | Version: Selective [S] | Type: A | IΔn: 300 mA | In: 0.3 … 63 A
5SM2735-6For MCB: 5SY | Version: Instantaneous | Type: A | IΔn: 500 mA | In: 0.3 … 63 A
5SM2735-8For MCB: 5SY | Version: Selective [S] | Type: A | IΔn: 500 mA | In: 0.3 … 63 A
5SM2832-8For MCB: 5SY | Version: Selective [S] | Type: A | IΔn: 1000 mA | In: 0.3 … 40 A
5SM2835-8For MCB: 5SY | Version: Selective [S] | Type: A | IΔn: 1000 mA | In: 0.3 … 63 A
5SM2332-0For MCB: 5SY | Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 0.3 … 40 A
5SM2333-0For MCB: 5SL4 | Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 0.3 … 40 A
5SM2335-0For MCB: 5SY | Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 0.3 … 63 A
5SM2336-0For MCB: 5SL4 | Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 0.3 … 63 A
5SM2632-0For MCB: 5SY | Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 0.3 … 40 A
5SM2633-0For MCB: 5SL4 | Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 0.3 … 40 A
5SM2635-0For MCB: 5SY | Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 0.3 … 63 A
5SM2636-0For MCB: 5SL4 | Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 0.3 … 63 A
5SM2735-0For MCB: 5SY | Version: Instantaneous | Type: AC | IΔn: 500 mA | In: 0.3 … 63 A
