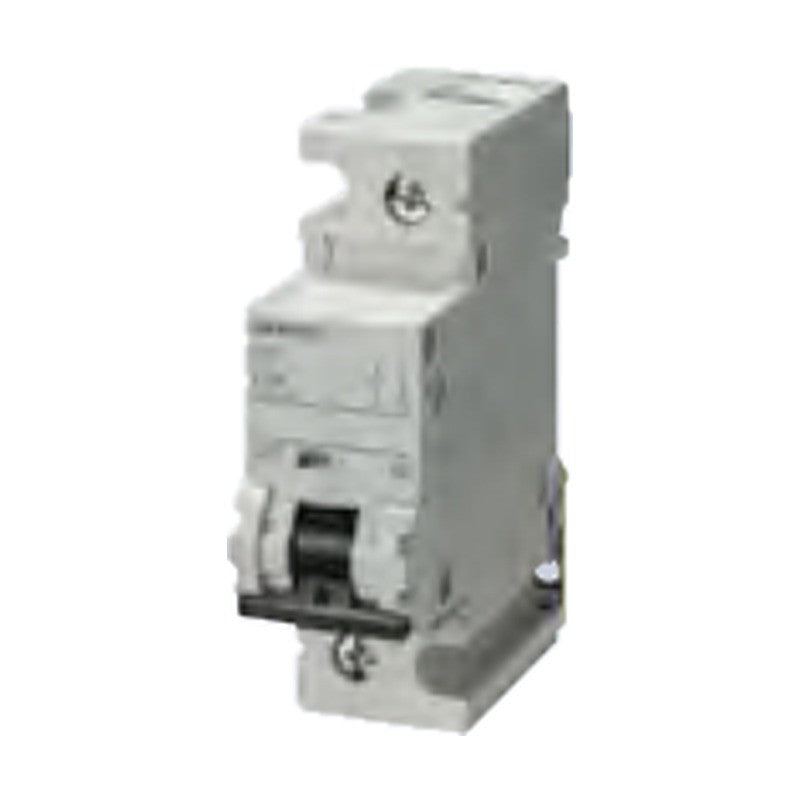

Siemens SENTRON 5SP5 DC Miniature Circuit Breakers 10 kA, 80-125 A

Siemens SENTRON 5SP5 DC Miniature Circuit Breakers 10 kA, 80-125 A

SENTRON 5SP5 high-current DC miniature circuit breakers with 10 kA breaking capacity for 220/440 V DC.

Key features

  • Rated currents 80, 100 and 125 A for DC applications
  • 1P for 220 V DC, 2P for 440 V DC
  • 1.5 MW mounting width per pole
  • Combinable with AS, FC, AS+FC, ST, UR and RCA

Specifications

Brand Siemens
Product line SENTRON
Rated short-circuit breaking capacity 10 kA
Standard IEC/EN 60947-2
Characteristic C
Accessories AS, FC, ST, UR, RCA
Mounting 35 mm DIN rail
Source Siemens Catalog LV 10 · 2026, p. 300
5SP5180-7CC Rated current: 80 A | Poles: 1P | Rated voltage: 220 V DC | Width: 1.5 MW
5SP5280-7CC Rated current: 80 A | Poles: 2P | Rated voltage: 440 V DC | Width: 3 MW
5SP5191-7CC Rated current: 100 A | Poles: 1P | Rated voltage: 220 V DC | Width: 1.5 MW
5SP5291-7CC Rated current: 100 A | Poles: 2P | Rated voltage: 440 V DC | Width: 3 MW
5SP5192-7CC Rated current: 125 A | Poles: 1P | Rated voltage: 220 V DC | Width: 1.5 MW
5SP5292-7CC Rated current: 125 A | Poles: 2P | Rated voltage: 440 V DC | Width: 3 MW
Miniature Circuit BreakersSiemens
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 5SP5 DC Miniature Circuit Breakers 10 kA, 80-125 A

Brand Siemens·Miniature Circuit Breakers

Available part numbers (6)

5SP5180-7CC, 5SP5280-7CC, 5SP5191-7CC, 5SP5291-7CC, 5SP5192-7CC, 5SP5292-7CC

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5SP5180-7CCRated current: 80 A | Poles: 1P | Rated voltage: 220 V DC | Width: 1.5 MW
5SP5280-7CCRated current: 80 A | Poles: 2P | Rated voltage: 440 V DC | Width: 3 MW
5SP5191-7CCRated current: 100 A | Poles: 1P | Rated voltage: 220 V DC | Width: 1.5 MW
5SP5291-7CCRated current: 100 A | Poles: 2P | Rated voltage: 440 V DC | Width: 3 MW
5SP5192-7CCRated current: 125 A | Poles: 1P | Rated voltage: 220 V DC | Width: 1.5 MW
5SP5292-7CCRated current: 125 A | Poles: 2P | Rated voltage: 440 V DC | Width: 3 MW
