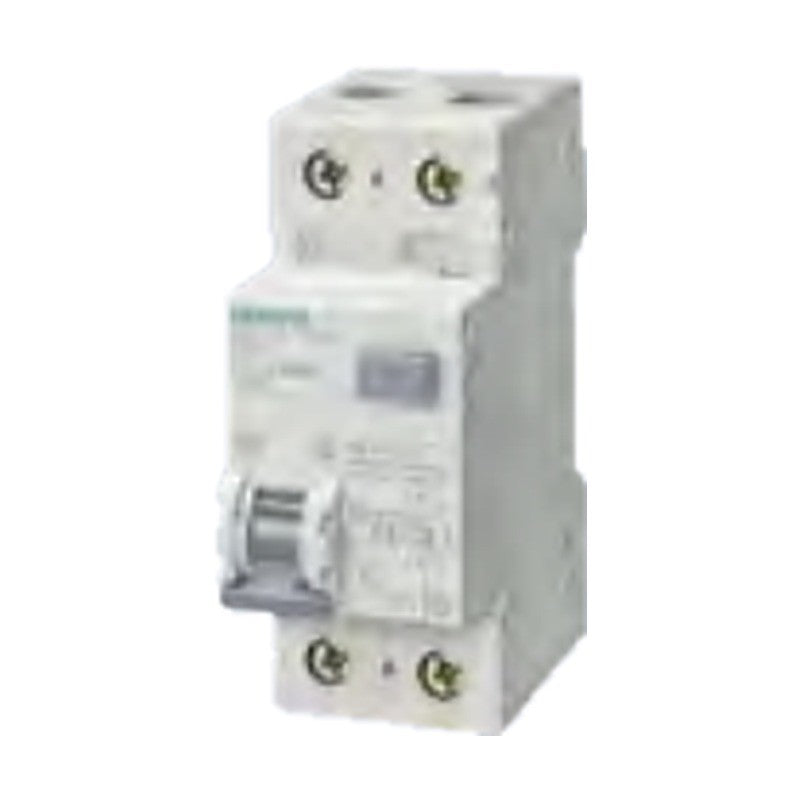

Siemens SENTRON 5SU1 RCBOs 1P+N Type A (6-40 A, B/C)

Siemens SENTRON 5SU1 RCBOs 1P+N Type A (6-40 A, B/C)

Siemens 5SU1 residual current operated circuit breakers with integral overcurrent protection (RCBOs), 1P+N in 2 MW, type A.

Key features

  • Combined residual current and overcurrent protection in 2 MW (36 mm)
  • Rated currents 6 to 40 A with B or C tripping characteristic
  • Rated breaking capacity 4.5 kA, 6 kA or 10 kA depending on version
  • Conforming to IEC/EN 61009-1 (VDE 0664-20), IEC/EN 61543 and IEC/EN 62423
  • Expandable with 5SM6 arc fault detection units, auxiliary switches, fault signal contacts, shunt trips, undervoltage releases and RCA

Specifications

Series SENTRON 5SU1 RCBO
Poles 1P+N
Mounting width 2 MW (36 mm)
Standards IEC/EN 61009-1, IEC/EN 62423
Energy limitation class 3
Type A
Rated voltage 230 V AC
Source Siemens Catalog LV 10 · 2026, p. 4/40-4/41
5SU1353-7KK06 Version: Instantaneous | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-7KL06 Version: Instantaneous | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-6KK06 Version: Instantaneous | IΔn: 30 mA | In: 6 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-7KK06 Version: Instantaneous | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1356-6GV06 Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 6 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-7GV06 Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-7KK08 Version: Instantaneous | IΔn: 30 mA | In: 8 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1356-7KK08 Version: Instantaneous | IΔn: 30 mA | In: 8 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-7KK10 Version: Instantaneous | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-7KL10 Version: Instantaneous | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-6KK10 Version: Instantaneous | IΔn: 30 mA | In: 10 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-7KK10 Version: Instantaneous | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1356-6GV10 Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 10 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-7GV10 Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-7KK13 Version: Instantaneous | IΔn: 30 mA | In: 13 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1356-6KK13 Version: Instantaneous | IΔn: 30 mA | In: 13 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-7KK13 Version: Instantaneous | IΔn: 30 mA | In: 13 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-7KK16 Version: Instantaneous | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-7KL16 Version: Instantaneous | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-6KK16 Version: Instantaneous | IΔn: 30 mA | In: 16 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-7KK16 Version: Instantaneous | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1356-6GV16 Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 16 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-7GV16 Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-7KK20 Version: Instantaneous | IΔn: 30 mA | In: 20 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-7KL20 Version: Instantaneous | IΔn: 30 mA | In: 20 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-6KK20 Version: Instantaneous | IΔn: 30 mA | In: 20 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-7KK20 Version: Instantaneous | IΔn: 30 mA | In: 20 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-7KK25 Version: Instantaneous | IΔn: 30 mA | In: 25 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-7KL25 Version: Instantaneous | IΔn: 30 mA | In: 25 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-6KK25 Version: Instantaneous | IΔn: 30 mA | In: 25 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-7KK25 Version: Instantaneous | IΔn: 30 mA | In: 25 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-7KK32 Version: Instantaneous | IΔn: 30 mA | In: 32 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-7KL32 Version: Instantaneous | IΔn: 30 mA | In: 32 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-6KK32 Version: Instantaneous | IΔn: 30 mA | In: 32 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-7KK32 Version: Instantaneous | IΔn: 30 mA | In: 32 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-7KK40 Version: Instantaneous | IΔn: 30 mA | In: 40 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-7KL40 Version: Instantaneous | IΔn: 30 mA | In: 40 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-6KK40 Version: Instantaneous | IΔn: 30 mA | In: 40 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-7KK40 Version: Instantaneous | IΔn: 30 mA | In: 40 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-7KK06 Version: Instantaneous | IΔn: 300 mA | In: 6 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1656-6KK06 Version: Instantaneous | IΔn: 300 mA | In: 6 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-7KK06 Version: Instantaneous | IΔn: 300 mA | In: 6 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-7KK10 Version: Instantaneous | IΔn: 300 mA | In: 10 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1656-6KK10 Version: Instantaneous | IΔn: 300 mA | In: 10 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-7KK10 Version: Instantaneous | IΔn: 300 mA | In: 10 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-7KK13 Version: Instantaneous | IΔn: 300 mA | In: 13 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1656-6KK13 Version: Instantaneous | IΔn: 300 mA | In: 13 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-7KK13 Version: Instantaneous | IΔn: 300 mA | In: 13 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-7KK16 Version: Instantaneous | IΔn: 300 mA | In: 16 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1656-6KK16 Version: Instantaneous | IΔn: 300 mA | In: 16 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-7KK16 Version: Instantaneous | IΔn: 300 mA | In: 16 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-7KK20 Version: Instantaneous | IΔn: 300 mA | In: 20 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1656-6KK20 Version: Instantaneous | IΔn: 300 mA | In: 20 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-7KK20 Version: Instantaneous | IΔn: 300 mA | In: 20 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-7KK25 Version: Instantaneous | IΔn: 300 mA | In: 25 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1656-6KK25 Version: Instantaneous | IΔn: 300 mA | In: 25 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-7KK25 Version: Instantaneous | IΔn: 300 mA | In: 25 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-7KK32 Version: Instantaneous | IΔn: 300 mA | In: 32 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1656-6KK32 Version: Instantaneous | IΔn: 300 mA | In: 32 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-7KK32 Version: Instantaneous | IΔn: 300 mA | In: 32 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-7KK40 Version: Instantaneous | IΔn: 300 mA | In: 40 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1656-6KK40 Version: Instantaneous | IΔn: 300 mA | In: 40 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-7KK40 Version: Instantaneous | IΔn: 300 mA | In: 40 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1154-6KK06 Version: Instantaneous | IΔn: 10 mA | In: 6 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1154-7KK06 Version: Instantaneous | IΔn: 10 mA | In: 6 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1154-6KK10 Version: Instantaneous | IΔn: 10 mA | In: 10 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1154-7KK10 Version: Instantaneous | IΔn: 10 mA | In: 10 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1154-6KK13 Version: Instantaneous | IΔn: 10 mA | In: 13 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1154-7KK13 Version: Instantaneous | IΔn: 10 mA | In: 13 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1154-6KK16 Version: Instantaneous | IΔn: 10 mA | In: 16 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1154-7KK16 Version: Instantaneous | IΔn: 10 mA | In: 16 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6KK06 Version: Instantaneous | IΔn: 30 mA | In: 6 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7KK06 Version: Instantaneous | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6GV06 Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 6 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7GV06 Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-7KK08 Version: Instantaneous | IΔn: 30 mA | In: 8 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6KK10 Version: Instantaneous | IΔn: 30 mA | In: 10 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7KK10 Version: Instantaneous | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6LB10 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 10 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7LB10 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6GV10 Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 10 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7GV10 Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6KK13 Version: Instantaneous | IΔn: 30 mA | In: 13 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7KK13 Version: Instantaneous | IΔn: 30 mA | In: 13 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6LB13 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 13 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7LB13 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 13 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6KK16 Version: Instantaneous | IΔn: 30 mA | In: 16 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7KK16 Version: Instantaneous | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6LB16 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 16 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7LB16 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6GV16 Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 16 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7GV16 Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6KK20 Version: Instantaneous | IΔn: 30 mA | In: 20 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7KK20 Version: Instantaneous | IΔn: 30 mA | In: 20 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6LB20 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 20 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7LB20 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 20 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6KK25 Version: Instantaneous | IΔn: 30 mA | In: 25 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7KK25 Version: Instantaneous | IΔn: 30 mA | In: 25 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6LB25 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 25 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7LB25 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 25 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6KK32 Version: Instantaneous | IΔn: 30 mA | In: 32 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7KK32 Version: Instantaneous | IΔn: 30 mA | In: 32 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6LB32 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 32 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7LB32 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 32 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6KK40 Version: Instantaneous | IΔn: 30 mA | In: 40 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7KK40 Version: Instantaneous | IΔn: 30 mA | In: 40 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6LB40 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 40 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7LB40 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 40 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-6KK06 Version: Instantaneous | IΔn: 300 mA | In: 6 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-7KK06 Version: Instantaneous | IΔn: 300 mA | In: 6 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-6KK10 Version: Instantaneous | IΔn: 300 mA | In: 10 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-7KK10 Version: Instantaneous | IΔn: 300 mA | In: 10 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-6KK13 Version: Instantaneous | IΔn: 300 mA | In: 13 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-7KK13 Version: Instantaneous | IΔn: 300 mA | In: 13 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-6KK16 Version: Instantaneous | IΔn: 300 mA | In: 16 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-7KK16 Version: Instantaneous | IΔn: 300 mA | In: 16 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-6KK20 Version: Instantaneous | IΔn: 300 mA | In: 20 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-7KK20 Version: Instantaneous | IΔn: 300 mA | In: 20 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-6KK25 Version: Instantaneous | IΔn: 300 mA | In: 25 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-7KK25 Version: Instantaneous | IΔn: 300 mA | In: 25 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-6KK32 Version: Instantaneous | IΔn: 300 mA | In: 32 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-7KK32 Version: Instantaneous | IΔn: 300 mA | In: 32 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-6KK40 Version: Instantaneous | IΔn: 300 mA | In: 40 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-7KK40 Version: Instantaneous | IΔn: 300 mA | In: 40 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
Residual Current DevicesSiemens
124 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 5SU1 RCBOs 1P+N Type A (6-40 A, B/C)

Brand Siemens·Residual Current Devices

Available part numbers (124)

5SU1353-7KK06, 5SU1353-7KL06, 5SU1356-6KK06, 5SU1356-7KK06, 5SU1356-6GV06, 5SU1356-7GV06, 5SU1353-7KK08, 5SU1356-7KK08, 5SU1353-7KK10, 5SU1353-7KL10 + 114 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5SU1353-7KK06Version: Instantaneous | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-7KL06Version: Instantaneous | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-6KK06Version: Instantaneous | IΔn: 30 mA | In: 6 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-7KK06Version: Instantaneous | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1356-6GV06Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 6 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-7GV06Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-7KK08Version: Instantaneous | IΔn: 30 mA | In: 8 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1356-7KK08Version: Instantaneous | IΔn: 30 mA | In: 8 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-7KK10Version: Instantaneous | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-7KL10Version: Instantaneous | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-6KK10Version: Instantaneous | IΔn: 30 mA | In: 10 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-7KK10Version: Instantaneous | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1356-6GV10Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 10 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-7GV10Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-7KK13Version: Instantaneous | IΔn: 30 mA | In: 13 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1356-6KK13Version: Instantaneous | IΔn: 30 mA | In: 13 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-7KK13Version: Instantaneous | IΔn: 30 mA | In: 13 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-7KK16Version: Instantaneous | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-7KL16Version: Instantaneous | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-6KK16Version: Instantaneous | IΔn: 30 mA | In: 16 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-7KK16Version: Instantaneous | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1356-6GV16Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 16 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-7GV16Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-7KK20Version: Instantaneous | IΔn: 30 mA | In: 20 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-7KL20Version: Instantaneous | IΔn: 30 mA | In: 20 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-6KK20Version: Instantaneous | IΔn: 30 mA | In: 20 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-7KK20Version: Instantaneous | IΔn: 30 mA | In: 20 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-7KK25Version: Instantaneous | IΔn: 30 mA | In: 25 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-7KL25Version: Instantaneous | IΔn: 30 mA | In: 25 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-6KK25Version: Instantaneous | IΔn: 30 mA | In: 25 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-7KK25Version: Instantaneous | IΔn: 30 mA | In: 25 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-7KK32Version: Instantaneous | IΔn: 30 mA | In: 32 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-7KL32Version: Instantaneous | IΔn: 30 mA | In: 32 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-6KK32Version: Instantaneous | IΔn: 30 mA | In: 32 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-7KK32Version: Instantaneous | IΔn: 30 mA | In: 32 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-7KK40Version: Instantaneous | IΔn: 30 mA | In: 40 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-7KL40Version: Instantaneous | IΔn: 30 mA | In: 40 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-6KK40Version: Instantaneous | IΔn: 30 mA | In: 40 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-7KK40Version: Instantaneous | IΔn: 30 mA | In: 40 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-7KK06Version: Instantaneous | IΔn: 300 mA | In: 6 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1656-6KK06Version: Instantaneous | IΔn: 300 mA | In: 6 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-7KK06Version: Instantaneous | IΔn: 300 mA | In: 6 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-7KK10Version: Instantaneous | IΔn: 300 mA | In: 10 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1656-6KK10Version: Instantaneous | IΔn: 300 mA | In: 10 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-7KK10Version: Instantaneous | IΔn: 300 mA | In: 10 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-7KK13Version: Instantaneous | IΔn: 300 mA | In: 13 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1656-6KK13Version: Instantaneous | IΔn: 300 mA | In: 13 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-7KK13Version: Instantaneous | IΔn: 300 mA | In: 13 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-7KK16Version: Instantaneous | IΔn: 300 mA | In: 16 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1656-6KK16Version: Instantaneous | IΔn: 300 mA | In: 16 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-7KK16Version: Instantaneous | IΔn: 300 mA | In: 16 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-7KK20Version: Instantaneous | IΔn: 300 mA | In: 20 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1656-6KK20Version: Instantaneous | IΔn: 300 mA | In: 20 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-7KK20Version: Instantaneous | IΔn: 300 mA | In: 20 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-7KK25Version: Instantaneous | IΔn: 300 mA | In: 25 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1656-6KK25Version: Instantaneous | IΔn: 300 mA | In: 25 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-7KK25Version: Instantaneous | IΔn: 300 mA | In: 25 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-7KK32Version: Instantaneous | IΔn: 300 mA | In: 32 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1656-6KK32Version: Instantaneous | IΔn: 300 mA | In: 32 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-7KK32Version: Instantaneous | IΔn: 300 mA | In: 32 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-7KK40Version: Instantaneous | IΔn: 300 mA | In: 40 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1656-6KK40Version: Instantaneous | IΔn: 300 mA | In: 40 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-7KK40Version: Instantaneous | IΔn: 300 mA | In: 40 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1154-6KK06Version: Instantaneous | IΔn: 10 mA | In: 6 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1154-7KK06Version: Instantaneous | IΔn: 10 mA | In: 6 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1154-6KK10Version: Instantaneous | IΔn: 10 mA | In: 10 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1154-7KK10Version: Instantaneous | IΔn: 10 mA | In: 10 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1154-6KK13Version: Instantaneous | IΔn: 10 mA | In: 13 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1154-7KK13Version: Instantaneous | IΔn: 10 mA | In: 13 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1154-6KK16Version: Instantaneous | IΔn: 10 mA | In: 16 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1154-7KK16Version: Instantaneous | IΔn: 10 mA | In: 16 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6KK06Version: Instantaneous | IΔn: 30 mA | In: 6 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7KK06Version: Instantaneous | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6GV06Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 6 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7GV06Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-7KK08Version: Instantaneous | IΔn: 30 mA | In: 8 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6KK10Version: Instantaneous | IΔn: 30 mA | In: 10 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7KK10Version: Instantaneous | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6LB10Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 10 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7LB10Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6GV10Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 10 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7GV10Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6KK13Version: Instantaneous | IΔn: 30 mA | In: 13 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7KK13Version: Instantaneous | IΔn: 30 mA | In: 13 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6LB13Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 13 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7LB13Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 13 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6KK16Version: Instantaneous | IΔn: 30 mA | In: 16 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7KK16Version: Instantaneous | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6LB16Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 16 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7LB16Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6GV16Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 16 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7GV16Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6KK20Version: Instantaneous | IΔn: 30 mA | In: 20 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7KK20Version: Instantaneous | IΔn: 30 mA | In: 20 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6LB20Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 20 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7LB20Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 20 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6KK25Version: Instantaneous | IΔn: 30 mA | In: 25 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7KK25Version: Instantaneous | IΔn: 30 mA | In: 25 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6LB25Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 25 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7LB25Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 25 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6KK32Version: Instantaneous | IΔn: 30 mA | In: 32 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7KK32Version: Instantaneous | IΔn: 30 mA | In: 32 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6LB32Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 32 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7LB32Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 32 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6KK40Version: Instantaneous | IΔn: 30 mA | In: 40 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7KK40Version: Instantaneous | IΔn: 30 mA | In: 40 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-6LB40Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 40 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-7LB40Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 40 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-6KK06Version: Instantaneous | IΔn: 300 mA | In: 6 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-7KK06Version: Instantaneous | IΔn: 300 mA | In: 6 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-6KK10Version: Instantaneous | IΔn: 300 mA | In: 10 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-7KK10Version: Instantaneous | IΔn: 300 mA | In: 10 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-6KK13Version: Instantaneous | IΔn: 300 mA | In: 13 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-7KK13Version: Instantaneous | IΔn: 300 mA | In: 13 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-6KK16Version: Instantaneous | IΔn: 300 mA | In: 16 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-7KK16Version: Instantaneous | IΔn: 300 mA | In: 16 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-6KK20Version: Instantaneous | IΔn: 300 mA | In: 20 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-7KK20Version: Instantaneous | IΔn: 300 mA | In: 20 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-6KK25Version: Instantaneous | IΔn: 300 mA | In: 25 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-7KK25Version: Instantaneous | IΔn: 300 mA | In: 25 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-6KK32Version: Instantaneous | IΔn: 300 mA | In: 32 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-7KK32Version: Instantaneous | IΔn: 300 mA | In: 32 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-6KK40Version: Instantaneous | IΔn: 300 mA | In: 40 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-7KK40Version: Instantaneous | IΔn: 300 mA | In: 40 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
