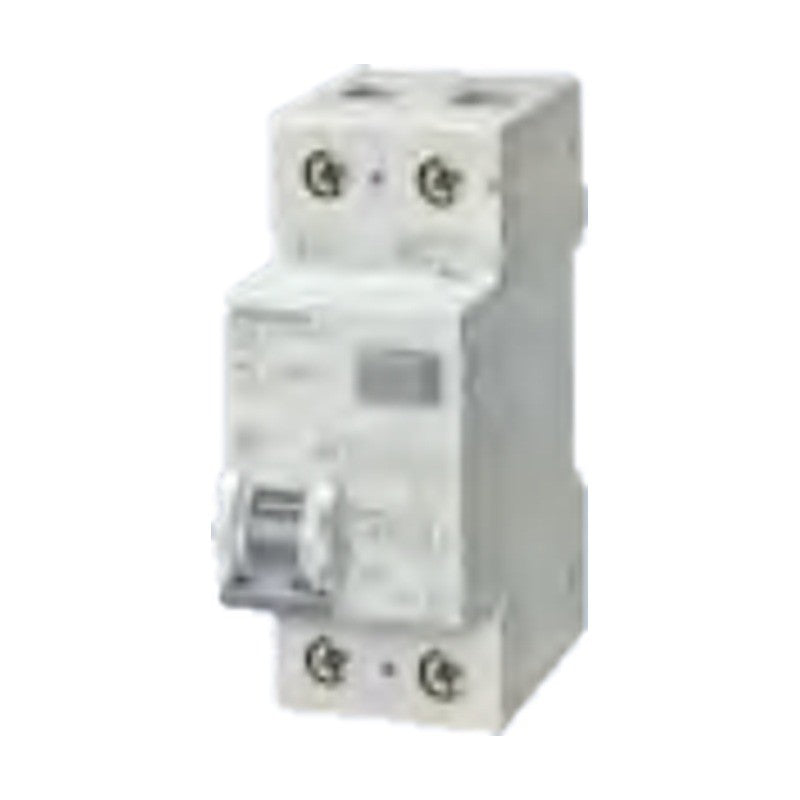

Siemens SENTRON 5SU1 RCBOs 1P+N Type AC (6-40 A, B/C)

Siemens SENTRON 5SU1 RCBOs 1P+N Type AC (6-40 A, B/C)

Siemens 5SU1 residual current operated circuit breakers with integral overcurrent protection (RCBOs), 1P+N in 2 MW, type AC.

Key features

  • Combined residual current and overcurrent protection in 2 MW (36 mm)
  • Rated currents 6 to 40 A with B or C tripping characteristic
  • Rated breaking capacity 4.5 kA, 6 kA or 10 kA depending on version
  • Conforming to IEC/EN 61009-1 (VDE 0664-20), IEC/EN 61543 and IEC/EN 62423
  • Expandable with 5SM6 arc fault detection units, auxiliary switches, fault signal contacts, shunt trips, undervoltage releases and RCA

Specifications

Series SENTRON 5SU1 RCBO
Poles 1P+N
Mounting width 2 MW (36 mm)
Standards IEC/EN 61009-1, IEC/EN 62423
Energy limitation class 3
Type AC
Rated voltage 230 V AC
Source Siemens Catalog LV 10 · 2026, p. 4/44-4/45
5SU1353-1KK06 Version: Instantaneous | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-1KL06 Version: Instantaneous | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-0KK06 Version: Instantaneous | IΔn: 30 mA | In: 6 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-1KK06 Version: Instantaneous | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-1KK08 Version: Instantaneous | IΔn: 30 mA | In: 8 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1356-1KK08 Version: Instantaneous | IΔn: 30 mA | In: 8 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-1KK10 Version: Instantaneous | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-1KL10 Version: Instantaneous | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-0KK10 Version: Instantaneous | IΔn: 30 mA | In: 10 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-1KK10 Version: Instantaneous | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-1GV10 Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-1KK13 Version: Instantaneous | IΔn: 30 mA | In: 13 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-1KL13 Version: Instantaneous | IΔn: 30 mA | In: 13 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-0KK13 Version: Instantaneous | IΔn: 30 mA | In: 13 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-1KK13 Version: Instantaneous | IΔn: 30 mA | In: 13 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-1KK16 Version: Instantaneous | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-1KL16 Version: Instantaneous | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-0KK16 Version: Instantaneous | IΔn: 30 mA | In: 16 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-1KK16 Version: Instantaneous | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-1GV16 Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1356-1GV16 Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-1KK20 Version: Instantaneous | IΔn: 30 mA | In: 20 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-1KL20 Version: Instantaneous | IΔn: 30 mA | In: 20 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-0KK20 Version: Instantaneous | IΔn: 30 mA | In: 20 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-1KK20 Version: Instantaneous | IΔn: 30 mA | In: 20 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-1KK25 Version: Instantaneous | IΔn: 30 mA | In: 25 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-1KL25 Version: Instantaneous | IΔn: 30 mA | In: 25 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-0KK25 Version: Instantaneous | IΔn: 30 mA | In: 25 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-1KK25 Version: Instantaneous | IΔn: 30 mA | In: 25 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-1KK32 Version: Instantaneous | IΔn: 30 mA | In: 32 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-1KL32 Version: Instantaneous | IΔn: 30 mA | In: 32 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-0KK32 Version: Instantaneous | IΔn: 30 mA | In: 32 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-1KK32 Version: Instantaneous | IΔn: 30 mA | In: 32 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-1KK40 Version: Instantaneous | IΔn: 30 mA | In: 40 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-1KL40 Version: Instantaneous | IΔn: 30 mA | In: 40 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-0KK40 Version: Instantaneous | IΔn: 30 mA | In: 40 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-1KK40 Version: Instantaneous | IΔn: 30 mA | In: 40 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-1KK06 Version: Instantaneous | IΔn: 300 mA | In: 6 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1653-1KL06 Version: Instantaneous | IΔn: 300 mA | In: 6 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1656-0KK06 Version: Instantaneous | IΔn: 300 mA | In: 6 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-1KK06 Version: Instantaneous | IΔn: 300 mA | In: 6 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-1KK10 Version: Instantaneous | IΔn: 300 mA | In: 10 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1653-1KL10 Version: Instantaneous | IΔn: 300 mA | In: 10 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1656-0KK10 Version: Instantaneous | IΔn: 300 mA | In: 10 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-1KK10 Version: Instantaneous | IΔn: 300 mA | In: 10 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-1KK13 Version: Instantaneous | IΔn: 300 mA | In: 13 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1653-1KL16 Version: Instantaneous | IΔn: 300 mA | In: 13 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1656-0KK13 Version: Instantaneous | IΔn: 300 mA | In: 13 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-1KK13 Version: Instantaneous | IΔn: 300 mA | In: 13 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-1KK16 Version: Instantaneous | IΔn: 300 mA | In: 16 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1656-0KK16 Version: Instantaneous | IΔn: 300 mA | In: 16 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-1KK16 Version: Instantaneous | IΔn: 300 mA | In: 16 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-1GV16 Version: Instantaneous, bulk 36 pcs | IΔn: 300 mA | In: 16 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1653-1KK20 Version: Instantaneous | IΔn: 300 mA | In: 20 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1653-1KL20 Version: Instantaneous | IΔn: 300 mA | In: 20 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1656-0KK20 Version: Instantaneous | IΔn: 300 mA | In: 20 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-1KK20 Version: Instantaneous | IΔn: 300 mA | In: 20 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-1KK25 Version: Instantaneous | IΔn: 300 mA | In: 25 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1653-1KL25 Version: Instantaneous | IΔn: 300 mA | In: 25 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1656-0KK25 Version: Instantaneous | IΔn: 300 mA | In: 25 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-1KK25 Version: Instantaneous | IΔn: 300 mA | In: 25 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-1KK32 Version: Instantaneous | IΔn: 300 mA | In: 32 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1653-1KL32 Version: Instantaneous | IΔn: 300 mA | In: 32 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1656-0KK32 Version: Instantaneous | IΔn: 300 mA | In: 32 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-1KK32 Version: Instantaneous | IΔn: 300 mA | In: 32 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-1KK40 Version: Instantaneous | IΔn: 300 mA | In: 40 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1653-1KL40 Version: Instantaneous | IΔn: 300 mA | In: 40 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1656-0KK40 Version: Instantaneous | IΔn: 300 mA | In: 40 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-1KK40 Version: Instantaneous | IΔn: 300 mA | In: 40 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1354-0KK06 Version: Instantaneous | IΔn: 30 mA | In: 6 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1KK06 Version: Instantaneous | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-1KK08 Version: Instantaneous | IΔn: 30 mA | In: 8 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0KK10 Version: Instantaneous | IΔn: 30 mA | In: 10 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1KK10 Version: Instantaneous | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0LB10 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 10 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1LB10 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0KK13 Version: Instantaneous | IΔn: 30 mA | In: 13 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1KK13 Version: Instantaneous | IΔn: 30 mA | In: 13 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0LB13 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 13 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1LB13 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 13 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0KK16 Version: Instantaneous | IΔn: 30 mA | In: 16 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1KK16 Version: Instantaneous | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0LB16 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 16 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1LB16 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0KK20 Version: Instantaneous | IΔn: 30 mA | In: 20 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1KK20 Version: Instantaneous | IΔn: 30 mA | In: 20 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0LB20 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 20 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1LB20 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 20 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0KK25 Version: Instantaneous | IΔn: 30 mA | In: 25 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1KK25 Version: Instantaneous | IΔn: 30 mA | In: 25 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0LB25 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 25 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1LB25 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 25 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0KK32 Version: Instantaneous | IΔn: 30 mA | In: 32 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1KK32 Version: Instantaneous | IΔn: 30 mA | In: 32 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0LB32 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 32 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1LB32 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 32 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0KK40 Version: Instantaneous | IΔn: 30 mA | In: 40 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1KK40 Version: Instantaneous | IΔn: 30 mA | In: 40 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0LB40 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 40 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1LB40 Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 40 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1454-1KK06 Version: Instantaneous | IΔn: 100 mA | In: 6 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1454-1KK10 Version: Instantaneous | IΔn: 100 mA | In: 10 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1454-1KK13 Version: Instantaneous | IΔn: 100 mA | In: 13 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1454-1KK16 Version: Instantaneous | IΔn: 100 mA | In: 16 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1454-1KK20 Version: Instantaneous | IΔn: 100 mA | In: 20 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1454-1KK25 Version: Instantaneous | IΔn: 100 mA | In: 25 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1454-1KK32 Version: Instantaneous | IΔn: 100 mA | In: 32 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1454-1KK40 Version: Instantaneous | IΔn: 100 mA | In: 40 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-0KK06 Version: Instantaneous | IΔn: 300 mA | In: 6 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-1KK06 Version: Instantaneous | IΔn: 300 mA | In: 6 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-0KK10 Version: Instantaneous | IΔn: 300 mA | In: 10 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-1KK10 Version: Instantaneous | IΔn: 300 mA | In: 10 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-0KK13 Version: Instantaneous | IΔn: 300 mA | In: 13 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-1KK13 Version: Instantaneous | IΔn: 300 mA | In: 13 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-0KK16 Version: Instantaneous | IΔn: 300 mA | In: 16 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-1KK16 Version: Instantaneous | IΔn: 300 mA | In: 16 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-0KK20 Version: Instantaneous | IΔn: 300 mA | In: 20 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-1KK20 Version: Instantaneous | IΔn: 300 mA | In: 20 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-0KK25 Version: Instantaneous | IΔn: 300 mA | In: 25 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-1KK25 Version: Instantaneous | IΔn: 300 mA | In: 25 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-0KK32 Version: Instantaneous | IΔn: 300 mA | In: 32 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-1KK32 Version: Instantaneous | IΔn: 300 mA | In: 32 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-0KK40 Version: Instantaneous | IΔn: 300 mA | In: 40 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-1KK40 Version: Instantaneous | IΔn: 300 mA | In: 40 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
Residual Current DevicesSiemens
124 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 5SU1 RCBOs 1P+N Type AC (6-40 A, B/C)

Brand Siemens·Residual Current Devices

Available part numbers (124)

5SU1353-1KK06, 5SU1353-1KL06, 5SU1356-0KK06, 5SU1356-1KK06, 5SU1353-1KK08, 5SU1356-1KK08, 5SU1353-1KK10, 5SU1353-1KL10, 5SU1356-0KK10, 5SU1356-1KK10 + 114 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5SU1353-1KK06Version: Instantaneous | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-1KL06Version: Instantaneous | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-0KK06Version: Instantaneous | IΔn: 30 mA | In: 6 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-1KK06Version: Instantaneous | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-1KK08Version: Instantaneous | IΔn: 30 mA | In: 8 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1356-1KK08Version: Instantaneous | IΔn: 30 mA | In: 8 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-1KK10Version: Instantaneous | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-1KL10Version: Instantaneous | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-0KK10Version: Instantaneous | IΔn: 30 mA | In: 10 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-1KK10Version: Instantaneous | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-1GV10Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-1KK13Version: Instantaneous | IΔn: 30 mA | In: 13 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-1KL13Version: Instantaneous | IΔn: 30 mA | In: 13 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-0KK13Version: Instantaneous | IΔn: 30 mA | In: 13 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-1KK13Version: Instantaneous | IΔn: 30 mA | In: 13 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-1KK16Version: Instantaneous | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-1KL16Version: Instantaneous | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-0KK16Version: Instantaneous | IΔn: 30 mA | In: 16 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-1KK16Version: Instantaneous | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-1GV16Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1356-1GV16Version: Instantaneous, bulk 36 pcs | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-1KK20Version: Instantaneous | IΔn: 30 mA | In: 20 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-1KL20Version: Instantaneous | IΔn: 30 mA | In: 20 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-0KK20Version: Instantaneous | IΔn: 30 mA | In: 20 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-1KK20Version: Instantaneous | IΔn: 30 mA | In: 20 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-1KK25Version: Instantaneous | IΔn: 30 mA | In: 25 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-1KL25Version: Instantaneous | IΔn: 30 mA | In: 25 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-0KK25Version: Instantaneous | IΔn: 30 mA | In: 25 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-1KK25Version: Instantaneous | IΔn: 30 mA | In: 25 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-1KK32Version: Instantaneous | IΔn: 30 mA | In: 32 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-1KL32Version: Instantaneous | IΔn: 30 mA | In: 32 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-0KK32Version: Instantaneous | IΔn: 30 mA | In: 32 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-1KK32Version: Instantaneous | IΔn: 30 mA | In: 32 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1353-1KK40Version: Instantaneous | IΔn: 30 mA | In: 40 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1353-1KL40Version: Instantaneous | IΔn: 30 mA | In: 40 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1356-0KK40Version: Instantaneous | IΔn: 30 mA | In: 40 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1356-1KK40Version: Instantaneous | IΔn: 30 mA | In: 40 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-1KK06Version: Instantaneous | IΔn: 300 mA | In: 6 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1653-1KL06Version: Instantaneous | IΔn: 300 mA | In: 6 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1656-0KK06Version: Instantaneous | IΔn: 300 mA | In: 6 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-1KK06Version: Instantaneous | IΔn: 300 mA | In: 6 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-1KK10Version: Instantaneous | IΔn: 300 mA | In: 10 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1653-1KL10Version: Instantaneous | IΔn: 300 mA | In: 10 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1656-0KK10Version: Instantaneous | IΔn: 300 mA | In: 10 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-1KK10Version: Instantaneous | IΔn: 300 mA | In: 10 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-1KK13Version: Instantaneous | IΔn: 300 mA | In: 13 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1653-1KL16Version: Instantaneous | IΔn: 300 mA | In: 13 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1656-0KK13Version: Instantaneous | IΔn: 300 mA | In: 13 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-1KK13Version: Instantaneous | IΔn: 300 mA | In: 13 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-1KK16Version: Instantaneous | IΔn: 300 mA | In: 16 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1656-0KK16Version: Instantaneous | IΔn: 300 mA | In: 16 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-1KK16Version: Instantaneous | IΔn: 300 mA | In: 16 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-1GV16Version: Instantaneous, bulk 36 pcs | IΔn: 300 mA | In: 16 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1653-1KK20Version: Instantaneous | IΔn: 300 mA | In: 20 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1653-1KL20Version: Instantaneous | IΔn: 300 mA | In: 20 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1656-0KK20Version: Instantaneous | IΔn: 300 mA | In: 20 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-1KK20Version: Instantaneous | IΔn: 300 mA | In: 20 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-1KK25Version: Instantaneous | IΔn: 300 mA | In: 25 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1653-1KL25Version: Instantaneous | IΔn: 300 mA | In: 25 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1656-0KK25Version: Instantaneous | IΔn: 300 mA | In: 25 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-1KK25Version: Instantaneous | IΔn: 300 mA | In: 25 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-1KK32Version: Instantaneous | IΔn: 300 mA | In: 32 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1653-1KL32Version: Instantaneous | IΔn: 300 mA | In: 32 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1656-0KK32Version: Instantaneous | IΔn: 300 mA | In: 32 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-1KK32Version: Instantaneous | IΔn: 300 mA | In: 32 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1653-1KK40Version: Instantaneous | IΔn: 300 mA | In: 40 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Right
5SU1653-1KL40Version: Instantaneous | IΔn: 300 mA | In: 40 A | Characteristic: C | Breaking capacity: 4.5 kA | N connection: Left
5SU1656-0KK40Version: Instantaneous | IΔn: 300 mA | In: 40 A | Characteristic: B | Breaking capacity: 6 kA | N connection: Right
5SU1656-1KK40Version: Instantaneous | IΔn: 300 mA | In: 40 A | Characteristic: C | Breaking capacity: 6 kA | N connection: Right
5SU1354-0KK06Version: Instantaneous | IΔn: 30 mA | In: 6 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1KK06Version: Instantaneous | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-1KK08Version: Instantaneous | IΔn: 30 mA | In: 8 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0KK10Version: Instantaneous | IΔn: 30 mA | In: 10 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1KK10Version: Instantaneous | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0LB10Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 10 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1LB10Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0KK13Version: Instantaneous | IΔn: 30 mA | In: 13 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1KK13Version: Instantaneous | IΔn: 30 mA | In: 13 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0LB13Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 13 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1LB13Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 13 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0KK16Version: Instantaneous | IΔn: 30 mA | In: 16 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1KK16Version: Instantaneous | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0LB16Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 16 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1LB16Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0KK20Version: Instantaneous | IΔn: 30 mA | In: 20 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1KK20Version: Instantaneous | IΔn: 30 mA | In: 20 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0LB20Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 20 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1LB20Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 20 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0KK25Version: Instantaneous | IΔn: 30 mA | In: 25 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1KK25Version: Instantaneous | IΔn: 30 mA | In: 25 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0LB25Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 25 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1LB25Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 25 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0KK32Version: Instantaneous | IΔn: 30 mA | In: 32 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1KK32Version: Instantaneous | IΔn: 30 mA | In: 32 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0LB32Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 32 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1LB32Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 32 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0KK40Version: Instantaneous | IΔn: 30 mA | In: 40 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1KK40Version: Instantaneous | IΔn: 30 mA | In: 40 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1354-0LB40Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 40 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1354-1LB40Version: Short-time delayed [G]/[K] | IΔn: 30 mA | In: 40 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1454-1KK06Version: Instantaneous | IΔn: 100 mA | In: 6 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1454-1KK10Version: Instantaneous | IΔn: 100 mA | In: 10 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1454-1KK13Version: Instantaneous | IΔn: 100 mA | In: 13 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1454-1KK16Version: Instantaneous | IΔn: 100 mA | In: 16 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1454-1KK20Version: Instantaneous | IΔn: 100 mA | In: 20 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1454-1KK25Version: Instantaneous | IΔn: 100 mA | In: 25 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1454-1KK32Version: Instantaneous | IΔn: 100 mA | In: 32 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1454-1KK40Version: Instantaneous | IΔn: 100 mA | In: 40 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-0KK06Version: Instantaneous | IΔn: 300 mA | In: 6 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-1KK06Version: Instantaneous | IΔn: 300 mA | In: 6 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-0KK10Version: Instantaneous | IΔn: 300 mA | In: 10 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-1KK10Version: Instantaneous | IΔn: 300 mA | In: 10 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-0KK13Version: Instantaneous | IΔn: 300 mA | In: 13 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-1KK13Version: Instantaneous | IΔn: 300 mA | In: 13 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-0KK16Version: Instantaneous | IΔn: 300 mA | In: 16 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-1KK16Version: Instantaneous | IΔn: 300 mA | In: 16 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-0KK20Version: Instantaneous | IΔn: 300 mA | In: 20 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-1KK20Version: Instantaneous | IΔn: 300 mA | In: 20 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-0KK25Version: Instantaneous | IΔn: 300 mA | In: 25 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-1KK25Version: Instantaneous | IΔn: 300 mA | In: 25 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-0KK32Version: Instantaneous | IΔn: 300 mA | In: 32 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-1KK32Version: Instantaneous | IΔn: 300 mA | In: 32 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right
5SU1654-0KK40Version: Instantaneous | IΔn: 300 mA | In: 40 A | Characteristic: B | Breaking capacity: 10 kA | N connection: Right
5SU1654-1KK40Version: Instantaneous | IΔn: 300 mA | In: 40 A | Characteristic: C | Breaking capacity: 10 kA | N connection: Right

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
