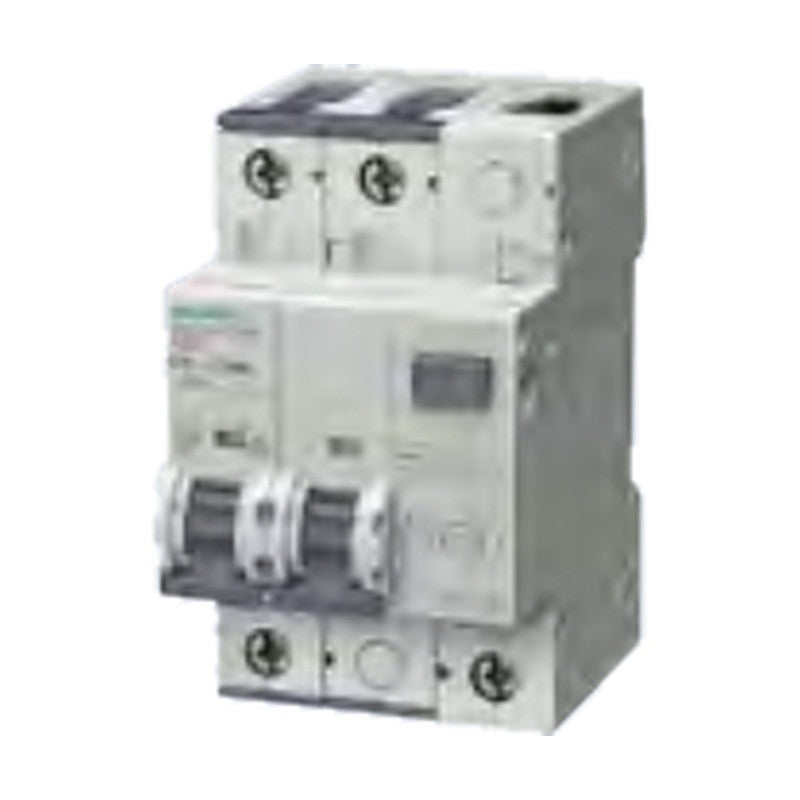

Siemens SENTRON 5SU1 RCBOs 2-pole Type A 3 MW (110/230 V AC)

Siemens SENTRON 5SU1 RCBOs 2-pole Type A 3 MW (110/230 V AC)

Siemens 5SU1 two-pole type A RCBOs in 3 MW with 10 kA breaking capacity for 110 V AC and 230 V AC networks.

Key features

  • Two-pole RCBO with combined residual current and overcurrent protection
  • Rated currents 6 to 40 A, B or C characteristic (230 V AC: B)
  • Rated residual current 30 mA, instantaneous
  • Rated breaking capacity 10 kA in 3 MW
  • Conforming to IEC/EN 61009-1 and IEC/EN 62423

Specifications

Series SENTRON 5SU1 RCBO
Poles 2P
Version Instantaneous
Type A
IΔn 30 mA
Mounting width 3 MW
Breaking capacity 10 kA
Source Siemens Catalog LV 10 · 2026, p. 4/48-4/49
5SU1324-6KX06 In: 6 A | Characteristic: B | Rated voltage: 110 V AC
5SU1324-7KX06 In: 6 A | Characteristic: C | Rated voltage: 110 V AC
5SU1324-6FA06 In: 6 A | Characteristic: B | Rated voltage: 230 V AC
5SU1324-6KX10 In: 10 A | Characteristic: B | Rated voltage: 110 V AC
5SU1324-7KX10 In: 10 A | Characteristic: C | Rated voltage: 110 V AC
5SU1324-6FA10 In: 10 A | Characteristic: B | Rated voltage: 230 V AC
5SU1324-6KX13 In: 13 A | Characteristic: B | Rated voltage: 110 V AC
5SU1324-7KX13 In: 13 A | Characteristic: C | Rated voltage: 110 V AC
5SU1324-6FA13 In: 13 A | Characteristic: B | Rated voltage: 230 V AC
5SU1324-6KX16 In: 16 A | Characteristic: B | Rated voltage: 110 V AC
5SU1324-7KX16 In: 16 A | Characteristic: C | Rated voltage: 110 V AC
5SU1324-6FA16 In: 16 A | Characteristic: B | Rated voltage: 230 V AC
5SU1324-6KX20 In: 20 A | Characteristic: B | Rated voltage: 110 V AC
5SU1324-7KX20 In: 20 A | Characteristic: C | Rated voltage: 110 V AC
5SU1324-6FA20 In: 20 A | Characteristic: B | Rated voltage: 230 V AC
5SU1324-6KX25 In: 25 A | Characteristic: B | Rated voltage: 110 V AC
5SU1324-7KX25 In: 25 A | Characteristic: C | Rated voltage: 110 V AC
5SU1324-6FA25 In: 25 A | Characteristic: B | Rated voltage: 230 V AC
5SU1324-6KX32 In: 32 A | Characteristic: B | Rated voltage: 110 V AC
5SU1324-7KX32 In: 32 A | Characteristic: C | Rated voltage: 110 V AC
5SU1324-6FA32 In: 32 A | Characteristic: B | Rated voltage: 230 V AC
5SU1324-6KX40 In: 40 A | Characteristic: B | Rated voltage: 110 V AC
5SU1324-7KX40 In: 40 A | Characteristic: C | Rated voltage: 110 V AC
5SU1324-6FA40 In: 40 A | Characteristic: B | Rated voltage: 230 V AC
5SU1324-7FA06 In: 6 A | Characteristic: C | Rated voltage: 230 V AC
5SU1324-7FA10 In: 10 A | Characteristic: C | Rated voltage: 230 V AC
5SU1324-7FA13 In: 13 A | Characteristic: C | Rated voltage: 230 V AC
5SU1324-7FA16 In: 16 A | Characteristic: C | Rated voltage: 230 V AC
5SU1324-7FA20 In: 20 A | Characteristic: C | Rated voltage: 230 V AC
5SU1324-7FA25 In: 25 A | Characteristic: C | Rated voltage: 230 V AC
5SU1324-7FA32 In: 32 A | Characteristic: C | Rated voltage: 230 V AC
5SU1324-7FA40 In: 40 A | Characteristic: C | Rated voltage: 230 V AC
Residual Current DevicesSiemens
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 5SU1 RCBOs 2-pole Type A 3 MW (110/230 V AC)

Brand Siemens·Residual Current Devices

Available part numbers (32)

5SU1324-6KX06, 5SU1324-7KX06, 5SU1324-6FA06, 5SU1324-6KX10, 5SU1324-7KX10, 5SU1324-6FA10, 5SU1324-6KX13, 5SU1324-7KX13, 5SU1324-6FA13, 5SU1324-6KX16 + 22 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5SU1324-6KX06In: 6 A | Characteristic: B | Rated voltage: 110 V AC
5SU1324-7KX06In: 6 A | Characteristic: C | Rated voltage: 110 V AC
5SU1324-6FA06In: 6 A | Characteristic: B | Rated voltage: 230 V AC
5SU1324-6KX10In: 10 A | Characteristic: B | Rated voltage: 110 V AC
5SU1324-7KX10In: 10 A | Characteristic: C | Rated voltage: 110 V AC
5SU1324-6FA10In: 10 A | Characteristic: B | Rated voltage: 230 V AC
5SU1324-6KX13In: 13 A | Characteristic: B | Rated voltage: 110 V AC
5SU1324-7KX13In: 13 A | Characteristic: C | Rated voltage: 110 V AC
5SU1324-6FA13In: 13 A | Characteristic: B | Rated voltage: 230 V AC
5SU1324-6KX16In: 16 A | Characteristic: B | Rated voltage: 110 V AC
5SU1324-7KX16In: 16 A | Characteristic: C | Rated voltage: 110 V AC
5SU1324-6FA16In: 16 A | Characteristic: B | Rated voltage: 230 V AC
5SU1324-6KX20In: 20 A | Characteristic: B | Rated voltage: 110 V AC
5SU1324-7KX20In: 20 A | Characteristic: C | Rated voltage: 110 V AC
5SU1324-6FA20In: 20 A | Characteristic: B | Rated voltage: 230 V AC
5SU1324-6KX25In: 25 A | Characteristic: B | Rated voltage: 110 V AC
5SU1324-7KX25In: 25 A | Characteristic: C | Rated voltage: 110 V AC
5SU1324-6FA25In: 25 A | Characteristic: B | Rated voltage: 230 V AC
5SU1324-6KX32In: 32 A | Characteristic: B | Rated voltage: 110 V AC
5SU1324-7KX32In: 32 A | Characteristic: C | Rated voltage: 110 V AC
5SU1324-6FA32In: 32 A | Characteristic: B | Rated voltage: 230 V AC
5SU1324-6KX40In: 40 A | Characteristic: B | Rated voltage: 110 V AC
5SU1324-7KX40In: 40 A | Characteristic: C | Rated voltage: 110 V AC
5SU1324-6FA40In: 40 A | Characteristic: B | Rated voltage: 230 V AC
5SU1324-7FA06In: 6 A | Characteristic: C | Rated voltage: 230 V AC
5SU1324-7FA10In: 10 A | Characteristic: C | Rated voltage: 230 V AC
5SU1324-7FA13In: 13 A | Characteristic: C | Rated voltage: 230 V AC
5SU1324-7FA16In: 16 A | Characteristic: C | Rated voltage: 230 V AC
5SU1324-7FA20In: 20 A | Characteristic: C | Rated voltage: 230 V AC
5SU1324-7FA25In: 25 A | Characteristic: C | Rated voltage: 230 V AC
5SU1324-7FA32In: 32 A | Characteristic: C | Rated voltage: 230 V AC
5SU1324-7FA40In: 40 A | Characteristic: C | Rated voltage: 230 V AC
