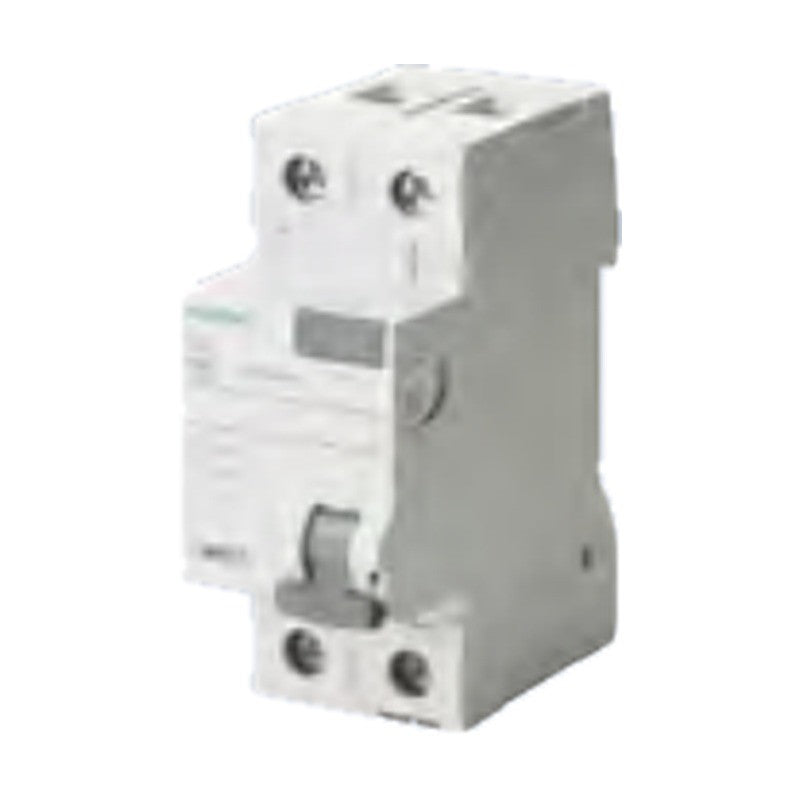

Siemens SENTRON 5SV RCCBs 1P+N (Type A, F, AC, 16-80 A)

Siemens SENTRON 5SV RCCBs 1P+N (Type A, F, AC, 16-80 A)

Siemens 5SV residual current operated circuit breakers (RCCBs) without integral overcurrent protection, 1P+N in 2 MW, for personnel, fault and fire protection.

Key features

  • Rated residual currents 10, 30, 100 and 300 mA; rated currents 16 to 80 A
  • Types A, F and AC; instantaneous, SIGRES, short-time delayed [G], super resistant [K] and selective [S] versions
  • N connection on the right or left; 24 … 125 V AC and 230 V AC versions
  • Conforming to IEC/EN 61008 (VDE 0664-10), IEC/EN 61543 and IEC/EN 62423
  • Expandable with auxiliary switches, fault signal contacts, shunt trips, undervoltage releases and remote control auxiliaries

Specifications

Series SENTRON 5SV RCCB
Poles 1P+N
Mounting width 2 MW (36 mm)
Standards IEC/EN 61008, IEC/EN 62423
Operating cycles > 10000
Degree of protection IP20 (installed)
Source Siemens Catalog LV 10 · 2026, p. 4/14-4/18
5SV3111-6 Version: Instantaneous | Type: A | IΔn: 10 mA | In: 16 A | Rated voltage: 230 V AC | N connection: Right
5SV3111-6KL Version: Instantaneous | Type: A | IΔn: 10 mA | In: 16 A | Rated voltage: 230 V AC | N connection: Left
5SV3112-6 Version: Instantaneous | Type: A | IΔn: 10 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Right
5SV3311-6KK13 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 16 A | Rated voltage: 24 … 125 V AC | N connection: Right
5SV3311-6 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 16 A | Rated voltage: 230 V AC | N connection: Right
5SV3311-6KL Version: Instantaneous | Type: A | IΔn: 30 mA | In: 16 A | Rated voltage: 230 V AC | N connection: Left
5SV3311-6GV01 Version: Instantaneous, bulk 36 pcs | Type: A | IΔn: 30 mA | In: 16 A | Rated voltage: 230 V AC | N connection: Right
5SV3312-6KK13 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 24 … 125 V AC | N connection: Right
5SV3312-6 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Right
5SV3312-6KL Version: Instantaneous | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Left
5SV3312-6BA Version: Instantaneous (Belgium only) | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Right
5SV3312-6GV01 Version: Instantaneous, bulk 36 pcs | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Right
5SV3314-6KK13 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 24 … 125 V AC | N connection: Right
5SV3314-6 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Right
5SV3314-6KL Version: Instantaneous | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Left
5SV3314-6BA Version: Instantaneous (Belgium only) | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Right
5SV3314-6GV01 Version: Instantaneous, bulk 36 pcs | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Right
5SV3314-6LA Version: Instantaneous, thermal OL prot. | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Right
5SV3316-6KK13 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 24 … 125 V AC | N connection: Right
5SV3316-6 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Right
5SV3316-6KL Version: Instantaneous | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Left
5SV3316-6BA Version: Instantaneous (Belgium only) | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Right
5SV3317-6 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 80 A | Rated voltage: 230 V AC | N connection: Right
5SV3317-6KL Version: Instantaneous | Type: A | IΔn: 30 mA | In: 80 A | Rated voltage: 230 V AC | N connection: Left
5SV3412-6 Version: Instantaneous | Type: A | IΔn: 100 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Right
5SV3412-6KL Version: Instantaneous | Type: A | IΔn: 100 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Left
5SV3612-6BA Version: Instantaneous (Belgium only) | Type: A | IΔn: 100 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Right
5SV3414-6 Version: Instantaneous | Type: A | IΔn: 100 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Right
5SV3414-6KL Version: Instantaneous | Type: A | IΔn: 100 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Left
5SV3614-6BA Version: Instantaneous (Belgium only) | Type: A | IΔn: 100 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Right
5SV3416-6 Version: Instantaneous | Type: A | IΔn: 100 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Right
5SV3416-6KL Version: Instantaneous | Type: A | IΔn: 100 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Left
5SV3616-6BA Version: Instantaneous (Belgium only) | Type: A | IΔn: 100 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Right
5SV3417-6 Version: Instantaneous | Type: A | IΔn: 100 mA | In: 80 A | Rated voltage: 230 V AC | N connection: Right
5SV3417-6KL Version: Instantaneous | Type: A | IΔn: 100 mA | In: 80 A | Rated voltage: 230 V AC | N connection: Left
5SV3612-6 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Right
5SV3612-6KL Version: Instantaneous | Type: A | IΔn: 300 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Left
5SV3614-6 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Right
5SV3614-6KL Version: Instantaneous | Type: A | IΔn: 300 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Left
5SV3616-6 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Right
5SV3616-6KL Version: Instantaneous | Type: A | IΔn: 300 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Left
5SV3617-6 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 80 A | Rated voltage: 230 V AC | N connection: Right
5SV3617-6KL Version: Instantaneous | Type: A | IΔn: 300 mA | In: 80 A | Rated voltage: 230 V AC | N connection: Left
5SV3311-6KK12 Version: SIGRES, instantaneous | Type: A | IΔn: 30 mA | In: 16 A | Rated voltage: 230 V AC | N connection: Right
5SV3312-6KK12 Version: SIGRES, instantaneous | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Right
5SV3312-6KK01 Version: Super resistant [K] | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Right
5SV3322-6KK60 Version: SIGRES super resistant [K], 6 mA DC | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Right
5SV3314-6KK12 Version: SIGRES, instantaneous | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Right
5SV3314-6KK01 Version: Super resistant [K] | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Right
5SV3324-6KK60 Version: SIGRES super resistant [K], 6 mA DC | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Right
5SV3314-6LA01 Version: Short-time delayed [G], thermal OL prot. | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Right
5SV3316-6KK12 Version: SIGRES, instantaneous | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Right
5SV3316-6KK01 Version: Super resistant [K] | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Right
5SV3317-6KK01 Version: Super resistant [K] | Type: A | IΔn: 30 mA | In: 80 A | Rated voltage: 230 V AC | N connection: Right
5SV3416-8 Version: Selective [S] | Type: A | IΔn: 100 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Right
5SV3612-6KK01 Version: Super resistant [K] | Type: A | IΔn: 300 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Right
5SV3612-8 Version: Selective [S] | Type: A | IΔn: 300 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Right
5SV3614-6KK01 Version: Super resistant [K] | Type: A | IΔn: 300 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Right
5SV3614-8 Version: Selective [S] | Type: A | IΔn: 300 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Right
5SV3614-8KL Version: Selective [S] | Type: A | IΔn: 300 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Left
5SV3616-6KK01 Version: Super resistant [K] | Type: A | IΔn: 300 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Right
5SV3616-8 Version: Selective [S] | Type: A | IΔn: 300 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Right
5SV3616-8KL Version: Selective [S] | Type: A | IΔn: 300 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Left
5SV3617-6KK01 Version: Super resistant [K] | Type: A | IΔn: 300 mA | In: 80 A | Rated voltage: 230 V AC | N connection: Right
5SV3617-8 Version: Selective [S] | Type: A | IΔn: 300 mA | In: 80 A | Rated voltage: 230 V AC | N connection: Right
5SV3312-3 Version: Super resistant [K] | Type: F | IΔn: 30 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Right
5SV3322-3KK60 Version: SIGRES super resistant [K], 6 mA DC | Type: F | IΔn: 30 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Right
5SV3314-3 Version: Super resistant [K] | Type: F | IΔn: 30 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Right
5SV3324-3KK60 Version: SIGRES super resistant [K], 6 mA DC | Type: F | IΔn: 30 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Right
5SV3316-3 Version: Super resistant [K] | Type: F | IΔn: 30 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Right
5SV3317-3 Version: Super resistant [K] | Type: F | IΔn: 30 mA | In: 80 A | Rated voltage: 230 V AC | N connection: Right
5SV3612-3 Version: Super resistant [K] | Type: F | IΔn: 300 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Right
5SV3614-3 Version: Super resistant [K] | Type: F | IΔn: 300 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Right
5SV3614-7 Version: Selective [S] | Type: F | IΔn: 300 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Right
5SV3616-3 Version: Super resistant [K] | Type: F | IΔn: 300 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Right
5SV3617-3 Version: Super resistant [K] | Type: F | IΔn: 300 mA | In: 80 A | Rated voltage: 230 V AC | N connection: Right
5SV3617-7 Version: Selective [S] | Type: F | IΔn: 300 mA | In: 80 A | Rated voltage: 230 V AC | N connection: Right
5SV4111-0 Version: Instantaneous | Type: AC | IΔn: 10 mA | In: 16 A | Rated voltage: 230 V AC | N connection: Right
5SV4111-0KL Version: Instantaneous | Type: AC | IΔn: 10 mA | In: 16 A | Rated voltage: 230 V AC | N connection: Left
5SV4112-0 Version: Instantaneous | Type: AC | IΔn: 10 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Right
5SV4311-0 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 16 A | Rated voltage: 230 V AC | N connection: Right
5SV4311-0KL Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 16 A | Rated voltage: 230 V AC | N connection: Left
5SV4311-0KK13 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 16 A | Rated voltage: 24 … 125 V AC | N connection: Right
5SV4312-0 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Right
5SV4312-0KL Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Left
5SV4312-0KK13 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 25 A | Rated voltage: 24 … 125 V AC | N connection: Right
5SV4312-0GV01 Version: Instantaneous, bulk 36 pcs | Type: AC | IΔn: 30 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Right
5SV4314-0 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Right
5SV4314-0KL Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Left
5SV4314-0KK13 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 40 A | Rated voltage: 24 … 125 V AC | N connection: Right
5SV4314-0GV01 Version: Instantaneous, bulk 36 pcs | Type: AC | IΔn: 30 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Right
5SV4314-0GV02 Version: Instantaneous, bulk 36 pcs | Type: AC | IΔn: 30 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Left
5SV4316-0 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Right
5SV4316-0KL Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Left
5SV4316-0KK13 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 63 A | Rated voltage: 24 … 125 V AC | N connection: Right
5SV4317-0 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 80 A | Rated voltage: 230 V AC | N connection: Right
5SV4317-0KL Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 80 A | Rated voltage: 230 V AC | N connection: Left
5SV4412-0 Version: Instantaneous | Type: AC | IΔn: 100 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Right
5SV4414-0 Version: Instantaneous | Type: AC | IΔn: 100 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Right
5SV4414-0KL Version: Instantaneous | Type: AC | IΔn: 100 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Left
5SV4416-0 Version: Instantaneous | Type: AC | IΔn: 100 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Right
5SV4416-0KL Version: Instantaneous | Type: AC | IΔn: 100 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Left
5SV4417-0 Version: Instantaneous | Type: AC | IΔn: 100 mA | In: 80 A | Rated voltage: 230 V AC | N connection: Right
5SV4612-0 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Right
5SV4612-0KL Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Left
5SV4614-0 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Right
5SV4614-0KL Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Left
5SV4616-0 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Right
5SV4616-0KL Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Left
5SV4617-0 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 80 A | Rated voltage: 230 V AC | N connection: Right
5SV4617-0KL Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 80 A | Rated voltage: 230 V AC | N connection: Left
