Siemens SENTRON 5SV RCCBs 3P+N (Type A, F, AC, 25-125 A)

Siemens SENTRON 5SV RCCBs 3P+N (Type A, F, AC, 25-125 A)

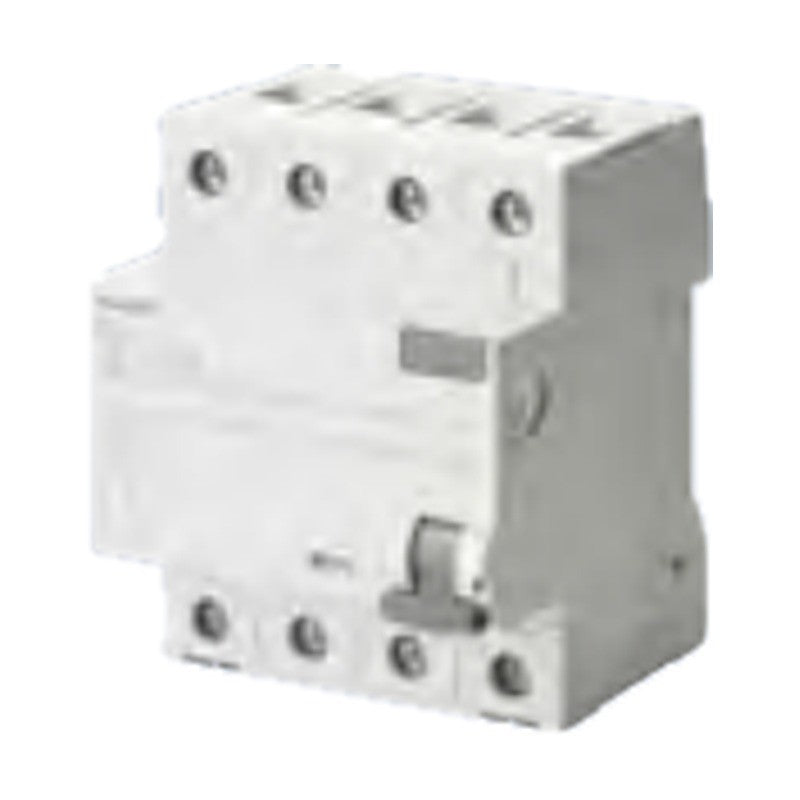

Siemens 5SV four-pole (3P+N) residual current operated circuit breakers (RCCBs) in 4 MW for 400 V and 500 V networks.

Key features

  • Rated residual currents 30, 100, 300, 500 and 1000 mA; rated currents 25 to 125 A
  • Types A, F and AC; instantaneous, SIGRES, short-time delayed [G], super resistant [K] and selective [S] versions
  • 400 V AC, 400 V AC/400 Hz and 500 V AC versions; N connection right or left
  • High-current versions 100 A and 125 A in 4 MW
  • Conforming to IEC/EN 61008 (VDE 0664-10), IEC/EN 61543 and IEC/EN 62423

Specifications

Series SENTRON 5SV RCCB
Poles 3P+N
Mounting width 4 MW (72 mm)
Standards IEC/EN 61008, IEC/EN 62423
Operating cycles > 10000
Degree of protection IP20 (installed)
Source Siemens Catalog LV 10 · 2026, p. 4/20-4/26
5SV3342-6 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3342-6KL Version: Instantaneous | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Left
5SV3342-6KK03 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 400 V AC/400 Hz | N connection: Right
5SV3352-6 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 500 V AC | N connection: Right
5SV3342-6GV01 Version: Instantaneous, bulk 18 pcs | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3344-6 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3344-6KL Version: Instantaneous | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Left
5SV3344-6KK03 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC/400 Hz | N connection: Right
5SV3354-6 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 500 V AC | N connection: Right
5SV3344-6GV01 Version: Instantaneous, bulk 18 pcs | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3344-6GV02 Version: Instantaneous, bulk 18 pcs | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Left
5SV3344-6LA Version: Instantaneous, thermal OL prot. | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3346-6 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3346-6KL Version: Instantaneous | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Left
5SV3356-6 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 500 V AC | N connection: Right
5SV3346-6GV01 Version: Instantaneous, bulk 18 pcs | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3346-6LA Version: Instantaneous, thermal OL prot. | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3347-6 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3347-6KL Version: Instantaneous | Type: A | IΔn: 30 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Left
5SV3357-6 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 80 A | Rated voltage: 500 V AC | N connection: Right
5SV3442-6 Version: Instantaneous | Type: A | IΔn: 100 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3444-6 Version: Instantaneous | Type: A | IΔn: 100 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3444-6LA Version: Instantaneous, thermal OL prot. | Type: A | IΔn: 100 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3446-6 Version: Instantaneous | Type: A | IΔn: 100 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3446-6LA Version: Instantaneous, thermal OL prot. | Type: A | IΔn: 100 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3447-6 Version: Instantaneous | Type: A | IΔn: 100 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3642-6 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3642-6KL Version: Instantaneous | Type: A | IΔn: 300 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Left
5SV3652-6 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 25 A | Rated voltage: 500 V AC | N connection: Right
5SV3644-6 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3644-6KL Version: Instantaneous | Type: A | IΔn: 300 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Left
5SV3654-6 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 40 A | Rated voltage: 500 V AC | N connection: Right
5SV3646-6 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3646-6KL Version: Instantaneous | Type: A | IΔn: 300 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Left
5SV3656-6 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 63 A | Rated voltage: 500 V AC | N connection: Right
5SV3647-6 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3647-6KL Version: Instantaneous | Type: A | IΔn: 300 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Left
5SV3657-6 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 80 A | Rated voltage: 500 V AC | N connection: Right
5SV3742-6 Version: Instantaneous | Type: A | IΔn: 500 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3744-6 Version: Instantaneous | Type: A | IΔn: 500 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3746-6 Version: Instantaneous | Type: A | IΔn: 500 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3746-6KL Version: Instantaneous | Type: A | IΔn: 500 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Left
5SV3746-6GV01 Version: Instantaneous, bulk 18 pcs | Type: A | IΔn: 500 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3747-6 Version: Instantaneous | Type: A | IΔn: 500 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3342-6BA Version: Instantaneous (Belgium only) | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3342-6KK12 Version: SIGRES, instantaneous | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3342-6KK01 Version: Super resistant [K] | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3342-6KK60 Version: SIGRES super resistant [K], 6 mA DC | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Right
5SV3344-6BA Version: Instantaneous (Belgium only) | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3344-6KK12 Version: SIGRES, instantaneous | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3344-6LB01 Version: Short-time delayed [G] | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3344-6KK01 Version: Super resistant [K] | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3344-6KK60 Version: SIGRES super resistant [K], 6 mA DC | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Right
5SV3344-6LA01 Version: Short-time delayed [G], thermal OL prot. | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3346-6BA Version: Instantaneous (Belgium only) | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3346-6KK12 Version: SIGRES, instantaneous | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3346-6LB01 Version: Short-time delayed [G] | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3346-6KK01 Version: Super resistant [K] | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3346-6KK60 Version: SIGRES super resistant [K], 6 mA DC | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Right
5SV3346-6LA01 Version: Short-time delayed [G], thermal OL prot. | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3347-6KK12 Version: SIGRES, instantaneous | Type: A | IΔn: 30 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3347-6LB01 Version: Short-time delayed [G] | Type: A | IΔn: 30 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3347-6KK01 Version: Super resistant [K] | Type: A | IΔn: 30 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3444-6LB01 Version: Short-time delayed [G] | Type: A | IΔn: 100 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3444-8 Version: Selective [S] | Type: A | IΔn: 100 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3444-6LA01 Version: Short-time delayed [G], thermal OL prot. | Type: A | IΔn: 100 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3444-8LA Version: Selective [S], thermal OL prot. | Type: A | IΔn: 100 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3446-6LB01 Version: Short-time delayed [G] | Type: A | IΔn: 100 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3446-8 Version: Selective [S] | Type: A | IΔn: 100 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3446-6LA01 Version: Short-time delayed [G], thermal OL prot. | Type: A | IΔn: 100 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3446-8LA Version: Selective [S], thermal OL prot. | Type: A | IΔn: 100 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3642-6BA Version: Instantaneous (Belgium only) | Type: A | IΔn: 300 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3642-6KK12 Version: SIGRES, instantaneous | Type: A | IΔn: 300 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3642-6KK01 Version: Super resistant [K] | Type: A | IΔn: 300 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3642-8 Version: Selective [S] | Type: A | IΔn: 300 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3644-6BA Version: Instantaneous (Belgium only) | Type: A | IΔn: 300 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3644-6KK12 Version: SIGRES, instantaneous | Type: A | IΔn: 300 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3644-6KK01 Version: Super resistant [K] | Type: A | IΔn: 300 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3644-8 Version: Selective [S] | Type: A | IΔn: 300 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3644-8LA Version: Selective [S], thermal OL prot. | Type: A | IΔn: 300 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3646-6BA Version: Instantaneous (Belgium only) | Type: A | IΔn: 300 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3646-6KK12 Version: SIGRES, instantaneous | Type: A | IΔn: 300 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3646-6KK01 Version: Super resistant [K] | Type: A | IΔn: 300 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3646-8 Version: Selective [S] | Type: A | IΔn: 300 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3646-8KL Version: Selective [S] | Type: A | IΔn: 300 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Left
5SV3646-8KK12 Version: SIGRES, selective [S] | Type: A | IΔn: 300 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3646-8LA Version: Selective [S], thermal OL prot. | Type: A | IΔn: 300 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3647-6KK12 Version: SIGRES, instantaneous | Type: A | IΔn: 300 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3647-6KK01 Version: Super resistant [K] | Type: A | IΔn: 300 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3647-8 Version: Selective [S] | Type: A | IΔn: 300 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3846-8 Version: Selective [S] | Type: A | IΔn: 1000 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3342-3 Version: Super resistant [K] | Type: F | IΔn: 30 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3342-3KK60 Version: SIGRES super resistant [K], 6 mA DC | Type: F | IΔn: 30 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Right
5SV3344-3 Version: Super resistant [K] | Type: F | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3344-3KK60 Version: SIGRES super resistant [K], 6 mA DC | Type: F | IΔn: 30 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Right
5SV3346-3 Version: Super resistant [K] | Type: F | IΔn: 30 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3346-3KK60 Version: SIGRES super resistant [K], 6 mA DC | Type: F | IΔn: 30 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Right
5SV3347-3 Version: Super resistant [K] | Type: F | IΔn: 30 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3642-3 Version: Super resistant [K] | Type: F | IΔn: 300 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3644-3 Version: Super resistant [K] | Type: F | IΔn: 300 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3644-7 Version: Selective [S] | Type: F | IΔn: 300 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3646-3 Version: Super resistant [K] | Type: F | IΔn: 300 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3647-3 Version: Super resistant [K] | Type: F | IΔn: 300 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3647-7 Version: Selective [S] | Type: F | IΔn: 300 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV4342-0 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV4342-0KL Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Left
5SV4342-0GV01 Version: Instantaneous, bulk 18 pcs | Type: AC | IΔn: 30 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV4344-0 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV4344-0KL Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Left
5SV4344-0GV01 Version: Instantaneous, bulk 18 pcs | Type: AC | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV4346-0 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV4346-0KL Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Left
5SV4347-0 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV4347-0KL Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Left
5SV4442-0 Version: Instantaneous | Type: AC | IΔn: 100 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV4444-0 Version: Instantaneous | Type: AC | IΔn: 100 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV4446-0 Version: Instantaneous | Type: AC | IΔn: 100 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV4447-0 Version: Instantaneous | Type: AC | IΔn: 100 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV4642-0 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV4642-0KL Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Left
5SV4644-0 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV4644-0KL Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Left
5SV4646-0 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV4646-0KL Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Left
5SV4647-0 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV4647-0KL Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Left
5SV4742-0 Version: Instantaneous | Type: AC | IΔn: 500 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV4744-0 Version: Instantaneous | Type: AC | IΔn: 500 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV4746-0 Version: Instantaneous | Type: AC | IΔn: 500 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV4747-0 Version: Instantaneous | Type: AC | IΔn: 500 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3348-6 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 100 A | Rated voltage: 400 V AC | N connection: Right
5SV3345-6 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV3345-6KK01 Version: Short-time delayed [G]/[K] | Type: A | IΔn: 30 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV3448-6 Version: Instantaneous | Type: A | IΔn: 100 mA | In: 100 A | Rated voltage: 400 V AC | N connection: Right
5SV3445-6 Version: Instantaneous | Type: A | IΔn: 100 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV3445-6KK01 Version: Short-time delayed [G]/[K] | Type: A | IΔn: 100 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV3648-6 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 100 A | Rated voltage: 400 V AC | N connection: Right
5SV3645-6 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV3645-6KK01 Version: Short-time delayed [G]/[K] | Type: A | IΔn: 300 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV3645-8 Version: Selective [S] | Type: A | IΔn: 300 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV3748-6 Version: Instantaneous | Type: A | IΔn: 500 mA | In: 100 A | Rated voltage: 400 V AC | N connection: Right
5SV3745-6 Version: Instantaneous | Type: A | IΔn: 500 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV3745-6KK01 Version: Short-time delayed [G]/[K] | Type: A | IΔn: 500 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV3745-8 Version: Selective [S] | Type: A | IΔn: 500 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV4348-0 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 100 A | Rated voltage: 400 V AC | N connection: Right
5SV4345-0 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV4448-0 Version: Instantaneous | Type: AC | IΔn: 100 mA | In: 100 A | Rated voltage: 400 V AC | N connection: Right
5SV4445-0 Version: Instantaneous | Type: AC | IΔn: 100 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV4648-0 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 100 A | Rated voltage: 400 V AC | N connection: Right
5SV4645-0 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV4748-0 Version: Instantaneous | Type: AC | IΔn: 500 mA | In: 100 A | Rated voltage: 400 V AC | N connection: Right
5SV4745-0 Version: Instantaneous | Type: AC | IΔn: 500 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
Residual Current DevicesSiemens
152 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 5SV RCCBs 3P+N (Type A, F, AC, 25-125 A)

Brand Siemens·Residual Current Devices

Available part numbers (152)

5SV3342-6, 5SV3342-6KL, 5SV3342-6KK03, 5SV3352-6, 5SV3342-6GV01, 5SV3344-6, 5SV3344-6KL, 5SV3344-6KK03, 5SV3354-6, 5SV3344-6GV01 + 142 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5SV3342-6Version: Instantaneous | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3342-6KLVersion: Instantaneous | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Left
5SV3342-6KK03Version: Instantaneous | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 400 V AC/400 Hz | N connection: Right
5SV3352-6Version: Instantaneous | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 500 V AC | N connection: Right
5SV3342-6GV01Version: Instantaneous, bulk 18 pcs | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3344-6Version: Instantaneous | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3344-6KLVersion: Instantaneous | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Left
5SV3344-6KK03Version: Instantaneous | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC/400 Hz | N connection: Right
5SV3354-6Version: Instantaneous | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 500 V AC | N connection: Right
5SV3344-6GV01Version: Instantaneous, bulk 18 pcs | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3344-6GV02Version: Instantaneous, bulk 18 pcs | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Left
5SV3344-6LAVersion: Instantaneous, thermal OL prot. | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3346-6Version: Instantaneous | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3346-6KLVersion: Instantaneous | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Left
5SV3356-6Version: Instantaneous | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 500 V AC | N connection: Right
5SV3346-6GV01Version: Instantaneous, bulk 18 pcs | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3346-6LAVersion: Instantaneous, thermal OL prot. | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3347-6Version: Instantaneous | Type: A | IΔn: 30 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3347-6KLVersion: Instantaneous | Type: A | IΔn: 30 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Left
5SV3357-6Version: Instantaneous | Type: A | IΔn: 30 mA | In: 80 A | Rated voltage: 500 V AC | N connection: Right
5SV3442-6Version: Instantaneous | Type: A | IΔn: 100 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3444-6Version: Instantaneous | Type: A | IΔn: 100 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3444-6LAVersion: Instantaneous, thermal OL prot. | Type: A | IΔn: 100 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3446-6Version: Instantaneous | Type: A | IΔn: 100 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3446-6LAVersion: Instantaneous, thermal OL prot. | Type: A | IΔn: 100 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3447-6Version: Instantaneous | Type: A | IΔn: 100 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3642-6Version: Instantaneous | Type: A | IΔn: 300 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3642-6KLVersion: Instantaneous | Type: A | IΔn: 300 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Left
5SV3652-6Version: Instantaneous | Type: A | IΔn: 300 mA | In: 25 A | Rated voltage: 500 V AC | N connection: Right
5SV3644-6Version: Instantaneous | Type: A | IΔn: 300 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3644-6KLVersion: Instantaneous | Type: A | IΔn: 300 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Left
5SV3654-6Version: Instantaneous | Type: A | IΔn: 300 mA | In: 40 A | Rated voltage: 500 V AC | N connection: Right
5SV3646-6Version: Instantaneous | Type: A | IΔn: 300 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3646-6KLVersion: Instantaneous | Type: A | IΔn: 300 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Left
5SV3656-6Version: Instantaneous | Type: A | IΔn: 300 mA | In: 63 A | Rated voltage: 500 V AC | N connection: Right
5SV3647-6Version: Instantaneous | Type: A | IΔn: 300 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3647-6KLVersion: Instantaneous | Type: A | IΔn: 300 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Left
5SV3657-6Version: Instantaneous | Type: A | IΔn: 300 mA | In: 80 A | Rated voltage: 500 V AC | N connection: Right
5SV3742-6Version: Instantaneous | Type: A | IΔn: 500 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3744-6Version: Instantaneous | Type: A | IΔn: 500 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3746-6Version: Instantaneous | Type: A | IΔn: 500 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3746-6KLVersion: Instantaneous | Type: A | IΔn: 500 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Left
5SV3746-6GV01Version: Instantaneous, bulk 18 pcs | Type: A | IΔn: 500 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3747-6Version: Instantaneous | Type: A | IΔn: 500 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3342-6BAVersion: Instantaneous (Belgium only) | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3342-6KK12Version: SIGRES, instantaneous | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3342-6KK01Version: Super resistant [K] | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3342-6KK60Version: SIGRES super resistant [K], 6 mA DC | Type: A | IΔn: 30 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Right
5SV3344-6BAVersion: Instantaneous (Belgium only) | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3344-6KK12Version: SIGRES, instantaneous | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3344-6LB01Version: Short-time delayed [G] | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3344-6KK01Version: Super resistant [K] | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3344-6KK60Version: SIGRES super resistant [K], 6 mA DC | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Right
5SV3344-6LA01Version: Short-time delayed [G], thermal OL prot. | Type: A | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3346-6BAVersion: Instantaneous (Belgium only) | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3346-6KK12Version: SIGRES, instantaneous | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3346-6LB01Version: Short-time delayed [G] | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3346-6KK01Version: Super resistant [K] | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3346-6KK60Version: SIGRES super resistant [K], 6 mA DC | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Right
5SV3346-6LA01Version: Short-time delayed [G], thermal OL prot. | Type: A | IΔn: 30 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3347-6KK12Version: SIGRES, instantaneous | Type: A | IΔn: 30 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3347-6LB01Version: Short-time delayed [G] | Type: A | IΔn: 30 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3347-6KK01Version: Super resistant [K] | Type: A | IΔn: 30 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3444-6LB01Version: Short-time delayed [G] | Type: A | IΔn: 100 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3444-8Version: Selective [S] | Type: A | IΔn: 100 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3444-6LA01Version: Short-time delayed [G], thermal OL prot. | Type: A | IΔn: 100 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3444-8LAVersion: Selective [S], thermal OL prot. | Type: A | IΔn: 100 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3446-6LB01Version: Short-time delayed [G] | Type: A | IΔn: 100 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3446-8Version: Selective [S] | Type: A | IΔn: 100 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3446-6LA01Version: Short-time delayed [G], thermal OL prot. | Type: A | IΔn: 100 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3446-8LAVersion: Selective [S], thermal OL prot. | Type: A | IΔn: 100 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3642-6BAVersion: Instantaneous (Belgium only) | Type: A | IΔn: 300 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3642-6KK12Version: SIGRES, instantaneous | Type: A | IΔn: 300 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3642-6KK01Version: Super resistant [K] | Type: A | IΔn: 300 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3642-8Version: Selective [S] | Type: A | IΔn: 300 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3644-6BAVersion: Instantaneous (Belgium only) | Type: A | IΔn: 300 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3644-6KK12Version: SIGRES, instantaneous | Type: A | IΔn: 300 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3644-6KK01Version: Super resistant [K] | Type: A | IΔn: 300 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3644-8Version: Selective [S] | Type: A | IΔn: 300 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3644-8LAVersion: Selective [S], thermal OL prot. | Type: A | IΔn: 300 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3646-6BAVersion: Instantaneous (Belgium only) | Type: A | IΔn: 300 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3646-6KK12Version: SIGRES, instantaneous | Type: A | IΔn: 300 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3646-6KK01Version: Super resistant [K] | Type: A | IΔn: 300 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3646-8Version: Selective [S] | Type: A | IΔn: 300 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3646-8KLVersion: Selective [S] | Type: A | IΔn: 300 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Left
5SV3646-8KK12Version: SIGRES, selective [S] | Type: A | IΔn: 300 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3646-8LAVersion: Selective [S], thermal OL prot. | Type: A | IΔn: 300 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3647-6KK12Version: SIGRES, instantaneous | Type: A | IΔn: 300 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3647-6KK01Version: Super resistant [K] | Type: A | IΔn: 300 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3647-8Version: Selective [S] | Type: A | IΔn: 300 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3846-8Version: Selective [S] | Type: A | IΔn: 1000 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3342-3Version: Super resistant [K] | Type: F | IΔn: 30 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3342-3KK60Version: SIGRES super resistant [K], 6 mA DC | Type: F | IΔn: 30 mA | In: 25 A | Rated voltage: 230 V AC | N connection: Right
5SV3344-3Version: Super resistant [K] | Type: F | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3344-3KK60Version: SIGRES super resistant [K], 6 mA DC | Type: F | IΔn: 30 mA | In: 40 A | Rated voltage: 230 V AC | N connection: Right
5SV3346-3Version: Super resistant [K] | Type: F | IΔn: 30 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3346-3KK60Version: SIGRES super resistant [K], 6 mA DC | Type: F | IΔn: 30 mA | In: 63 A | Rated voltage: 230 V AC | N connection: Right
5SV3347-3Version: Super resistant [K] | Type: F | IΔn: 30 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3642-3Version: Super resistant [K] | Type: F | IΔn: 300 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV3644-3Version: Super resistant [K] | Type: F | IΔn: 300 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3644-7Version: Selective [S] | Type: F | IΔn: 300 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV3646-3Version: Super resistant [K] | Type: F | IΔn: 300 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV3647-3Version: Super resistant [K] | Type: F | IΔn: 300 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3647-7Version: Selective [S] | Type: F | IΔn: 300 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV4342-0Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV4342-0KLVersion: Instantaneous | Type: AC | IΔn: 30 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Left
5SV4342-0GV01Version: Instantaneous, bulk 18 pcs | Type: AC | IΔn: 30 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV4344-0Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV4344-0KLVersion: Instantaneous | Type: AC | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Left
5SV4344-0GV01Version: Instantaneous, bulk 18 pcs | Type: AC | IΔn: 30 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV4346-0Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV4346-0KLVersion: Instantaneous | Type: AC | IΔn: 30 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Left
5SV4347-0Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV4347-0KLVersion: Instantaneous | Type: AC | IΔn: 30 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Left
5SV4442-0Version: Instantaneous | Type: AC | IΔn: 100 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV4444-0Version: Instantaneous | Type: AC | IΔn: 100 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV4446-0Version: Instantaneous | Type: AC | IΔn: 100 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV4447-0Version: Instantaneous | Type: AC | IΔn: 100 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV4642-0Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV4642-0KLVersion: Instantaneous | Type: AC | IΔn: 300 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Left
5SV4644-0Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV4644-0KLVersion: Instantaneous | Type: AC | IΔn: 300 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Left
5SV4646-0Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV4646-0KLVersion: Instantaneous | Type: AC | IΔn: 300 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Left
5SV4647-0Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV4647-0KLVersion: Instantaneous | Type: AC | IΔn: 300 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Left
5SV4742-0Version: Instantaneous | Type: AC | IΔn: 500 mA | In: 25 A | Rated voltage: 400 V AC | N connection: Right
5SV4744-0Version: Instantaneous | Type: AC | IΔn: 500 mA | In: 40 A | Rated voltage: 400 V AC | N connection: Right
5SV4746-0Version: Instantaneous | Type: AC | IΔn: 500 mA | In: 63 A | Rated voltage: 400 V AC | N connection: Right
5SV4747-0Version: Instantaneous | Type: AC | IΔn: 500 mA | In: 80 A | Rated voltage: 400 V AC | N connection: Right
5SV3348-6Version: Instantaneous | Type: A | IΔn: 30 mA | In: 100 A | Rated voltage: 400 V AC | N connection: Right
5SV3345-6Version: Instantaneous | Type: A | IΔn: 30 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV3345-6KK01Version: Short-time delayed [G]/[K] | Type: A | IΔn: 30 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV3448-6Version: Instantaneous | Type: A | IΔn: 100 mA | In: 100 A | Rated voltage: 400 V AC | N connection: Right
5SV3445-6Version: Instantaneous | Type: A | IΔn: 100 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV3445-6KK01Version: Short-time delayed [G]/[K] | Type: A | IΔn: 100 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV3648-6Version: Instantaneous | Type: A | IΔn: 300 mA | In: 100 A | Rated voltage: 400 V AC | N connection: Right
5SV3645-6Version: Instantaneous | Type: A | IΔn: 300 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV3645-6KK01Version: Short-time delayed [G]/[K] | Type: A | IΔn: 300 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV3645-8Version: Selective [S] | Type: A | IΔn: 300 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV3748-6Version: Instantaneous | Type: A | IΔn: 500 mA | In: 100 A | Rated voltage: 400 V AC | N connection: Right
5SV3745-6Version: Instantaneous | Type: A | IΔn: 500 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV3745-6KK01Version: Short-time delayed [G]/[K] | Type: A | IΔn: 500 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV3745-8Version: Selective [S] | Type: A | IΔn: 500 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV4348-0Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 100 A | Rated voltage: 400 V AC | N connection: Right
5SV4345-0Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV4448-0Version: Instantaneous | Type: AC | IΔn: 100 mA | In: 100 A | Rated voltage: 400 V AC | N connection: Right
5SV4445-0Version: Instantaneous | Type: AC | IΔn: 100 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV4648-0Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 100 A | Rated voltage: 400 V AC | N connection: Right
5SV4645-0Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right
5SV4748-0Version: Instantaneous | Type: AC | IΔn: 500 mA | In: 100 A | Rated voltage: 400 V AC | N connection: Right
5SV4745-0Version: Instantaneous | Type: AC | IΔn: 500 mA | In: 125 A | Rated voltage: 400 V AC | N connection: Right

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
