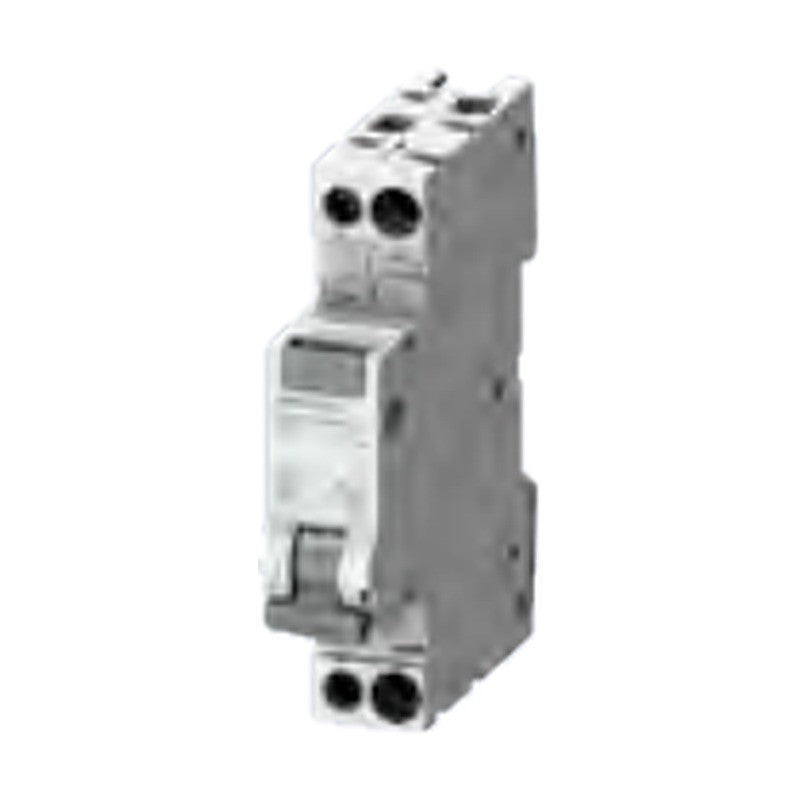

Siemens SENTRON 5SV1 RCBOs 1P+N 1 MW (Type A, F, AC, 2-16 A)

Siemens SENTRON 5SV1 RCBOs 1P+N 1 MW (Type A, F, AC, 2-16 A)

Siemens 5SV1 compact RCBOs, 1P+N in only 1 MW (18 mm), combining residual current and overcurrent protection.

Key features

  • 1P+N RCBO in 1 MW (18 mm) mounting width
  • Rated currents 2 to 16 A, B or C characteristic
  • Types A, F and AC; instantaneous and short-time delayed [G]/super resistant [K] versions
  • Rated breaking capacity 4.5 kA or 6 kA; rated residual currents 30 and 300 mA
  • Combinable with 5SM6011-2 arc fault detection unit, auxiliary switches, fault signal contacts and RCA

Specifications

Series SENTRON 5SV1 RCBO
Poles 1P+N
Mounting width 1 MW (18 mm)
Standards IEC/EN 61009-1, IEC/EN 62423
Rated voltage 230 V AC
N connection Right
Source Siemens Catalog LV 10 · 2026, p. 4/52-4/53
5SV1313-7KK02 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 2 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1316-7KK02 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 2 A | Characteristic: C | Breaking capacity: 6 kA
5SV1313-7KK04 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 4 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1316-7KK04 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 4 A | Characteristic: C | Breaking capacity: 6 kA
5SV1313-6KK06 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 6 A | Characteristic: B | Breaking capacity: 4.5 kA
5SV1313-7KK06 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1316-6KK06 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 6 A | Characteristic: B | Breaking capacity: 6 kA
5SV1316-7KK06 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 6 kA
5SV1316-6LK06 Version: Short-time delayed [G]/[K] | Type: A | IΔn: 30 mA | In: 6 A | Characteristic: B | Breaking capacity: 6 kA
5SV1316-7LK06 Version: Short-time delayed [G]/[K] | Type: A | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 6 kA
5SV1316-6GV06 Version: Instantaneous, bulk 12 pcs | Type: A | IΔn: 30 mA | In: 6 A | Characteristic: B | Breaking capacity: 6 kA
5SV1316-7GV06 Version: Instantaneous, bulk 12 pcs | Type: A | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 6 kA
5SV1313-6KK10 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 10 A | Characteristic: B | Breaking capacity: 4.5 kA
5SV1313-7KK10 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1316-6KK10 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 10 A | Characteristic: B | Breaking capacity: 6 kA
5SV1316-7KK10 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 6 kA
5SV1316-6LK10 Version: Short-time delayed [G]/[K] | Type: A | IΔn: 30 mA | In: 10 A | Characteristic: B | Breaking capacity: 6 kA
5SV1316-7LK10 Version: Short-time delayed [G]/[K] | Type: A | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 6 kA
5SV1316-6GV10 Version: Instantaneous, bulk 12 pcs | Type: A | IΔn: 30 mA | In: 10 A | Characteristic: B | Breaking capacity: 6 kA
5SV1316-7GV10 Version: Instantaneous, bulk 12 pcs | Type: A | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 6 kA
5SV1313-6KK13 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 13 A | Characteristic: B | Breaking capacity: 4.5 kA
5SV1313-7KK13 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 13 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1316-6KK13 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 13 A | Characteristic: B | Breaking capacity: 6 kA
5SV1316-7KK13 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 13 A | Characteristic: C | Breaking capacity: 6 kA
5SV1316-6LK13 Version: Short-time delayed [G]/[K] | Type: A | IΔn: 30 mA | In: 13 A | Characteristic: B | Breaking capacity: 6 kA
5SV1316-7LK13 Version: Short-time delayed [G]/[K] | Type: A | IΔn: 30 mA | In: 13 A | Characteristic: C | Breaking capacity: 6 kA
5SV1316-6GV13 Version: Instantaneous, bulk 12 pcs | Type: A | IΔn: 30 mA | In: 13 A | Characteristic: B | Breaking capacity: 6 kA
5SV1316-7GV13 Version: Instantaneous, bulk 12 pcs | Type: A | IΔn: 30 mA | In: 13 A | Characteristic: C | Breaking capacity: 6 kA
5SV1313-6KK16 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 16 A | Characteristic: B | Breaking capacity: 4.5 kA
5SV1313-7KK16 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1316-6KK16 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 16 A | Characteristic: B | Breaking capacity: 6 kA
5SV1316-7KK16 Version: Instantaneous | Type: A | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 6 kA
5SV1316-6LK16 Version: Short-time delayed [G]/[K] | Type: A | IΔn: 30 mA | In: 16 A | Characteristic: B | Breaking capacity: 6 kA
5SV1316-7LK16 Version: Short-time delayed [G]/[K] | Type: A | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 6 kA
5SV1316-6GV16 Version: Instantaneous, bulk 12 pcs | Type: A | IΔn: 30 mA | In: 16 A | Characteristic: B | Breaking capacity: 6 kA
5SV1316-7GV16 Version: Instantaneous, bulk 12 pcs | Type: A | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 6 kA
5SV1613-7KK02 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 2 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1616-7KK02 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 2 A | Characteristic: C | Breaking capacity: 6 kA
5SV1613-7KK04 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 4 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1616-7KK04 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 4 A | Characteristic: C | Breaking capacity: 6 kA
5SV1613-6KK06 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 6 A | Characteristic: B | Breaking capacity: 4.5 kA
5SV1613-7KK06 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 6 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1616-6KK06 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 6 A | Characteristic: B | Breaking capacity: 6 kA
5SV1616-7KK06 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 6 A | Characteristic: C | Breaking capacity: 6 kA
5SV1613-6KK10 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 10 A | Characteristic: B | Breaking capacity: 4.5 kA
5SV1613-7KK10 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 10 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1616-6KK10 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 10 A | Characteristic: B | Breaking capacity: 6 kA
5SV1616-7KK10 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 10 A | Characteristic: C | Breaking capacity: 6 kA
5SV1613-6KK13 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 13 A | Characteristic: B | Breaking capacity: 4.5 kA
5SV1613-7KK13 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 13 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1616-6KK13 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 13 A | Characteristic: B | Breaking capacity: 6 kA
5SV1616-7KK13 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 13 A | Characteristic: C | Breaking capacity: 6 kA
5SV1613-6KK16 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 16 A | Characteristic: B | Breaking capacity: 4.5 kA
5SV1613-7KK16 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 16 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1616-6KK16 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 16 A | Characteristic: B | Breaking capacity: 6 kA
5SV1616-7KK16 Version: Instantaneous | Type: A | IΔn: 300 mA | In: 16 A | Characteristic: C | Breaking capacity: 6 kA
5SV1316-3KK06 Version: Super resistant [K] | Type: F | IΔn: 30 mA | In: 6 A | Characteristic: B | Breaking capacity: 6 kA
5SV1316-4KK06 Version: Super resistant [K] | Type: F | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 6 kA
5SV1316-3KK10 Version: Super resistant [K] | Type: F | IΔn: 30 mA | In: 10 A | Characteristic: B | Breaking capacity: 6 kA
5SV1316-4KK10 Version: Super resistant [K] | Type: F | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 6 kA
5SV1316-3KK13 Version: Super resistant [K] | Type: F | IΔn: 30 mA | In: 13 A | Characteristic: B | Breaking capacity: 6 kA
5SV1316-4KK13 Version: Super resistant [K] | Type: F | IΔn: 30 mA | In: 13 A | Characteristic: C | Breaking capacity: 6 kA
5SV1316-3KK16 Version: Super resistant [K] | Type: F | IΔn: 30 mA | In: 16 A | Characteristic: B | Breaking capacity: 6 kA
5SV1316-4KK16 Version: Super resistant [K] | Type: F | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 6 kA
5SV1313-1KK02 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 2 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1316-1KK02 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 2 A | Characteristic: C | Breaking capacity: 6 kA
5SV1313-1KK04 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 4 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1316-1KK04 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 4 A | Characteristic: C | Breaking capacity: 6 kA
5SV1313-1KK06 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1316-0KK06 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 6 A | Characteristic: B | Breaking capacity: 6 kA
5SV1316-1KK06 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 6 A | Characteristic: C | Breaking capacity: 6 kA
5SV1313-1KK10 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1316-0KK10 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 10 A | Characteristic: B | Breaking capacity: 6 kA
5SV1316-1KK10 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 6 kA
5SV1313-1GV10 Version: Instantaneous, bulk 12 pcs | Type: AC | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1316-1GV10 Version: Instantaneous, bulk 12 pcs | Type: AC | IΔn: 30 mA | In: 10 A | Characteristic: C | Breaking capacity: 6 kA
5SV1313-1KK13 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 13 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1316-0KK13 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 13 A | Characteristic: B | Breaking capacity: 6 kA
5SV1316-1KK13 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 13 A | Characteristic: C | Breaking capacity: 6 kA
5SV1313-1KK16 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1316-0KK16 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 16 A | Characteristic: B | Breaking capacity: 6 kA
5SV1316-1KK16 Version: Instantaneous | Type: AC | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 6 kA
5SV1313-1GV16 Version: Instantaneous, bulk 12 pcs | Type: AC | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1316-1GV16 Version: Instantaneous, bulk 12 pcs | Type: AC | IΔn: 30 mA | In: 16 A | Characteristic: C | Breaking capacity: 6 kA
5SV1613-1KK02 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 2 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1616-1KK02 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 2 A | Characteristic: C | Breaking capacity: 6 kA
5SV1613-1KK04 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 4 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1616-1KK04 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 4 A | Characteristic: C | Breaking capacity: 6 kA
5SV1613-1KK06 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 6 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1616-0KK06 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 6 A | Characteristic: B | Breaking capacity: 6 kA
5SV1616-1KK06 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 6 A | Characteristic: C | Breaking capacity: 6 kA
5SV1613-1KK10 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 10 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1616-0KK10 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 10 A | Characteristic: B | Breaking capacity: 6 kA
5SV1616-1KK10 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 10 A | Characteristic: C | Breaking capacity: 6 kA
5SV1613-1KK13 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 13 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1616-0KK13 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 13 A | Characteristic: B | Breaking capacity: 6 kA
5SV1616-1KK13 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 13 A | Characteristic: C | Breaking capacity: 6 kA
5SV1613-1KK16 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 16 A | Characteristic: C | Breaking capacity: 4.5 kA
5SV1616-0KK16 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 16 A | Characteristic: B | Breaking capacity: 6 kA
5SV1616-1KK16 Version: Instantaneous | Type: AC | IΔn: 300 mA | In: 16 A | Characteristic: C | Breaking capacity: 6 kA
Residual Current DevicesSiemens
100 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 5SV1 RCBOs 1P+N 1 MW (Type A, F, AC, 2-16 A)

Brand Siemens·Residual Current Devices

Available part numbers (100)

5SV1313-7KK02, 5SV1316-7KK02, 5SV1313-7KK04, 5SV1316-7KK04, 5SV1313-6KK06, 5SV1313-7KK06, 5SV1316-6KK06, 5SV1316-7KK06, 5SV1316-6LK06, 5SV1316-7LK06 + 90 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
