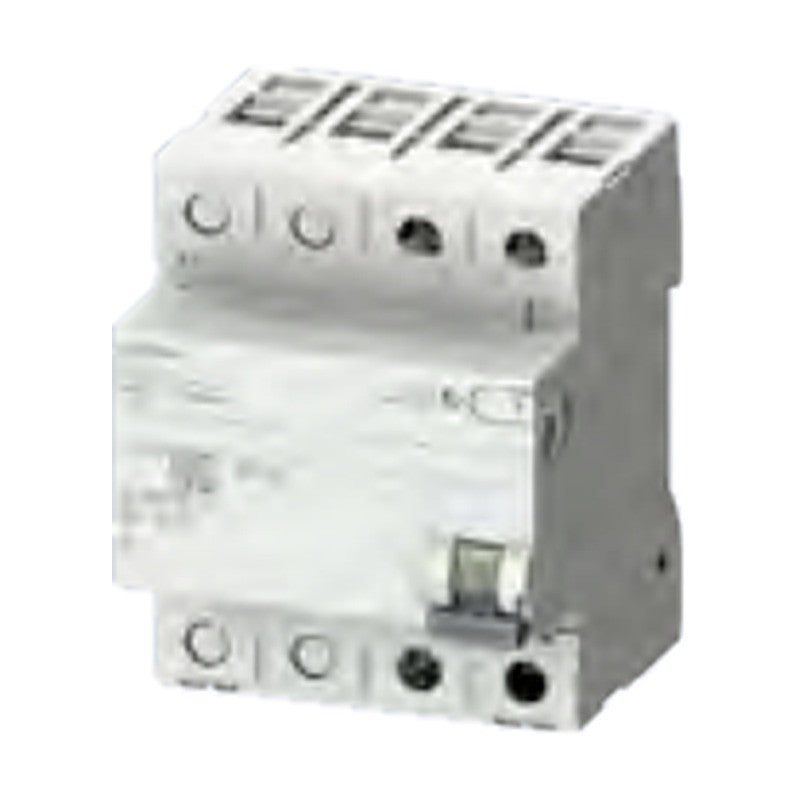

Siemens SENTRON 5SV3 SIQUENCE RCCBs (Type B, B+, 1P+N/3P+N)

Siemens SENTRON 5SV3 SIQUENCE RCCBs (Type B, B+, 1P+N/3P+N)

SIQUENCE 5SV3 all-current sensitive RCCBs of type B and B+ in 4 MW, for installations with smooth DC residual currents such as converters and charging stations.

Key features

  • Type B and type B+ (DIN VDE 0664-400) all-current sensitive tripping
  • SIGRES versions with active condensation protection: super resistant [K], super resistant [K] 6 mA DC and selective [S]
  • Rated residual currents 30, 300 and 500 mA; rated currents 16 to 80 A
  • 1P+N for 230 V AC and 3P+N for 230 … 400 V AC, N connection right
  • Conforming to IEC/EN 62423 (VDE 0664-40) and IEC/EN 61543

Specifications

Series SENTRON SIQUENCE 5SV3
Mounting width 4 MW (72 mm)
Standards IEC/EN 62423, IEC/EN 61543
Operating cycles > 10000
N connection Right
Rated frequency 50/60 Hz
Source Siemens Catalog LV 10 · 2026, p. 4/28-4/30
5SV3321-4 Poles: 1P+N | Version: SIGRES, super resistant [K] | Type: B | IΔn: 30 mA | In: 16 A | Rated voltage: 230 V AC
5SV3322-4 Poles: 1P+N | Version: SIGRES, super resistant [K] | Type: B | IΔn: 30 mA | In: 25 A | Rated voltage: 230 V AC
5SV3322-4KK60 Poles: 1P+N | Version: SIGRES super resistant [K], 6 mA DC | Type: B | IΔn: 30 mA | In: 25 A | Rated voltage: 230 V AC
5SV3324-4 Poles: 1P+N | Version: SIGRES, super resistant [K] | Type: B | IΔn: 30 mA | In: 40 A | Rated voltage: 230 V AC
5SV3324-4KK60 Poles: 1P+N | Version: SIGRES super resistant [K], 6 mA DC | Type: B | IΔn: 30 mA | In: 40 A | Rated voltage: 230 V AC
5SV3324-4GV01 Poles: 1P+N | Version: SIGRES, super resistant [K], bulk 18 pcs | Type: B | IΔn: 30 mA | In: 40 A | Rated voltage: 230 V AC
5SV3326-4 Poles: 1P+N | Version: SIGRES, super resistant [K] | Type: B | IΔn: 30 mA | In: 63 A | Rated voltage: 230 V AC
5SV3326-4KK60 Poles: 1P+N | Version: SIGRES super resistant [K], 6 mA DC | Type: B | IΔn: 30 mA | In: 63 A | Rated voltage: 230 V AC
5SV3327-4KK60 Poles: 1P+N | Version: SIGRES super resistant [K], 6 mA DC | Type: B | IΔn: 30 mA | In: 80 A | Rated voltage: 230 V AC
5SV3621-4 Poles: 1P+N | Version: SIGRES, super resistant [K] | Type: B | IΔn: 300 mA | In: 16 A | Rated voltage: 230 V AC
5SV3622-4 Poles: 1P+N | Version: SIGRES, super resistant [K] | Type: B | IΔn: 300 mA | In: 25 A | Rated voltage: 230 V AC
5SV3624-4 Poles: 1P+N | Version: SIGRES, super resistant [K] | Type: B | IΔn: 300 mA | In: 40 A | Rated voltage: 230 V AC
5SV3626-4 Poles: 1P+N | Version: SIGRES, super resistant [K] | Type: B | IΔn: 300 mA | In: 63 A | Rated voltage: 230 V AC
5SV3342-4 Poles: 3P+N | Version: SIGRES, super resistant [K] | Type: B | IΔn: 30 mA | In: 25 A | Rated voltage: 230 … 400 V AC
5SV3342-4KK60 Poles: 3P+N | Version: SIGRES super resistant [K], 6 mA DC | Type: B | IΔn: 30 mA | In: 25 A | Rated voltage: 230 … 400 V AC
5SV3342-4GV01 Poles: 3P+N | Version: SIGRES, super resistant [K], bulk 18 pcs | Type: B | IΔn: 30 mA | In: 25 A | Rated voltage: 230 … 400 V AC
5SV3344-4 Poles: 3P+N | Version: SIGRES, super resistant [K] | Type: B | IΔn: 30 mA | In: 40 A | Rated voltage: 230 … 400 V AC
5SV3344-4KK60 Poles: 3P+N | Version: SIGRES super resistant [K], 6 mA DC | Type: B | IΔn: 30 mA | In: 40 A | Rated voltage: 230 … 400 V AC
5SV3344-4GV01 Poles: 3P+N | Version: SIGRES, super resistant [K], bulk 18 pcs | Type: B | IΔn: 30 mA | In: 40 A | Rated voltage: 230 … 400 V AC
5SV3346-4 Poles: 3P+N | Version: SIGRES, super resistant [K] | Type: B | IΔn: 30 mA | In: 63 A | Rated voltage: 230 … 400 V AC
5SV3346-4KK60 Poles: 3P+N | Version: SIGRES super resistant [K], 6 mA DC | Type: B | IΔn: 30 mA | In: 63 A | Rated voltage: 230 … 400 V AC
5SV3346-4GV01 Poles: 3P+N | Version: SIGRES, super resistant [K], bulk 18 pcs | Type: B | IΔn: 30 mA | In: 63 A | Rated voltage: 230 … 400 V AC
5SV3347-4 Poles: 3P+N | Version: SIGRES, super resistant [K] | Type: B | IΔn: 30 mA | In: 80 A | Rated voltage: 230 … 400 V AC
5SV3347-4KK60 Poles: 3P+N | Version: SIGRES super resistant [K], 6 mA DC | Type: B | IΔn: 30 mA | In: 80 A | Rated voltage: 230 … 400 V AC
5SV3642-4 Poles: 3P+N | Version: SIGRES, super resistant [K] | Type: B | IΔn: 300 mA | In: 25 A | Rated voltage: 230 … 400 V AC
5SV3642-4GV01 Poles: 3P+N | Version: SIGRES, super resistant [K], bulk 18 pcs | Type: B | IΔn: 300 mA | In: 25 A | Rated voltage: 230 … 400 V AC
5SV3644-4 Poles: 3P+N | Version: SIGRES, super resistant [K] | Type: B | IΔn: 300 mA | In: 40 A | Rated voltage: 230 … 400 V AC
5SV3644-4GV01 Poles: 3P+N | Version: SIGRES, super resistant [K], bulk 18 pcs | Type: B | IΔn: 300 mA | In: 40 A | Rated voltage: 230 … 400 V AC
5SV3646-4 Poles: 3P+N | Version: SIGRES, super resistant [K] | Type: B | IΔn: 300 mA | In: 63 A | Rated voltage: 230 … 400 V AC
5SV3646-5 Poles: 3P+N | Version: SIGRES, selective [S] | Type: B | IΔn: 300 mA | In: 63 A | Rated voltage: 230 … 400 V AC
5SV3646-4GV01 Poles: 3P+N | Version: SIGRES, super resistant [K], bulk 18 pcs | Type: B | IΔn: 300 mA | In: 63 A | Rated voltage: 230 … 400 V AC
5SV3647-4 Poles: 3P+N | Version: SIGRES, super resistant [K] | Type: B | IΔn: 300 mA | In: 80 A | Rated voltage: 230 … 400 V AC
5SV3647-5 Poles: 3P+N | Version: SIGRES, selective [S] | Type: B | IΔn: 300 mA | In: 80 A | Rated voltage: 230 … 400 V AC
5SV3742-4 Poles: 3P+N | Version: SIGRES, super resistant [K] | Type: B | IΔn: 500 mA | In: 25 A | Rated voltage: 230 … 400 V AC
5SV3744-4 Poles: 3P+N | Version: SIGRES, super resistant [K] | Type: B | IΔn: 500 mA | In: 40 A | Rated voltage: 230 … 400 V AC
5SV3746-4 Poles: 3P+N | Version: SIGRES, super resistant [K] | Type: B | IΔn: 500 mA | In: 63 A | Rated voltage: 230 … 400 V AC
5SV3746-5 Poles: 3P+N | Version: SIGRES, selective [S] | Type: B | IΔn: 500 mA | In: 63 A | Rated voltage: 230 … 400 V AC
5SV3747-4 Poles: 3P+N | Version: SIGRES, super resistant [K] | Type: B | IΔn: 500 mA | In: 80 A | Rated voltage: 230 … 400 V AC
5SV3747-5 Poles: 3P+N | Version: SIGRES, selective [S] | Type: B | IΔn: 500 mA | In: 80 A | Rated voltage: 230 … 400 V AC
5SV3342-4KK14 Poles: 3P+N | Version: SIGRES, super resistant [K] | Type: B+ | IΔn: 30 mA | In: 25 A | Rated voltage: 230 … 400 V AC
5SV3344-4KK14 Poles: 3P+N | Version: SIGRES, super resistant [K] | Type: B+ | IΔn: 30 mA | In: 40 A | Rated voltage: 230 … 400 V AC
5SV3346-4KK14 Poles: 3P+N | Version: SIGRES, super resistant [K] | Type: B+ | IΔn: 30 mA | In: 63 A | Rated voltage: 230 … 400 V AC
5SV3347-4KK14 Poles: 3P+N | Version: SIGRES, super resistant [K] | Type: B+ | IΔn: 30 mA | In: 80 A | Rated voltage: 230 … 400 V AC
5SV3642-4KK14 Poles: 3P+N | Version: SIGRES, super resistant [K] | Type: B+ | IΔn: 300 mA | In: 25 A | Rated voltage: 230 … 400 V AC
5SV3644-4KK14 Poles: 3P+N | Version: SIGRES, super resistant [K] | Type: B+ | IΔn: 300 mA | In: 40 A | Rated voltage: 230 … 400 V AC
5SV3646-4KK14 Poles: 3P+N | Version: SIGRES, super resistant [K] | Type: B+ | IΔn: 300 mA | In: 63 A | Rated voltage: 230 … 400 V AC
5SV3646-5KK14 Poles: 3P+N | Version: SIGRES, selective [S] | Type: B+ | IΔn: 300 mA | In: 63 A | Rated voltage: 230 … 400 V AC
5SV3647-4KK14 Poles: 3P+N | Version: SIGRES, super resistant [K] | Type: B+ | IΔn: 300 mA | In: 80 A | Rated voltage: 230 … 400 V AC
5SV3647-5KK14 Poles: 3P+N | Version: SIGRES, selective [S] | Type: B+ | IΔn: 300 mA | In: 80 A | Rated voltage: 230 … 400 V AC
Residual Current DevicesSiemens
49 product codes available in this family
