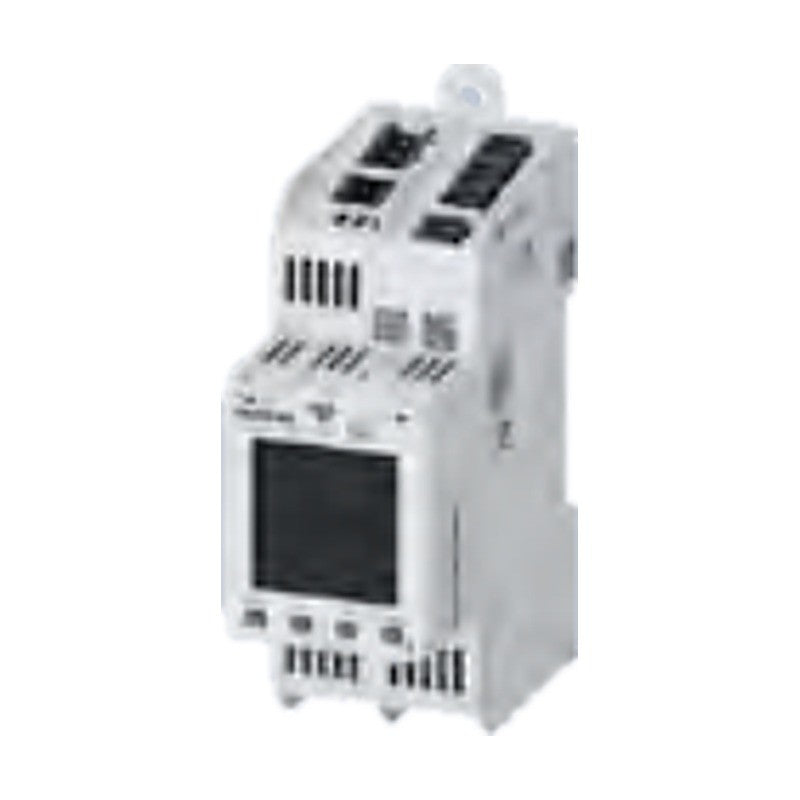

Siemens SENTRON 5SV8 COM Residual Current Monitors (Type A/B)

Siemens SENTRON 5SV8 COM Residual Current Monitors (Type A/B)

SENTRON 5SV8 COM residual current monitors with communication and measuring function transmit residual current values by radio to the SENTRON Powercenter 1100/2000.

Key features

  • Type A versions: RCM analog, RCM analog with COM (1 MW) and 4-channel RCM digital with COM and display (2 MW)
  • Type B versions 0.01-8 A with 1 or 4 channels
  • Supply 100-240 V AC/DC or 24 V DC; adjustable response delay 0-10 s
  • Radio link to SENTRON Powercenter 1100/2000 for remote monitoring
  • Matching summation current transformers 20-210 mm (type A) and 35-210 mm, 24 V DC (type B)

Specifications

Brand line SENTRON
Series 5SV8 COM
Rated operational voltage 100-240 V AC/DC, 24 V DC
Standards DIN EN 62020-1, IEC 62020-1
Relay contacts 230 V AC, 5 A
Degree of protection IP20 contacts / IP30 front
Source Siemens Catalog LV 10 · 2026, p. 856-859
5SV8020-6KK Item: RCM analog, 1 channel, 1 MW | Type: A | Range / rating: A 0.01-30 A | Communication: No
5SV8022-6MP Item: RCM analog with COM, 1 ch., 1 MW | Type: A | Range / rating: A 0.01-30 A | Communication: Radio to Powercenter 1100/2000
5SV8223-6MP Item: RCM digital COM, 4 ch., display, 2 MW | Type: A, A/F | Range / rating: A/F 0.006-30 A | Communication: Radio to Powercenter 1100/2000
5SV8022-4MR Item: RCM COM, 1 channel, 2 MW | Type: B | Range / rating: B 0.01-8 A | Communication: Radio to Powercenter 1100/2000
5SV8223-4MR Item: RCM COM, 4 ch., display, 2 MW | Type: B | Range / rating: B 0.01-8 A | Communication: Radio to Powercenter 1100/2000
5SV8710-0KK Item: Summation CT 20 mm, screw/DIN clip | Type: For type A devices | Range / rating: In 63 A, min. 1 mA, resp. 10 mA | Communication: -
5SV8711-0KK Item: Summation CT 35 mm, screw/DIN clip | Type: For type A devices | Range / rating: In 125 A, min. 1 mA, resp. 30 mA | Communication: -
5SV8712-0KK Item: Summation CT 60 mm, screw/DIN clip | Type: For type A devices | Range / rating: In 200 A, min. 1 mA, resp. 30 mA | Communication: -
5SV8713-0KK Item: Summation CT 120 mm, Screw fixing | Type: For type A devices | Range / rating: In 400 A, min. 4 mA, resp. 100 mA | Communication: -
5SV8714-0KK Item: Summation CT 210 mm, Screw fixing | Type: For type A devices | Range / rating: In 630 A, min. 8 mA, resp. 300 mA | Communication: -
5SV8711-2KK Item: Summation CT 35 mm, 24 V DC | Type: For type B devices | Range / rating: In 125 A, min. 1 mA, resp. 30 mA | Communication: -
5SV8711-2KP Item: Summation CT 35 mm, 24 V DC, shielded | Type: For type B devices | Range / rating: In 160 A, min. 1 mA, resp. 30 mA | Communication: -
5SV8712-2KK Item: Summation CT 60 mm, 24 V DC | Type: For type B devices | Range / rating: In 200 A, min. 1 mA, resp. 30 mA | Communication: -
5SV8712-2KP Item: Summation CT 60 mm, 24 V DC, shielded | Type: For type B devices | Range / rating: In 400 A, min. 1 mA, resp. 30 mA | Communication: -
5SV8713-2KK Item: Summation CT 120 mm, 24 V DC | Type: For type B devices | Range / rating: In 400 A, min. 4 mA, resp. 100 mA | Communication: -
5SV8714-2KK Item: Summation CT 210 mm, 24 V DC | Type: For type B devices | Range / rating: In 630 A, min. 8 mA, resp. 300 mA | Communication: -
