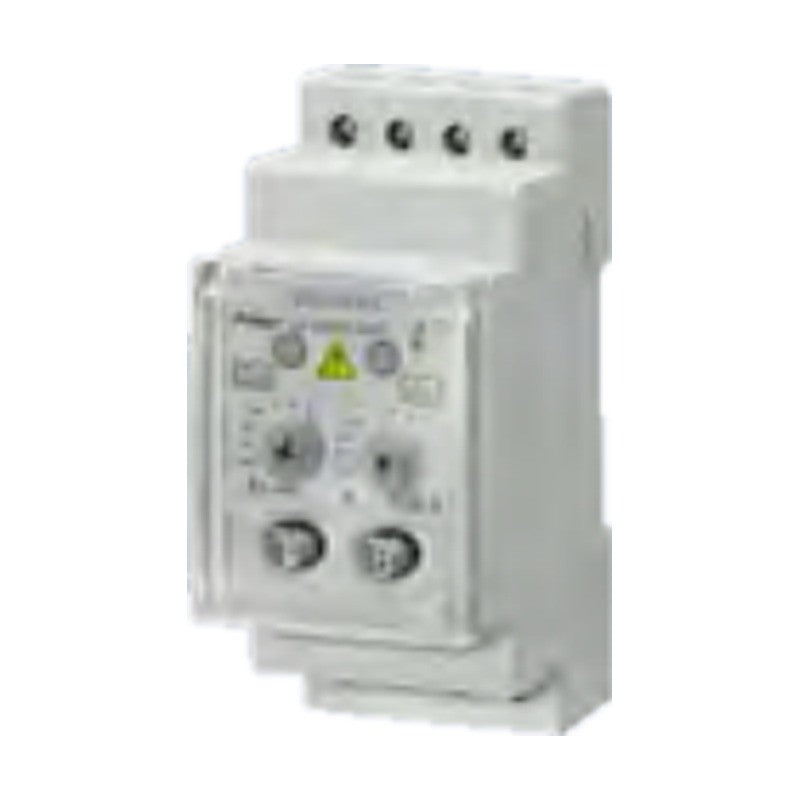

Siemens SENTRON 5SV8 Residual Current Monitors (Type A/AC)

Siemens SENTRON 5SV8 Residual Current Monitors (Type A/AC)

SENTRON 5SV8 residual current monitors (RCM) type A/AC detect residual currents via external summation current transformers and signal alarms without tripping.

Key features

  • RCM analog (2 MW) and RCM digital 1-channel or 4-channel (3 MW) versions
  • Type A 0.03-3/5 A and type AC up to 30 A residual current setting ranges
  • Response time 0.02-10 s, instantaneous or selective
  • Relay contacts 230 V AC, 6 A; test/reset and external reset
  • Summation current transformers 20-210 mm, DIN-rail holders and magnetic centering sleeves

Specifications

Brand line SENTRON
Series 5SV8
Rated operational voltage 230 V AC
Standards EN 62020, IEC 62020
Max. cable length RCM/CT 10 m (shielded)
Operating temperature -10 to +50 °C
Source Siemens Catalog LV 10 · 2026, p. 854-855
5SV8000-6KK Item: RCM analog, 1 channel, 2 MW | Range / rating: A 0.03-5 A, AC >3 A, 0.02-5 s | Detail: 1 alarm contact
5SV8001-6KK Item: RCM digital, 1 channel, 3 MW | Range / rating: A 0.03-3 A, AC 5-30 A, 0.02-10 s | Detail: Pre-alarm + alarm, UL
5SV8200-6KK Item: RCM digital, 4 channels, 3 MW | Range / rating: A 0.03-3 A, AC 5-30 A, 0.02-10 s | Detail: Pre-alarm + 4 alarm, UL
5SV8700-0KK Item: Summation CT 20 mm, DIN rail | Range / rating: In <= 40 A, Imax 240 A | Detail: Lowest measurable 30 mA
5SV8701-0KK Item: Summation CT 30 mm, DIN rail | Range / rating: In <= 63 A, Imax 380 A | Detail: Lowest measurable 30 mA
5SV8702-0KK Item: Summation CT 35 mm, wall/DIN (holder) | Range / rating: In <= 80 A, Imax 480 A | Detail: Lowest measurable 30 mA
5SV8703-0KK Item: Summation CT 70 mm, wall/DIN (holder) | Range / rating: In <= 200 A, Imax 1200 A | Detail: Lowest measurable 30 mA
5SV8704-0KK Item: Summation CT 105 mm, Wall mounting | Range / rating: In <= 250 A, Imax 1500 A | Detail: Lowest measurable 100 mA
5SV8705-0KK Item: Summation CT 140 mm, Wall mounting | Range / rating: In <= 500 A, Imax 3000 A | Detail: Lowest measurable 300 mA
5SV8706-0KK Item: Summation CT 210 mm, Wall mounting | Range / rating: In <= 600 A, Imax 3600 A | Detail: Lowest measurable 300 mA
5SV8900-1KK Item: Holder for DIN rails | Range / rating: CT diameter 20/30/35/70 mm | Detail: Not with centering sleeves
5SV8902-1KK Item: Magnetic field centering sleeve | Range / rating: Inner diameter 35 mm | Detail: For summation CT
5SV8903-1KK Item: Magnetic field centering sleeve | Range / rating: Inner diameter 70 mm | Detail: For summation CT
5SV8904-1KK Item: Magnetic field centering sleeve | Range / rating: Inner diameter 105 mm | Detail: For summation CT
5SV8905-1KK Item: Magnetic field centering sleeve | Range / rating: Inner diameter 140 mm | Detail: For summation CT
5SV8906-1KK Item: Magnetic field centering sleeve | Range / rating: Inner diameter 210 mm | Detail: For summation CT
Monitoring RelaysSiemens
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 5SV8 Residual Current Monitors (Type A/AC)

Brand Siemens·Monitoring Relays

Available part numbers (16)

5SV8000-6KK, 5SV8001-6KK, 5SV8200-6KK, 5SV8700-0KK, 5SV8701-0KK, 5SV8702-0KK, 5SV8703-0KK, 5SV8704-0KK, 5SV8705-0KK, 5SV8706-0KK + 6 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5SV8000-6KKItem: RCM analog, 1 channel, 2 MW | Range / rating: A 0.03-5 A, AC >3 A, 0.02-5 s | Detail: 1 alarm contact
5SV8001-6KKItem: RCM digital, 1 channel, 3 MW | Range / rating: A 0.03-3 A, AC 5-30 A, 0.02-10 s | Detail: Pre-alarm + alarm, UL
5SV8200-6KKItem: RCM digital, 4 channels, 3 MW | Range / rating: A 0.03-3 A, AC 5-30 A, 0.02-10 s | Detail: Pre-alarm + 4 alarm, UL
5SV8700-0KKItem: Summation CT 20 mm, DIN rail | Range / rating: In <= 40 A, Imax 240 A | Detail: Lowest measurable 30 mA
5SV8701-0KKItem: Summation CT 30 mm, DIN rail | Range / rating: In <= 63 A, Imax 380 A | Detail: Lowest measurable 30 mA
5SV8702-0KKItem: Summation CT 35 mm, wall/DIN (holder) | Range / rating: In <= 80 A, Imax 480 A | Detail: Lowest measurable 30 mA
5SV8703-0KKItem: Summation CT 70 mm, wall/DIN (holder) | Range / rating: In <= 200 A, Imax 1200 A | Detail: Lowest measurable 30 mA
5SV8704-0KKItem: Summation CT 105 mm, Wall mounting | Range / rating: In <= 250 A, Imax 1500 A | Detail: Lowest measurable 100 mA
5SV8705-0KKItem: Summation CT 140 mm, Wall mounting | Range / rating: In <= 500 A, Imax 3000 A | Detail: Lowest measurable 300 mA
5SV8706-0KKItem: Summation CT 210 mm, Wall mounting | Range / rating: In <= 600 A, Imax 3600 A | Detail: Lowest measurable 300 mA
5SV8900-1KKItem: Holder for DIN rails | Range / rating: CT diameter 20/30/35/70 mm | Detail: Not with centering sleeves
5SV8902-1KKItem: Magnetic field centering sleeve | Range / rating: Inner diameter 35 mm | Detail: For summation CT
5SV8903-1KKItem: Magnetic field centering sleeve | Range / rating: Inner diameter 70 mm | Detail: For summation CT
5SV8904-1KKItem: Magnetic field centering sleeve | Range / rating: Inner diameter 105 mm | Detail: For summation CT
5SV8905-1KKItem: Magnetic field centering sleeve | Range / rating: Inner diameter 140 mm | Detail: For summation CT
5SV8906-1KKItem: Magnetic field centering sleeve | Range / rating: Inner diameter 210 mm | Detail: For summation CT
