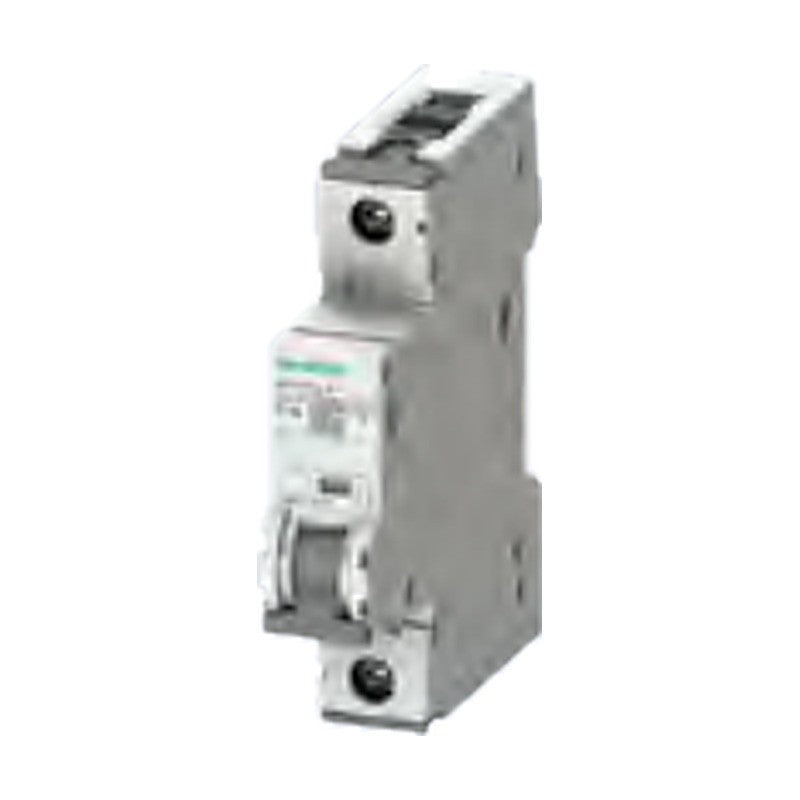

Siemens SENTRON 5SY4 Miniature Circuit Breakers 10 kA (A, B, C, D)

Siemens SENTRON 5SY4 Miniature Circuit Breakers 10 kA (A, B, C, D)

SENTRON 5SY4 miniature circuit breakers with 10 kA breaking capacity for advanced applications in buildings and industry.

Key features

  • Rated currents 0.3 to 80 A, characteristics A, B, C and D
  • Versions 1P, 1P+N, 2P, 3P, 3P+N and 4P
  • Combinable with AS, FC, AS+FC, shunt trips, undervoltage releases and RCA
  • Arc fault detection unit 5SM6 mountable on 1P+N versions

Specifications

Brand Siemens
Product line SENTRON
Rated short-circuit breaking capacity 10 kA
Standard IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Rated frequency 50/60 Hz
Accessories AS, FC, ST, UR, RCA, AFDD
Mounting 35 mm DIN rail
Source Siemens Catalog LV 10 · 2026, p. 296-297
5SY4114-7 Rated current: 0.3 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4114-8 Rated current: 0.3 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4514-7 Rated current: 0.3 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4514-8 Rated current: 0.3 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4214-7 Rated current: 0.3 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4214-8 Rated current: 0.3 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4105-5 Rated current: 0.5 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4105-7 Rated current: 0.5 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4105-8 Rated current: 0.5 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4505-7 Rated current: 0.5 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4505-8 Rated current: 0.5 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4205-5 Rated current: 0.5 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4205-7 Rated current: 0.5 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4205-8 Rated current: 0.5 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4101-5 Rated current: 1 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4101-6 Rated current: 1 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4101-7 Rated current: 1 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4101-8 Rated current: 1 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4501-5 Rated current: 1 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4501-7 Rated current: 1 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4501-8 Rated current: 1 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4201-5 Rated current: 1 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4201-6 Rated current: 1 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4201-7 Rated current: 1 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4201-8 Rated current: 1 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4115-5 Rated current: 1.6 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4115-6 Rated current: 1.6 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4115-7 Rated current: 1.6 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4115-8 Rated current: 1.6 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4515-5 Rated current: 1.6 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4515-6 Rated current: 1.6 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY4515-7 Rated current: 1.6 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4515-8 Rated current: 1.6 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4215-5 Rated current: 1.6 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4215-6 Rated current: 1.6 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4215-7 Rated current: 1.6 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4215-8 Rated current: 1.6 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4102-5 Rated current: 2 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4102-6 Rated current: 2 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4102-7 Rated current: 2 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4102-8 Rated current: 2 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4502-5 Rated current: 2 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4502-7 Rated current: 2 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4502-8 Rated current: 2 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4202-5 Rated current: 2 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4202-6 Rated current: 2 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4202-7 Rated current: 2 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4202-8 Rated current: 2 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4103-5 Rated current: 3 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4103-6 Rated current: 3 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4103-7 Rated current: 3 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4103-8 Rated current: 3 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4503-5 Rated current: 3 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4503-7 Rated current: 3 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4503-8 Rated current: 3 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4203-5 Rated current: 3 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4203-6 Rated current: 3 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4203-7 Rated current: 3 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4203-8 Rated current: 3 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4104-5 Rated current: 4 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4104-6 Rated current: 4 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4104-7 Rated current: 4 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4104-8 Rated current: 4 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4504-5 Rated current: 4 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4504-6 Rated current: 4 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY4504-7 Rated current: 4 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4504-8 Rated current: 4 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4204-5 Rated current: 4 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4204-6 Rated current: 4 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4204-7 Rated current: 4 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4204-8 Rated current: 4 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4111-7 Rated current: 5 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4211-7 Rated current: 5 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4106-5 Rated current: 6 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4106-6 Rated current: 6 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4106-7 Rated current: 6 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4106-8 Rated current: 6 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4506-5 Rated current: 6 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4506-6 Rated current: 6 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY4506-7 Rated current: 6 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4506-8 Rated current: 6 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4206-5 Rated current: 6 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4206-6 Rated current: 6 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4206-7 Rated current: 6 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4206-8 Rated current: 6 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4108-5 Rated current: 8 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4108-6 Rated current: 8 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4108-7 Rated current: 8 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4108-8 Rated current: 8 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4508-5 Rated current: 8 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4508-7 Rated current: 8 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4508-8 Rated current: 8 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4208-5 Rated current: 8 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4208-6 Rated current: 8 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4208-7 Rated current: 8 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4208-8 Rated current: 8 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4110-5 Rated current: 10 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4110-6 Rated current: 10 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4110-7 Rated current: 10 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4110-8 Rated current: 10 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4510-5 Rated current: 10 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4510-6 Rated current: 10 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY4510-7 Rated current: 10 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4510-8 Rated current: 10 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4210-5 Rated current: 10 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4210-6 Rated current: 10 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4210-7 Rated current: 10 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4210-8 Rated current: 10 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4113-5 Rated current: 13 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4113-6 Rated current: 13 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4113-7 Rated current: 13 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4113-8 Rated current: 13 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4513-5 Rated current: 13 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4513-6 Rated current: 13 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY4513-7 Rated current: 13 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4513-8 Rated current: 13 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4213-5 Rated current: 13 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4213-6 Rated current: 13 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4213-7 Rated current: 13 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4213-8 Rated current: 13 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4118-7 Rated current: 15 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4218-7 Rated current: 15 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4116-5 Rated current: 16 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4116-6 Rated current: 16 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4116-7 Rated current: 16 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4116-8 Rated current: 16 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4516-5 Rated current: 16 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4516-6 Rated current: 16 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY4516-7 Rated current: 16 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4516-8 Rated current: 16 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4216-5 Rated current: 16 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4216-6 Rated current: 16 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4216-7 Rated current: 16 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4216-8 Rated current: 16 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4120-5 Rated current: 20 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4120-6 Rated current: 20 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4120-7 Rated current: 20 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4120-8 Rated current: 20 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4520-5 Rated current: 20 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4520-6 Rated current: 20 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY4520-7 Rated current: 20 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4520-8 Rated current: 20 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4220-5 Rated current: 20 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4220-6 Rated current: 20 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4220-7 Rated current: 20 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4220-8 Rated current: 20 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4125-5 Rated current: 25 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4125-6 Rated current: 25 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4125-7 Rated current: 25 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4125-8 Rated current: 25 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4525-5 Rated current: 25 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4525-6 Rated current: 25 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY4525-7 Rated current: 25 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4525-8 Rated current: 25 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4225-5 Rated current: 25 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4225-6 Rated current: 25 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4225-7 Rated current: 25 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4225-8 Rated current: 25 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4130-7 Rated current: 30 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4230-7 Rated current: 30 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4132-5 Rated current: 32 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4132-6 Rated current: 32 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4132-7 Rated current: 32 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4132-8 Rated current: 32 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4532-5 Rated current: 32 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4532-6 Rated current: 32 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY4532-7 Rated current: 32 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4532-8 Rated current: 32 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4232-5 Rated current: 32 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4232-6 Rated current: 32 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4232-7 Rated current: 32 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4232-8 Rated current: 32 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4135-7 Rated current: 35 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4235-7 Rated current: 35 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4140-5 Rated current: 40 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4140-6 Rated current: 40 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4140-7 Rated current: 40 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4140-8 Rated current: 40 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4540-5 Rated current: 40 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4540-6 Rated current: 40 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY4540-7 Rated current: 40 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4540-8 Rated current: 40 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4240-5 Rated current: 40 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4240-6 Rated current: 40 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4240-7 Rated current: 40 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4240-8 Rated current: 40 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4145-7 Rated current: 45 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4245-7 Rated current: 45 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4150-5 Rated current: 50 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4150-6 Rated current: 50 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4150-7 Rated current: 50 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4150-8 Rated current: 50 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4550-5 Rated current: 50 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4550-6 Rated current: 50 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY4550-7 Rated current: 50 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4550-8 Rated current: 50 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4250-5 Rated current: 50 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4250-6 Rated current: 50 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4250-7 Rated current: 50 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4250-8 Rated current: 50 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4160-7 Rated current: 60 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4260-7 Rated current: 60 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4163-5 Rated current: 63 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4163-6 Rated current: 63 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4163-7 Rated current: 63 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4163-8 Rated current: 63 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4563-5 Rated current: 63 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4563-6 Rated current: 63 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY4563-7 Rated current: 63 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4563-8 Rated current: 63 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4263-5 Rated current: 63 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4263-6 Rated current: 63 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4263-7 Rated current: 63 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4263-8 Rated current: 63 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4180-6 Rated current: 80 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4180-7 Rated current: 80 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4580-7 Rated current: 80 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4280-6 Rated current: 80 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4280-7 Rated current: 80 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4314-7 Rated current: 0.3 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4314-8 Rated current: 0.3 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4614-7 Rated current: 0.3 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4614-8 Rated current: 0.3 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4414-7 Rated current: 0.3 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4414-8 Rated current: 0.3 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4305-5 Rated current: 0.5 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4305-7 Rated current: 0.5 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4305-8 Rated current: 0.5 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4605-7 Rated current: 0.5 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4605-8 Rated current: 0.5 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4405-7 Rated current: 0.5 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4405-8 Rated current: 0.5 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4301-5 Rated current: 1 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4301-6 Rated current: 1 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4301-7 Rated current: 1 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4301-8 Rated current: 1 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4601-5 Rated current: 1 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4601-7 Rated current: 1 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4601-8 Rated current: 1 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4401-5 Rated current: 1 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4401-7 Rated current: 1 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4401-8 Rated current: 1 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4315-5 Rated current: 1.6 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4315-6 Rated current: 1.6 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4315-7 Rated current: 1.6 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4315-8 Rated current: 1.6 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4615-5 Rated current: 1.6 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4615-7 Rated current: 1.6 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4615-8 Rated current: 1.6 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4415-5 Rated current: 1.6 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4415-7 Rated current: 1.6 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4415-8 Rated current: 1.6 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4302-5 Rated current: 2 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4302-6 Rated current: 2 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4302-7 Rated current: 2 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4302-8 Rated current: 2 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4602-5 Rated current: 2 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4602-7 Rated current: 2 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4602-8 Rated current: 2 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4402-5 Rated current: 2 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4402-7 Rated current: 2 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4402-8 Rated current: 2 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4303-5 Rated current: 3 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4303-6 Rated current: 3 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4303-7 Rated current: 3 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4303-8 Rated current: 3 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4603-5 Rated current: 3 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4603-7 Rated current: 3 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4603-8 Rated current: 3 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4403-5 Rated current: 3 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4403-7 Rated current: 3 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4403-8 Rated current: 3 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4304-5 Rated current: 4 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4304-6 Rated current: 4 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4304-7 Rated current: 4 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4304-8 Rated current: 4 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4604-5 Rated current: 4 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4604-7 Rated current: 4 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4604-8 Rated current: 4 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4404-5 Rated current: 4 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4404-7 Rated current: 4 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4404-8 Rated current: 4 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4311-7 Rated current: 5 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4306-5 Rated current: 6 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4306-6 Rated current: 6 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4306-7 Rated current: 6 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4306-8 Rated current: 6 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4606-5 Rated current: 6 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4606-6 Rated current: 6 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4606-7 Rated current: 6 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4606-8 Rated current: 6 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4406-5 Rated current: 6 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4406-6 Rated current: 6 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4406-7 Rated current: 6 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4406-8 Rated current: 6 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4308-5 Rated current: 8 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4308-6 Rated current: 8 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4308-7 Rated current: 8 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4308-8 Rated current: 8 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4608-5 Rated current: 8 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4608-7 Rated current: 8 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4608-8 Rated current: 8 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4408-5 Rated current: 8 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4408-7 Rated current: 8 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4408-8 Rated current: 8 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4310-5 Rated current: 10 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4310-6 Rated current: 10 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4310-7 Rated current: 10 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4310-8 Rated current: 10 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4610-5 Rated current: 10 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4610-6 Rated current: 10 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4610-7 Rated current: 10 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4610-8 Rated current: 10 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4410-5 Rated current: 10 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4410-6 Rated current: 10 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4410-7 Rated current: 10 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4410-8 Rated current: 10 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4313-5 Rated current: 13 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4313-6 Rated current: 13 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4313-7 Rated current: 13 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4313-8 Rated current: 13 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4613-5 Rated current: 13 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4613-6 Rated current: 13 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4613-7 Rated current: 13 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4613-8 Rated current: 13 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4413-5 Rated current: 13 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4413-6 Rated current: 13 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4413-7 Rated current: 13 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4413-8 Rated current: 13 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4318-7 Rated current: 15 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4316-5 Rated current: 16 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4316-6 Rated current: 16 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4316-7 Rated current: 16 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4316-8 Rated current: 16 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4616-5 Rated current: 16 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4616-6 Rated current: 16 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4616-7 Rated current: 16 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4616-8 Rated current: 16 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4416-5 Rated current: 16 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4416-6 Rated current: 16 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4416-7 Rated current: 16 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4416-8 Rated current: 16 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4320-5 Rated current: 20 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4320-6 Rated current: 20 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4320-7 Rated current: 20 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4320-8 Rated current: 20 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4620-5 Rated current: 20 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4620-6 Rated current: 20 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4620-7 Rated current: 20 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4620-8 Rated current: 20 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4420-5 Rated current: 20 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4420-6 Rated current: 20 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4420-7 Rated current: 20 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4420-8 Rated current: 20 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4325-5 Rated current: 25 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4325-6 Rated current: 25 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4325-7 Rated current: 25 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4325-8 Rated current: 25 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4625-5 Rated current: 25 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4625-6 Rated current: 25 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4625-7 Rated current: 25 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4625-8 Rated current: 25 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4425-5 Rated current: 25 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4425-6 Rated current: 25 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4425-7 Rated current: 25 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4425-8 Rated current: 25 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4330-7 Rated current: 30 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4332-5 Rated current: 32 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4332-6 Rated current: 32 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4332-7 Rated current: 32 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4332-8 Rated current: 32 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4632-5 Rated current: 32 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4632-6 Rated current: 32 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4632-7 Rated current: 32 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4632-8 Rated current: 32 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4432-5 Rated current: 32 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4432-6 Rated current: 32 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4432-7 Rated current: 32 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4432-8 Rated current: 32 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4335-7 Rated current: 35 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4340-5 Rated current: 40 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4340-6 Rated current: 40 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4340-7 Rated current: 40 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4340-8 Rated current: 40 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4640-5 Rated current: 40 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4640-6 Rated current: 40 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4640-7 Rated current: 40 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4640-8 Rated current: 40 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4440-5 Rated current: 40 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4440-6 Rated current: 40 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4440-7 Rated current: 40 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4440-8 Rated current: 40 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4345-7 Rated current: 45 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4350-5 Rated current: 50 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4350-6 Rated current: 50 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4350-7 Rated current: 50 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4350-8 Rated current: 50 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4650-5 Rated current: 50 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4650-6 Rated current: 50 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4650-7 Rated current: 50 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4650-8 Rated current: 50 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4450-5 Rated current: 50 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4450-6 Rated current: 50 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4450-7 Rated current: 50 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4450-8 Rated current: 50 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4360-7 Rated current: 60 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4363-5 Rated current: 63 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4363-6 Rated current: 63 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4363-7 Rated current: 63 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4363-8 Rated current: 63 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4663-5 Rated current: 63 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4663-6 Rated current: 63 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4663-7 Rated current: 63 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4663-8 Rated current: 63 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4463-5 Rated current: 63 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4463-6 Rated current: 63 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4463-7 Rated current: 63 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4463-8 Rated current: 63 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4380-6 Rated current: 80 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4380-7 Rated current: 80 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4680-7 Rated current: 80 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4480-6 Rated current: 80 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4480-7 Rated current: 80 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
Miniature Circuit BreakersSiemens
423 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 5SY4 Miniature Circuit Breakers 10 kA (A, B, C, D)

Brand Siemens·Miniature Circuit Breakers

Available part numbers (423)

5SY4114-7, 5SY4114-8, 5SY4514-7, 5SY4514-8, 5SY4214-7, 5SY4214-8, 5SY4105-5, 5SY4105-7, 5SY4105-8, 5SY4505-7 + 413 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5SY4114-7Rated current: 0.3 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4114-8Rated current: 0.3 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4514-7Rated current: 0.3 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4514-8Rated current: 0.3 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4214-7Rated current: 0.3 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4214-8Rated current: 0.3 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4105-5Rated current: 0.5 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4105-7Rated current: 0.5 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4105-8Rated current: 0.5 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4505-7Rated current: 0.5 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4505-8Rated current: 0.5 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4205-5Rated current: 0.5 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4205-7Rated current: 0.5 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4205-8Rated current: 0.5 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4101-5Rated current: 1 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4101-6Rated current: 1 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4101-7Rated current: 1 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4101-8Rated current: 1 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4501-5Rated current: 1 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4501-7Rated current: 1 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4501-8Rated current: 1 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4201-5Rated current: 1 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4201-6Rated current: 1 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4201-7Rated current: 1 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4201-8Rated current: 1 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4115-5Rated current: 1.6 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4115-6Rated current: 1.6 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4115-7Rated current: 1.6 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4115-8Rated current: 1.6 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4515-5Rated current: 1.6 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4515-6Rated current: 1.6 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY4515-7Rated current: 1.6 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4515-8Rated current: 1.6 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4215-5Rated current: 1.6 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4215-6Rated current: 1.6 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4215-7Rated current: 1.6 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4215-8Rated current: 1.6 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4102-5Rated current: 2 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4102-6Rated current: 2 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4102-7Rated current: 2 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4102-8Rated current: 2 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4502-5Rated current: 2 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4502-7Rated current: 2 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4502-8Rated current: 2 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4202-5Rated current: 2 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4202-6Rated current: 2 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4202-7Rated current: 2 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4202-8Rated current: 2 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4103-5Rated current: 3 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4103-6Rated current: 3 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4103-7Rated current: 3 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4103-8Rated current: 3 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4503-5Rated current: 3 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4503-7Rated current: 3 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4503-8Rated current: 3 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4203-5Rated current: 3 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4203-6Rated current: 3 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4203-7Rated current: 3 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4203-8Rated current: 3 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4104-5Rated current: 4 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4104-6Rated current: 4 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4104-7Rated current: 4 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4104-8Rated current: 4 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4504-5Rated current: 4 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4504-6Rated current: 4 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY4504-7Rated current: 4 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4504-8Rated current: 4 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4204-5Rated current: 4 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4204-6Rated current: 4 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4204-7Rated current: 4 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4204-8Rated current: 4 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4111-7Rated current: 5 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4211-7Rated current: 5 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4106-5Rated current: 6 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4106-6Rated current: 6 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4106-7Rated current: 6 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4106-8Rated current: 6 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4506-5Rated current: 6 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4506-6Rated current: 6 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY4506-7Rated current: 6 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4506-8Rated current: 6 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4206-5Rated current: 6 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4206-6Rated current: 6 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4206-7Rated current: 6 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4206-8Rated current: 6 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4108-5Rated current: 8 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4108-6Rated current: 8 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4108-7Rated current: 8 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4108-8Rated current: 8 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4508-5Rated current: 8 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4508-7Rated current: 8 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4508-8Rated current: 8 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4208-5Rated current: 8 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4208-6Rated current: 8 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4208-7Rated current: 8 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4208-8Rated current: 8 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4110-5Rated current: 10 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4110-6Rated current: 10 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4110-7Rated current: 10 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4110-8Rated current: 10 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4510-5Rated current: 10 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4510-6Rated current: 10 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY4510-7Rated current: 10 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4510-8Rated current: 10 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4210-5Rated current: 10 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4210-6Rated current: 10 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4210-7Rated current: 10 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4210-8Rated current: 10 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4113-5Rated current: 13 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4113-6Rated current: 13 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4113-7Rated current: 13 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4113-8Rated current: 13 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4513-5Rated current: 13 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4513-6Rated current: 13 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY4513-7Rated current: 13 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4513-8Rated current: 13 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4213-5Rated current: 13 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4213-6Rated current: 13 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4213-7Rated current: 13 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4213-8Rated current: 13 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4118-7Rated current: 15 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4218-7Rated current: 15 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4116-5Rated current: 16 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4116-6Rated current: 16 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4116-7Rated current: 16 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4116-8Rated current: 16 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4516-5Rated current: 16 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4516-6Rated current: 16 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY4516-7Rated current: 16 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4516-8Rated current: 16 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4216-5Rated current: 16 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4216-6Rated current: 16 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4216-7Rated current: 16 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4216-8Rated current: 16 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4120-5Rated current: 20 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4120-6Rated current: 20 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4120-7Rated current: 20 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4120-8Rated current: 20 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4520-5Rated current: 20 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4520-6Rated current: 20 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY4520-7Rated current: 20 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4520-8Rated current: 20 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4220-5Rated current: 20 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4220-6Rated current: 20 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4220-7Rated current: 20 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4220-8Rated current: 20 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4125-5Rated current: 25 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4125-6Rated current: 25 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4125-7Rated current: 25 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4125-8Rated current: 25 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4525-5Rated current: 25 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4525-6Rated current: 25 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY4525-7Rated current: 25 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4525-8Rated current: 25 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4225-5Rated current: 25 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4225-6Rated current: 25 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4225-7Rated current: 25 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4225-8Rated current: 25 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4130-7Rated current: 30 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4230-7Rated current: 30 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4132-5Rated current: 32 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4132-6Rated current: 32 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4132-7Rated current: 32 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4132-8Rated current: 32 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4532-5Rated current: 32 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4532-6Rated current: 32 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY4532-7Rated current: 32 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4532-8Rated current: 32 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4232-5Rated current: 32 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4232-6Rated current: 32 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4232-7Rated current: 32 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4232-8Rated current: 32 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4135-7Rated current: 35 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4235-7Rated current: 35 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4140-5Rated current: 40 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4140-6Rated current: 40 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4140-7Rated current: 40 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4140-8Rated current: 40 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4540-5Rated current: 40 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4540-6Rated current: 40 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY4540-7Rated current: 40 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4540-8Rated current: 40 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4240-5Rated current: 40 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4240-6Rated current: 40 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4240-7Rated current: 40 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4240-8Rated current: 40 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4145-7Rated current: 45 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4245-7Rated current: 45 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4150-5Rated current: 50 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4150-6Rated current: 50 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4150-7Rated current: 50 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4150-8Rated current: 50 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4550-5Rated current: 50 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4550-6Rated current: 50 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY4550-7Rated current: 50 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4550-8Rated current: 50 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4250-5Rated current: 50 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4250-6Rated current: 50 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4250-7Rated current: 50 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4250-8Rated current: 50 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4160-7Rated current: 60 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4260-7Rated current: 60 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4163-5Rated current: 63 A | Poles: 1P | Characteristic: A | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4163-6Rated current: 63 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4163-7Rated current: 63 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4163-8Rated current: 63 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4563-5Rated current: 63 A | Poles: 1P+N | Characteristic: A | Rated voltage: 230 V AC | Width: 2 MW
5SY4563-6Rated current: 63 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY4563-7Rated current: 63 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4563-8Rated current: 63 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY4263-5Rated current: 63 A | Poles: 2P | Characteristic: A | Rated voltage: 400 V AC | Width: 2 MW
5SY4263-6Rated current: 63 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4263-7Rated current: 63 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4263-8Rated current: 63 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY4180-6Rated current: 80 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4180-7Rated current: 80 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY4580-7Rated current: 80 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY4280-6Rated current: 80 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY4280-7Rated current: 80 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY4314-7Rated current: 0.3 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4314-8Rated current: 0.3 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4614-7Rated current: 0.3 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4614-8Rated current: 0.3 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4414-7Rated current: 0.3 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4414-8Rated current: 0.3 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4305-5Rated current: 0.5 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4305-7Rated current: 0.5 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4305-8Rated current: 0.5 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4605-7Rated current: 0.5 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4605-8Rated current: 0.5 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4405-7Rated current: 0.5 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4405-8Rated current: 0.5 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4301-5Rated current: 1 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4301-6Rated current: 1 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4301-7Rated current: 1 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4301-8Rated current: 1 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4601-5Rated current: 1 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4601-7Rated current: 1 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4601-8Rated current: 1 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4401-5Rated current: 1 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4401-7Rated current: 1 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4401-8Rated current: 1 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4315-5Rated current: 1.6 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4315-6Rated current: 1.6 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4315-7Rated current: 1.6 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4315-8Rated current: 1.6 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4615-5Rated current: 1.6 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4615-7Rated current: 1.6 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4615-8Rated current: 1.6 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4415-5Rated current: 1.6 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4415-7Rated current: 1.6 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4415-8Rated current: 1.6 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4302-5Rated current: 2 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4302-6Rated current: 2 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4302-7Rated current: 2 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4302-8Rated current: 2 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4602-5Rated current: 2 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4602-7Rated current: 2 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4602-8Rated current: 2 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4402-5Rated current: 2 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4402-7Rated current: 2 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4402-8Rated current: 2 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4303-5Rated current: 3 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4303-6Rated current: 3 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4303-7Rated current: 3 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4303-8Rated current: 3 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4603-5Rated current: 3 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4603-7Rated current: 3 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4603-8Rated current: 3 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4403-5Rated current: 3 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4403-7Rated current: 3 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4403-8Rated current: 3 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4304-5Rated current: 4 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4304-6Rated current: 4 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4304-7Rated current: 4 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4304-8Rated current: 4 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4604-5Rated current: 4 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4604-7Rated current: 4 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4604-8Rated current: 4 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4404-5Rated current: 4 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4404-7Rated current: 4 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4404-8Rated current: 4 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4311-7Rated current: 5 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4306-5Rated current: 6 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4306-6Rated current: 6 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4306-7Rated current: 6 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4306-8Rated current: 6 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4606-5Rated current: 6 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4606-6Rated current: 6 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4606-7Rated current: 6 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4606-8Rated current: 6 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4406-5Rated current: 6 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4406-6Rated current: 6 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4406-7Rated current: 6 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4406-8Rated current: 6 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4308-5Rated current: 8 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4308-6Rated current: 8 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4308-7Rated current: 8 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4308-8Rated current: 8 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4608-5Rated current: 8 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4608-7Rated current: 8 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4608-8Rated current: 8 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4408-5Rated current: 8 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4408-7Rated current: 8 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4408-8Rated current: 8 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4310-5Rated current: 10 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4310-6Rated current: 10 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4310-7Rated current: 10 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4310-8Rated current: 10 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4610-5Rated current: 10 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4610-6Rated current: 10 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4610-7Rated current: 10 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4610-8Rated current: 10 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4410-5Rated current: 10 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4410-6Rated current: 10 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4410-7Rated current: 10 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4410-8Rated current: 10 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4313-5Rated current: 13 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4313-6Rated current: 13 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4313-7Rated current: 13 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4313-8Rated current: 13 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4613-5Rated current: 13 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4613-6Rated current: 13 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4613-7Rated current: 13 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4613-8Rated current: 13 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4413-5Rated current: 13 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4413-6Rated current: 13 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4413-7Rated current: 13 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4413-8Rated current: 13 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4318-7Rated current: 15 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4316-5Rated current: 16 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4316-6Rated current: 16 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4316-7Rated current: 16 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4316-8Rated current: 16 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4616-5Rated current: 16 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4616-6Rated current: 16 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4616-7Rated current: 16 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4616-8Rated current: 16 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4416-5Rated current: 16 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4416-6Rated current: 16 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4416-7Rated current: 16 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4416-8Rated current: 16 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4320-5Rated current: 20 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4320-6Rated current: 20 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4320-7Rated current: 20 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4320-8Rated current: 20 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4620-5Rated current: 20 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4620-6Rated current: 20 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4620-7Rated current: 20 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4620-8Rated current: 20 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4420-5Rated current: 20 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4420-6Rated current: 20 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4420-7Rated current: 20 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4420-8Rated current: 20 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4325-5Rated current: 25 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4325-6Rated current: 25 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4325-7Rated current: 25 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4325-8Rated current: 25 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4625-5Rated current: 25 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4625-6Rated current: 25 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4625-7Rated current: 25 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4625-8Rated current: 25 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4425-5Rated current: 25 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4425-6Rated current: 25 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4425-7Rated current: 25 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4425-8Rated current: 25 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4330-7Rated current: 30 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4332-5Rated current: 32 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4332-6Rated current: 32 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4332-7Rated current: 32 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4332-8Rated current: 32 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4632-5Rated current: 32 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4632-6Rated current: 32 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4632-7Rated current: 32 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4632-8Rated current: 32 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4432-5Rated current: 32 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4432-6Rated current: 32 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4432-7Rated current: 32 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4432-8Rated current: 32 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4335-7Rated current: 35 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4340-5Rated current: 40 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4340-6Rated current: 40 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4340-7Rated current: 40 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4340-8Rated current: 40 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4640-5Rated current: 40 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4640-6Rated current: 40 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4640-7Rated current: 40 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4640-8Rated current: 40 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4440-5Rated current: 40 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4440-6Rated current: 40 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4440-7Rated current: 40 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4440-8Rated current: 40 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4345-7Rated current: 45 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4350-5Rated current: 50 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4350-6Rated current: 50 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4350-7Rated current: 50 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4350-8Rated current: 50 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4650-5Rated current: 50 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4650-6Rated current: 50 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4650-7Rated current: 50 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4650-8Rated current: 50 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4450-5Rated current: 50 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4450-6Rated current: 50 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4450-7Rated current: 50 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4450-8Rated current: 50 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4360-7Rated current: 60 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4363-5Rated current: 63 A | Poles: 3P | Characteristic: A | Rated voltage: 400 V AC | Width: 3 MW
5SY4363-6Rated current: 63 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4363-7Rated current: 63 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4363-8Rated current: 63 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY4663-5Rated current: 63 A | Poles: 3P+N | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4663-6Rated current: 63 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4663-7Rated current: 63 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4663-8Rated current: 63 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4463-5Rated current: 63 A | Poles: 4P | Characteristic: A | Rated voltage: 400 V AC | Width: 4 MW
5SY4463-6Rated current: 63 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4463-7Rated current: 63 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4463-8Rated current: 63 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY4380-6Rated current: 80 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY4380-7Rated current: 80 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY4680-7Rated current: 80 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY4480-6Rated current: 80 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY4480-7Rated current: 80 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
