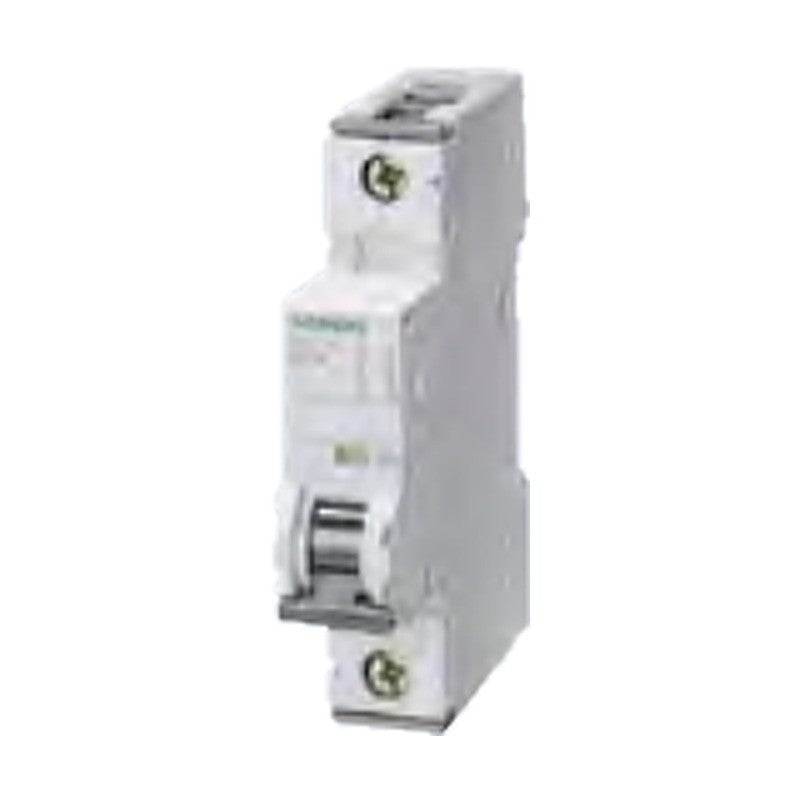

Siemens SENTRON 5SY5 AC/DC Miniature Circuit Breakers 10 kA (B, C)

Siemens SENTRON 5SY5 AC/DC Miniature Circuit Breakers 10 kA (B, C)

SENTRON 5SY5 miniature circuit breakers with 10 kA breaking capacity, suitable for AC and DC systems.

Key features

  • Universal current: AC and DC applications
  • Rated currents 0.3 to 63 A, characteristics B and C
  • Versions 1P, 2P and 4P (up to 880 V DC)
  • Combinable with AS, FC, AS+FC, ST, UR and RCA

Specifications

Brand Siemens
Product line SENTRON
Rated short-circuit breaking capacity 10 kA
Standard IEC/EN 60898-2, UL 1077
Current type AC/DC
Accessories AS, FC, ST, UR, RCA
Mounting 35 mm DIN rail
Source Siemens Catalog LV 10 · 2026, p. 302
5SY5114-7 Rated current: 0.3 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5214-7 Rated current: 0.3 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5414-7 Rated current: 0.3 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5105-7 Rated current: 0.5 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5205-7 Rated current: 0.5 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5405-7 Rated current: 0.5 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5101-7 Rated current: 1 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5201-7 Rated current: 1 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5401-7 Rated current: 1 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5115-7 Rated current: 1.6 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5215-7 Rated current: 1.6 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5415-7 Rated current: 1.6 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5102-6 Rated current: 2 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5102-7 Rated current: 2 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5202-6 Rated current: 2 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5202-7 Rated current: 2 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5402-7 Rated current: 2 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5103-7 Rated current: 3 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5203-7 Rated current: 3 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5403-7 Rated current: 3 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5104-6 Rated current: 4 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5104-7 Rated current: 4 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5204-6 Rated current: 4 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5204-7 Rated current: 4 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5404-7 Rated current: 4 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5106-6 Rated current: 6 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5106-7 Rated current: 6 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5206-6 Rated current: 6 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5206-7 Rated current: 6 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5406-6 Rated current: 6 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5406-7 Rated current: 6 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5108-6 Rated current: 8 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5108-7 Rated current: 8 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5208-6 Rated current: 8 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5208-7 Rated current: 8 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5408-7 Rated current: 8 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5110-6 Rated current: 10 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5110-7 Rated current: 10 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5210-6 Rated current: 10 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5210-7 Rated current: 10 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5410-6 Rated current: 10 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5410-7 Rated current: 10 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5113-6 Rated current: 13 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5113-7 Rated current: 13 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5213-6 Rated current: 13 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5213-7 Rated current: 13 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5413-6 Rated current: 13 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5413-7 Rated current: 13 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5116-6 Rated current: 16 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5116-7 Rated current: 16 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5216-6 Rated current: 16 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5216-7 Rated current: 16 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5416-6 Rated current: 16 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5416-7 Rated current: 16 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5120-6 Rated current: 20 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5120-7 Rated current: 20 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5220-6 Rated current: 20 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5220-7 Rated current: 20 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5420-6 Rated current: 20 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5420-7 Rated current: 20 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5125-6 Rated current: 25 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5125-7 Rated current: 25 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5225-6 Rated current: 25 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5225-7 Rated current: 25 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5425-6 Rated current: 25 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5425-7 Rated current: 25 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5132-6 Rated current: 32 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5132-7 Rated current: 32 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5232-6 Rated current: 32 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5232-7 Rated current: 32 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5432-6 Rated current: 32 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5432-7 Rated current: 32 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5140-6 Rated current: 40 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5140-7 Rated current: 40 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5240-6 Rated current: 40 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5240-7 Rated current: 40 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5440-6 Rated current: 40 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5440-7 Rated current: 40 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5150-6 Rated current: 50 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5150-7 Rated current: 50 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5250-6 Rated current: 50 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5250-7 Rated current: 50 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5450-6 Rated current: 50 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5450-7 Rated current: 50 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5163-6 Rated current: 63 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5163-7 Rated current: 63 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC, 220 V DC | Width: 1 MW
5SY5263-6 Rated current: 63 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5263-7 Rated current: 63 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC, 440 V DC | Width: 2 MW
5SY5463-6 Rated current: 63 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
5SY5463-7 Rated current: 63 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC, 880 V DC | Width: 4 MW
