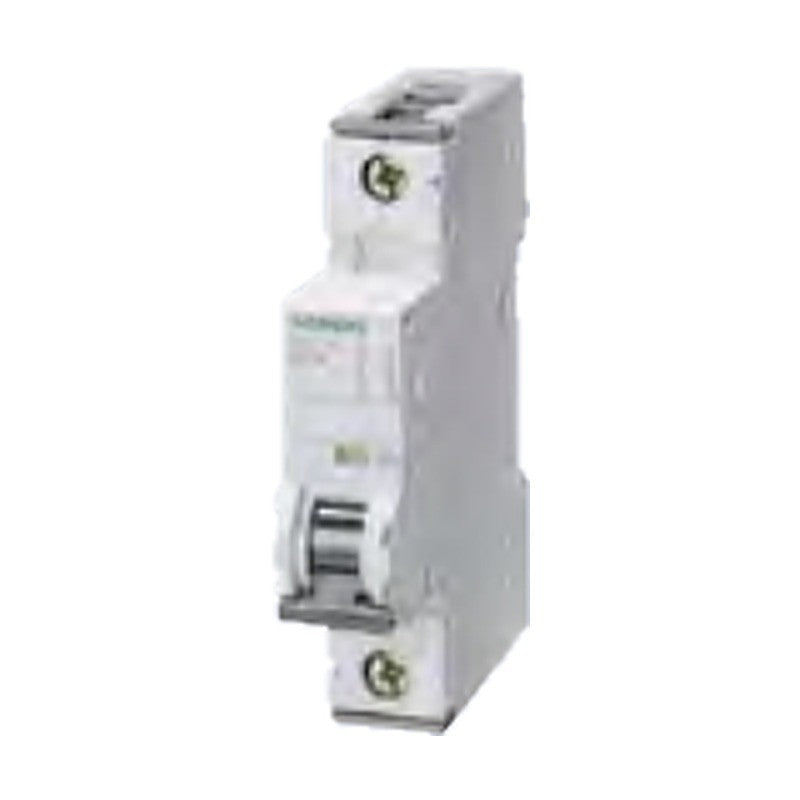

Siemens SENTRON 5SY6 Miniature Circuit Breakers 6 kA (B, C)

Siemens SENTRON 5SY6 Miniature Circuit Breakers 6 kA (B, C)

SENTRON 5SY6 miniature circuit breakers with 6 kA breaking capacity for advanced applications in buildings and industry.

Key features

  • Rated currents 0.3 to 63 A, characteristics B and C
  • Versions 1P, 1P+N, 2P, 3P, 3P+N and 4P
  • Combinable with AS, FC, AS+FC, shunt trips, undervoltage releases and RCA
  • Arc fault detection unit 5SM6 mountable on 1P+N versions

Specifications

Brand Siemens
Product line SENTRON
Rated short-circuit breaking capacity 6 kA
Standard IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Rated frequency 50/60 Hz
Accessories AS, FC, ST, UR, RCA, AFDD
Mounting 35 mm DIN rail
Source Siemens Catalog LV 10 · 2026, p. 294-295
5SY6114-7 Rated current: 0.3 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6514-7 Rated current: 0.3 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6214-7 Rated current: 0.3 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6314-7 Rated current: 0.3 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6105-7 Rated current: 0.5 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6505-7 Rated current: 0.5 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6205-7 Rated current: 0.5 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6305-7 Rated current: 0.5 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6101-7 Rated current: 1 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6501-7 Rated current: 1 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6201-7 Rated current: 1 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6301-7 Rated current: 1 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6115-7 Rated current: 1.6 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6515-7 Rated current: 1.6 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6215-7 Rated current: 1.6 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6315-7 Rated current: 1.6 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6102-6 Rated current: 2 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6102-7 Rated current: 2 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6502-7 Rated current: 2 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6202-7 Rated current: 2 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6302-7 Rated current: 2 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6103-7 Rated current: 3 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6503-7 Rated current: 3 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6203-7 Rated current: 3 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6303-7 Rated current: 3 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6104-6 Rated current: 4 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6104-7 Rated current: 4 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6504-7 Rated current: 4 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6204-7 Rated current: 4 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6304-7 Rated current: 4 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6111-7 Rated current: 5 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6211-7 Rated current: 5 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6311-7 Rated current: 5 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6106-6 Rated current: 6 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6106-7 Rated current: 6 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6506-6 Rated current: 6 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY6506-7 Rated current: 6 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6206-6 Rated current: 6 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY6206-7 Rated current: 6 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6306-6 Rated current: 6 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY6306-7 Rated current: 6 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6108-7 Rated current: 8 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6508-7 Rated current: 8 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6208-7 Rated current: 8 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6308-7 Rated current: 8 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6110-6 Rated current: 10 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6110-7 Rated current: 10 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6510-6 Rated current: 10 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY6510-7 Rated current: 10 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6210-6 Rated current: 10 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY6210-7 Rated current: 10 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6310-6 Rated current: 10 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY6310-7 Rated current: 10 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6113-6 Rated current: 13 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6113-7 Rated current: 13 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6513-6 Rated current: 13 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY6513-7 Rated current: 13 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6213-6 Rated current: 13 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY6213-7 Rated current: 13 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6313-6 Rated current: 13 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY6313-7 Rated current: 13 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6118-7 Rated current: 15 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6218-7 Rated current: 15 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6318-7 Rated current: 15 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6116-6 Rated current: 16 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6116-7 Rated current: 16 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6516-6 Rated current: 16 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY6516-7 Rated current: 16 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6216-6 Rated current: 16 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY6216-7 Rated current: 16 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6316-6 Rated current: 16 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY6316-7 Rated current: 16 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6120-6 Rated current: 20 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6120-7 Rated current: 20 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6520-6 Rated current: 20 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY6520-7 Rated current: 20 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6220-6 Rated current: 20 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY6220-7 Rated current: 20 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6320-6 Rated current: 20 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY6320-7 Rated current: 20 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6125-6 Rated current: 25 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6125-7 Rated current: 25 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6525-6 Rated current: 25 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY6525-7 Rated current: 25 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6225-6 Rated current: 25 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY6225-7 Rated current: 25 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6325-6 Rated current: 25 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY6325-7 Rated current: 25 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6130-7 Rated current: 30 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6230-7 Rated current: 30 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6330-7 Rated current: 30 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6132-6 Rated current: 32 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6132-7 Rated current: 32 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6532-6 Rated current: 32 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY6532-7 Rated current: 32 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6232-6 Rated current: 32 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY6232-7 Rated current: 32 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6332-6 Rated current: 32 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY6332-7 Rated current: 32 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6140-6 Rated current: 40 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6140-7 Rated current: 40 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6540-6 Rated current: 40 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY6540-7 Rated current: 40 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6240-6 Rated current: 40 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY6240-7 Rated current: 40 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6340-6 Rated current: 40 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY6340-7 Rated current: 40 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6150-6 Rated current: 50 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6150-7 Rated current: 50 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6550-6 Rated current: 50 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY6550-7 Rated current: 50 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6250-6 Rated current: 50 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY6250-7 Rated current: 50 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6350-6 Rated current: 50 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY6350-7 Rated current: 50 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6163-6 Rated current: 63 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6163-7 Rated current: 63 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6563-6 Rated current: 63 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY6563-7 Rated current: 63 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6263-6 Rated current: 63 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY6263-7 Rated current: 63 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6363-6 Rated current: 63 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY6363-7 Rated current: 63 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6614-7 Rated current: 0.3 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6414-7 Rated current: 0.3 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6605-7 Rated current: 0.5 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6405-7 Rated current: 0.5 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6601-7 Rated current: 1 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6401-7 Rated current: 1 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6615-7 Rated current: 1.6 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6415-7 Rated current: 1.6 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6602-7 Rated current: 2 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6402-7 Rated current: 2 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6603-7 Rated current: 3 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6403-7 Rated current: 3 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6604-7 Rated current: 4 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6404-7 Rated current: 4 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6606-6 Rated current: 6 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6606-7 Rated current: 6 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6406-6 Rated current: 6 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6406-7 Rated current: 6 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6608-7 Rated current: 8 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6408-7 Rated current: 8 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6610-6 Rated current: 10 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6610-7 Rated current: 10 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6410-6 Rated current: 10 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6410-7 Rated current: 10 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6613-6 Rated current: 13 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6613-7 Rated current: 13 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6413-6 Rated current: 13 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6413-7 Rated current: 13 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6616-6 Rated current: 16 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6616-7 Rated current: 16 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6416-6 Rated current: 16 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6416-7 Rated current: 16 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6620-6 Rated current: 20 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6620-7 Rated current: 20 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6420-6 Rated current: 20 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6420-7 Rated current: 20 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6625-6 Rated current: 25 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6625-7 Rated current: 25 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6425-6 Rated current: 25 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6425-7 Rated current: 25 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6632-6 Rated current: 32 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6632-7 Rated current: 32 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6432-6 Rated current: 32 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6432-7 Rated current: 32 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6640-6 Rated current: 40 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6640-7 Rated current: 40 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6440-6 Rated current: 40 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6440-7 Rated current: 40 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6650-6 Rated current: 50 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6650-7 Rated current: 50 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6450-6 Rated current: 50 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6450-7 Rated current: 50 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6663-6 Rated current: 63 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6663-7 Rated current: 63 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6463-6 Rated current: 63 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6463-7 Rated current: 63 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
Miniature Circuit BreakersSiemens
179 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 5SY6 Miniature Circuit Breakers 6 kA (B, C)

Brand Siemens·Miniature Circuit Breakers

Available part numbers (179)

5SY6114-7, 5SY6514-7, 5SY6214-7, 5SY6314-7, 5SY6105-7, 5SY6505-7, 5SY6205-7, 5SY6305-7, 5SY6101-7, 5SY6501-7 + 169 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5SY6114-7Rated current: 0.3 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6514-7Rated current: 0.3 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6214-7Rated current: 0.3 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6314-7Rated current: 0.3 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6105-7Rated current: 0.5 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6505-7Rated current: 0.5 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6205-7Rated current: 0.5 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6305-7Rated current: 0.5 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6101-7Rated current: 1 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6501-7Rated current: 1 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6201-7Rated current: 1 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6301-7Rated current: 1 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6115-7Rated current: 1.6 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6515-7Rated current: 1.6 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6215-7Rated current: 1.6 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6315-7Rated current: 1.6 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6102-6Rated current: 2 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6102-7Rated current: 2 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6502-7Rated current: 2 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6202-7Rated current: 2 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6302-7Rated current: 2 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6103-7Rated current: 3 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6503-7Rated current: 3 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6203-7Rated current: 3 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6303-7Rated current: 3 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6104-6Rated current: 4 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6104-7Rated current: 4 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6504-7Rated current: 4 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6204-7Rated current: 4 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6304-7Rated current: 4 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6111-7Rated current: 5 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6211-7Rated current: 5 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6311-7Rated current: 5 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6106-6Rated current: 6 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6106-7Rated current: 6 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6506-6Rated current: 6 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY6506-7Rated current: 6 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6206-6Rated current: 6 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY6206-7Rated current: 6 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6306-6Rated current: 6 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY6306-7Rated current: 6 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6108-7Rated current: 8 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6508-7Rated current: 8 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6208-7Rated current: 8 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6308-7Rated current: 8 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6110-6Rated current: 10 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6110-7Rated current: 10 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6510-6Rated current: 10 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY6510-7Rated current: 10 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6210-6Rated current: 10 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY6210-7Rated current: 10 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6310-6Rated current: 10 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY6310-7Rated current: 10 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6113-6Rated current: 13 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6113-7Rated current: 13 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6513-6Rated current: 13 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY6513-7Rated current: 13 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6213-6Rated current: 13 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY6213-7Rated current: 13 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6313-6Rated current: 13 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY6313-7Rated current: 13 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6118-7Rated current: 15 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6218-7Rated current: 15 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6318-7Rated current: 15 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6116-6Rated current: 16 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6116-7Rated current: 16 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6516-6Rated current: 16 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY6516-7Rated current: 16 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6216-6Rated current: 16 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY6216-7Rated current: 16 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6316-6Rated current: 16 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY6316-7Rated current: 16 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6120-6Rated current: 20 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6120-7Rated current: 20 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6520-6Rated current: 20 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY6520-7Rated current: 20 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6220-6Rated current: 20 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY6220-7Rated current: 20 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6320-6Rated current: 20 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY6320-7Rated current: 20 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6125-6Rated current: 25 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6125-7Rated current: 25 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6525-6Rated current: 25 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY6525-7Rated current: 25 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6225-6Rated current: 25 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY6225-7Rated current: 25 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6325-6Rated current: 25 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY6325-7Rated current: 25 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6130-7Rated current: 30 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6230-7Rated current: 30 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6330-7Rated current: 30 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6132-6Rated current: 32 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6132-7Rated current: 32 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6532-6Rated current: 32 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY6532-7Rated current: 32 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6232-6Rated current: 32 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY6232-7Rated current: 32 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6332-6Rated current: 32 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY6332-7Rated current: 32 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6140-6Rated current: 40 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6140-7Rated current: 40 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6540-6Rated current: 40 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY6540-7Rated current: 40 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6240-6Rated current: 40 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY6240-7Rated current: 40 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6340-6Rated current: 40 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY6340-7Rated current: 40 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6150-6Rated current: 50 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6150-7Rated current: 50 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6550-6Rated current: 50 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY6550-7Rated current: 50 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6250-6Rated current: 50 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY6250-7Rated current: 50 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6350-6Rated current: 50 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY6350-7Rated current: 50 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6163-6Rated current: 63 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6163-7Rated current: 63 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY6563-6Rated current: 63 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY6563-7Rated current: 63 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY6263-6Rated current: 63 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY6263-7Rated current: 63 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY6363-6Rated current: 63 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY6363-7Rated current: 63 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY6614-7Rated current: 0.3 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6414-7Rated current: 0.3 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6605-7Rated current: 0.5 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6405-7Rated current: 0.5 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6601-7Rated current: 1 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6401-7Rated current: 1 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6615-7Rated current: 1.6 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6415-7Rated current: 1.6 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6602-7Rated current: 2 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6402-7Rated current: 2 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6603-7Rated current: 3 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6403-7Rated current: 3 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6604-7Rated current: 4 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6404-7Rated current: 4 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6606-6Rated current: 6 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6606-7Rated current: 6 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6406-6Rated current: 6 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6406-7Rated current: 6 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6608-7Rated current: 8 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6408-7Rated current: 8 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6610-6Rated current: 10 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6610-7Rated current: 10 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6410-6Rated current: 10 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6410-7Rated current: 10 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6613-6Rated current: 13 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6613-7Rated current: 13 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6413-6Rated current: 13 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6413-7Rated current: 13 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6616-6Rated current: 16 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6616-7Rated current: 16 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6416-6Rated current: 16 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6416-7Rated current: 16 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6620-6Rated current: 20 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6620-7Rated current: 20 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6420-6Rated current: 20 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6420-7Rated current: 20 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6625-6Rated current: 25 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6625-7Rated current: 25 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6425-6Rated current: 25 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6425-7Rated current: 25 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6632-6Rated current: 32 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6632-7Rated current: 32 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6432-6Rated current: 32 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6432-7Rated current: 32 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6640-6Rated current: 40 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6640-7Rated current: 40 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6440-6Rated current: 40 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6440-7Rated current: 40 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6650-6Rated current: 50 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6650-7Rated current: 50 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6450-6Rated current: 50 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6450-7Rated current: 50 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6663-6Rated current: 63 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6663-7Rated current: 63 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY6463-6Rated current: 63 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY6463-7Rated current: 63 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
