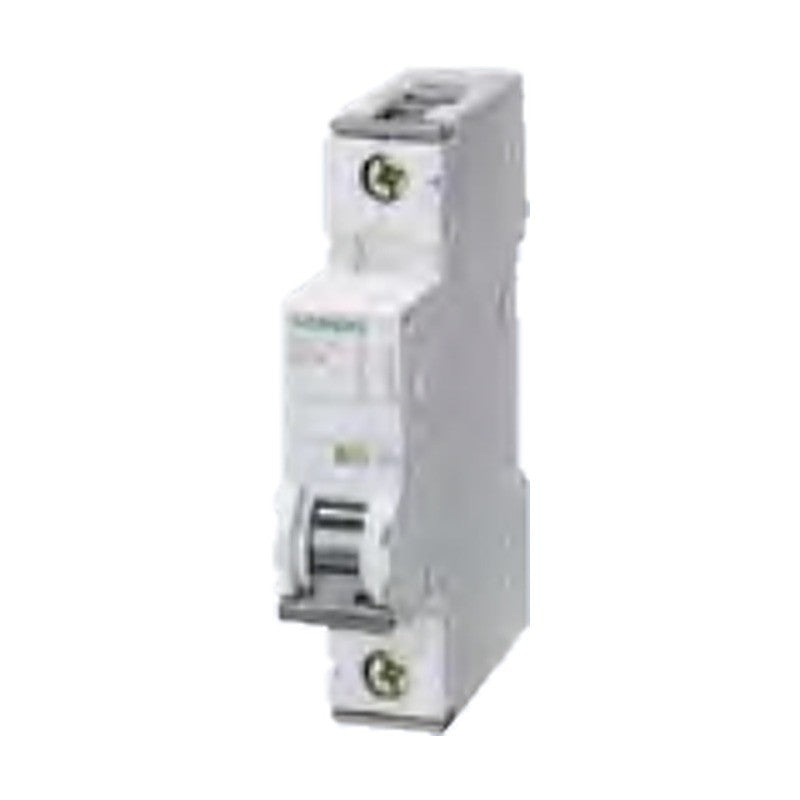

Siemens SENTRON 5SY7 Miniature Circuit Breakers 15 kA (B, C, D)

Siemens SENTRON 5SY7 Miniature Circuit Breakers 15 kA (B, C, D)

SENTRON 5SY7 miniature circuit breakers with 15 kA breaking capacity for advanced applications in buildings and industry.

Key features

  • Rated currents 0.3 to 63 A, characteristics B, C and D
  • Versions 1P, 1P+N, 2P, 3P, 3P+N and 4P
  • KK13 versions as main MCB on line side of meter
  • Combinable with AS, FC, AS+FC, ST, UR, RCA and AFDD (1P+N)

Specifications

Brand Siemens
Product line SENTRON
Rated short-circuit breaking capacity 15 kA
Standard IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Rated frequency 50/60 Hz
Accessories AS, FC, ST, UR, RCA, AFDD
Mounting 35 mm DIN rail
Source Siemens Catalog LV 10 · 2026, p. 304-305
5SY7114-7 Rated current: 0.3 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7114-8 Rated current: 0.3 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7514-7 Rated current: 0.3 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7514-8 Rated current: 0.3 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7214-7 Rated current: 0.3 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7214-8 Rated current: 0.3 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7105-7 Rated current: 0.5 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7105-8 Rated current: 0.5 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7505-7 Rated current: 0.5 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7505-8 Rated current: 0.5 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7205-7 Rated current: 0.5 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7205-8 Rated current: 0.5 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7101-7 Rated current: 1 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7101-8 Rated current: 1 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7501-7 Rated current: 1 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7501-8 Rated current: 1 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7201-7 Rated current: 1 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7201-8 Rated current: 1 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7115-7 Rated current: 1.6 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7115-8 Rated current: 1.6 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7515-7 Rated current: 1.6 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7515-8 Rated current: 1.6 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7215-7 Rated current: 1.6 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7215-8 Rated current: 1.6 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7102-7 Rated current: 2 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7102-8 Rated current: 2 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7502-7 Rated current: 2 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7502-8 Rated current: 2 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7202-7 Rated current: 2 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7202-8 Rated current: 2 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7103-7 Rated current: 3 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7103-8 Rated current: 3 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7503-7 Rated current: 3 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7503-8 Rated current: 3 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7203-7 Rated current: 3 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7203-8 Rated current: 3 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7104-7 Rated current: 4 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7104-8 Rated current: 4 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7504-7 Rated current: 4 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7504-8 Rated current: 4 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7204-7 Rated current: 4 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7204-8 Rated current: 4 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7106-6 Rated current: 6 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7106-7 Rated current: 6 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7106-8 Rated current: 6 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7506-6 Rated current: 6 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY7506-7 Rated current: 6 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7506-8 Rated current: 6 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7206-6 Rated current: 6 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY7206-7 Rated current: 6 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7206-8 Rated current: 6 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7106-6KK13 Rated current: 6 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW | Version: Main MCB, line side of meter
5SY7108-7 Rated current: 8 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7108-8 Rated current: 8 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7508-7 Rated current: 8 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7508-8 Rated current: 8 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7208-7 Rated current: 8 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7208-8 Rated current: 8 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7110-6 Rated current: 10 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7110-7 Rated current: 10 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7110-8 Rated current: 10 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7510-6 Rated current: 10 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY7510-7 Rated current: 10 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7510-8 Rated current: 10 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7210-6 Rated current: 10 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY7210-7 Rated current: 10 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7210-8 Rated current: 10 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7110-6KK13 Rated current: 10 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW | Version: Main MCB, line side of meter
5SY7113-6 Rated current: 13 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7113-7 Rated current: 13 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7113-8 Rated current: 13 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7513-6 Rated current: 13 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY7513-7 Rated current: 13 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7513-8 Rated current: 13 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7213-6 Rated current: 13 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY7213-7 Rated current: 13 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7213-8 Rated current: 13 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7116-6 Rated current: 16 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7116-7 Rated current: 16 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7116-8 Rated current: 16 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7516-6 Rated current: 16 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY7516-7 Rated current: 16 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7516-8 Rated current: 16 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7216-6 Rated current: 16 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY7216-7 Rated current: 16 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7216-8 Rated current: 16 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7120-6 Rated current: 20 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7120-7 Rated current: 20 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7120-8 Rated current: 20 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7520-6 Rated current: 20 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY7520-7 Rated current: 20 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7520-8 Rated current: 20 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7220-6 Rated current: 20 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY7220-7 Rated current: 20 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7220-8 Rated current: 20 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7125-6 Rated current: 25 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7125-7 Rated current: 25 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7125-8 Rated current: 25 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7525-6 Rated current: 25 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY7525-7 Rated current: 25 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7525-8 Rated current: 25 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7225-6 Rated current: 25 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY7225-7 Rated current: 25 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7225-8 Rated current: 25 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7132-6 Rated current: 32 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7132-7 Rated current: 32 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7132-8 Rated current: 32 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7532-6 Rated current: 32 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY7532-7 Rated current: 32 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7532-8 Rated current: 32 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7232-6 Rated current: 32 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY7232-7 Rated current: 32 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7232-8 Rated current: 32 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7140-6 Rated current: 40 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7140-7 Rated current: 40 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7140-8 Rated current: 40 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7540-6 Rated current: 40 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY7540-7 Rated current: 40 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7540-8 Rated current: 40 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7240-6 Rated current: 40 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY7240-7 Rated current: 40 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7240-8 Rated current: 40 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7150-6 Rated current: 50 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7150-7 Rated current: 50 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7150-8 Rated current: 50 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7550-6 Rated current: 50 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY7550-7 Rated current: 50 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7550-8 Rated current: 50 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7250-6 Rated current: 50 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY7250-7 Rated current: 50 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7250-8 Rated current: 50 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7163-6 Rated current: 63 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7163-7 Rated current: 63 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7163-8 Rated current: 63 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7563-6 Rated current: 63 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY7563-7 Rated current: 63 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7563-8 Rated current: 63 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7263-6 Rated current: 63 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY7263-7 Rated current: 63 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7263-8 Rated current: 63 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7314-7 Rated current: 0.3 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7314-8 Rated current: 0.3 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7614-7 Rated current: 0.3 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7614-8 Rated current: 0.3 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7414-7 Rated current: 0.3 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7414-8 Rated current: 0.3 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7305-7 Rated current: 0.5 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7305-8 Rated current: 0.5 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7605-7 Rated current: 0.5 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7605-8 Rated current: 0.5 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7405-7 Rated current: 0.5 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7405-8 Rated current: 0.5 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7301-7 Rated current: 1 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7301-8 Rated current: 1 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7601-7 Rated current: 1 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7601-8 Rated current: 1 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7401-7 Rated current: 1 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7401-8 Rated current: 1 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7315-7 Rated current: 1.6 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7315-8 Rated current: 1.6 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7615-7 Rated current: 1.6 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7615-8 Rated current: 1.6 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7415-7 Rated current: 1.6 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7415-8 Rated current: 1.6 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7302-7 Rated current: 2 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7302-8 Rated current: 2 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7602-7 Rated current: 2 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7602-8 Rated current: 2 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7402-7 Rated current: 2 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7402-8 Rated current: 2 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7303-7 Rated current: 3 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7303-8 Rated current: 3 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7603-7 Rated current: 3 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7603-8 Rated current: 3 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7403-7 Rated current: 3 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7403-8 Rated current: 3 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7304-7 Rated current: 4 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7304-8 Rated current: 4 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7604-7 Rated current: 4 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7604-8 Rated current: 4 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7404-7 Rated current: 4 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7404-8 Rated current: 4 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7306-6 Rated current: 6 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY7306-7 Rated current: 6 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7306-8 Rated current: 6 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7606-6 Rated current: 6 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7606-7 Rated current: 6 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7606-8 Rated current: 6 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7406-6 Rated current: 6 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7406-7 Rated current: 6 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7406-8 Rated current: 6 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7308-7 Rated current: 8 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7308-8 Rated current: 8 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7608-7 Rated current: 8 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7608-8 Rated current: 8 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7408-7 Rated current: 8 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7408-8 Rated current: 8 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7310-6 Rated current: 10 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY7310-7 Rated current: 10 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7310-8 Rated current: 10 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7610-6 Rated current: 10 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7610-7 Rated current: 10 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7610-8 Rated current: 10 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7410-6 Rated current: 10 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7410-7 Rated current: 10 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7410-8 Rated current: 10 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7313-6 Rated current: 13 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY7313-7 Rated current: 13 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7313-8 Rated current: 13 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7613-6 Rated current: 13 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7613-7 Rated current: 13 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7613-8 Rated current: 13 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7413-6 Rated current: 13 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7413-7 Rated current: 13 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7413-8 Rated current: 13 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7316-6 Rated current: 16 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY7316-7 Rated current: 16 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7316-8 Rated current: 16 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7616-6 Rated current: 16 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7616-7 Rated current: 16 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7616-8 Rated current: 16 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7416-6 Rated current: 16 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7416-7 Rated current: 16 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7416-8 Rated current: 16 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7320-6 Rated current: 20 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY7320-7 Rated current: 20 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7320-8 Rated current: 20 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7620-6 Rated current: 20 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7620-7 Rated current: 20 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7620-8 Rated current: 20 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7420-6 Rated current: 20 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7420-7 Rated current: 20 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7420-8 Rated current: 20 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7325-6 Rated current: 25 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY7325-7 Rated current: 25 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7325-8 Rated current: 25 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7625-6 Rated current: 25 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7625-7 Rated current: 25 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7625-8 Rated current: 25 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7425-6 Rated current: 25 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7425-7 Rated current: 25 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7425-8 Rated current: 25 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7332-6 Rated current: 32 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY7332-7 Rated current: 32 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7332-8 Rated current: 32 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7632-6 Rated current: 32 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7632-7 Rated current: 32 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7632-8 Rated current: 32 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7432-6 Rated current: 32 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7432-7 Rated current: 32 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7432-8 Rated current: 32 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7340-6 Rated current: 40 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY7340-7 Rated current: 40 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7340-8 Rated current: 40 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7640-6 Rated current: 40 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7640-7 Rated current: 40 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7640-8 Rated current: 40 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7440-6 Rated current: 40 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7440-7 Rated current: 40 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7440-8 Rated current: 40 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7350-6 Rated current: 50 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY7350-7 Rated current: 50 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7350-8 Rated current: 50 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7650-6 Rated current: 50 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7650-7 Rated current: 50 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7650-8 Rated current: 50 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7450-6 Rated current: 50 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7450-7 Rated current: 50 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7450-8 Rated current: 50 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7363-6 Rated current: 63 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY7363-7 Rated current: 63 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7363-8 Rated current: 63 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7663-6 Rated current: 63 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7663-7 Rated current: 63 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7663-8 Rated current: 63 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7463-6 Rated current: 63 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7463-7 Rated current: 63 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7463-8 Rated current: 63 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
Miniature Circuit BreakersSiemens
278 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 5SY7 Miniature Circuit Breakers 15 kA (B, C, D)

Brand Siemens·Miniature Circuit Breakers

Available part numbers (278)

5SY7114-7, 5SY7114-8, 5SY7514-7, 5SY7514-8, 5SY7214-7, 5SY7214-8, 5SY7105-7, 5SY7105-8, 5SY7505-7, 5SY7505-8 + 268 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5SY7114-7Rated current: 0.3 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7114-8Rated current: 0.3 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7514-7Rated current: 0.3 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7514-8Rated current: 0.3 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7214-7Rated current: 0.3 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7214-8Rated current: 0.3 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7105-7Rated current: 0.5 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7105-8Rated current: 0.5 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7505-7Rated current: 0.5 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7505-8Rated current: 0.5 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7205-7Rated current: 0.5 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7205-8Rated current: 0.5 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7101-7Rated current: 1 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7101-8Rated current: 1 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7501-7Rated current: 1 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7501-8Rated current: 1 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7201-7Rated current: 1 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7201-8Rated current: 1 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7115-7Rated current: 1.6 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7115-8Rated current: 1.6 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7515-7Rated current: 1.6 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7515-8Rated current: 1.6 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7215-7Rated current: 1.6 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7215-8Rated current: 1.6 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7102-7Rated current: 2 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7102-8Rated current: 2 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7502-7Rated current: 2 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7502-8Rated current: 2 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7202-7Rated current: 2 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7202-8Rated current: 2 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7103-7Rated current: 3 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7103-8Rated current: 3 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7503-7Rated current: 3 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7503-8Rated current: 3 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7203-7Rated current: 3 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7203-8Rated current: 3 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7104-7Rated current: 4 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7104-8Rated current: 4 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7504-7Rated current: 4 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7504-8Rated current: 4 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7204-7Rated current: 4 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7204-8Rated current: 4 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7106-6Rated current: 6 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7106-7Rated current: 6 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7106-8Rated current: 6 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7506-6Rated current: 6 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY7506-7Rated current: 6 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7506-8Rated current: 6 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7206-6Rated current: 6 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY7206-7Rated current: 6 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7206-8Rated current: 6 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7106-6KK13Rated current: 6 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW | Version: Main MCB, line side of meter
5SY7108-7Rated current: 8 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7108-8Rated current: 8 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7508-7Rated current: 8 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7508-8Rated current: 8 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7208-7Rated current: 8 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7208-8Rated current: 8 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7110-6Rated current: 10 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7110-7Rated current: 10 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7110-8Rated current: 10 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7510-6Rated current: 10 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY7510-7Rated current: 10 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7510-8Rated current: 10 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7210-6Rated current: 10 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY7210-7Rated current: 10 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7210-8Rated current: 10 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7110-6KK13Rated current: 10 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW | Version: Main MCB, line side of meter
5SY7113-6Rated current: 13 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7113-7Rated current: 13 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7113-8Rated current: 13 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7513-6Rated current: 13 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY7513-7Rated current: 13 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7513-8Rated current: 13 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7213-6Rated current: 13 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY7213-7Rated current: 13 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7213-8Rated current: 13 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7116-6Rated current: 16 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7116-7Rated current: 16 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7116-8Rated current: 16 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7516-6Rated current: 16 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY7516-7Rated current: 16 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7516-8Rated current: 16 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7216-6Rated current: 16 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY7216-7Rated current: 16 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7216-8Rated current: 16 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7120-6Rated current: 20 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7120-7Rated current: 20 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7120-8Rated current: 20 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7520-6Rated current: 20 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY7520-7Rated current: 20 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7520-8Rated current: 20 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7220-6Rated current: 20 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY7220-7Rated current: 20 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7220-8Rated current: 20 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7125-6Rated current: 25 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7125-7Rated current: 25 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7125-8Rated current: 25 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7525-6Rated current: 25 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY7525-7Rated current: 25 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7525-8Rated current: 25 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7225-6Rated current: 25 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY7225-7Rated current: 25 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7225-8Rated current: 25 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7132-6Rated current: 32 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7132-7Rated current: 32 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7132-8Rated current: 32 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7532-6Rated current: 32 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY7532-7Rated current: 32 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7532-8Rated current: 32 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7232-6Rated current: 32 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY7232-7Rated current: 32 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7232-8Rated current: 32 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7140-6Rated current: 40 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7140-7Rated current: 40 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7140-8Rated current: 40 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7540-6Rated current: 40 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY7540-7Rated current: 40 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7540-8Rated current: 40 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7240-6Rated current: 40 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY7240-7Rated current: 40 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7240-8Rated current: 40 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7150-6Rated current: 50 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7150-7Rated current: 50 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7150-8Rated current: 50 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7550-6Rated current: 50 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY7550-7Rated current: 50 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7550-8Rated current: 50 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7250-6Rated current: 50 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY7250-7Rated current: 50 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7250-8Rated current: 50 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7163-6Rated current: 63 A | Poles: 1P | Characteristic: B | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7163-7Rated current: 63 A | Poles: 1P | Characteristic: C | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7163-8Rated current: 63 A | Poles: 1P | Characteristic: D | Rated voltage: 230/400 V AC | Width: 1 MW
5SY7563-6Rated current: 63 A | Poles: 1P+N | Characteristic: B | Rated voltage: 230 V AC | Width: 2 MW
5SY7563-7Rated current: 63 A | Poles: 1P+N | Characteristic: C | Rated voltage: 230 V AC | Width: 2 MW
5SY7563-8Rated current: 63 A | Poles: 1P+N | Characteristic: D | Rated voltage: 230 V AC | Width: 2 MW
5SY7263-6Rated current: 63 A | Poles: 2P | Characteristic: B | Rated voltage: 400 V AC | Width: 2 MW
5SY7263-7Rated current: 63 A | Poles: 2P | Characteristic: C | Rated voltage: 400 V AC | Width: 2 MW
5SY7263-8Rated current: 63 A | Poles: 2P | Characteristic: D | Rated voltage: 400 V AC | Width: 2 MW
5SY7314-7Rated current: 0.3 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7314-8Rated current: 0.3 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7614-7Rated current: 0.3 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7614-8Rated current: 0.3 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7414-7Rated current: 0.3 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7414-8Rated current: 0.3 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7305-7Rated current: 0.5 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7305-8Rated current: 0.5 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7605-7Rated current: 0.5 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7605-8Rated current: 0.5 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7405-7Rated current: 0.5 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7405-8Rated current: 0.5 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7301-7Rated current: 1 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7301-8Rated current: 1 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7601-7Rated current: 1 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7601-8Rated current: 1 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7401-7Rated current: 1 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7401-8Rated current: 1 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7315-7Rated current: 1.6 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7315-8Rated current: 1.6 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7615-7Rated current: 1.6 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7615-8Rated current: 1.6 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7415-7Rated current: 1.6 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7415-8Rated current: 1.6 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7302-7Rated current: 2 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7302-8Rated current: 2 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7602-7Rated current: 2 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7602-8Rated current: 2 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7402-7Rated current: 2 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7402-8Rated current: 2 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7303-7Rated current: 3 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7303-8Rated current: 3 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7603-7Rated current: 3 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7603-8Rated current: 3 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7403-7Rated current: 3 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7403-8Rated current: 3 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7304-7Rated current: 4 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7304-8Rated current: 4 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7604-7Rated current: 4 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7604-8Rated current: 4 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7404-7Rated current: 4 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7404-8Rated current: 4 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7306-6Rated current: 6 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY7306-7Rated current: 6 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7306-8Rated current: 6 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7606-6Rated current: 6 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7606-7Rated current: 6 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7606-8Rated current: 6 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7406-6Rated current: 6 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7406-7Rated current: 6 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7406-8Rated current: 6 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7308-7Rated current: 8 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7308-8Rated current: 8 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7608-7Rated current: 8 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7608-8Rated current: 8 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7408-7Rated current: 8 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7408-8Rated current: 8 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7310-6Rated current: 10 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY7310-7Rated current: 10 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7310-8Rated current: 10 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7610-6Rated current: 10 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7610-7Rated current: 10 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7610-8Rated current: 10 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7410-6Rated current: 10 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7410-7Rated current: 10 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7410-8Rated current: 10 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7313-6Rated current: 13 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY7313-7Rated current: 13 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7313-8Rated current: 13 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7613-6Rated current: 13 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7613-7Rated current: 13 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7613-8Rated current: 13 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7413-6Rated current: 13 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7413-7Rated current: 13 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7413-8Rated current: 13 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7316-6Rated current: 16 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY7316-7Rated current: 16 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7316-8Rated current: 16 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7616-6Rated current: 16 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7616-7Rated current: 16 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7616-8Rated current: 16 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7416-6Rated current: 16 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7416-7Rated current: 16 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7416-8Rated current: 16 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7320-6Rated current: 20 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY7320-7Rated current: 20 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7320-8Rated current: 20 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7620-6Rated current: 20 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7620-7Rated current: 20 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7620-8Rated current: 20 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7420-6Rated current: 20 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7420-7Rated current: 20 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7420-8Rated current: 20 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7325-6Rated current: 25 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY7325-7Rated current: 25 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7325-8Rated current: 25 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7625-6Rated current: 25 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7625-7Rated current: 25 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7625-8Rated current: 25 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7425-6Rated current: 25 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7425-7Rated current: 25 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7425-8Rated current: 25 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7332-6Rated current: 32 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY7332-7Rated current: 32 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7332-8Rated current: 32 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7632-6Rated current: 32 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7632-7Rated current: 32 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7632-8Rated current: 32 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7432-6Rated current: 32 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7432-7Rated current: 32 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7432-8Rated current: 32 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7340-6Rated current: 40 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY7340-7Rated current: 40 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7340-8Rated current: 40 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7640-6Rated current: 40 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7640-7Rated current: 40 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7640-8Rated current: 40 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7440-6Rated current: 40 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7440-7Rated current: 40 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7440-8Rated current: 40 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7350-6Rated current: 50 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY7350-7Rated current: 50 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7350-8Rated current: 50 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7650-6Rated current: 50 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7650-7Rated current: 50 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7650-8Rated current: 50 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7450-6Rated current: 50 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7450-7Rated current: 50 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7450-8Rated current: 50 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7363-6Rated current: 63 A | Poles: 3P | Characteristic: B | Rated voltage: 400 V AC | Width: 3 MW
5SY7363-7Rated current: 63 A | Poles: 3P | Characteristic: C | Rated voltage: 400 V AC | Width: 3 MW
5SY7363-8Rated current: 63 A | Poles: 3P | Characteristic: D | Rated voltage: 400 V AC | Width: 3 MW
5SY7663-6Rated current: 63 A | Poles: 3P+N | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7663-7Rated current: 63 A | Poles: 3P+N | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7663-8Rated current: 63 A | Poles: 3P+N | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW
5SY7463-6Rated current: 63 A | Poles: 4P | Characteristic: B | Rated voltage: 400 V AC | Width: 4 MW
5SY7463-7Rated current: 63 A | Poles: 4P | Characteristic: C | Rated voltage: 400 V AC | Width: 4 MW
5SY7463-8Rated current: 63 A | Poles: 4P | Characteristic: D | Rated voltage: 400 V AC | Width: 4 MW

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
