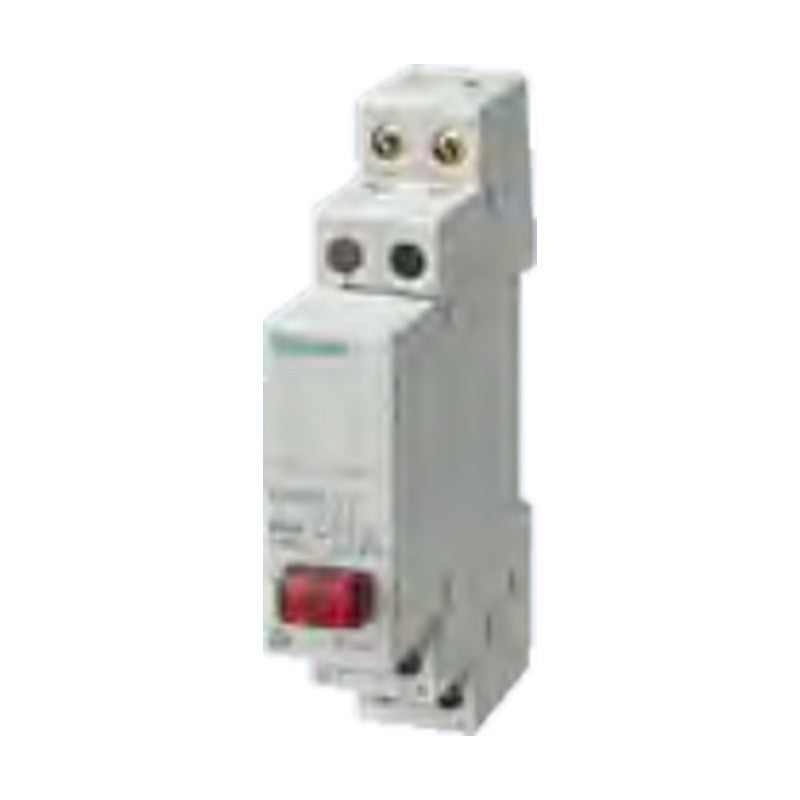

Siemens SENTRON 5TE48 pushbuttons (with/without LED, double)

Siemens SENTRON 5TE48 pushbuttons (with/without LED, double)

SENTRON 5TE48 modular pushbuttons for distribution boards, with momentary or maintained-contact function, with or without LED, including double pushbuttons.

Key features

  • Momentary, maintained-contact and control pushbuttons in 1 MW width
  • Versions with LED illumination and colored caps
  • Double pushbuttons for On/Off control in one device
  • Rated operational current 20 A per conducting path
  • LEDs and caps replaceable as spare parts

Specifications

Brand Siemens SENTRON
Series 5TE48
Rated current Ie 20 A per conducting path
Mounting width 1 MW
Conductor cross-section 1 ... 6 mm2
Standards IEC/EN 60947-3, IEC/EN 60669-1
Mechanical endurance 25000 actuations
Source Siemens Catalog LV 10 · 2026, p. 460-461
5TE4804 Type: Pushbutton, momentary | Contacts: 2 x 1 NO | Ue: 400 V AC | Button color: 1 x green, 1 x blue | LED: Without LED
5TE4800 Type: Pushbutton, momentary | Contacts: 1 NO + 1 NC | Ue: 400 V AC | Button color: 1 x gray | LED: Without LED
5TE4805 Type: Pushbutton, momentary | Contacts: 1 NO + 1 NC | Ue: 400 V AC | Button color: 1 x red | LED: Without LED
5TE4806 Type: Pushbutton, momentary | Contacts: 1 NO + 1 NC | Ue: 400 V AC | Button color: 1 x green | LED: Without LED
5TE4807 Type: Pushbutton, momentary | Contacts: 1 NO + 1 NC | Ue: 400 V AC | Button color: 1 x yellow | LED: Without LED
5TE4808 Type: Pushbutton, momentary | Contacts: 1 NO + 1 NC | Ue: 400 V AC | Button color: 1 x blue | LED: Without LED
5TE4801-2 Type: Pushbutton, momentary | Contacts: 2 NO + 2 NC | Ue: 400 V AC | Button color: 1 x gray | LED: Without LED
5TE4802 Type: Pushbutton, momentary | Contacts: 3 NO + 1 NC | Ue: 400 V AC | Button color: 1 x gray | LED: Without LED
5TE4811 Type: Pushbutton, maintained-contact | Contacts: 2 NO | Ue: 400 V AC | Button color: 1 x gray | LED: Without LED
5TE4810 Type: Pushbutton, maintained-contact | Contacts: 1 NO + 1 NC | Ue: 400 V AC | Button color: 1 x gray | LED: Without LED
5TE4811-2 Type: Pushbutton, maintained-contact | Contacts: 2 NO + 2 NC | Ue: 400 V AC | Button color: 1 x gray | LED: Without LED
5TE4812-1 Type: Pushbutton, maintained-contact | Contacts: 3 NO + 1 NC | Ue: 400 V AC | Button color: 1 x gray | LED: Without LED
5TE4812 Type: Pushbutton, maintained-contact | Contacts: 3 NO + N | Ue: 400 V AC | Button color: 1 x gray | LED: Without LED
5TE4813 Type: Pushbutton, maintained-contact | Contacts: 4 NC | Ue: 400 V AC | Button color: 1 x gray | LED: Without LED
5TE4814 Type: Pushbutton, maintained-contact | Contacts: 2 CO | Ue: 400 V AC | Button color: 1 x gray | LED: Without LED
5TE4821 Type: Control pushbutton | Contacts: 1 NO | Ue: 230 V AC | Button color: 1 x red | LED: With LED
5TE4823 Type: Control pushbutton | Contacts: 2 NO | Ue: 400 V AC | Button color: 1 x red | LED: With LED
5TE4820 Type: Control pushbutton | Contacts: 1 NO + 1 NC | Ue: 400 V AC | Button color: 1 x red | LED: With LED
5TE4824 Type: Control pushbutton | Contacts: 2 NC | Ue: 400 V AC | Button color: 1 x red | LED: With LED
5TE4822 Type: Control pushbutton, 150 m cable | Contacts: 1 NO | Ue: 230 V AC | Button color: 1 x red | LED: With LED
5TE4822-1 Type: Control pushbutton, 150 m cable | Contacts: 1 NO | Ue: 230 V AC | Button color: 1 x blue | LED: With LED
5TE4840 Type: Double pushbutton | Contacts: 2 x 1 NO | Ue: 400 V AC | Button color: 1 x green, 1 x red | LED: With LED
5TE4830 Type: Double pushbutton | Contacts: 1 NO + 1 NC | Ue: 400 V AC | Button color: 1 x green, 1 x red | LED: Without LED
5TE4841 Type: Double pushbutton | Contacts: 1 NO + 1 NC | Ue: 400 V AC | Button color: 1 x green, 1 x red | LED: With LED
5TE4831 Type: Double pushbutton | Contacts: 2 x (1 NO + 1 NC) | Ue: 400 V AC | Button color: 1 x green, 1 x red | LED: Without LED
Pushbuttons & Pilot LightsSiemens
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 5TE48 pushbuttons (with/without LED, double)

Brand Siemens·Pushbuttons & Pilot Lights

Available part numbers (25)

5TE4804, 5TE4800, 5TE4805, 5TE4806, 5TE4807, 5TE4808, 5TE4801-2, 5TE4802, 5TE4811, 5TE4810 + 15 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5TE4804Type: Pushbutton, momentary | Contacts: 2 x 1 NO | Ue: 400 V AC | Button color: 1 x green, 1 x blue | LED: Without LED
5TE4800Type: Pushbutton, momentary | Contacts: 1 NO + 1 NC | Ue: 400 V AC | Button color: 1 x gray | LED: Without LED
5TE4805Type: Pushbutton, momentary | Contacts: 1 NO + 1 NC | Ue: 400 V AC | Button color: 1 x red | LED: Without LED
5TE4806Type: Pushbutton, momentary | Contacts: 1 NO + 1 NC | Ue: 400 V AC | Button color: 1 x green | LED: Without LED
5TE4807Type: Pushbutton, momentary | Contacts: 1 NO + 1 NC | Ue: 400 V AC | Button color: 1 x yellow | LED: Without LED
5TE4808Type: Pushbutton, momentary | Contacts: 1 NO + 1 NC | Ue: 400 V AC | Button color: 1 x blue | LED: Without LED
5TE4801-2Type: Pushbutton, momentary | Contacts: 2 NO + 2 NC | Ue: 400 V AC | Button color: 1 x gray | LED: Without LED
5TE4802Type: Pushbutton, momentary | Contacts: 3 NO + 1 NC | Ue: 400 V AC | Button color: 1 x gray | LED: Without LED
5TE4811Type: Pushbutton, maintained-contact | Contacts: 2 NO | Ue: 400 V AC | Button color: 1 x gray | LED: Without LED
5TE4810Type: Pushbutton, maintained-contact | Contacts: 1 NO + 1 NC | Ue: 400 V AC | Button color: 1 x gray | LED: Without LED
5TE4811-2Type: Pushbutton, maintained-contact | Contacts: 2 NO + 2 NC | Ue: 400 V AC | Button color: 1 x gray | LED: Without LED
5TE4812-1Type: Pushbutton, maintained-contact | Contacts: 3 NO + 1 NC | Ue: 400 V AC | Button color: 1 x gray | LED: Without LED
5TE4812Type: Pushbutton, maintained-contact | Contacts: 3 NO + N | Ue: 400 V AC | Button color: 1 x gray | LED: Without LED
5TE4813Type: Pushbutton, maintained-contact | Contacts: 4 NC | Ue: 400 V AC | Button color: 1 x gray | LED: Without LED
5TE4814Type: Pushbutton, maintained-contact | Contacts: 2 CO | Ue: 400 V AC | Button color: 1 x gray | LED: Without LED
5TE4821Type: Control pushbutton | Contacts: 1 NO | Ue: 230 V AC | Button color: 1 x red | LED: With LED
5TE4823Type: Control pushbutton | Contacts: 2 NO | Ue: 400 V AC | Button color: 1 x red | LED: With LED
5TE4820Type: Control pushbutton | Contacts: 1 NO + 1 NC | Ue: 400 V AC | Button color: 1 x red | LED: With LED
5TE4824Type: Control pushbutton | Contacts: 2 NC | Ue: 400 V AC | Button color: 1 x red | LED: With LED
5TE4822Type: Control pushbutton, 150 m cable | Contacts: 1 NO | Ue: 230 V AC | Button color: 1 x red | LED: With LED
5TE4822-1Type: Control pushbutton, 150 m cable | Contacts: 1 NO | Ue: 230 V AC | Button color: 1 x blue | LED: With LED
5TE4840Type: Double pushbutton | Contacts: 2 x 1 NO | Ue: 400 V AC | Button color: 1 x green, 1 x red | LED: With LED
5TE4830Type: Double pushbutton | Contacts: 1 NO + 1 NC | Ue: 400 V AC | Button color: 1 x green, 1 x red | LED: Without LED
5TE4841Type: Double pushbutton | Contacts: 1 NO + 1 NC | Ue: 400 V AC | Button color: 1 x green, 1 x red | LED: With LED
5TE4831Type: Double pushbutton | Contacts: 2 x (1 NO + 1 NC) | Ue: 400 V AC | Button color: 1 x green, 1 x red | LED: Without LED
