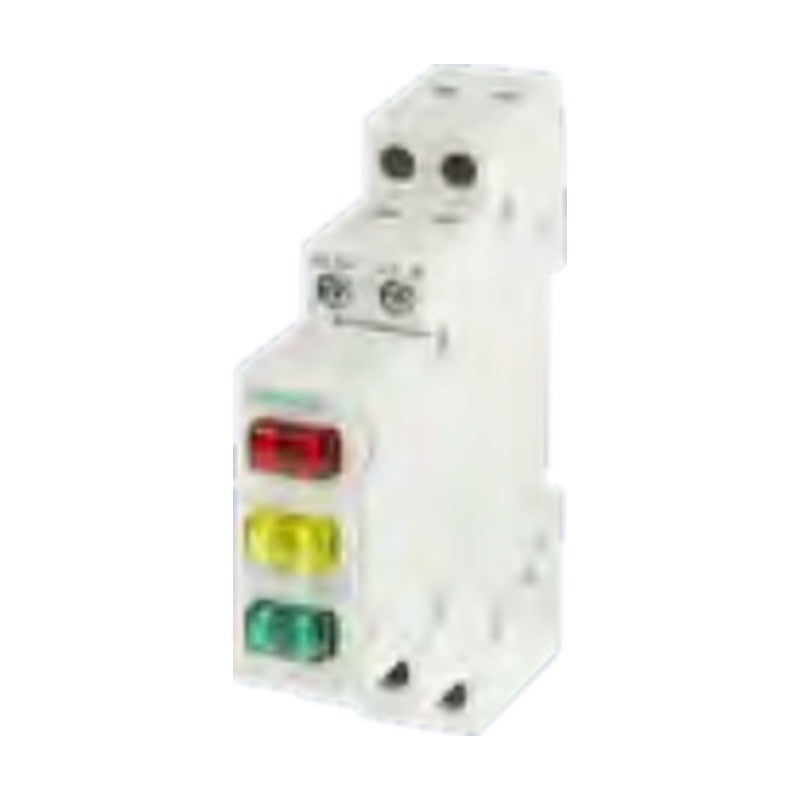

Siemens SENTRON 5TE58 LED light indicators (1 MW)

Siemens SENTRON 5TE58 LED light indicators (1 MW)

SENTRON 5TE58 modular LED light indicators in 1 MW width for status indication in distribution boards.

Key features

  • LED light indicators with one or three indicator lamps
  • Versions for 230 V AC and 12 ... 60 V
  • Variant for long cable lengths up to 250 m
  • 1 MW modular width for DIN rail mounting
  • Replaceable LEDs and colored caps available as accessories

Specifications

Brand Siemens SENTRON
Series 5TE58
Mounting width 1 MW
Rated power dissipation 0.4 VA (LED)
Rigid conductor cross-section 1.5 ... 6 mm2
Terminals Screw (Pozidriv PZ1)
Ambient temperature -5 ... +40 °C
Source Siemens Catalog LV 10 · 2026, p. 462
5TE5800 Ue: 230 V AC | LED colors: 1 x red | Max cable length: Standard
5TE5801 Ue: 230 V AC | LED colors: 1 x green, 1 x red | Max cable length: Standard
5TE5802 Ue: 230 V AC | LED colors: 3 x green | Max cable length: Standard
5TE5803 Ue: 230 V AC | LED colors: 1 x red, 1 x yellow, 1 x green | Max cable length: Standard
5TE5804 Ue: 230 V AC | LED colors: 1 x red | Max cable length: 250 m
5TE5810 Ue: 12 ... 60 V | LED colors: 1 x red | Max cable length: Standard
5TE5810-1 Ue: 12 ... 60 V | LED colors: 1 x green | Max cable length: Standard
5TE5811 Ue: 12 ... 60 V | LED colors: 1 x green, 1 x red | Max cable length: Standard
5TE5812 Ue: 12 ... 60 V | LED colors: 3 x green | Max cable length: Standard
5TE5812-1 Ue: 12 ... 60 V | LED colors: 1 x red, 1 x yellow, 1 x green | Max cable length: Standard
Pushbuttons & Pilot LightsSiemens
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 5TE58 LED light indicators (1 MW)

Brand Siemens·Pushbuttons & Pilot Lights

Available part numbers (10)

5TE5800, 5TE5801, 5TE5802, 5TE5803, 5TE5804, 5TE5810, 5TE5810-1, 5TE5811, 5TE5812, 5TE5812-1

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5TE5800Ue: 230 V AC | LED colors: 1 x red | Max cable length: Standard
5TE5801Ue: 230 V AC | LED colors: 1 x green, 1 x red | Max cable length: Standard
5TE5802Ue: 230 V AC | LED colors: 3 x green | Max cable length: Standard
5TE5803Ue: 230 V AC | LED colors: 1 x red, 1 x yellow, 1 x green | Max cable length: Standard
5TE5804Ue: 230 V AC | LED colors: 1 x red | Max cable length: 250 m
5TE5810Ue: 12 ... 60 V | LED colors: 1 x red | Max cable length: Standard
5TE5810-1Ue: 12 ... 60 V | LED colors: 1 x green | Max cable length: Standard
5TE5811Ue: 12 ... 60 V | LED colors: 1 x green, 1 x red | Max cable length: Standard
5TE5812Ue: 12 ... 60 V | LED colors: 3 x green | Max cable length: Standard
5TE5812-1Ue: 12 ... 60 V | LED colors: 1 x red, 1 x yellow, 1 x green | Max cable length: Standard
