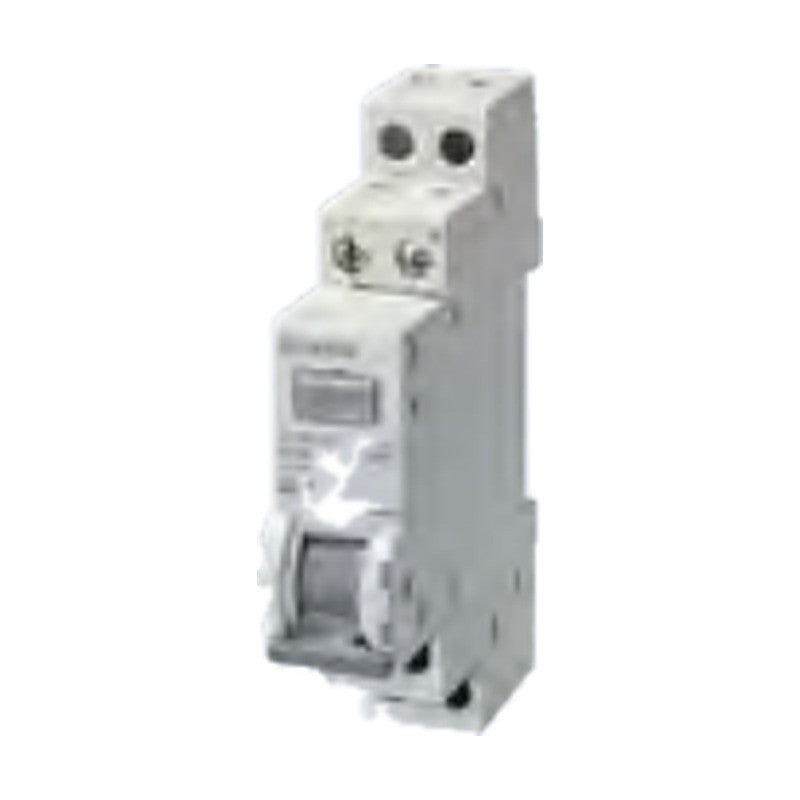

Siemens SENTRON 5TE8 control switches (control, two-way, group)

Siemens SENTRON 5TE8 control switches (control, two-way, group)

SENTRON 5TE8 modular control, two-way and group switches with center position for 20 A per conducting path in distribution boards.

Key features

  • Control switches, two-way switches and group switches with center position
  • Rated operational current 20 A per conducting path
  • 1 MW modular width (1.5 MW version with mounted auxiliary switch)
  • Sealable switch position, separate handle locking device available
  • Screw terminals (Pozidriv PZ1) for 1 to 6 mm2 conductors

Specifications

Brand Siemens SENTRON
Series 5TE8
Rated current Ie 20 A per conducting path
Conductor cross-section 1 ... 6 mm2
Standards IEC/EN 60947-3, IEC/EN 60669-1
Mechanical endurance 25000 actuations
Ambient temperature -5 ... +40 °C
Source Siemens Catalog LV 10 · 2026, p. 458
5TE8101-3 Type: Control switch | Contacts: 1 NO | Ue: 48 V AC | Mounting width: 1 MW | Auxiliary switch: Cannot be retrofitted
5TE8101 Type: Control switch | Contacts: 1 NO | Ue: 230 V AC | Mounting width: 1 MW | Auxiliary switch: Cannot be retrofitted
5TE8102 Type: Control switch | Contacts: 2 NO | Ue: 400 V AC | Mounting width: 1 MW | Auxiliary switch: Cannot be retrofitted
5TE8103 Type: Control switch | Contacts: 3 NO | Ue: 400 V AC | Mounting width: 1 MW | Auxiliary switch: Cannot be retrofitted
5TE8108 Type: Control switch | Contacts: 3 NO | Ue: 400 V AC | Mounting width: 1.5 MW | Auxiliary switch: Mounted
5TE8151 Type: Two-way switch | Contacts: 1 NO + 1 NC | Ue: 400 V AC | Mounting width: 1 MW | Auxiliary switch: Mounted
5TE8152 Type: Two-way switch | Contacts: 2 NO + 2 NC | Ue: 400 V AC | Mounting width: 1 MW | Auxiliary switch: Cannot be retrofitted
5TE8153 Type: Two-way switch | Contacts: 3 NO + 1 NC | Ue: 400 V AC | Mounting width: 1 MW | Auxiliary switch: Cannot be retrofitted
5TE8161 Type: Two-way switch | Contacts: 1 CO | Ue: 230 V AC | Mounting width: 1 MW | Auxiliary switch: Cannot be retrofitted
5TE8162 Type: Two-way switch | Contacts: 2 CO | Ue: 400 V AC | Mounting width: 1 MW | Auxiliary switch: Cannot be retrofitted
5TE8141 Type: Group switch, center position | Contacts: 1 toggle switch | Ue: 230 V AC | Mounting width: 1 MW | Auxiliary switch: Cannot be retrofitted
5TE8142 Type: Group switch, center position | Contacts: 2 toggle switches | Ue: 400 V AC | Mounting width: 1 MW | Auxiliary switch: Cannot be retrofitted
