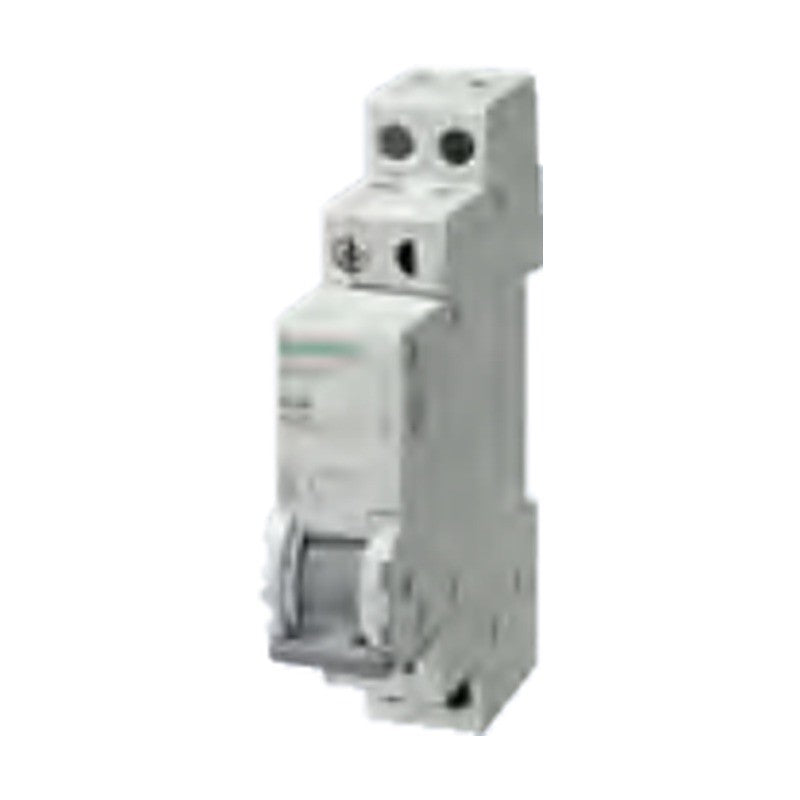

Siemens SENTRON 5TE81/5TE82 on-off switches (20 A, 32 A)

Siemens SENTRON 5TE81/5TE82 on-off switches (20 A, 32 A)

SENTRON 5TE81 (20 A) and 5TE82 (32 A) modular on-off switches in 1 MW width with optional retrofittable auxiliary switches.

Key features

  • 1 to 3 NO and 3 NO + N versions in 1 MW width
  • 5TE81 for 20 A and 5TE82 for 32 A per conducting path
  • Retrofittable auxiliary switches on most versions
  • Rated short-circuit making capacity 10 kA
  • Sealable switch position, handle locking device available

Specifications

Brand Siemens SENTRON
Series 5TE81 / 5TE82
Rigid conductor cross-section 1.5 ... 6 mm2
Standards IEC/EN 60947-3
Rated impulse voltage Uimp > 5 kV
Ambient temperature -5 ... +40 °C
Source Siemens Catalog LV 10 · 2026, p. 464
5TE8111 Series: 5TE81 | Rated current: 20 A | Contacts: 1 NO | Ue: 230 V AC | Mounting width: 1 MW | Auxiliary switch: Can be retrofitted
5TE8112 Series: 5TE81 | Rated current: 20 A | Contacts: 2 NO | Ue: 400 V AC | Mounting width: 1 MW | Auxiliary switch: Can be retrofitted
5TE8113 Series: 5TE81 | Rated current: 20 A | Contacts: 3 NO | Ue: 400 V AC | Mounting width: 1 MW | Auxiliary switch: Can be retrofitted
5TE8114 Series: 5TE81 | Rated current: 20 A | Contacts: 3 NO + N | Ue: 400 V AC | Mounting width: 1 MW | Auxiliary switch: Cannot be retrofitted
5TE8118 Series: 5TE81 | Rated current: 20 A | Contacts: 3 NO + N | Ue: 400 V AC | Mounting width: 1.5 MW | Auxiliary switch: Mounted
5TE8211 Series: 5TE82 | Rated current: 32 A | Contacts: 1 NO | Ue: 230 V AC | Mounting width: 1 MW | Auxiliary switch: Can be retrofitted
5TE8212 Series: 5TE82 | Rated current: 32 A | Contacts: 2 NO | Ue: 400 V AC | Mounting width: 1 MW | Auxiliary switch: Can be retrofitted
5TE8213 Series: 5TE82 | Rated current: 32 A | Contacts: 3 NO | Ue: 400 V AC | Mounting width: 1 MW | Auxiliary switch: Can be retrofitted
5TE8214 Series: 5TE82 | Rated current: 32 A | Contacts: 3 NO + N | Ue: 400 V AC | Mounting width: 1 MW | Auxiliary switch: Cannot be retrofitted
5TE8218 Series: 5TE82 | Rated current: 32 A | Contacts: 3 NO + N | Ue: 400 V AC | Mounting width: 1.5 MW | Auxiliary switch: Mounted
Switch DisconnectorsSiemens
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 5TE81/5TE82 on-off switches (20 A, 32 A)

Brand Siemens·Switch Disconnectors

Available part numbers (10)

5TE8111, 5TE8112, 5TE8113, 5TE8114, 5TE8118, 5TE8211, 5TE8212, 5TE8213, 5TE8214, 5TE8218

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5TE8111Series: 5TE81 | Rated current: 20 A | Contacts: 1 NO | Ue: 230 V AC | Mounting width: 1 MW | Auxiliary switch: Can be retrofitted
5TE8112Series: 5TE81 | Rated current: 20 A | Contacts: 2 NO | Ue: 400 V AC | Mounting width: 1 MW | Auxiliary switch: Can be retrofitted
5TE8113Series: 5TE81 | Rated current: 20 A | Contacts: 3 NO | Ue: 400 V AC | Mounting width: 1 MW | Auxiliary switch: Can be retrofitted
5TE8114Series: 5TE81 | Rated current: 20 A | Contacts: 3 NO + N | Ue: 400 V AC | Mounting width: 1 MW | Auxiliary switch: Cannot be retrofitted
5TE8118Series: 5TE81 | Rated current: 20 A | Contacts: 3 NO + N | Ue: 400 V AC | Mounting width: 1.5 MW | Auxiliary switch: Mounted
5TE8211Series: 5TE82 | Rated current: 32 A | Contacts: 1 NO | Ue: 230 V AC | Mounting width: 1 MW | Auxiliary switch: Can be retrofitted
5TE8212Series: 5TE82 | Rated current: 32 A | Contacts: 2 NO | Ue: 400 V AC | Mounting width: 1 MW | Auxiliary switch: Can be retrofitted
5TE8213Series: 5TE82 | Rated current: 32 A | Contacts: 3 NO | Ue: 400 V AC | Mounting width: 1 MW | Auxiliary switch: Can be retrofitted
5TE8214Series: 5TE82 | Rated current: 32 A | Contacts: 3 NO + N | Ue: 400 V AC | Mounting width: 1 MW | Auxiliary switch: Cannot be retrofitted
5TE8218Series: 5TE82 | Rated current: 32 A | Contacts: 3 NO + N | Ue: 400 V AC | Mounting width: 1.5 MW | Auxiliary switch: Mounted
