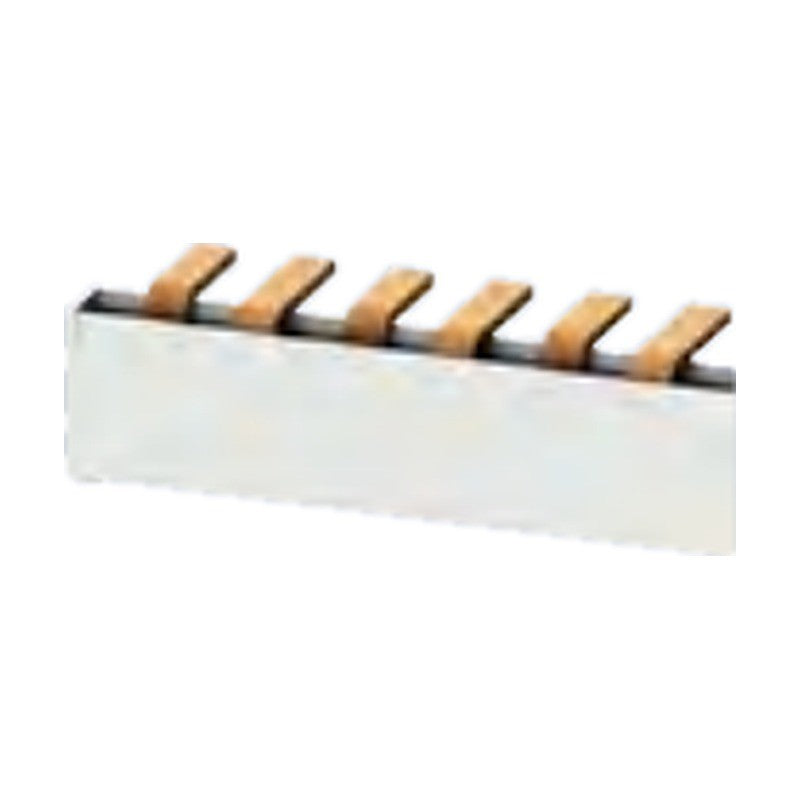

Siemens SENTRON 5TE91 busbars for modular installation devices

Siemens SENTRON 5TE91 busbars for modular installation devices

SENTRON 5TE91 1-phase and 2-phase busbars for 5TT41, 5TT42, 5TT44, 5TE48, 5TT49, 5TE58, 5TE81 and 5TE82 switching devices.

Key features

  • 1-phase busbar 210 mm, 12 MW with 1 MW modular clearance
  • 2-phase busbar 220 mm, phases offset by 0.5 MW
  • Infeed to unit terminal 6 mm2 up to 32 A
  • End caps for 2-phase busbars (set of 10)

Specifications

Brand Siemens SENTRON
Series 5TE91
Max. infeed 32 A via 6 mm2 terminal
Manufacturer Siemens
Product type Busbar Systems
Source Siemens Catalog LV 10 · 2026, p. 489
5TE9100 Item: 1-phase busbar | Length: 210 mm | Division: 12 MW, 1 MW clearance
5TE9101 Item: 2-phase busbar | Length: 220 mm | Division: 12 MW, phases offset 0.5 MW
5TE9102 Item: End caps for 5TE9101 (10 units) | Length: - | Division: -
Busbar SystemsSiemens
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 5TE91 busbars for modular installation devices

Brand Siemens·Busbar Systems

Available part numbers (3)

5TE9100, 5TE9101, 5TE9102

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5TE9100Item: 1-phase busbar | Length: 210 mm | Division: 12 MW, 1 MW clearance
5TE9101Item: 2-phase busbar | Length: 220 mm | Division: 12 MW, phases offset 0.5 MW
5TE9102Item: End caps for 5TE9101 (10 units) | Length: - | Division: -
