• Siemens SENTRON 5TL1 on-off switches (32-125 A, 1-4 pole)
1 1

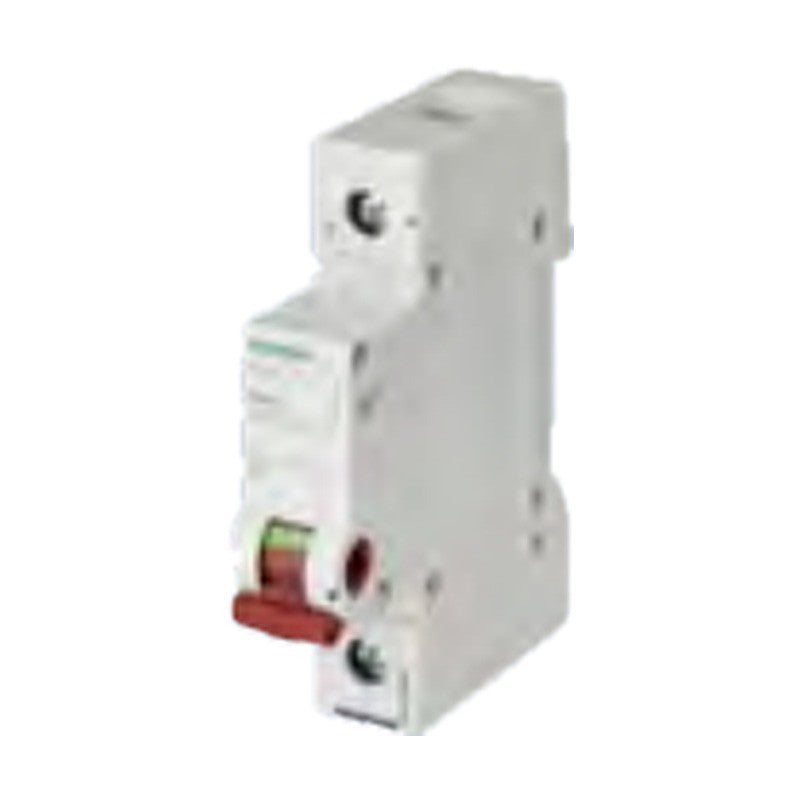

Siemens SENTRON 5TL1 on-off switches (32-125 A, 1-4 pole)

Siemens SENTRON 5TL1 on-off switches (32-125 A, 1-4 pole)

SENTRON 5TL1 modular on-off switches from 32 A to 125 A in 1- to 4-pole and 3-pole + N versions, with gray or red handle.

Key features

  • Rated operational currents 32, 40, 63, 80, 100 and 125 A
  • 1 NO to 4 NO and 3 NO + N, 1 MW per pole
  • Red handle versions for main/emergency switching (63 A, 100 A)
  • Retrofittable auxiliary switches and remote control auxiliaries
  • Phase and N conductor connectors for 2.5 ... 50 mm2

Specifications

Brand Siemens SENTRON
Series 5TL1
Standards IEC/EN 60947-3
Rated impulse voltage Uimp 6 kV
Rated short-circuit making capacity 10 kA
Terminals Screw (Pozidriv PZ2), 3.5 Nm
Ambient temperature -5 ... +40 °C
Source Siemens Catalog LV 10 · 2026, p. 466-467
5TL1132-0 Rated current: 32 A | Contacts: 1 NO | Ue: 230 V AC | Mounting width: 1 MW | Handle: Gray
5TL1140-0 Rated current: 40 A | Contacts: 1 NO | Ue: 230 V AC | Mounting width: 1 MW | Handle: Gray
5TL1163-0 Rated current: 63 A | Contacts: 1 NO | Ue: 230 V AC | Mounting width: 1 MW | Handle: Gray
5TL1163-1 Rated current: 63 A | Contacts: 1 NO | Ue: 230 V AC | Mounting width: 1 MW | Handle: Red
5TL1180-0 Rated current: 80 A | Contacts: 1 NO | Ue: 230 V AC | Mounting width: 1 MW | Handle: Gray
5TL1191-0 Rated current: 100 A | Contacts: 1 NO | Ue: 230 V AC | Mounting width: 1 MW | Handle: Gray
5TL1192-0 Rated current: 125 A | Contacts: 1 NO | Ue: 230 V AC | Mounting width: 1 MW | Handle: Gray
5TL1191-1 Rated current: 100 A | Contacts: 1 NO | Ue: 230 V AC | Mounting width: 1 MW | Handle: Red
5TL1232-0 Rated current: 32 A | Contacts: 2 NO | Ue: 400 V AC | Mounting width: 2 MW | Handle: Gray
5TL1240-0 Rated current: 40 A | Contacts: 2 NO | Ue: 400 V AC | Mounting width: 2 MW | Handle: Gray
5TL1263-0 Rated current: 63 A | Contacts: 2 NO | Ue: 400 V AC | Mounting width: 2 MW | Handle: Gray
5TL1263-1 Rated current: 63 A | Contacts: 2 NO | Ue: 400 V AC | Mounting width: 2 MW | Handle: Red
5TL1280-0 Rated current: 80 A | Contacts: 2 NO | Ue: 400 V AC | Mounting width: 2 MW | Handle: Gray
5TL1291-0 Rated current: 100 A | Contacts: 2 NO | Ue: 400 V AC | Mounting width: 2 MW | Handle: Gray
5TL1292-0 Rated current: 125 A | Contacts: 2 NO | Ue: 400 V AC | Mounting width: 2 MW | Handle: Gray
5TL1291-1 Rated current: 100 A | Contacts: 2 NO | Ue: 400 V AC | Mounting width: 2 MW | Handle: Red
5TL1332-0 Rated current: 32 A | Contacts: 3 NO | Ue: 400 V AC | Mounting width: 3 MW | Handle: Gray
5TL1340-0 Rated current: 40 A | Contacts: 3 NO | Ue: 400 V AC | Mounting width: 3 MW | Handle: Gray
5TL1363-0 Rated current: 63 A | Contacts: 3 NO | Ue: 400 V AC | Mounting width: 3 MW | Handle: Gray
5TL1363-1 Rated current: 63 A | Contacts: 3 NO | Ue: 400 V AC | Mounting width: 3 MW | Handle: Red
5TL1380-0 Rated current: 80 A | Contacts: 3 NO | Ue: 400 V AC | Mounting width: 3 MW | Handle: Gray
5TL1391-0 Rated current: 100 A | Contacts: 3 NO | Ue: 400 V AC | Mounting width: 3 MW | Handle: Gray
5TL1392-0 Rated current: 125 A | Contacts: 3 NO | Ue: 400 V AC | Mounting width: 3 MW | Handle: Gray
5TL1391-1 Rated current: 100 A | Contacts: 3 NO | Ue: 400 V AC | Mounting width: 3 MW | Handle: Red
5TL1432-0 Rated current: 32 A | Contacts: 4 NO | Ue: 400 V AC | Mounting width: 4 MW | Handle: Gray
5TL1440-0 Rated current: 40 A | Contacts: 4 NO | Ue: 400 V AC | Mounting width: 4 MW | Handle: Gray
5TL1463-0 Rated current: 63 A | Contacts: 4 NO | Ue: 400 V AC | Mounting width: 4 MW | Handle: Gray
5TL1480-0 Rated current: 80 A | Contacts: 4 NO | Ue: 400 V AC | Mounting width: 4 MW | Handle: Gray
5TL1491-0 Rated current: 100 A | Contacts: 4 NO | Ue: 400 V AC | Mounting width: 4 MW | Handle: Gray
5TL1492-0 Rated current: 125 A | Contacts: 4 NO | Ue: 400 V AC | Mounting width: 4 MW | Handle: Gray
5TL1632-0 Rated current: 32 A | Contacts: 3 NO + N | Ue: 400 V AC | Mounting width: 4 MW | Handle: Gray
5TL1640-0 Rated current: 40 A | Contacts: 3 NO + N | Ue: 400 V AC | Mounting width: 4 MW | Handle: Gray
5TL1663-0 Rated current: 63 A | Contacts: 3 NO + N | Ue: 400 V AC | Mounting width: 4 MW | Handle: Gray
5TL1663-1 Rated current: 63 A | Contacts: 3 NO + N | Ue: 400 V AC | Mounting width: 4 MW | Handle: Red
5TL1680-0 Rated current: 80 A | Contacts: 3 NO + N | Ue: 400 V AC | Mounting width: 4 MW | Handle: Gray
5TL1691-0 Rated current: 100 A | Contacts: 3 NO + N | Ue: 400 V AC | Mounting width: 4 MW | Handle: Gray
5TL1692-0 Rated current: 125 A | Contacts: 3 NO + N | Ue: 400 V AC | Mounting width: 4 MW | Handle: Gray
5TL1691-1 Rated current: 100 A | Contacts: 3 NO + N | Ue: 400 V AC | Mounting width: 4 MW | Handle: Red
5TL1192-4 Rated current: 125 A | Contacts: Phase connector 1-pole | Ue: 230 V AC | Mounting width: 1 MW | Handle: -
5TL1192-3 Rated current: 125 A | Contacts: N conductor connector 1-pole | Ue: 230 V AC | Mounting width: 1 MW | Handle: -
Switch DisconnectorsSiemens
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 5TL1 on-off switches (32-125 A, 1-4 pole)

Brand Siemens·Switch Disconnectors

Available part numbers (40)

5TL1132-0, 5TL1140-0, 5TL1163-0, 5TL1163-1, 5TL1180-0, 5TL1191-0, 5TL1192-0, 5TL1191-1, 5TL1232-0, 5TL1240-0 + 30 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5TL1132-0Rated current: 32 A | Contacts: 1 NO | Ue: 230 V AC | Mounting width: 1 MW | Handle: Gray
5TL1140-0Rated current: 40 A | Contacts: 1 NO | Ue: 230 V AC | Mounting width: 1 MW | Handle: Gray
5TL1163-0Rated current: 63 A | Contacts: 1 NO | Ue: 230 V AC | Mounting width: 1 MW | Handle: Gray
5TL1163-1Rated current: 63 A | Contacts: 1 NO | Ue: 230 V AC | Mounting width: 1 MW | Handle: Red
5TL1180-0Rated current: 80 A | Contacts: 1 NO | Ue: 230 V AC | Mounting width: 1 MW | Handle: Gray
5TL1191-0Rated current: 100 A | Contacts: 1 NO | Ue: 230 V AC | Mounting width: 1 MW | Handle: Gray
5TL1192-0Rated current: 125 A | Contacts: 1 NO | Ue: 230 V AC | Mounting width: 1 MW | Handle: Gray
5TL1191-1Rated current: 100 A | Contacts: 1 NO | Ue: 230 V AC | Mounting width: 1 MW | Handle: Red
5TL1232-0Rated current: 32 A | Contacts: 2 NO | Ue: 400 V AC | Mounting width: 2 MW | Handle: Gray
5TL1240-0Rated current: 40 A | Contacts: 2 NO | Ue: 400 V AC | Mounting width: 2 MW | Handle: Gray
5TL1263-0Rated current: 63 A | Contacts: 2 NO | Ue: 400 V AC | Mounting width: 2 MW | Handle: Gray
5TL1263-1Rated current: 63 A | Contacts: 2 NO | Ue: 400 V AC | Mounting width: 2 MW | Handle: Red
5TL1280-0Rated current: 80 A | Contacts: 2 NO | Ue: 400 V AC | Mounting width: 2 MW | Handle: Gray
5TL1291-0Rated current: 100 A | Contacts: 2 NO | Ue: 400 V AC | Mounting width: 2 MW | Handle: Gray
5TL1292-0Rated current: 125 A | Contacts: 2 NO | Ue: 400 V AC | Mounting width: 2 MW | Handle: Gray
5TL1291-1Rated current: 100 A | Contacts: 2 NO | Ue: 400 V AC | Mounting width: 2 MW | Handle: Red
5TL1332-0Rated current: 32 A | Contacts: 3 NO | Ue: 400 V AC | Mounting width: 3 MW | Handle: Gray
5TL1340-0Rated current: 40 A | Contacts: 3 NO | Ue: 400 V AC | Mounting width: 3 MW | Handle: Gray
5TL1363-0Rated current: 63 A | Contacts: 3 NO | Ue: 400 V AC | Mounting width: 3 MW | Handle: Gray
5TL1363-1Rated current: 63 A | Contacts: 3 NO | Ue: 400 V AC | Mounting width: 3 MW | Handle: Red
5TL1380-0Rated current: 80 A | Contacts: 3 NO | Ue: 400 V AC | Mounting width: 3 MW | Handle: Gray
5TL1391-0Rated current: 100 A | Contacts: 3 NO | Ue: 400 V AC | Mounting width: 3 MW | Handle: Gray
5TL1392-0Rated current: 125 A | Contacts: 3 NO | Ue: 400 V AC | Mounting width: 3 MW | Handle: Gray
5TL1391-1Rated current: 100 A | Contacts: 3 NO | Ue: 400 V AC | Mounting width: 3 MW | Handle: Red
5TL1432-0Rated current: 32 A | Contacts: 4 NO | Ue: 400 V AC | Mounting width: 4 MW | Handle: Gray
5TL1440-0Rated current: 40 A | Contacts: 4 NO | Ue: 400 V AC | Mounting width: 4 MW | Handle: Gray
5TL1463-0Rated current: 63 A | Contacts: 4 NO | Ue: 400 V AC | Mounting width: 4 MW | Handle: Gray
5TL1480-0Rated current: 80 A | Contacts: 4 NO | Ue: 400 V AC | Mounting width: 4 MW | Handle: Gray
5TL1491-0Rated current: 100 A | Contacts: 4 NO | Ue: 400 V AC | Mounting width: 4 MW | Handle: Gray
5TL1492-0Rated current: 125 A | Contacts: 4 NO | Ue: 400 V AC | Mounting width: 4 MW | Handle: Gray
5TL1632-0Rated current: 32 A | Contacts: 3 NO + N | Ue: 400 V AC | Mounting width: 4 MW | Handle: Gray
5TL1640-0Rated current: 40 A | Contacts: 3 NO + N | Ue: 400 V AC | Mounting width: 4 MW | Handle: Gray
5TL1663-0Rated current: 63 A | Contacts: 3 NO + N | Ue: 400 V AC | Mounting width: 4 MW | Handle: Gray
5TL1663-1Rated current: 63 A | Contacts: 3 NO + N | Ue: 400 V AC | Mounting width: 4 MW | Handle: Red
5TL1680-0Rated current: 80 A | Contacts: 3 NO + N | Ue: 400 V AC | Mounting width: 4 MW | Handle: Gray
5TL1691-0Rated current: 100 A | Contacts: 3 NO + N | Ue: 400 V AC | Mounting width: 4 MW | Handle: Gray
5TL1692-0Rated current: 125 A | Contacts: 3 NO + N | Ue: 400 V AC | Mounting width: 4 MW | Handle: Gray
5TL1691-1Rated current: 100 A | Contacts: 3 NO + N | Ue: 400 V AC | Mounting width: 4 MW | Handle: Red
5TL1192-4Rated current: 125 A | Contacts: Phase connector 1-pole | Ue: 230 V AC | Mounting width: 1 MW | Handle: -
5TL1192-3Rated current: 125 A | Contacts: N conductor connector 1-pole | Ue: 230 V AC | Mounting width: 1 MW | Handle: -
