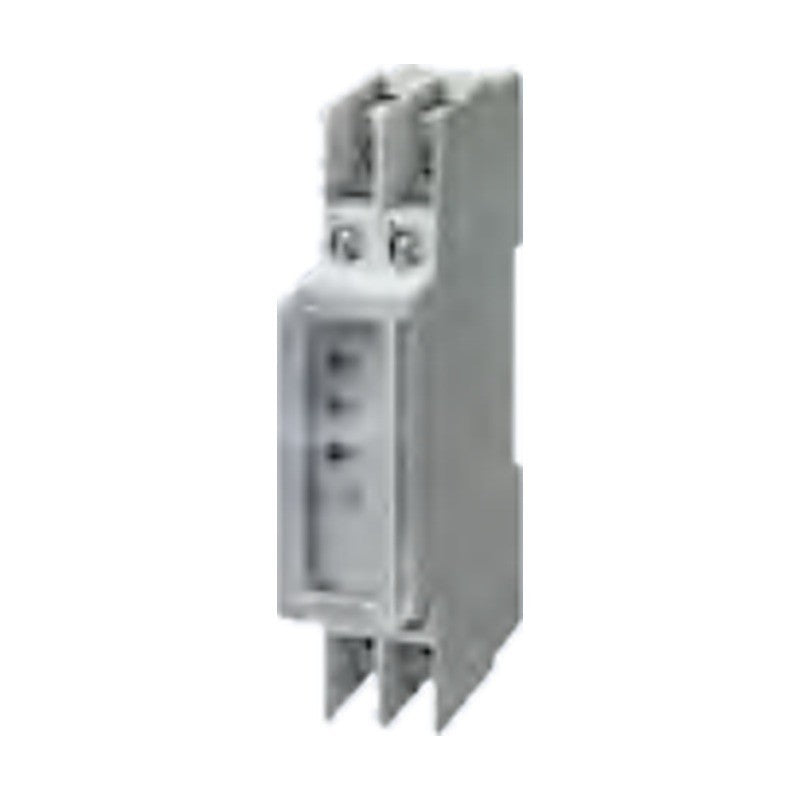

Siemens 5TT3 Fuse, Phase and Phase Sequence Monitors

Siemens 5TT3 Fuse, Phase and Phase Sequence Monitors

Siemens 5TT3 monitors supervise low-voltage fuses, the presence of three phase voltages and the phase sequence in three-phase systems.

Key features

  • 5TT3170 fuse monitor for all low-voltage fuse systems, also for disconnected loads
  • 5TT3421 phase monitor with 3 green LEDs for 3 phases
  • 5TT3423 phase sequence monitor, LED lights for right-rotating field
  • Rated operational voltage 250 V AC, 4 A contacts

Specifications

Series 5TT3
Rated operational voltage 250 V AC
Rated operational current 4 A
Standards IEC 60255, DIN VDE 0435
Terminals Screw (PZ 1)
Mounting DIN rail
Source Siemens Catalog LV 10 · 2026, p. 875-877
5TT3421 Device: Phase monitor, 3 green LEDs | Control voltage: 230/400 V AC | Contacts: 1 CO | Width: 1 MW
5TT3423 Device: Phase sequence monitor, 1 green LED | Control voltage: 400 V AC | Contacts: 1 CO | Width: 1 MW
Monitoring RelaysSiemens
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens 5TT3 Fuse, Phase and Phase Sequence Monitors

Brand Siemens·Monitoring Relays

Available part numbers (2)

5TT3421, 5TT3423

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5TT3421Device: Phase monitor, 3 green LEDs | Control voltage: 230/400 V AC | Contacts: 1 CO | Width: 1 MW
5TT3423Device: Phase sequence monitor, 1 green LED | Control voltage: 400 V AC | Contacts: 1 CO | Width: 1 MW
