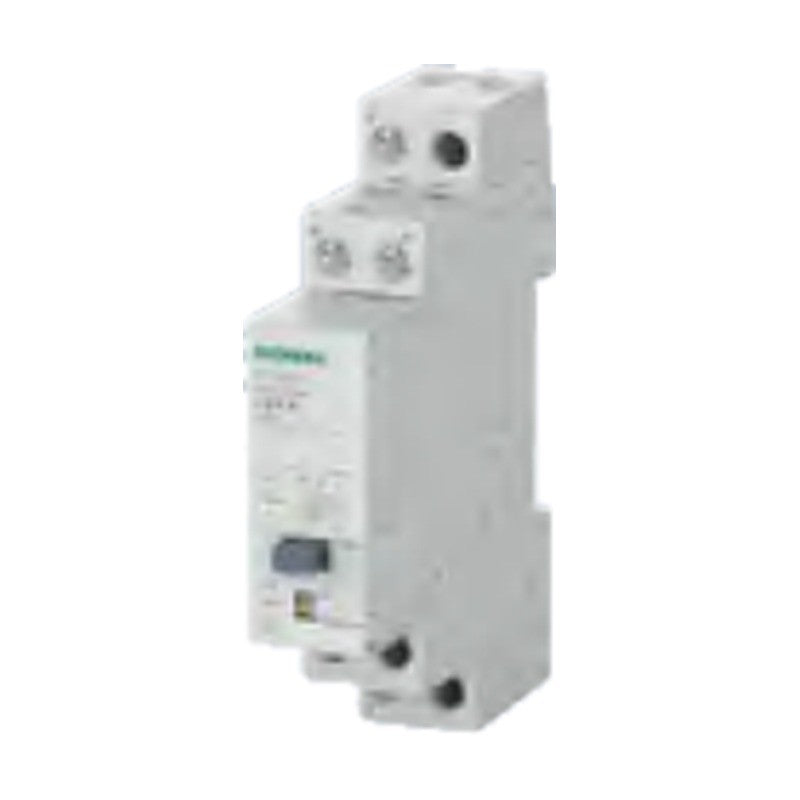

Siemens SENTRON 5TT41 remote control switches (16 A)

Siemens SENTRON 5TT41 remote control switches (16 A)

SENTRON 5TT41 remote control switches (impulse relays) for 16 A with AC or DC control voltage, including central, group, series and shutter versions.

Key features

  • Rated operational current 16 A, 1 to 4 contacts
  • AC control voltages 8 to 230 V and DC control voltages 12 to 110 V
  • Special versions with central or central/group On/Off switching
  • Series remote control switches and shutter/blind remote control switches
  • Retrofittable auxiliary switches and glow lamp compensator

Specifications

Brand Siemens SENTRON
Series 5TT41
Rated current Ie 16 A
Conductor cross-section 1 ... 6 mm2
Mounting DIN rail, modular installation device
Standards IEC/EN 60669-2-2
Source Siemens Catalog LV 10 · 2026, p. 470-473
5TT4101-0 Type: Standard | Contacts: 1 NO | Ue: 250 V | Uc: 230 V AC | Mounting width: 1 MW
5TT4101-1 Type: Standard | Contacts: 1 NO | Ue: 250 V | Uc: 115 V AC | Mounting width: 1 MW
5TT4101-2 Type: Standard | Contacts: 1 NO | Ue: 250 V | Uc: 24 V AC | Mounting width: 1 MW
5TT4101-3 Type: Standard | Contacts: 1 NO | Ue: 250 V | Uc: 12 V AC | Mounting width: 1 MW
5TT4101-4 Type: Standard | Contacts: 1 NO | Ue: 250 V | Uc: 8 V AC | Mounting width: 1 MW
5TT4111-1 Type: Standard | Contacts: 1 NO | Ue: 250 V | Uc: 110 V DC | Mounting width: 1 MW
5TT4111-2 Type: Standard | Contacts: 1 NO | Ue: 250 V | Uc: 24 V DC | Mounting width: 1 MW
5TT4111-3 Type: Standard | Contacts: 1 NO | Ue: 250 V | Uc: 12 V DC | Mounting width: 1 MW
5TT4105-0 Type: Standard | Contacts: 1 NO + 1 NC | Ue: 250 V | Uc: 230 V AC | Mounting width: 1 MW
5TT4105-1 Type: Standard | Contacts: 1 NO + 1 NC | Ue: 250 V | Uc: 115 V AC | Mounting width: 1 MW
5TT4105-2 Type: Standard | Contacts: 1 NO + 1 NC | Ue: 250 V | Uc: 24 V AC | Mounting width: 1 MW
5TT4105-3 Type: Standard | Contacts: 1 NO + 1 NC | Ue: 250 V | Uc: 12 V AC | Mounting width: 1 MW
5TT4105-4 Type: Standard | Contacts: 1 NO + 1 NC | Ue: 250 V | Uc: 8 V AC | Mounting width: 1 MW
5TT4115-1 Type: Standard | Contacts: 1 NO + 1 NC | Ue: 250 V | Uc: 110 V DC | Mounting width: 1 MW
5TT4115-2 Type: Standard | Contacts: 1 NO + 1 NC | Ue: 250 V | Uc: 24 V DC | Mounting width: 1 MW
5TT4115-3 Type: Standard | Contacts: 1 NO + 1 NC | Ue: 250 V | Uc: 12 V DC | Mounting width: 1 MW
5TT4102-0 Type: Standard | Contacts: 2 NO | Ue: 400 V | Uc: 230 V AC | Mounting width: 1 MW
5TT4102-1 Type: Standard | Contacts: 2 NO | Ue: 400 V | Uc: 115 V AC | Mounting width: 1 MW
5TT4102-2 Type: Standard | Contacts: 2 NO | Ue: 400 V | Uc: 24 V AC | Mounting width: 1 MW
5TT4102-3 Type: Standard | Contacts: 2 NO | Ue: 400 V | Uc: 12 V AC | Mounting width: 1 MW
5TT4102-4 Type: Standard | Contacts: 2 NO | Ue: 400 V | Uc: 8 V AC | Mounting width: 1 MW
5TT4112-1 Type: Standard | Contacts: 2 NO | Ue: 400 V | Uc: 110 V DC | Mounting width: 1 MW
5TT4112-2 Type: Standard | Contacts: 2 NO | Ue: 400 V | Uc: 24 V DC | Mounting width: 1 MW
5TT4112-3 Type: Standard | Contacts: 2 NO | Ue: 400 V | Uc: 12 V DC | Mounting width: 1 MW
5TT4103-0 Type: Standard | Contacts: 3 NO | Ue: 400 V | Uc: 230 V AC | Mounting width: 2 MW
5TT4103-2 Type: Standard | Contacts: 3 NO | Ue: 400 V | Uc: 24 V AC | Mounting width: 2 MW
5TT4104-0 Type: Standard | Contacts: 4 NO | Ue: 400 V | Uc: 230 V AC | Mounting width: 2 MW
5TT4104-2 Type: Standard | Contacts: 4 NO | Ue: 400 V | Uc: 24 V AC | Mounting width: 2 MW
5TT4114-1 Type: Standard | Contacts: 4 NO | Ue: 400 V | Uc: 110 V DC | Mounting width: 2 MW
5TT4114-2 Type: Standard | Contacts: 4 NO | Ue: 400 V | Uc: 24 V DC | Mounting width: 2 MW
5TT4121-0 Type: Central On/Off | Contacts: 1 NO | Ue: 250 V | Uc: 230 V AC | Mounting width: 1.5 MW
5TT4121-2 Type: Central On/Off | Contacts: 1 NO | Ue: 250 V | Uc: 24 V AC | Mounting width: 1.5 MW
5TT4122-0 Type: Central On/Off | Contacts: 2 NO | Ue: 400 V | Uc: 230 V AC | Mounting width: 1.5 MW
5TT4122-2 Type: Central On/Off | Contacts: 2 NO | Ue: 400 V | Uc: 24 V AC | Mounting width: 1.5 MW
5TT4123-0 Type: Central On/Off | Contacts: 3 NO | Ue: 400 V | Uc: 230 V AC | Mounting width: 2.5 MW
5TT4125-0 Type: Central On/Off | Contacts: 1 NO + 1 NC | Ue: 250 V | Uc: 115 V AC | Mounting width: 1.5 MW
5TT4151-0 Type: Central and group On/Off | Contacts: 1 NO | Ue: 250 V | Uc: 230 V AC | Mounting width: 1.5 MW
5TT4151-2 Type: Central and group On/Off | Contacts: 1 NO | Ue: 250 V | Uc: 24 V AC | Mounting width: 1.5 MW
5TT4152-0 Type: Central and group On/Off | Contacts: 2 NO | Ue: 400 V | Uc: 230 V AC | Mounting width: 1.5 MW
5TT4152-2 Type: Central and group On/Off | Contacts: 2 NO | Ue: 400 V | Uc: 24 V AC | Mounting width: 1.5 MW
5TT4132-0 Type: Series switch 1-2-1+2-0 | Contacts: 2 NO | Ue: 250 V | Uc: 230 V AC | Mounting width: 1 MW
5TT4132-3 Type: Series switch 1-2-1+2-0 | Contacts: 2 NO | Ue: 250 V | Uc: 12 V AC | Mounting width: 1 MW
5TT4142-0 Type: Shutter/blind switch 1-0-2-0 | Contacts: 2 NO | Ue: 250 V | Uc: 230 V AC | Mounting width: 1 MW
5TT4142-2 Type: Shutter/blind switch 1-0-2-0 | Contacts: 2 NO | Ue: 250 V | Uc: 24 V AC | Mounting width: 1 MW
5TT4142-3 Type: Shutter/blind switch 1-0-2-0 | Contacts: 2 NO | Ue: 250 V | Uc: 12 V AC | Mounting width: 1 MW
5TT4900 Type: Auxiliary switch for 5TT41 | Contacts: 1 CO, 5 A | Ue: 250 V AC | Uc: - | Mounting width: 0.5 MW
5TT4901 Type: Aux. switch for 5TT41, low power | Contacts: 1 CO, 0.1 A | Ue: 30 V AC/DC | Uc: - | Mounting width: 0.5 MW
5TT4920 Type: Compensator (+20 mA glow lamp load) | Contacts: - | Ue: 250 V AC | Uc: - | Mounting width: 1 MW
Coupling RelaysSiemens
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 5TT41 remote control switches (16 A)

Brand Siemens·Coupling Relays

Available part numbers (48)

5TT4101-0, 5TT4101-1, 5TT4101-2, 5TT4101-3, 5TT4101-4, 5TT4111-1, 5TT4111-2, 5TT4111-3, 5TT4105-0, 5TT4105-1 + 38 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5TT4101-0Type: Standard | Contacts: 1 NO | Ue: 250 V | Uc: 230 V AC | Mounting width: 1 MW
5TT4101-1Type: Standard | Contacts: 1 NO | Ue: 250 V | Uc: 115 V AC | Mounting width: 1 MW
5TT4101-2Type: Standard | Contacts: 1 NO | Ue: 250 V | Uc: 24 V AC | Mounting width: 1 MW
5TT4101-3Type: Standard | Contacts: 1 NO | Ue: 250 V | Uc: 12 V AC | Mounting width: 1 MW
5TT4101-4Type: Standard | Contacts: 1 NO | Ue: 250 V | Uc: 8 V AC | Mounting width: 1 MW
5TT4111-1Type: Standard | Contacts: 1 NO | Ue: 250 V | Uc: 110 V DC | Mounting width: 1 MW
5TT4111-2Type: Standard | Contacts: 1 NO | Ue: 250 V | Uc: 24 V DC | Mounting width: 1 MW
5TT4111-3Type: Standard | Contacts: 1 NO | Ue: 250 V | Uc: 12 V DC | Mounting width: 1 MW
5TT4105-0Type: Standard | Contacts: 1 NO + 1 NC | Ue: 250 V | Uc: 230 V AC | Mounting width: 1 MW
5TT4105-1Type: Standard | Contacts: 1 NO + 1 NC | Ue: 250 V | Uc: 115 V AC | Mounting width: 1 MW
5TT4105-2Type: Standard | Contacts: 1 NO + 1 NC | Ue: 250 V | Uc: 24 V AC | Mounting width: 1 MW
5TT4105-3Type: Standard | Contacts: 1 NO + 1 NC | Ue: 250 V | Uc: 12 V AC | Mounting width: 1 MW
5TT4105-4Type: Standard | Contacts: 1 NO + 1 NC | Ue: 250 V | Uc: 8 V AC | Mounting width: 1 MW
5TT4115-1Type: Standard | Contacts: 1 NO + 1 NC | Ue: 250 V | Uc: 110 V DC | Mounting width: 1 MW
5TT4115-2Type: Standard | Contacts: 1 NO + 1 NC | Ue: 250 V | Uc: 24 V DC | Mounting width: 1 MW
5TT4115-3Type: Standard | Contacts: 1 NO + 1 NC | Ue: 250 V | Uc: 12 V DC | Mounting width: 1 MW
5TT4102-0Type: Standard | Contacts: 2 NO | Ue: 400 V | Uc: 230 V AC | Mounting width: 1 MW
5TT4102-1Type: Standard | Contacts: 2 NO | Ue: 400 V | Uc: 115 V AC | Mounting width: 1 MW
5TT4102-2Type: Standard | Contacts: 2 NO | Ue: 400 V | Uc: 24 V AC | Mounting width: 1 MW
5TT4102-3Type: Standard | Contacts: 2 NO | Ue: 400 V | Uc: 12 V AC | Mounting width: 1 MW
5TT4102-4Type: Standard | Contacts: 2 NO | Ue: 400 V | Uc: 8 V AC | Mounting width: 1 MW
5TT4112-1Type: Standard | Contacts: 2 NO | Ue: 400 V | Uc: 110 V DC | Mounting width: 1 MW
5TT4112-2Type: Standard | Contacts: 2 NO | Ue: 400 V | Uc: 24 V DC | Mounting width: 1 MW
5TT4112-3Type: Standard | Contacts: 2 NO | Ue: 400 V | Uc: 12 V DC | Mounting width: 1 MW
5TT4103-0Type: Standard | Contacts: 3 NO | Ue: 400 V | Uc: 230 V AC | Mounting width: 2 MW
5TT4103-2Type: Standard | Contacts: 3 NO | Ue: 400 V | Uc: 24 V AC | Mounting width: 2 MW
5TT4104-0Type: Standard | Contacts: 4 NO | Ue: 400 V | Uc: 230 V AC | Mounting width: 2 MW
5TT4104-2Type: Standard | Contacts: 4 NO | Ue: 400 V | Uc: 24 V AC | Mounting width: 2 MW
5TT4114-1Type: Standard | Contacts: 4 NO | Ue: 400 V | Uc: 110 V DC | Mounting width: 2 MW
5TT4114-2Type: Standard | Contacts: 4 NO | Ue: 400 V | Uc: 24 V DC | Mounting width: 2 MW
5TT4121-0Type: Central On/Off | Contacts: 1 NO | Ue: 250 V | Uc: 230 V AC | Mounting width: 1.5 MW
5TT4121-2Type: Central On/Off | Contacts: 1 NO | Ue: 250 V | Uc: 24 V AC | Mounting width: 1.5 MW
5TT4122-0Type: Central On/Off | Contacts: 2 NO | Ue: 400 V | Uc: 230 V AC | Mounting width: 1.5 MW
5TT4122-2Type: Central On/Off | Contacts: 2 NO | Ue: 400 V | Uc: 24 V AC | Mounting width: 1.5 MW
5TT4123-0Type: Central On/Off | Contacts: 3 NO | Ue: 400 V | Uc: 230 V AC | Mounting width: 2.5 MW
5TT4125-0Type: Central On/Off | Contacts: 1 NO + 1 NC | Ue: 250 V | Uc: 115 V AC | Mounting width: 1.5 MW
5TT4151-0Type: Central and group On/Off | Contacts: 1 NO | Ue: 250 V | Uc: 230 V AC | Mounting width: 1.5 MW
5TT4151-2Type: Central and group On/Off | Contacts: 1 NO | Ue: 250 V | Uc: 24 V AC | Mounting width: 1.5 MW
5TT4152-0Type: Central and group On/Off | Contacts: 2 NO | Ue: 400 V | Uc: 230 V AC | Mounting width: 1.5 MW
5TT4152-2Type: Central and group On/Off | Contacts: 2 NO | Ue: 400 V | Uc: 24 V AC | Mounting width: 1.5 MW
5TT4132-0Type: Series switch 1-2-1+2-0 | Contacts: 2 NO | Ue: 250 V | Uc: 230 V AC | Mounting width: 1 MW
5TT4132-3Type: Series switch 1-2-1+2-0 | Contacts: 2 NO | Ue: 250 V | Uc: 12 V AC | Mounting width: 1 MW
5TT4142-0Type: Shutter/blind switch 1-0-2-0 | Contacts: 2 NO | Ue: 250 V | Uc: 230 V AC | Mounting width: 1 MW
5TT4142-2Type: Shutter/blind switch 1-0-2-0 | Contacts: 2 NO | Ue: 250 V | Uc: 24 V AC | Mounting width: 1 MW
5TT4142-3Type: Shutter/blind switch 1-0-2-0 | Contacts: 2 NO | Ue: 250 V | Uc: 12 V AC | Mounting width: 1 MW
5TT4900Type: Auxiliary switch for 5TT41 | Contacts: 1 CO, 5 A | Ue: 250 V AC | Uc: - | Mounting width: 0.5 MW
5TT4901Type: Aux. switch for 5TT41, low power | Contacts: 1 CO, 0.1 A | Ue: 30 V AC/DC | Uc: - | Mounting width: 0.5 MW
5TT4920Type: Compensator (+20 mA glow lamp load) | Contacts: - | Ue: 250 V AC | Uc: - | Mounting width: 1 MW
