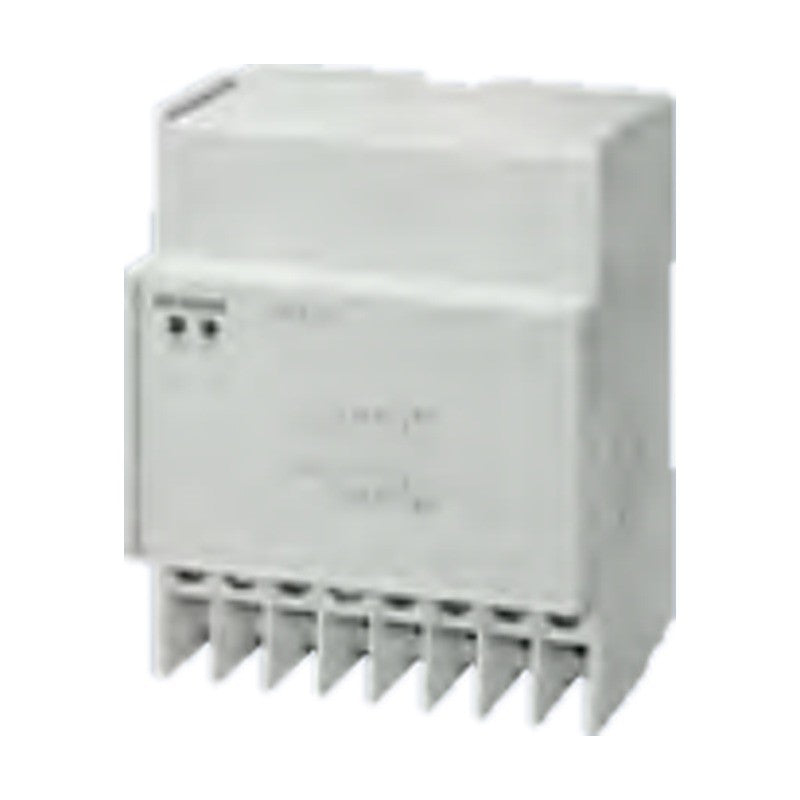

Siemens 5TT5 EMERGENCY STOP Module (4 MW)

The Siemens 5TT5 EMERGENCY STOP module provides personal and machine protection in a compact 4 MW modular installation device.

Key features

Certified by German Technical Inspectorate Rheinland
Standards include ISO 13849-1, ISO 13850, EN 62061, EN 60204-1
Control voltage 24 V AC/DC at terminal Y1
Contacts NO AC-15 3 A, NC AC-15 2 A, NO/NC AC-1 5 A
Recovery time 500 ms, 600 operating cycles/h

Specifications

Series	5TT5
Width	4 MW
Rated frequency	50 Hz
Terminals	Screw (PZ 1)
Mounting	DIN rail
Ambient temperature	0 to +50 °C
Source	Siemens Catalog LV 10 · 2026, p. 879

5TT5200

Device: EMERGENCY STOP module | Rated voltage: 400 V AC | Rated current: 5 A | Control circuit voltage: 230 V AC
