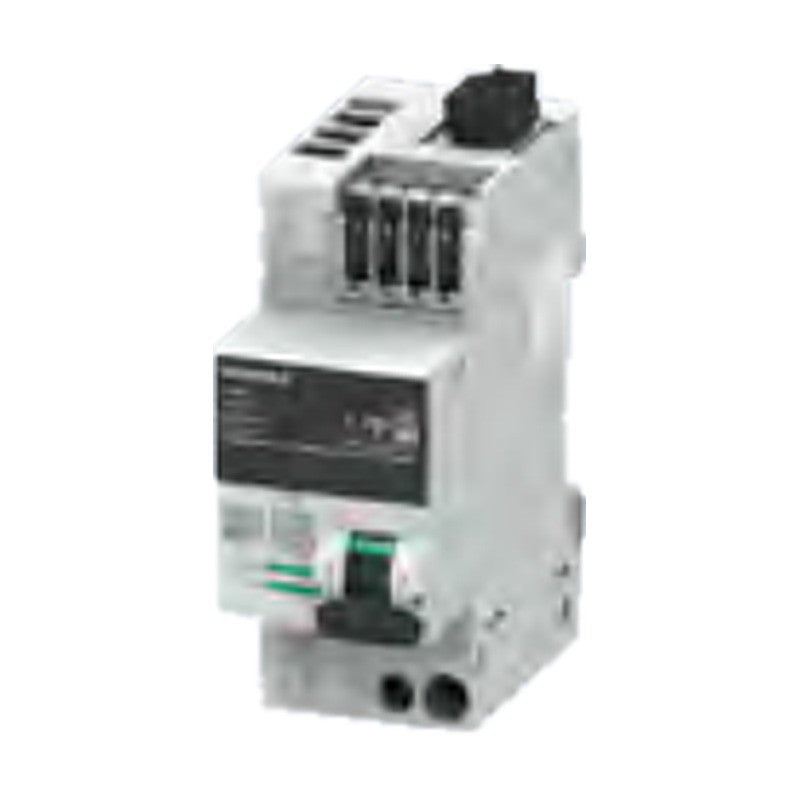

Siemens SENTRON 5TY1 COM Electronic Circuit Protection Devices

Siemens 5TY1 COM electronic circuit protection devices (ECPD) with RCBO function, measuring and wireless communication function.

Key features

RCBO function conforming to IEC/EN 61009-1 (IEC/EN 62423), type F, 30 mA
SIGRES super resistant [K] version with 75 kA short-circuit breaking capacity
Magnetic tripping 3 … 3.6 × In, thermal tripping 1.05 … 1.13 × In
Measured values and switching state transmitted by radio to SENTRON Powercenter 1100/2000
Limit monitoring for current, voltage, temperature, operating hours and trips

Specifications

Series	SENTRON 5TY1 COM
Version	SIGRES, super resistant [K]
Mounting width	2 MW
Breaking capacity	75 kA
Magnetic tripping	3 … 3.6 × In
Thermal tripping	1.05 … 1.13 × In
Type	F
IΔn	30 mA
Rated voltage	230 V AC
N connection	Right
Source	Siemens Catalog LV 10 · 2026, p. 4/54-4/55

5TY1350-3MF06		In: 6 A
5TY1350-3MF10		In: 10 A
5TY1350-3MF16		In: 16 A

Residual Current DevicesSiemens

3 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON 5TY1 COM Electronic Circuit Protection Devices

Brand Siemens·Residual Current Devices

Available part numbers (3)

5TY1350-3MF06, 5TY1350-3MF10, 5TY1350-3MF16
