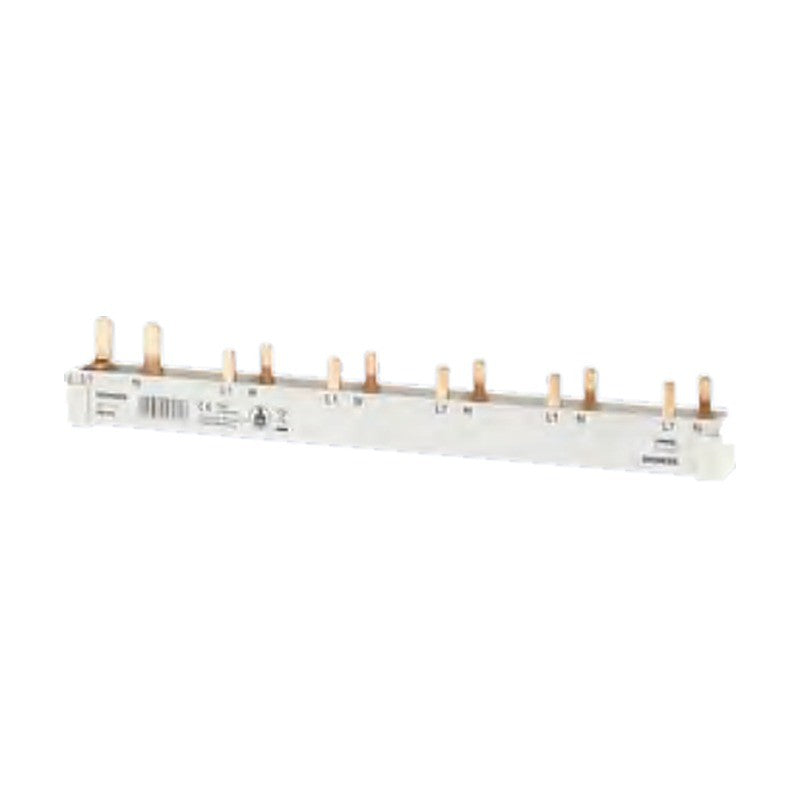

Siemens SENTRON Standard Busbars for 5SM6 AFDD and 5TY1 COM Devices

Siemens SENTRON Standard Busbars for 5SM6 AFDD and 5TY1 COM Devices

Siemens standard pin busbars for devices with add-on 5SM6 arc fault detection units and 5TY1 COM electronic circuit protection devices.

Key features

  • Pin spacing adapted to devices with mounted 5SM6 AFDD units
  • Fixed-length and cut-to-length versions
  • 1-phase (straight or angled 45°), 2-phase, 3-phase and 4-phase versions
  • Conductor cross-section 10 mm²

Specifications

Cross-section 10 mm²
End caps included No
Brand line SENTRON
Product group Pin busbars
Module width 1 MW = 18 mm
Mounting Modular installation devices
Source Siemens Catalog LV 10 · 2026, p. 4/81-4/82
5ST3615-1 Phases: 3-phase | Application: For 5SM601. and 5TY1 COM | No. of MW: 12 MW | Length: 210 mm | Color: Gray | Version: Fixed length
5ST3764-1 Phases: 1-phase, straight | Application: For 5SM601. and 5TY1 COM | No. of MW: 56 MW | Length: 1000 mm | Color: Gray | Version: Can be cut
5ST3765-2 Phases: 1-phase, straight | Application: For 5SM601. and 5TY1 COM | No. of MW: 56 MW | Length: 1000 mm | Color: Blue | Version: Can be cut
5ST3765-1 Phases: 1-phase, angled 45° | Application: For 5SM601. and 5TY1 COM | No. of MW: 56 MW | Length: 1000 mm | Color: Blue | Version: Can be cut
5ST3735-1 Phases: 2-phase/1-phase+N | Application: For 5SM602. (1P+N) | No. of MW: 56 MW | Length: 1000 mm | Color: Gray | Version: Can be cut
5ST3740-1 Phases: 3-phase | Application: For 5SM601. and 5TY1 COM | No. of MW: 60 MW | Length: 1050 mm | Color: Gray | Version: Can be cut
5ST3746-1 Phases: 4-phase/3-phase+N | Application: For 5SM602. | No. of MW: 52 MW | Length: 950 mm | Color: Gray | Version: Can be cut
Busbar SystemsSiemens
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON Standard Busbars for 5SM6 AFDD and 5TY1 COM Devices

Brand Siemens·Busbar Systems

Available part numbers (7)

5ST3615-1, 5ST3764-1, 5ST3765-2, 5ST3765-1, 5ST3735-1, 5ST3740-1, 5ST3746-1

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5ST3615-1Phases: 3-phase | Application: For 5SM601. and 5TY1 COM | No. of MW: 12 MW | Length: 210 mm | Color: Gray | Version: Fixed length
5ST3764-1Phases: 1-phase, straight | Application: For 5SM601. and 5TY1 COM | No. of MW: 56 MW | Length: 1000 mm | Color: Gray | Version: Can be cut
5ST3765-2Phases: 1-phase, straight | Application: For 5SM601. and 5TY1 COM | No. of MW: 56 MW | Length: 1000 mm | Color: Blue | Version: Can be cut
5ST3765-1Phases: 1-phase, angled 45° | Application: For 5SM601. and 5TY1 COM | No. of MW: 56 MW | Length: 1000 mm | Color: Blue | Version: Can be cut
5ST3735-1Phases: 2-phase/1-phase+N | Application: For 5SM602. (1P+N) | No. of MW: 56 MW | Length: 1000 mm | Color: Gray | Version: Can be cut
5ST3740-1Phases: 3-phase | Application: For 5SM601. and 5TY1 COM | No. of MW: 60 MW | Length: 1050 mm | Color: Gray | Version: Can be cut
5ST3746-1Phases: 4-phase/3-phase+N | Application: For 5SM602. | No. of MW: 52 MW | Length: 950 mm | Color: Gray | Version: Can be cut
