• Siemens SENTRON SIKclip Wiring System 5ST25
1 1

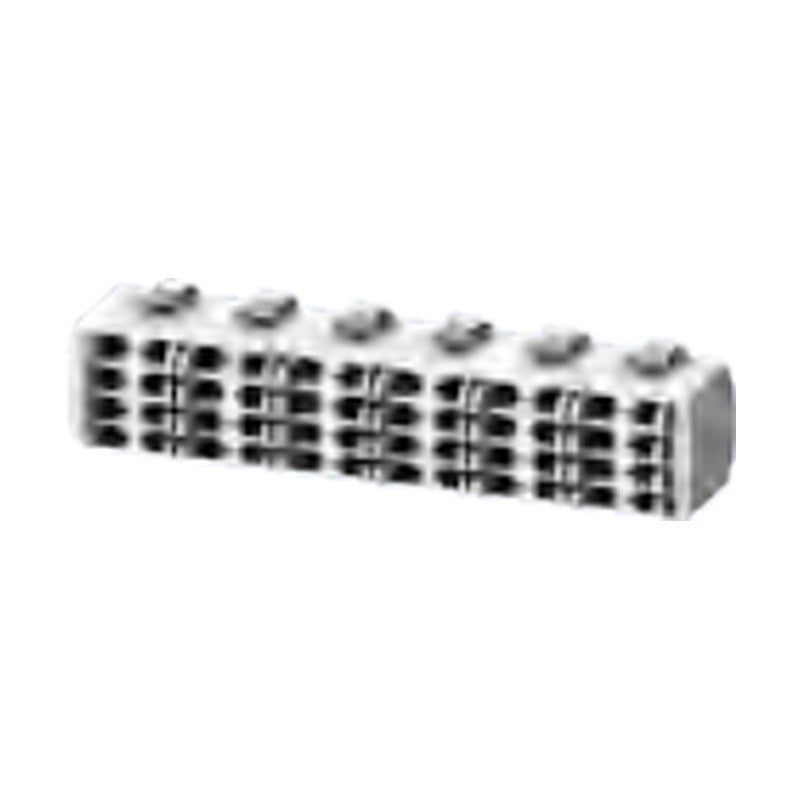

Siemens SENTRON SIKclip Wiring System 5ST25

Siemens SENTRON SIKclip Wiring System 5ST25

SENTRON SIKclip wiring system with busbars and plug-in connecting cables for fast wiring of modular installation devices.

Key features

  • SIKclip busbars in 12, 24 and 36 MW lengths
  • Connecting cables with plug, 120 and 200 mm, 6 and 10 mm2
  • Max. rated current 250 A, max. output current 63 A
  • Crimp connector and rear DIN-rail mounting brackets

Specifications

Brand Siemens
Product line SENTRON
Rated operational voltage 400 V AC
Max. rated current 250 A
Rated short-time withstand current Icw (1 s) 10 kA
Degree of protection IP20
Standard EN 61439-1
Source Siemens Catalog LV 10 · 2026, p. 363
5ST2520 Type: SIKclip busbar | Length: 12 MW
5ST2521 Type: SIKclip busbar | Length: 24 MW
5ST2522 Type: SIKclip busbar | Length: 36 MW
5ST2523 Type: Connecting cable with plug | Length: 120 mm | Cross-section: 6 mm2 | Color: Black
5ST2524 Type: Connecting cable with plug | Length: 120 mm | Cross-section: 6 mm2 | Color: Blue
5ST2525 Type: Connecting cable with plug | Length: 120 mm | Cross-section: 10 mm2 | Color: Black
5ST2526 Type: Connecting cable with plug | Length: 120 mm | Cross-section: 10 mm2 | Color: Blue
5ST2527 Type: Connecting cable with plug | Length: 200 mm | Cross-section: 6 mm2 | Color: Black
5ST2528 Type: Connecting cable with plug | Length: 200 mm | Cross-section: 6 mm2 | Color: Blue
5ST2530 Type: Connecting cable with plug | Length: 200 mm | Cross-section: 10 mm2 | Color: Black
5ST2531 Type: Connecting cable with plug | Length: 200 mm | Cross-section: 10 mm2 | Color: Blue
5ST2532 Type: Crimp connector, for 4/6 mm2 cables
5ST2533 Type: Mounting brackets for DIN rail (pair)
Busbar SystemsSiemens
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON SIKclip Wiring System 5ST25

Brand Siemens·Busbar Systems

Available part numbers (13)

5ST2520, 5ST2521, 5ST2522, 5ST2523, 5ST2524, 5ST2525, 5ST2526, 5ST2527, 5ST2528, 5ST2530 + 3 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5ST2520Type: SIKclip busbar | Length: 12 MW
5ST2521Type: SIKclip busbar | Length: 24 MW
5ST2522Type: SIKclip busbar | Length: 36 MW
5ST2523Type: Connecting cable with plug | Length: 120 mm | Cross-section: 6 mm2 | Color: Black
5ST2524Type: Connecting cable with plug | Length: 120 mm | Cross-section: 6 mm2 | Color: Blue
5ST2525Type: Connecting cable with plug | Length: 120 mm | Cross-section: 10 mm2 | Color: Black
5ST2526Type: Connecting cable with plug | Length: 120 mm | Cross-section: 10 mm2 | Color: Blue
5ST2527Type: Connecting cable with plug | Length: 200 mm | Cross-section: 6 mm2 | Color: Black
5ST2528Type: Connecting cable with plug | Length: 200 mm | Cross-section: 6 mm2 | Color: Blue
5ST2530Type: Connecting cable with plug | Length: 200 mm | Cross-section: 10 mm2 | Color: Black
5ST2531Type: Connecting cable with plug | Length: 200 mm | Cross-section: 10 mm2 | Color: Blue
5ST2532Type: Crimp connector, for 4/6 mm2 cables
5ST2533Type: Mounting brackets for DIN rail (pair)
