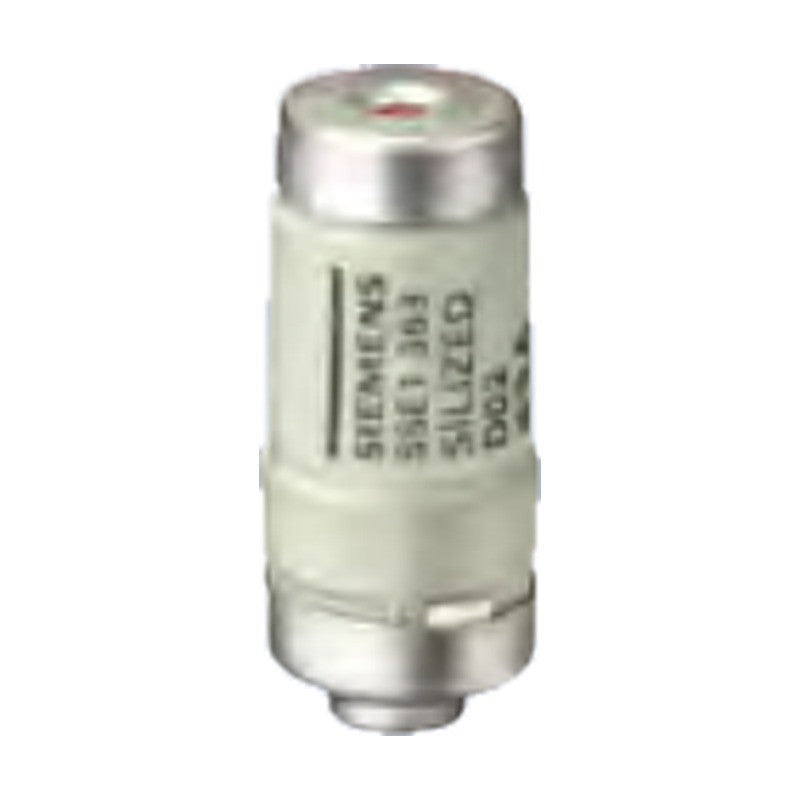

Siemens SENTRON SILIZED fuse links gR (NEOZED/DIAZED design)

Siemens SENTRON SILIZED fuse links gR (NEOZED/DIAZED design)

SENTRON SILIZED ultra-rapid fuse links of operational class gR in NEOZED and DIAZED design for semiconductor protection.

Key features

  • Operational class gR for semiconductor and line protection
  • NEOZED design D01/D02 and DIAZED design DII-DIV
  • Rated currents 10 A to 100 A
  • Low switch-off I2t values

Specifications

Brand Siemens SENTRON
Brand line SILIZED
Operational class gR
Manufacturer Siemens
Product type Fuses & Fuse Holders
Source Siemens Catalog LV 10 · 2026, p. 560
5SE1310 Design: NEOZED | Size: D01 | Rated current: 10 A | Switch-off I2t: 73 A²s | Power loss: 6.9 W | Un AC/DC: 400 V/250 V
5SD420 Design: DIAZED | Size: DII | Rated current: 16 A | Switch-off I2t: 60 A²s | Power loss: 12.1 W | Un AC/DC: 500 V/500 V
5SE1316 Design: NEOZED | Size: D01 | Rated current: 16 A | Switch-off I2t: 120 A²s | Power loss: 6.2 W | Un AC/DC: 400 V/250 V
5SD430 Design: DIAZED | Size: DII | Rated current: 20 A | Switch-off I2t: 139 A²s | Power loss: 12.3 W | Un AC/DC: 500 V/500 V
5SE1320 Design: NEOZED | Size: D02 | Rated current: 20 A | Switch-off I2t: 190 A²s | Power loss: 8.1 W | Un AC/DC: 400 V/250 V
5SD440 Design: DIAZED | Size: DII | Rated current: 25 A | Switch-off I2t: 205 A²s | Power loss: 12.5 W | Un AC/DC: 500 V/500 V
5SE1325 Design: NEOZED | Size: D02 | Rated current: 25 A | Switch-off I2t: 215 A²s | Power loss: 8.2 W | Un AC/DC: 400 V/250 V
5SD480 Design: DIAZED | Size: DII | Rated current: 30 A | Switch-off I2t: 310 A²s | Power loss: 13.5 W | Un AC/DC: 500 V/500 V
5SE1335 Design: NEOZED | Size: D02 | Rated current: 35 A | Switch-off I2t: 470 A²s | Power loss: 16.7 W | Un AC/DC: 400 V/250 V
5SD450 Design: DIAZED | Size: DIII | Rated current: 35 A | Switch-off I2t: 539 A²s | Power loss: 14.8 W | Un AC/DC: 500 V/500 V
5SD460 Design: DIAZED | Size: DIII | Rated current: 50 A | Switch-off I2t: 1250 A²s | Power loss: 18.5 W | Un AC/DC: 500 V/500 V
5SE1350 Design: NEOZED | Size: D02 | Rated current: 50 A | Switch-off I2t: 1960 A²s | Power loss: 12.0 W | Un AC/DC: 400 V/250 V
5SD470 Design: DIAZED | Size: DIII | Rated current: 63 A | Switch-off I2t: 1890 A²s | Power loss: 28.0 W | Un AC/DC: 500 V/500 V
5SE1363 Design: NEOZED | Size: D02 | Rated current: 63 A | Switch-off I2t: 4230 A²s | Power loss: 15.5 W | Un AC/DC: 400 V/250 V
5SD510 Design: DIAZED | Size: DIV | Rated current: 80 A | Switch-off I2t: 4200 A²s | Power loss: 34.3 W | Un AC/DC: 500 V/500 V
5SD520 Design: DIAZED | Size: DIV | Rated current: 100 A | Switch-off I2t: 8450 A²s | Power loss: 41.5 W | Un AC/DC: 500 V/500 V
Fuses & Fuse HoldersSiemens
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON SILIZED fuse links gR (NEOZED/DIAZED design)

Brand Siemens·Fuses & Fuse Holders

Available part numbers (16)

5SE1310, 5SD420, 5SE1316, 5SD430, 5SE1320, 5SD440, 5SE1325, 5SD480, 5SE1335, 5SD450 + 6 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5SE1310Design: NEOZED | Size: D01 | Rated current: 10 A | Switch-off I2t: 73 A²s | Power loss: 6.9 W | Un AC/DC: 400 V/250 V
5SD420Design: DIAZED | Size: DII | Rated current: 16 A | Switch-off I2t: 60 A²s | Power loss: 12.1 W | Un AC/DC: 500 V/500 V
5SE1316Design: NEOZED | Size: D01 | Rated current: 16 A | Switch-off I2t: 120 A²s | Power loss: 6.2 W | Un AC/DC: 400 V/250 V
5SD430Design: DIAZED | Size: DII | Rated current: 20 A | Switch-off I2t: 139 A²s | Power loss: 12.3 W | Un AC/DC: 500 V/500 V
5SE1320Design: NEOZED | Size: D02 | Rated current: 20 A | Switch-off I2t: 190 A²s | Power loss: 8.1 W | Un AC/DC: 400 V/250 V
5SD440Design: DIAZED | Size: DII | Rated current: 25 A | Switch-off I2t: 205 A²s | Power loss: 12.5 W | Un AC/DC: 500 V/500 V
5SE1325Design: NEOZED | Size: D02 | Rated current: 25 A | Switch-off I2t: 215 A²s | Power loss: 8.2 W | Un AC/DC: 400 V/250 V
5SD480Design: DIAZED | Size: DII | Rated current: 30 A | Switch-off I2t: 310 A²s | Power loss: 13.5 W | Un AC/DC: 500 V/500 V
5SE1335Design: NEOZED | Size: D02 | Rated current: 35 A | Switch-off I2t: 470 A²s | Power loss: 16.7 W | Un AC/DC: 400 V/250 V
5SD450Design: DIAZED | Size: DIII | Rated current: 35 A | Switch-off I2t: 539 A²s | Power loss: 14.8 W | Un AC/DC: 500 V/500 V
5SD460Design: DIAZED | Size: DIII | Rated current: 50 A | Switch-off I2t: 1250 A²s | Power loss: 18.5 W | Un AC/DC: 500 V/500 V
5SE1350Design: NEOZED | Size: D02 | Rated current: 50 A | Switch-off I2t: 1960 A²s | Power loss: 12.0 W | Un AC/DC: 400 V/250 V
5SD470Design: DIAZED | Size: DIII | Rated current: 63 A | Switch-off I2t: 1890 A²s | Power loss: 28.0 W | Un AC/DC: 500 V/500 V
5SE1363Design: NEOZED | Size: D02 | Rated current: 63 A | Switch-off I2t: 4230 A²s | Power loss: 15.5 W | Un AC/DC: 400 V/250 V
5SD510Design: DIAZED | Size: DIV | Rated current: 80 A | Switch-off I2t: 4200 A²s | Power loss: 34.3 W | Un AC/DC: 500 V/500 V
5SD520Design: DIAZED | Size: DIV | Rated current: 100 A | Switch-off I2t: 8450 A²s | Power loss: 41.5 W | Un AC/DC: 500 V/500 V
