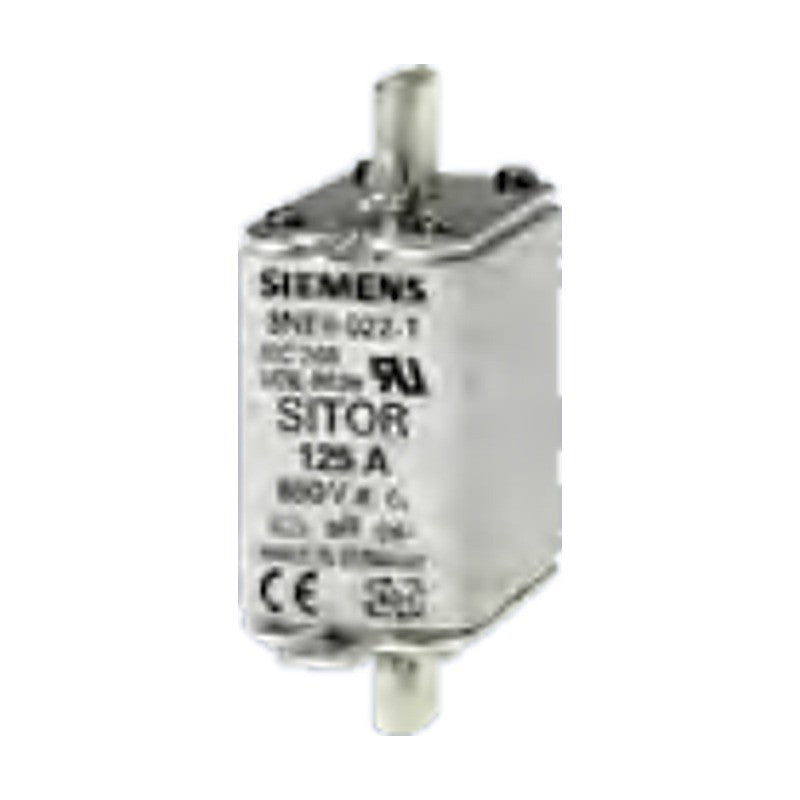

Siemens SENTRON SITOR LV HRC fuse links aR (AC/DC, 3NE/3NC)

Siemens SENTRON SITOR LV HRC fuse links aR (AC/DC, 3NE/3NC)

SENTRON SITOR semiconductor fuse links of operational class aR in LV HRC design for AC/DC, including slotted, bolt-on, threaded and special designs.

Key features

  • Ultra-rapid SITOR fuse links for semiconductor protection
  • Low switch-off I2t values and power loss data per article
  • Operational classes gS, gR and aR
  • Blade contacts, slotted blade contacts, bolt-on links or female thread
  • For converters, UPS, soft starters and rectifier applications

Specifications

Brand Siemens SENTRON
Brand line SITOR
Design LV HRC (AC/DC)
Operational class aR
Manufacturer Siemens
Source Siemens Catalog LV 10 · 2026, p. 590-599
3NE8720-1 Class: aR, bolt-on links | Size: 000, M8, 80 mm | Rated current: 80 A | Switch-off I2t: 2700 A²s | Power loss: 18 W | Un: 690 V/600 V (UL 700 V)
3NE8721-1 Class: aR, bolt-on links | Size: 000, M8, 80 mm | Rated current: 100 A | Switch-off I2t: 4950 A²s | Power loss: 19 W | Un: 690 V/600 V (UL 700 V)
3NE8722-1 Class: aR, bolt-on links | Size: 000, M8, 80 mm | Rated current: 125 A | Switch-off I2t: 9100 A²s | Power loss: 23 W | Un: 690 V/600 V (UL 700 V)
3NE8724-1 Class: aR, bolt-on links | Size: 000, M8, 80 mm | Rated current: 160 A | Switch-off I2t: 17000 A²s | Power loss: 31 W | Un: 690 V/600 V (UL 700 V)
3NE8725-1 Class: aR, bolt-on links | Size: 000, M8, 80 mm | Rated current: 200 A | Switch-off I2t: 30000 A²s | Power loss: 36 W | Un: 690 V/600 V (UL 700 V)
3NE8727-1 Class: aR, bolt-on links | Size: 000, M8, 80 mm | Rated current: 250 A | Switch-off I2t: 55000 A²s | Power loss: 42 W | Un: 690 V/600 V (UL 700 V)
3NE8731-1 Class: aR, bolt-on links | Size: 000, M8, 80 mm | Rated current: 315 A | Switch-off I2t: 85500 A²s | Power loss: 54 W | Un: 690 V/600 V (UL 700 V)
3NE8031-3MK Class: aR, bolt-on links | Size: 000, M10, 80 mm | Rated current: 350 A | Switch-off I2t: 135000 A²s | Power loss: 58.8 W | Un: 690 V/440 V
3NE8032-3MK Class: aR, bolt-on links | Size: 000, M10, 80 mm | Rated current: 400 A | Switch-off I2t: 170000 A²s | Power loss: 74.5 W | Un: 690 V/440 V
3NE4118 Class: aR, blade contacts | Size: 0 | Rated current: 63 A | Switch-off I2t: 1500 A²s | Power loss: 20 W | Un: 1000 V/–
3NE8820-0MK Class: aR, blade contacts | Size: 000 | Rated current: 80 A | Switch-off I2t: 2200 A²s | Power loss: 23.3 W | Un: 690 V/440 V
3NE8020-1 Class: aR, blade contacts | Size: 00 | Rated current: 80 A | Switch-off I2t: 2400 A²s | Power loss: 19 W | Un: 690 V/–
3NE4120 Class: aR, blade contacts | Size: 0 | Rated current: 80 A | Switch-off I2t: 3000 A²s | Power loss: 22 W | Un: 1000 V/–
3NE8821-0MK Class: aR, blade contacts | Size: 000 | Rated current: 100 A | Switch-off I2t: 3650 A²s | Power loss: 27 W | Un: 690 V/440 V
3NE8221-0MK Class: aR, blade contacts | Size: 1 | Rated current: 100 A | Switch-off I2t: 6050 A²s | Power loss: 25.5 W | Un: 690 V/440 V
3NE8021-1 Class: aR, blade contacts | Size: 00 | Rated current: 100 A | Switch-off I2t: 4200 A²s | Power loss: 22 W | Un: 690 V/–
3NE4121 Class: aR, blade contacts | Size: 0 | Rated current: 100 A | Switch-off I2t: 6000 A²s | Power loss: 24 W | Un: 1000 V/–
3NE8822-0MK Class: aR, blade contacts | Size: 000 | Rated current: 125 A | Switch-off I2t: 7800 A²s | Power loss: 30 W | Un: 690 V/440 V
3NE8222-0MK Class: aR, blade contacts | Size: 1 | Rated current: 125 A | Switch-off I2t: 8900 A²s | Power loss: 28.5 W | Un: 690 V/440 V
3NE8022-1 Class: aR, blade contacts | Size: 00 | Rated current: 125 A | Switch-off I2t: 6500 A²s | Power loss: 28 W | Un: 690 V/–
3NE4122 Class: aR, blade contacts | Size: 0 | Rated current: 125 A | Switch-off I2t: 14000 A²s | Power loss: 30 W | Un: 1000 V/–
3NE8824-0MK Class: aR, blade contacts | Size: 000 | Rated current: 160 A | Switch-off I2t: 14000 A²s | Power loss: 34 W | Un: 500 V/440 V
3NE8224-0MK Class: aR, blade contacts | Size: 1 | Rated current: 160 A | Switch-off I2t: 16200 A²s | Power loss: 37 W | Un: 690 V/440 V
3NE8024-1 Class: aR, blade contacts | Size: 00 | Rated current: 160 A | Switch-off I2t: 13000 A²s | Power loss: 38 W | Un: 690 V/–
3NE4124 Class: aR, blade contacts | Size: 0 | Rated current: 160 A | Switch-off I2t: 29000 A²s | Power loss: 35 W | Un: 1000 V/–
3NE8225-0MK Class: aR, blade contacts | Size: 1 | Rated current: 200 A | Switch-off I2t: 26000 A²s | Power loss: 49 W | Un: 690 V/440 V
3NE8227-0MK Class: aR, blade contacts | Size: 1 | Rated current: 250 A | Switch-off I2t: 59000 A²s | Power loss: 52 W | Un: 690 V/440 V
3NE8230-0MK Class: aR, blade contacts | Size: 1 | Rated current: 315 A | Switch-off I2t: 120000 A²s | Power loss: 68 W | Un: 690 V/440 V
3NE8331-0MK Class: aR, blade contacts | Size: 2 | Rated current: 350 A | Switch-off I2t: 83500 A²s | Power loss: 68.6 W | Un: 690 V/440 V
3NE8332-0MK Class: aR, blade contacts | Size: 2 | Rated current: 400 A | Switch-off I2t: 136000 A²s | Power loss: 72.8 W | Un: 690 V/440 V
3NE8333-0MK Class: aR, blade contacts | Size: 2 | Rated current: 450 A | Switch-off I2t: 207000 A²s | Power loss: 80.1 W | Un: 690 V/440 V
3NE8334-0MK Class: aR, blade contacts | Size: 2 | Rated current: 500 A | Switch-off I2t: 318000 A²s | Power loss: 77.5 W | Un: 690 V/440 V
3NE8335-0MK Class: aR, blade contacts | Size: 2 | Rated current: 550 A | Switch-off I2t: 399000 A²s | Power loss: 86.4 W | Un: 690 V/440 V
3NE8336-0MK Class: aR, blade contacts | Size: 2 | Rated current: 630 A | Switch-off I2t: 740000 A²s | Power loss: 90.7 W | Un: 690 V/440 V
3NE3221 Class: aR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 100 A | Switch-off I2t: 4800 A²s | Power loss: 28 W | Un: 1000 V/–
3NE8221-3MK Class: aR, slotted blade contacts | Size: 1, M8, 80 mm | Rated current: 100 A | Switch-off I2t: 3200 A²s | Power loss: 25 W | Un: 690 V/440 V
3NE3222 Class: aR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 125 A | Switch-off I2t: 7200 A²s | Power loss: 36 W | Un: 1000 V/–
3NE8222-3MK Class: aR, slotted blade contacts | Size: 1, M8, 80 mm | Rated current: 125 A | Switch-off I2t: 6000 A²s | Power loss: 28 W | Un: 690 V/440 V
3NE3224 Class: aR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 160 A | Switch-off I2t: 13000 A²s | Power loss: 42 W | Un: 1000 V/–
3NE8224-3MK Class: aR, slotted blade contacts | Size: 1, M8, 80 mm | Rated current: 160 A | Switch-off I2t: 10500 A²s | Power loss: 35 W | Un: 690 V/440 V
3NE3225 Class: aR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 200 A | Switch-off I2t: 30000 A²s | Power loss: 42 W | Un: 1000 V/–
3NE8225-3MK Class: aR, slotted blade contacts | Size: 1, M8, 80 mm | Rated current: 200 A | Switch-off I2t: 17500 A²s | Power loss: 42 W | Un: 690 V/440 V
3NE3227 Class: aR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 250 A | Switch-off I2t: 48000 A²s | Power loss: 50 W | Un: 1000 V/–
3NE8227-3MK Class: aR, slotted blade contacts | Size: 1, M8, 80 mm | Rated current: 250 A | Switch-off I2t: 28500 A²s | Power loss: 53.5 W | Un: 690 V/440 V
3NE3230-0B Class: aR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 315 A | Switch-off I2t: 80000 A²s | Power loss: 60 W | Un: 1000 V/–
3NE8230-3MK Class: aR, slotted blade contacts | Size: 1, M8, 80 mm | Rated current: 315 A | Switch-off I2t: 53500 A²s | Power loss: 61 W | Un: 690 V/440 V
3NE3231 Class: aR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 350 A | Switch-off I2t: 100000 A²s | Power loss: 75 W | Un: 1000 V/–
3NE8231-3MK Class: aR, slotted blade contacts | Size: 1, M8, 80 mm | Rated current: 350 A | Switch-off I2t: 66000 A²s | Power loss: 69 W | Un: 690 V/440 V
3NC2432-0C Class: aR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 400 A | Switch-off I2t: 390000 A²s | Power loss: 50 W | Un: 500 V/–
3NE3232-0B Class: aR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 400 A | Switch-off I2t: - | Power loss: 85 W | Un: 1000 V/–
3NE8232-3MK Class: aR, slotted blade contacts | Size: 1, M8, 80 mm | Rated current: 400 A | Switch-off I2t: 110000 A²s | Power loss: 70.5 W | Un: 690 V/440 V
3NE3233 Class: aR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 450 A | Switch-off I2t: - | Power loss: 95 W | Un: 1000 V/–
3NE8233-3MK Class: aR, slotted blade contacts | Size: 1, M8, 80 mm | Rated current: 450 A | Switch-off I2t: 180000 A²s | Power loss: 71 W | Un: 690 V/440 V
3NE8234-3MK Class: aR, slotted blade contacts | Size: 1, M8, 80 mm | Rated current: 500 A | Switch-off I2t: 215000 A²s | Power loss: 84 W | Un: 690 V/440 V
3NE3234-0MK08 Class: aR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 500 A | Switch-off I2t: 500000 A²s | Power loss: 105 W | Un: 1000 V/600 V
3NE8235-3MK Class: aR, slotted blade contacts | Size: 1, M8, 80 mm | Rated current: 550 A | Switch-off I2t: 290000 A²s | Power loss: 87 W | Un: 690 V/440 V
3NE3235-0MK08 Class: aR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 550 A | Switch-off I2t: 700000 A²s | Power loss: 110 W | Un: 1000 V/600 V
3NE8236-3MK Class: aR, slotted blade contacts | Size: 1, M8, 80 mm | Rated current: 630 A | Switch-off I2t: 440000 A²s | Power loss: 96 W | Un: 690 V/440 V
3NE3236-0MK08 Class: aR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 630 A | Switch-off I2t: 850000 A²s | Power loss: 127 W | Un: 1000 V/600 V
3NE5320-0MK06 Class: aR, slotted blade contacts | Size: 2, M10, 170 mm | Rated current: 80 A | Switch-off I2t: 3900 A²s | Power loss: 42 W | Un: 1500 V/1000 V
3NE5321-0MK06 Class: aR, slotted blade contacts | Size: 2, M10, 170 mm | Rated current: 100 A | Switch-off I2t: 8700 A²s | Power loss: 45 W | Un: 1500 V/1000 V
3NE5322-0MK06 Class: aR, slotted blade contacts | Size: 2, M10, 170 mm | Rated current: 125 A | Switch-off I2t: 11800 A²s | Power loss: 59 W | Un: 1500 V/1000 V
3NE5324-0MK06 Class: aR, slotted blade contacts | Size: 2, M10, 170 mm | Rated current: 160 A | Switch-off I2t: 37000 A²s | Power loss: 54 W | Un: 1500 V/1000 V
3NE5325-0MK06 Class: aR, slotted blade contacts | Size: 2, M10, 170 mm | Rated current: 200 A | Switch-off I2t: 70000 A²s | Power loss: 56 W | Un: 1500 V/1000 V
3NE4327-0B Class: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 250 A | Switch-off I2t: 29700 A²s | Power loss: 105 W | Un: 800 V/–
3NE5327-0MK06 Class: aR, slotted blade contacts | Size: 2, M10, 170 mm | Rated current: 250 A | Switch-off I2t: 165000 A²s | Power loss: 59 W | Un: 1500 V/1000 V
3NE4330-0B Class: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 315 A | Switch-off I2t: 60700 A²s | Power loss: 120 W | Un: 800 V/–
3NE9330-0MK07 Class: aR, slotted blade contacts | Size: 2, M12, 260 mm | Rated current: 315 A | Switch-off I2t: 300000 A²s | Power loss: 245 W | Un: –/3000 V
3NE5330-0MK06 Class: aR, slotted blade contacts | Size: 2, M10, 170 mm | Rated current: 315 A | Switch-off I2t: 250000 A²s | Power loss: 76 W | Un: 1500 V/1000 V
3NE3332-0B Class: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 400 A | Switch-off I2t: 135000 A²s | Power loss: 80 W | Un: 1000 V/–
3NE5332-0MK06 Class: aR, slotted blade contacts | Size: 2, M10, 170 mm | Rated current: 400 A | Switch-off I2t: 470000 A²s | Power loss: 89 W | Un: 1500 V/1000 V
3NE4333-0B Class: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 450 A | Switch-off I2t: 191000 A²s | Power loss: 140 W | Un: 800 V/–
3NE3333 Class: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 450 A | Switch-off I2t: 175000 A²s | Power loss: 90 W | Un: 1000 V/–
3NE4334-0B Class: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 500 A | Switch-off I2t: 276000 A²s | Power loss: 155 W | Un: 800 V/–
3NE3334-0B Class: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 500 A | Switch-off I2t: 260000 A²s | Power loss: 90 W | Un: 1000 V/–
3NE5334-0MK06 Class: aR, slotted blade contacts | Size: 2, M10, 170 mm | Rated current: 500 A | Switch-off I2t: 800000 A²s | Power loss: 109 W | Un: 1500 V/1000 V
3NE3335 Class: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 560 A | Switch-off I2t: 360000 A²s | Power loss: 95 W | Un: 1000 V/–
3NE3336 Class: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 630 A | Switch-off I2t: 600000 A²s | Power loss: 100 W | Un: 1000 V/–
3NE5336-0MK06 Class: aR, slotted blade contacts | Size: 2, M10, 170 mm | Rated current: 630 A | Switch-off I2t: 1100000 A²s | Power loss: 163 W | Un: 1500 V/1000 V
3NE5336-0MK66 Class: aR, slotted blade contacts | Size: 2, M10, 190 mm | Rated current: 630 A | Switch-off I2t: 1100000 A²s | Power loss: 163 W | Un: 1500 V/1000 V
3NE4337 Class: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 710 A | Switch-off I2t: 923000 A²s | Power loss: 155 W | Un: 800 V/–
3NE3337-8 Class: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 710 A | Switch-off I2t: 800000 A²s | Power loss: 105 W | Un: 900 V/–
3NE3338-8 Class: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 800 A | Switch-off I2t: 850000 A²s | Power loss: 130 W | Un: 800 V/–
3NE3340-8 Class: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 900 A | Switch-off I2t: 920000 A²s | Power loss: 165 W | Un: 690 V/–
3NE3421-0C Class: aR, slotted blade contacts | Size: 3, M10, 130 mm | Rated current: 100 A | Switch-off I2t: 13500 A²s | Power loss: 25 W | Un: 1000 V
3NE5424-0C Class: aR, slotted blade contacts | Size: 3, M10, 210 mm | Rated current: 160 A | Switch-off I2t: 54000 A²s | Power loss: 56 W | Un: 1500 V
3NE7425-0U Class: aR, slotted blade contacts | Size: 3, M10, 210 mm | Rated current: 200 A | Switch-off I2t: 138000 A²s | Power loss: 75 W | Un: 2000 V
3NE3626-0C Class: aR, slotted blade contacts | Size: 3, M10, 130 mm | Rated current: 224 A | Switch-off I2t: 54000 A²s | Power loss: 85 W | Un: 1000 V
3NE5426-0C Class: aR, slotted blade contacts | Size: 3, M10, 210 mm | Rated current: 224 A | Switch-off I2t: 138000 A²s | Power loss: 80 W | Un: 1500 V
3NE5627-0C Class: aR, slotted blade contacts | Size: 3, M10, 170 mm | Rated current: 250 A | Switch-off I2t: 84000 A²s | Power loss: 130 W | Un: 1500 V
3NE7427-0U Class: aR, slotted blade contacts | Size: 3, M10, 210 mm | Rated current: 250 A | Switch-off I2t: 218000 A²s | Power loss: 110 W | Un: 2000 V
3NE3430-0C Class: aR, slotted blade contacts | Size: 3, M10, 130 mm | Rated current: 315 A | Switch-off I2t: 218000 A²s | Power loss: 80 W | Un: 1000 V
3NE5430-0C Class: aR, slotted blade contacts | Size: 3, M10, 210 mm | Rated current: 315 A | Switch-off I2t: 311000 A²s | Power loss: 115 W | Un: 1500 V
3NE5431-0C Class: aR, slotted blade contacts | Size: 3, M10, 210 mm | Rated current: 350 A | Switch-off I2t: 428000 A²s | Power loss: 135 W | Un: 1500 V
3NE7431-0U Class: aR, slotted blade contacts | Size: 3, M10, 210 mm | Rated current: 350 A | Switch-off I2t: 555000 A²s | Power loss: 120 W | Un: 2000 V
3NC2432-3C Class: aR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 400 A | Switch-off I2t: 390000 A²s | Power loss: 50 W | Un: 500 V
3NE3432-0C Class: aR, slotted blade contacts | Size: 3, M10, 130 mm | Rated current: 400 A | Switch-off I2t: 364000 A²s | Power loss: 110 W | Un: 1000 V
3NE7432-0U Class: aR, slotted blade contacts | Size: 3, M10, 210 mm | Rated current: 400 A | Switch-off I2t: 870000 A²s | Power loss: 150 W | Un: 2000 V
3NE3635-0C Class: aR, slotted blade contacts | Size: 3, M10, 130 mm | Rated current: 450 A | Switch-off I2t: 488000 A²s | Power loss: 110 W | Un: 1000 V
3NE5633-0C Class: aR, slotted blade contacts | Size: 3, M10, 170 mm | Rated current: 450 A | Switch-off I2t: 590000 A²s | Power loss: 160 W | Un: 1500 V
3NE5433-0C Class: aR, slotted blade contacts | Size: 3, M10, 210 mm | Rated current: 450 A | Switch-off I2t: 870000 A²s | Power loss: 145 W | Un: 1500 V
3NE7633-0U Class: aR, slotted blade contacts | Size: 3, M10, 210 mm | Rated current: 450 A | Switch-off I2t: 960000 A²s | Power loss: 160 W | Un: 2000 V
3NE3434-0C Class: aR, slotted blade contacts | Size: 3, M10, 130 mm | Rated current: 500 A | Switch-off I2t: 870000 A²s | Power loss: 95 W | Un: 1000 V
3NE5643-0C Class: aR, slotted blade contacts | Size: 3, M10, 170 mm | Rated current: 600 A | Switch-off I2t: 1950000 A²s | Power loss: 145 W | Un: 1500 V
3NE3636-0C Class: aR, slotted blade contacts | Size: 3, M10, 130 mm | Rated current: 630 A | Switch-off I2t: 1280000 A²s | Power loss: 132 W | Un: 1000 V
3NE7636-0U Class: aR, slotted blade contacts | Size: 3, M10, 210 mm | Rated current: 630 A | Switch-off I2t: 1950000 A²s | Power loss: 220 W | Un: 2000 V
3NE3637-0C Class: aR, slotted blade contacts | Size: 3, M10, 130 mm | Rated current: 710 A | Switch-off I2t: 1950000 A²s | Power loss: 145 W | Un: 1000 V
3NC8444-3C Class: aR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 1000 A | Switch-off I2t: 2480000 A²s | Power loss: 140 W | Un: 600 V
3NE9622-1C Class: aR, slotted blade contacts | Size: 3, M12, 260 mm | Rated current: 125 A | Switch-off I2t: 34500 A²s | Power loss: 78 W | Un: 2500 V
3NC3430-1U Class: aR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 315 A | Switch-off I2t: 72500 A²s | Power loss: 80 W | Un: 1250 V
3NC3432-1U Class: aR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 400 A | Switch-off I2t: 163000 A²s | Power loss: 95 W | Un: 1250 V
3NE9632-1C Class: aR, slotted blade contacts | Size: 3, M12, 260 mm | Rated current: 400 A | Switch-off I2t: 620000 A²s | Power loss: 205 W | Un: 2500 V
3NE5433-1C Class: aR, slotted blade contacts | Size: 3, M12, 210 mm | Rated current: 450 A | Switch-off I2t: 870000 A²s | Power loss: 145 W | Un: 1500 V
3NE7633-1U Class: aR, slotted blade contacts | Size: 3, M12, 210 mm | Rated current: 450 A | Switch-off I2t: 960000 A²s | Power loss: 160 W | Un: 2000 V
3NC3434-1U Class: aR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 500 A | Switch-off I2t: 290000 A²s | Power loss: 115 W | Un: 1250 V
3NE9634-1C Class: aR, slotted blade contacts | Size: 3, M12, 260 mm | Rated current: 500 A | Switch-off I2t: 1270000 A²s | Power loss: 235 W | Un: 2500 V
3NE7648-1U Class: aR, slotted blade contacts | Size: 3, M12, 210 mm | Rated current: 525 A | Switch-off I2t: 1120000 A²s | Power loss: 210 W | Un: 2000 V
3NC3236-1U Class: aR, slotted blade contacts | Size: 3, M12, 80 mm | Rated current: 630 A | Switch-off I2t: 244000 A²s | Power loss: 120 W | Un: 690 V
3NC3336-1U Class: aR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 630 A | Switch-off I2t: 418000 A²s | Power loss: 145 W | Un: 1000 V
3NC3436-1U Class: aR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 630 A | Switch-off I2t: 650000 A²s | Power loss: 120 W | Un: 1250 V
3NE7636-1U Class: aR, slotted blade contacts | Size: 3, M12, 210 mm | Rated current: 630 A | Switch-off I2t: 1950000 A²s | Power loss: 220 W | Un: 2000 V
3NE9636-1C Class: aR, slotted blade contacts | Size: 3, M12, 260 mm | Rated current: 630 A | Switch-off I2t: 2800000 A²s | Power loss: 275 W | Un: 2500 V
3NC3237-1U Class: aR, slotted blade contacts | Size: 3, M12, 80 mm | Rated current: 710 A | Switch-off I2t: 346000 A²s | Power loss: 130 W | Un: 690 V
3NC3337-1U Class: aR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 710 A | Switch-off I2t: 569000 A²s | Power loss: 150 W | Un: 1000 V
3NE3637-1C Class: aR, slotted blade contacts | Size: 3, M12, 140 mm | Rated current: 710 A | Switch-off I2t: 1950000 A²s | Power loss: 145 W | Un: 1000 V
3NE7637-1U Class: aR, slotted blade contacts | Size: 3, M12, 210 mm | Rated current: 710 A | Switch-off I2t: 3110000 A²s | Power loss: 275 W | Un: 2000 V
3NC3238-1U Class: aR, slotted blade contacts | Size: 3, M12, 80 mm | Rated current: 800 A | Switch-off I2t: 498000 A²s | Power loss: 135 W | Un: 690 V
3NC3338-1U Class: aR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 800 A | Switch-off I2t: 819000 A²s | Power loss: 155 W | Un: 1000 V
3NC3438-1U Class: aR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 800 A | Switch-off I2t: 985000 A²s | Power loss: 145 W | Un: 1100 V
3NC3240-1U Class: aR, slotted blade contacts | Size: 3, M12, 80 mm | Rated current: 900 A | Switch-off I2t: 677000 A²s | Power loss: 145 W | Un: 690 V
3NC3340-1U Class: aR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 900 A | Switch-off I2t: 1160000 A²s | Power loss: 165 W | Un: 1000 V
3NC3241-1U Class: aR, slotted blade contacts | Size: 3, M12, 80 mm | Rated current: 1000 A | Switch-off I2t: 975000 A²s | Power loss: 155 W | Un: 690 V
3NC3341-1U Class: aR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 1000 A | Switch-off I2t: 1670000 A²s | Power loss: 170 W | Un: 1000 V
3NC3242-1U Class: aR, slotted blade contacts | Size: 3, M12, 80 mm | Rated current: 1100 A | Switch-off I2t: 1382000 A²s | Power loss: 165 W | Un: 690 V
3NC3342-1U Class: aR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 1100 A | Switch-off I2t: 1910000 A²s | Power loss: 185 W | Un: 800 V
3NC3243-1U Class: aR, slotted blade contacts | Size: 3, M12, 80 mm | Rated current: 1250 A | Switch-off I2t: 1990000 A²s | Power loss: 175 W | Un: 690 V
3NC3343-1U Class: aR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 1250 A | Switch-off I2t: 2600000 A²s | Power loss: 210 W | Un: 800 V
3NC3244-1U Class: aR, slotted blade contacts | Size: 3, M12, 80 mm | Rated current: 1400 A | Switch-off I2t: 2100000 A²s | Power loss: 200 W | Un: 500 V
3NC3245-1U Class: aR, slotted blade contacts | Size: 3, M12, 80 mm | Rated current: 1600 A | Switch-off I2t: 2860000 A²s | Power loss: 240 W | Un: 500 V
3NE3635-6 Class: aR, female thread both ends | Size: 3, M10, 109 mm | Rated current: 450 A | Switch-off I2t: 488000 A²s | Power loss: 110 W | Un: 1000 V
3NC3236-6U Class: aR, female thread both ends | Size: 3, M12, 52 mm | Rated current: 630 A | Switch-off I2t: 244000 A²s | Power loss: 125 W | Un: 690 V
3NC3237-6U Class: aR, female thread both ends | Size: 3, M12, 52 mm | Rated current: 710 A | Switch-off I2t: 346000 A²s | Power loss: 130 W | Un: 690 V
3NC3238-6U Class: aR, female thread both ends | Size: 3, M12, 52 mm | Rated current: 800 A | Switch-off I2t: 498000 A²s | Power loss: 135 W | Un: 690 V
3NC3240-6U Class: aR, female thread both ends | Size: 3, M12, 52 mm | Rated current: 900 A | Switch-off I2t: 677000 A²s | Power loss: 140 W | Un: 690 V
3NC3241-6U Class: aR, female thread both ends | Size: 3, M12, 52 mm | Rated current: 1000 A | Switch-off I2t: 975000 A²s | Power loss: 145 W | Un: 690 V
3NC3242-6U Class: aR, female thread both ends | Size: 3, M12, 52 mm | Rated current: 1100 A | Switch-off I2t: 1382000 A²s | Power loss: 150 W | Un: 690 V
3NC3243-6U Class: aR, female thread both ends | Size: 3, M12, 52 mm | Rated current: 1250 A | Switch-off I2t: 1990000 A²s | Power loss: 155 W | Un: 690 V
3NC3244-6U Class: aR, female thread both ends | Size: 3, M12, 52 mm | Rated current: 1400 A | Switch-off I2t: 2100000 A²s | Power loss: 175 W | Un: 500 V
3NC3245-6U Class: aR, female thread both ends | Size: 3, M12, 52 mm | Rated current: 1600 A | Switch-off I2t: 2860000 A²s | Power loss: 195 W | Un: 500 V
3NC3430-6U Class: aR, female thread both ends | Size: 3, M12, 73 mm | Rated current: 315 A | Switch-off I2t: 72500 A²s | Power loss: 80 W | Un: 1250 V
3NC3432-6U Class: aR, female thread both ends | Size: 3, M12, 73 mm | Rated current: 400 A | Switch-off I2t: 163000 A²s | Power loss: 95 W | Un: 1250 V
3NC3434-6U Class: aR, female thread both ends | Size: 3, M12, 73 mm | Rated current: 500 A | Switch-off I2t: 290000 A²s | Power loss: 115 W | Un: 1250 V
3NC3336-6U Class: aR, female thread both ends | Size: 3, M12, 73 mm | Rated current: 630 A | Switch-off I2t: 418000 A²s | Power loss: 130 W | Un: 1000 V
3NC3436-6U Class: aR, female thread both ends | Size: 3, M12, 73 mm | Rated current: 630 A | Switch-off I2t: 650000 A²s | Power loss: 120 W | Un: 1250 V
3NC3337-6U Class: aR, female thread both ends | Size: 3, M12, 73 mm | Rated current: 710 A | Switch-off I2t: 569000 A²s | Power loss: 140 W | Un: 1000 V
3NC3338-6U Class: aR, female thread both ends | Size: 3, M12, 73 mm | Rated current: 800 A | Switch-off I2t: 819000 A²s | Power loss: 150 W | Un: 1000 V
3NC3438-6U Class: aR, female thread both ends | Size: 3, M12, 73 mm | Rated current: 800 A | Switch-off I2t: 985000 A²s | Power loss: 145 W | Un: 1100 V
3NC3340-6U Class: aR, female thread both ends | Size: 3, M12, 73 mm | Rated current: 900 A | Switch-off I2t: 1160000 A²s | Power loss: 160 W | Un: 1000 V
3NC3341-6U Class: aR, female thread both ends | Size: 3, M12, 73 mm | Rated current: 1000 A | Switch-off I2t: 1670000 A²s | Power loss: 165 W | Un: 1000 V
3NC3342-6U Class: aR, female thread both ends | Size: 3, M12, 73 mm | Rated current: 1100 A | Switch-off I2t: 1910000 A²s | Power loss: 175 W | Un: 800 V
3NC3343-6U Class: aR, female thread both ends | Size: 3, M12, 73 mm | Rated current: 1250 A | Switch-off I2t: 2600000 A²s | Power loss: 185 W | Un: 800 V
3NC5840 Class: aR, special design | Size: No bracket, Water-cooled busbars, 83 mm | Rated current: 600 A | Switch-off I2t: 888000 A²s | Power loss: 150 W | Un: 1000 V
3NC5841 Class: aR, special design | Size: No bracket, Water-cooled busbars, 83 mm | Rated current: 630 A | Switch-off I2t: 888000 A²s | Power loss: 145 W | Un: 800 V
3NE6437-7 Class: aR, special design | Size: No bracket, Water-cooled busbars, 83 mm | Rated current: 710 A | Switch-off I2t: 620000 A²s | Power loss: 150 W | Un: 900 V
3NE6437 Class: aR, special design | Size: No bracket, Air-cooled rectifier, 89 mm | Rated current: 710 A | Switch-off I2t: 620000 A²s | Power loss: 150 W | Un: 900 V
3NC5838 Class: aR, special design | Size: No bracket, Water-cooled busbars, 83 mm | Rated current: 800 A | Switch-off I2t: 1728000 A²s | Power loss: 170 W | Un: 1000 V
3NE6444 Class: aR, special design | Size: No bracket, Air-cooled rectifier, 89 mm | Rated current: 900 A | Switch-off I2t: 1920000 A²s | Power loss: 170 W | Un: 900 V
3NE9450-7 Class: aR, special design | Size: No bracket, Water-cooled busbars, 83 mm | Rated current: 1250 A | Switch-off I2t: 2480000 A²s | Power loss: 210 W | Un: 600 V
3NE9450 Class: aR, special design | Size: No bracket, Air-cooled rectifier, 89 mm | Rated current: 1250 A | Switch-off I2t: 2480000 A²s | Power loss: 210 W | Un: 600 V
3NE4121-5 Class: aR, special design | Size: Bracket, 6QG11 thyristor set | Rated current: 100 A | Switch-off I2t: 7400 A²s | Power loss: 35 W | Un: 1000 V
3NE4146-5 Class: aR, special design | Size: Bracket, 6QG11 thyristor set | Rated current: 170 A | Switch-off I2t: 60500 A²s | Power loss: 43 W | Un: 800 V
3NE3525-5 Class: aR, special design | Size: Bracket, 6QG10 thyristor set | Rated current: 200 A | Switch-off I2t: 44000 A²s | Power loss: 50 W | Un: 1000 V
3NC7327-2 Class: aR, special design | Size: Railway supply rectifier | Rated current: 250 A | Switch-off I2t: 635000 A²s | Power loss: 25 W | Un: 680 V
3NE4327-6B Class: aR, special design | Size: 6QG12 thyristor set, 77 mm | Rated current: 250 A | Switch-off I2t: 29700 A²s | Power loss: 105 W | Un: 800 V
3NE4330-6B Class: aR, special design | Size: 6QG12 thyristor set, 77 mm | Rated current: 315 A | Switch-off I2t: 60700 A²s | Power loss: 120 W | Un: 800 V
3NC7331-2 Class: aR, special design | Size: Railway supply rectifier | Rated current: 350 A | Switch-off I2t: 1430000 A²s | Power loss: 32 W | Un: 680 V
3NE4333-6B Class: aR, special design | Size: 6QG12 thyristor set, 77 mm | Rated current: 450 A | Switch-off I2t: 191000 A²s | Power loss: 140 W | Un: 800 V
3NE3535-5 Class: aR, special design | Size: Bracket, 6QG10 thyristor set | Rated current: 450 A | Switch-off I2t: 395000 A²s | Power loss: 90 W | Un: 1000 V
3NE4334-6B Class: aR, special design | Size: 6QG12 thyristor set, 77 mm | Rated current: 500 A | Switch-off I2t: 276000 A²s | Power loss: 155 W | Un: 800 V
3NE4337-6 Class: aR, special design | Size: 6QG12 thyristor set, 77 mm | Rated current: 710 A | Switch-off I2t: 923000 A²s | Power loss: 155 W | Un: 800 V
Fuses & Fuse HoldersSiemens
180 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SENTRON SITOR LV HRC fuse links aR (AC/DC, 3NE/3NC)

Brand Siemens·Fuses & Fuse Holders

Available part numbers (180)

3NE8720-1, 3NE8721-1, 3NE8722-1, 3NE8724-1, 3NE8725-1, 3NE8727-1, 3NE8731-1, 3NE8031-3MK, 3NE8032-3MK, 3NE4118 + 170 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3NE8720-1Class: aR, bolt-on links | Size: 000, M8, 80 mm | Rated current: 80 A | Switch-off I2t: 2700 A²s | Power loss: 18 W | Un: 690 V/600 V (UL 700 V)
3NE8721-1Class: aR, bolt-on links | Size: 000, M8, 80 mm | Rated current: 100 A | Switch-off I2t: 4950 A²s | Power loss: 19 W | Un: 690 V/600 V (UL 700 V)
3NE8722-1Class: aR, bolt-on links | Size: 000, M8, 80 mm | Rated current: 125 A | Switch-off I2t: 9100 A²s | Power loss: 23 W | Un: 690 V/600 V (UL 700 V)
3NE8724-1Class: aR, bolt-on links | Size: 000, M8, 80 mm | Rated current: 160 A | Switch-off I2t: 17000 A²s | Power loss: 31 W | Un: 690 V/600 V (UL 700 V)
3NE8725-1Class: aR, bolt-on links | Size: 000, M8, 80 mm | Rated current: 200 A | Switch-off I2t: 30000 A²s | Power loss: 36 W | Un: 690 V/600 V (UL 700 V)
3NE8727-1Class: aR, bolt-on links | Size: 000, M8, 80 mm | Rated current: 250 A | Switch-off I2t: 55000 A²s | Power loss: 42 W | Un: 690 V/600 V (UL 700 V)
3NE8731-1Class: aR, bolt-on links | Size: 000, M8, 80 mm | Rated current: 315 A | Switch-off I2t: 85500 A²s | Power loss: 54 W | Un: 690 V/600 V (UL 700 V)
3NE8031-3MKClass: aR, bolt-on links | Size: 000, M10, 80 mm | Rated current: 350 A | Switch-off I2t: 135000 A²s | Power loss: 58.8 W | Un: 690 V/440 V
3NE8032-3MKClass: aR, bolt-on links | Size: 000, M10, 80 mm | Rated current: 400 A | Switch-off I2t: 170000 A²s | Power loss: 74.5 W | Un: 690 V/440 V
3NE4118Class: aR, blade contacts | Size: 0 | Rated current: 63 A | Switch-off I2t: 1500 A²s | Power loss: 20 W | Un: 1000 V/–
3NE8820-0MKClass: aR, blade contacts | Size: 000 | Rated current: 80 A | Switch-off I2t: 2200 A²s | Power loss: 23.3 W | Un: 690 V/440 V
3NE8020-1Class: aR, blade contacts | Size: 00 | Rated current: 80 A | Switch-off I2t: 2400 A²s | Power loss: 19 W | Un: 690 V/–
3NE4120Class: aR, blade contacts | Size: 0 | Rated current: 80 A | Switch-off I2t: 3000 A²s | Power loss: 22 W | Un: 1000 V/–
3NE8821-0MKClass: aR, blade contacts | Size: 000 | Rated current: 100 A | Switch-off I2t: 3650 A²s | Power loss: 27 W | Un: 690 V/440 V
3NE8221-0MKClass: aR, blade contacts | Size: 1 | Rated current: 100 A | Switch-off I2t: 6050 A²s | Power loss: 25.5 W | Un: 690 V/440 V
3NE8021-1Class: aR, blade contacts | Size: 00 | Rated current: 100 A | Switch-off I2t: 4200 A²s | Power loss: 22 W | Un: 690 V/–
3NE4121Class: aR, blade contacts | Size: 0 | Rated current: 100 A | Switch-off I2t: 6000 A²s | Power loss: 24 W | Un: 1000 V/–
3NE8822-0MKClass: aR, blade contacts | Size: 000 | Rated current: 125 A | Switch-off I2t: 7800 A²s | Power loss: 30 W | Un: 690 V/440 V
3NE8222-0MKClass: aR, blade contacts | Size: 1 | Rated current: 125 A | Switch-off I2t: 8900 A²s | Power loss: 28.5 W | Un: 690 V/440 V
3NE8022-1Class: aR, blade contacts | Size: 00 | Rated current: 125 A | Switch-off I2t: 6500 A²s | Power loss: 28 W | Un: 690 V/–
3NE4122Class: aR, blade contacts | Size: 0 | Rated current: 125 A | Switch-off I2t: 14000 A²s | Power loss: 30 W | Un: 1000 V/–
3NE8824-0MKClass: aR, blade contacts | Size: 000 | Rated current: 160 A | Switch-off I2t: 14000 A²s | Power loss: 34 W | Un: 500 V/440 V
3NE8224-0MKClass: aR, blade contacts | Size: 1 | Rated current: 160 A | Switch-off I2t: 16200 A²s | Power loss: 37 W | Un: 690 V/440 V
3NE8024-1Class: aR, blade contacts | Size: 00 | Rated current: 160 A | Switch-off I2t: 13000 A²s | Power loss: 38 W | Un: 690 V/–
3NE4124Class: aR, blade contacts | Size: 0 | Rated current: 160 A | Switch-off I2t: 29000 A²s | Power loss: 35 W | Un: 1000 V/–
3NE8225-0MKClass: aR, blade contacts | Size: 1 | Rated current: 200 A | Switch-off I2t: 26000 A²s | Power loss: 49 W | Un: 690 V/440 V
3NE8227-0MKClass: aR, blade contacts | Size: 1 | Rated current: 250 A | Switch-off I2t: 59000 A²s | Power loss: 52 W | Un: 690 V/440 V
3NE8230-0MKClass: aR, blade contacts | Size: 1 | Rated current: 315 A | Switch-off I2t: 120000 A²s | Power loss: 68 W | Un: 690 V/440 V
3NE8331-0MKClass: aR, blade contacts | Size: 2 | Rated current: 350 A | Switch-off I2t: 83500 A²s | Power loss: 68.6 W | Un: 690 V/440 V
3NE8332-0MKClass: aR, blade contacts | Size: 2 | Rated current: 400 A | Switch-off I2t: 136000 A²s | Power loss: 72.8 W | Un: 690 V/440 V
3NE8333-0MKClass: aR, blade contacts | Size: 2 | Rated current: 450 A | Switch-off I2t: 207000 A²s | Power loss: 80.1 W | Un: 690 V/440 V
3NE8334-0MKClass: aR, blade contacts | Size: 2 | Rated current: 500 A | Switch-off I2t: 318000 A²s | Power loss: 77.5 W | Un: 690 V/440 V
3NE8335-0MKClass: aR, blade contacts | Size: 2 | Rated current: 550 A | Switch-off I2t: 399000 A²s | Power loss: 86.4 W | Un: 690 V/440 V
3NE8336-0MKClass: aR, blade contacts | Size: 2 | Rated current: 630 A | Switch-off I2t: 740000 A²s | Power loss: 90.7 W | Un: 690 V/440 V
3NE3221Class: aR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 100 A | Switch-off I2t: 4800 A²s | Power loss: 28 W | Un: 1000 V/–
3NE8221-3MKClass: aR, slotted blade contacts | Size: 1, M8, 80 mm | Rated current: 100 A | Switch-off I2t: 3200 A²s | Power loss: 25 W | Un: 690 V/440 V
3NE3222Class: aR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 125 A | Switch-off I2t: 7200 A²s | Power loss: 36 W | Un: 1000 V/–
3NE8222-3MKClass: aR, slotted blade contacts | Size: 1, M8, 80 mm | Rated current: 125 A | Switch-off I2t: 6000 A²s | Power loss: 28 W | Un: 690 V/440 V
3NE3224Class: aR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 160 A | Switch-off I2t: 13000 A²s | Power loss: 42 W | Un: 1000 V/–
3NE8224-3MKClass: aR, slotted blade contacts | Size: 1, M8, 80 mm | Rated current: 160 A | Switch-off I2t: 10500 A²s | Power loss: 35 W | Un: 690 V/440 V
3NE3225Class: aR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 200 A | Switch-off I2t: 30000 A²s | Power loss: 42 W | Un: 1000 V/–
3NE8225-3MKClass: aR, slotted blade contacts | Size: 1, M8, 80 mm | Rated current: 200 A | Switch-off I2t: 17500 A²s | Power loss: 42 W | Un: 690 V/440 V
3NE3227Class: aR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 250 A | Switch-off I2t: 48000 A²s | Power loss: 50 W | Un: 1000 V/–
3NE8227-3MKClass: aR, slotted blade contacts | Size: 1, M8, 80 mm | Rated current: 250 A | Switch-off I2t: 28500 A²s | Power loss: 53.5 W | Un: 690 V/440 V
3NE3230-0BClass: aR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 315 A | Switch-off I2t: 80000 A²s | Power loss: 60 W | Un: 1000 V/–
3NE8230-3MKClass: aR, slotted blade contacts | Size: 1, M8, 80 mm | Rated current: 315 A | Switch-off I2t: 53500 A²s | Power loss: 61 W | Un: 690 V/440 V
3NE3231Class: aR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 350 A | Switch-off I2t: 100000 A²s | Power loss: 75 W | Un: 1000 V/–
3NE8231-3MKClass: aR, slotted blade contacts | Size: 1, M8, 80 mm | Rated current: 350 A | Switch-off I2t: 66000 A²s | Power loss: 69 W | Un: 690 V/440 V
3NC2432-0CClass: aR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 400 A | Switch-off I2t: 390000 A²s | Power loss: 50 W | Un: 500 V/–
3NE3232-0BClass: aR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 400 A | Switch-off I2t: - | Power loss: 85 W | Un: 1000 V/–
3NE8232-3MKClass: aR, slotted blade contacts | Size: 1, M8, 80 mm | Rated current: 400 A | Switch-off I2t: 110000 A²s | Power loss: 70.5 W | Un: 690 V/440 V
3NE3233Class: aR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 450 A | Switch-off I2t: - | Power loss: 95 W | Un: 1000 V/–
3NE8233-3MKClass: aR, slotted blade contacts | Size: 1, M8, 80 mm | Rated current: 450 A | Switch-off I2t: 180000 A²s | Power loss: 71 W | Un: 690 V/440 V
3NE8234-3MKClass: aR, slotted blade contacts | Size: 1, M8, 80 mm | Rated current: 500 A | Switch-off I2t: 215000 A²s | Power loss: 84 W | Un: 690 V/440 V
3NE3234-0MK08Class: aR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 500 A | Switch-off I2t: 500000 A²s | Power loss: 105 W | Un: 1000 V/600 V
3NE8235-3MKClass: aR, slotted blade contacts | Size: 1, M8, 80 mm | Rated current: 550 A | Switch-off I2t: 290000 A²s | Power loss: 87 W | Un: 690 V/440 V
3NE3235-0MK08Class: aR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 550 A | Switch-off I2t: 700000 A²s | Power loss: 110 W | Un: 1000 V/600 V
3NE8236-3MKClass: aR, slotted blade contacts | Size: 1, M8, 80 mm | Rated current: 630 A | Switch-off I2t: 440000 A²s | Power loss: 96 W | Un: 690 V/440 V
3NE3236-0MK08Class: aR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 630 A | Switch-off I2t: 850000 A²s | Power loss: 127 W | Un: 1000 V/600 V
3NE5320-0MK06Class: aR, slotted blade contacts | Size: 2, M10, 170 mm | Rated current: 80 A | Switch-off I2t: 3900 A²s | Power loss: 42 W | Un: 1500 V/1000 V
3NE5321-0MK06Class: aR, slotted blade contacts | Size: 2, M10, 170 mm | Rated current: 100 A | Switch-off I2t: 8700 A²s | Power loss: 45 W | Un: 1500 V/1000 V
3NE5322-0MK06Class: aR, slotted blade contacts | Size: 2, M10, 170 mm | Rated current: 125 A | Switch-off I2t: 11800 A²s | Power loss: 59 W | Un: 1500 V/1000 V
3NE5324-0MK06Class: aR, slotted blade contacts | Size: 2, M10, 170 mm | Rated current: 160 A | Switch-off I2t: 37000 A²s | Power loss: 54 W | Un: 1500 V/1000 V
3NE5325-0MK06Class: aR, slotted blade contacts | Size: 2, M10, 170 mm | Rated current: 200 A | Switch-off I2t: 70000 A²s | Power loss: 56 W | Un: 1500 V/1000 V
3NE4327-0BClass: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 250 A | Switch-off I2t: 29700 A²s | Power loss: 105 W | Un: 800 V/–
3NE5327-0MK06Class: aR, slotted blade contacts | Size: 2, M10, 170 mm | Rated current: 250 A | Switch-off I2t: 165000 A²s | Power loss: 59 W | Un: 1500 V/1000 V
3NE4330-0BClass: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 315 A | Switch-off I2t: 60700 A²s | Power loss: 120 W | Un: 800 V/–
3NE9330-0MK07Class: aR, slotted blade contacts | Size: 2, M12, 260 mm | Rated current: 315 A | Switch-off I2t: 300000 A²s | Power loss: 245 W | Un: –/3000 V
3NE5330-0MK06Class: aR, slotted blade contacts | Size: 2, M10, 170 mm | Rated current: 315 A | Switch-off I2t: 250000 A²s | Power loss: 76 W | Un: 1500 V/1000 V
3NE3332-0BClass: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 400 A | Switch-off I2t: 135000 A²s | Power loss: 80 W | Un: 1000 V/–
3NE5332-0MK06Class: aR, slotted blade contacts | Size: 2, M10, 170 mm | Rated current: 400 A | Switch-off I2t: 470000 A²s | Power loss: 89 W | Un: 1500 V/1000 V
3NE4333-0BClass: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 450 A | Switch-off I2t: 191000 A²s | Power loss: 140 W | Un: 800 V/–
3NE3333Class: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 450 A | Switch-off I2t: 175000 A²s | Power loss: 90 W | Un: 1000 V/–
3NE4334-0BClass: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 500 A | Switch-off I2t: 276000 A²s | Power loss: 155 W | Un: 800 V/–
3NE3334-0BClass: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 500 A | Switch-off I2t: 260000 A²s | Power loss: 90 W | Un: 1000 V/–
3NE5334-0MK06Class: aR, slotted blade contacts | Size: 2, M10, 170 mm | Rated current: 500 A | Switch-off I2t: 800000 A²s | Power loss: 109 W | Un: 1500 V/1000 V
3NE3335Class: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 560 A | Switch-off I2t: 360000 A²s | Power loss: 95 W | Un: 1000 V/–
3NE3336Class: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 630 A | Switch-off I2t: 600000 A²s | Power loss: 100 W | Un: 1000 V/–
3NE5336-0MK06Class: aR, slotted blade contacts | Size: 2, M10, 170 mm | Rated current: 630 A | Switch-off I2t: 1100000 A²s | Power loss: 163 W | Un: 1500 V/1000 V
3NE5336-0MK66Class: aR, slotted blade contacts | Size: 2, M10, 190 mm | Rated current: 630 A | Switch-off I2t: 1100000 A²s | Power loss: 163 W | Un: 1500 V/1000 V
3NE4337Class: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 710 A | Switch-off I2t: 923000 A²s | Power loss: 155 W | Un: 800 V/–
3NE3337-8Class: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 710 A | Switch-off I2t: 800000 A²s | Power loss: 105 W | Un: 900 V/–
3NE3338-8Class: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 800 A | Switch-off I2t: 850000 A²s | Power loss: 130 W | Un: 800 V/–
3NE3340-8Class: aR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 900 A | Switch-off I2t: 920000 A²s | Power loss: 165 W | Un: 690 V/–
3NE3421-0CClass: aR, slotted blade contacts | Size: 3, M10, 130 mm | Rated current: 100 A | Switch-off I2t: 13500 A²s | Power loss: 25 W | Un: 1000 V
3NE5424-0CClass: aR, slotted blade contacts | Size: 3, M10, 210 mm | Rated current: 160 A | Switch-off I2t: 54000 A²s | Power loss: 56 W | Un: 1500 V
3NE7425-0UClass: aR, slotted blade contacts | Size: 3, M10, 210 mm | Rated current: 200 A | Switch-off I2t: 138000 A²s | Power loss: 75 W | Un: 2000 V
3NE3626-0CClass: aR, slotted blade contacts | Size: 3, M10, 130 mm | Rated current: 224 A | Switch-off I2t: 54000 A²s | Power loss: 85 W | Un: 1000 V
3NE5426-0CClass: aR, slotted blade contacts | Size: 3, M10, 210 mm | Rated current: 224 A | Switch-off I2t: 138000 A²s | Power loss: 80 W | Un: 1500 V
3NE5627-0CClass: aR, slotted blade contacts | Size: 3, M10, 170 mm | Rated current: 250 A | Switch-off I2t: 84000 A²s | Power loss: 130 W | Un: 1500 V
3NE7427-0UClass: aR, slotted blade contacts | Size: 3, M10, 210 mm | Rated current: 250 A | Switch-off I2t: 218000 A²s | Power loss: 110 W | Un: 2000 V
3NE3430-0CClass: aR, slotted blade contacts | Size: 3, M10, 130 mm | Rated current: 315 A | Switch-off I2t: 218000 A²s | Power loss: 80 W | Un: 1000 V
3NE5430-0CClass: aR, slotted blade contacts | Size: 3, M10, 210 mm | Rated current: 315 A | Switch-off I2t: 311000 A²s | Power loss: 115 W | Un: 1500 V
3NE5431-0CClass: aR, slotted blade contacts | Size: 3, M10, 210 mm | Rated current: 350 A | Switch-off I2t: 428000 A²s | Power loss: 135 W | Un: 1500 V
3NE7431-0UClass: aR, slotted blade contacts | Size: 3, M10, 210 mm | Rated current: 350 A | Switch-off I2t: 555000 A²s | Power loss: 120 W | Un: 2000 V
3NC2432-3CClass: aR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 400 A | Switch-off I2t: 390000 A²s | Power loss: 50 W | Un: 500 V
3NE3432-0CClass: aR, slotted blade contacts | Size: 3, M10, 130 mm | Rated current: 400 A | Switch-off I2t: 364000 A²s | Power loss: 110 W | Un: 1000 V
3NE7432-0UClass: aR, slotted blade contacts | Size: 3, M10, 210 mm | Rated current: 400 A | Switch-off I2t: 870000 A²s | Power loss: 150 W | Un: 2000 V
3NE3635-0CClass: aR, slotted blade contacts | Size: 3, M10, 130 mm | Rated current: 450 A | Switch-off I2t: 488000 A²s | Power loss: 110 W | Un: 1000 V
3NE5633-0CClass: aR, slotted blade contacts | Size: 3, M10, 170 mm | Rated current: 450 A | Switch-off I2t: 590000 A²s | Power loss: 160 W | Un: 1500 V
3NE5433-0CClass: aR, slotted blade contacts | Size: 3, M10, 210 mm | Rated current: 450 A | Switch-off I2t: 870000 A²s | Power loss: 145 W | Un: 1500 V
3NE7633-0UClass: aR, slotted blade contacts | Size: 3, M10, 210 mm | Rated current: 450 A | Switch-off I2t: 960000 A²s | Power loss: 160 W | Un: 2000 V
3NE3434-0CClass: aR, slotted blade contacts | Size: 3, M10, 130 mm | Rated current: 500 A | Switch-off I2t: 870000 A²s | Power loss: 95 W | Un: 1000 V
3NE5643-0CClass: aR, slotted blade contacts | Size: 3, M10, 170 mm | Rated current: 600 A | Switch-off I2t: 1950000 A²s | Power loss: 145 W | Un: 1500 V
3NE3636-0CClass: aR, slotted blade contacts | Size: 3, M10, 130 mm | Rated current: 630 A | Switch-off I2t: 1280000 A²s | Power loss: 132 W | Un: 1000 V
3NE7636-0UClass: aR, slotted blade contacts | Size: 3, M10, 210 mm | Rated current: 630 A | Switch-off I2t: 1950000 A²s | Power loss: 220 W | Un: 2000 V
3NE3637-0CClass: aR, slotted blade contacts | Size: 3, M10, 130 mm | Rated current: 710 A | Switch-off I2t: 1950000 A²s | Power loss: 145 W | Un: 1000 V
3NC8444-3CClass: aR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 1000 A | Switch-off I2t: 2480000 A²s | Power loss: 140 W | Un: 600 V
3NE9622-1CClass: aR, slotted blade contacts | Size: 3, M12, 260 mm | Rated current: 125 A | Switch-off I2t: 34500 A²s | Power loss: 78 W | Un: 2500 V
3NC3430-1UClass: aR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 315 A | Switch-off I2t: 72500 A²s | Power loss: 80 W | Un: 1250 V
3NC3432-1UClass: aR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 400 A | Switch-off I2t: 163000 A²s | Power loss: 95 W | Un: 1250 V
3NE9632-1CClass: aR, slotted blade contacts | Size: 3, M12, 260 mm | Rated current: 400 A | Switch-off I2t: 620000 A²s | Power loss: 205 W | Un: 2500 V
3NE5433-1CClass: aR, slotted blade contacts | Size: 3, M12, 210 mm | Rated current: 450 A | Switch-off I2t: 870000 A²s | Power loss: 145 W | Un: 1500 V
3NE7633-1UClass: aR, slotted blade contacts | Size: 3, M12, 210 mm | Rated current: 450 A | Switch-off I2t: 960000 A²s | Power loss: 160 W | Un: 2000 V
3NC3434-1UClass: aR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 500 A | Switch-off I2t: 290000 A²s | Power loss: 115 W | Un: 1250 V
3NE9634-1CClass: aR, slotted blade contacts | Size: 3, M12, 260 mm | Rated current: 500 A | Switch-off I2t: 1270000 A²s | Power loss: 235 W | Un: 2500 V
3NE7648-1UClass: aR, slotted blade contacts | Size: 3, M12, 210 mm | Rated current: 525 A | Switch-off I2t: 1120000 A²s | Power loss: 210 W | Un: 2000 V
3NC3236-1UClass: aR, slotted blade contacts | Size: 3, M12, 80 mm | Rated current: 630 A | Switch-off I2t: 244000 A²s | Power loss: 120 W | Un: 690 V
3NC3336-1UClass: aR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 630 A | Switch-off I2t: 418000 A²s | Power loss: 145 W | Un: 1000 V
3NC3436-1UClass: aR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 630 A | Switch-off I2t: 650000 A²s | Power loss: 120 W | Un: 1250 V
3NE7636-1UClass: aR, slotted blade contacts | Size: 3, M12, 210 mm | Rated current: 630 A | Switch-off I2t: 1950000 A²s | Power loss: 220 W | Un: 2000 V
3NE9636-1CClass: aR, slotted blade contacts | Size: 3, M12, 260 mm | Rated current: 630 A | Switch-off I2t: 2800000 A²s | Power loss: 275 W | Un: 2500 V
3NC3237-1UClass: aR, slotted blade contacts | Size: 3, M12, 80 mm | Rated current: 710 A | Switch-off I2t: 346000 A²s | Power loss: 130 W | Un: 690 V
3NC3337-1UClass: aR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 710 A | Switch-off I2t: 569000 A²s | Power loss: 150 W | Un: 1000 V
3NE3637-1CClass: aR, slotted blade contacts | Size: 3, M12, 140 mm | Rated current: 710 A | Switch-off I2t: 1950000 A²s | Power loss: 145 W | Un: 1000 V
3NE7637-1UClass: aR, slotted blade contacts | Size: 3, M12, 210 mm | Rated current: 710 A | Switch-off I2t: 3110000 A²s | Power loss: 275 W | Un: 2000 V
3NC3238-1UClass: aR, slotted blade contacts | Size: 3, M12, 80 mm | Rated current: 800 A | Switch-off I2t: 498000 A²s | Power loss: 135 W | Un: 690 V
3NC3338-1UClass: aR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 800 A | Switch-off I2t: 819000 A²s | Power loss: 155 W | Un: 1000 V
3NC3438-1UClass: aR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 800 A | Switch-off I2t: 985000 A²s | Power loss: 145 W | Un: 1100 V
3NC3240-1UClass: aR, slotted blade contacts | Size: 3, M12, 80 mm | Rated current: 900 A | Switch-off I2t: 677000 A²s | Power loss: 145 W | Un: 690 V
3NC3340-1UClass: aR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 900 A | Switch-off I2t: 1160000 A²s | Power loss: 165 W | Un: 1000 V
3NC3241-1UClass: aR, slotted blade contacts | Size: 3, M12, 80 mm | Rated current: 1000 A | Switch-off I2t: 975000 A²s | Power loss: 155 W | Un: 690 V
3NC3341-1UClass: aR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 1000 A | Switch-off I2t: 1670000 A²s | Power loss: 170 W | Un: 1000 V
3NC3242-1UClass: aR, slotted blade contacts | Size: 3, M12, 80 mm | Rated current: 1100 A | Switch-off I2t: 1382000 A²s | Power loss: 165 W | Un: 690 V
3NC3342-1UClass: aR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 1100 A | Switch-off I2t: 1910000 A²s | Power loss: 185 W | Un: 800 V
3NC3243-1UClass: aR, slotted blade contacts | Size: 3, M12, 80 mm | Rated current: 1250 A | Switch-off I2t: 1990000 A²s | Power loss: 175 W | Un: 690 V
3NC3343-1UClass: aR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 1250 A | Switch-off I2t: 2600000 A²s | Power loss: 210 W | Un: 800 V
3NC3244-1UClass: aR, slotted blade contacts | Size: 3, M12, 80 mm | Rated current: 1400 A | Switch-off I2t: 2100000 A²s | Power loss: 200 W | Un: 500 V
3NC3245-1UClass: aR, slotted blade contacts | Size: 3, M12, 80 mm | Rated current: 1600 A | Switch-off I2t: 2860000 A²s | Power loss: 240 W | Un: 500 V
3NE3635-6Class: aR, female thread both ends | Size: 3, M10, 109 mm | Rated current: 450 A | Switch-off I2t: 488000 A²s | Power loss: 110 W | Un: 1000 V
3NC3236-6UClass: aR, female thread both ends | Size: 3, M12, 52 mm | Rated current: 630 A | Switch-off I2t: 244000 A²s | Power loss: 125 W | Un: 690 V
3NC3237-6UClass: aR, female thread both ends | Size: 3, M12, 52 mm | Rated current: 710 A | Switch-off I2t: 346000 A²s | Power loss: 130 W | Un: 690 V
3NC3238-6UClass: aR, female thread both ends | Size: 3, M12, 52 mm | Rated current: 800 A | Switch-off I2t: 498000 A²s | Power loss: 135 W | Un: 690 V
3NC3240-6UClass: aR, female thread both ends | Size: 3, M12, 52 mm | Rated current: 900 A | Switch-off I2t: 677000 A²s | Power loss: 140 W | Un: 690 V
3NC3241-6UClass: aR, female thread both ends | Size: 3, M12, 52 mm | Rated current: 1000 A | Switch-off I2t: 975000 A²s | Power loss: 145 W | Un: 690 V
3NC3242-6UClass: aR, female thread both ends | Size: 3, M12, 52 mm | Rated current: 1100 A | Switch-off I2t: 1382000 A²s | Power loss: 150 W | Un: 690 V
3NC3243-6UClass: aR, female thread both ends | Size: 3, M12, 52 mm | Rated current: 1250 A | Switch-off I2t: 1990000 A²s | Power loss: 155 W | Un: 690 V
3NC3244-6UClass: aR, female thread both ends | Size: 3, M12, 52 mm | Rated current: 1400 A | Switch-off I2t: 2100000 A²s | Power loss: 175 W | Un: 500 V
3NC3245-6UClass: aR, female thread both ends | Size: 3, M12, 52 mm | Rated current: 1600 A | Switch-off I2t: 2860000 A²s | Power loss: 195 W | Un: 500 V
3NC3430-6UClass: aR, female thread both ends | Size: 3, M12, 73 mm | Rated current: 315 A | Switch-off I2t: 72500 A²s | Power loss: 80 W | Un: 1250 V
3NC3432-6UClass: aR, female thread both ends | Size: 3, M12, 73 mm | Rated current: 400 A | Switch-off I2t: 163000 A²s | Power loss: 95 W | Un: 1250 V
3NC3434-6UClass: aR, female thread both ends | Size: 3, M12, 73 mm | Rated current: 500 A | Switch-off I2t: 290000 A²s | Power loss: 115 W | Un: 1250 V
3NC3336-6UClass: aR, female thread both ends | Size: 3, M12, 73 mm | Rated current: 630 A | Switch-off I2t: 418000 A²s | Power loss: 130 W | Un: 1000 V
3NC3436-6UClass: aR, female thread both ends | Size: 3, M12, 73 mm | Rated current: 630 A | Switch-off I2t: 650000 A²s | Power loss: 120 W | Un: 1250 V
3NC3337-6UClass: aR, female thread both ends | Size: 3, M12, 73 mm | Rated current: 710 A | Switch-off I2t: 569000 A²s | Power loss: 140 W | Un: 1000 V
3NC3338-6UClass: aR, female thread both ends | Size: 3, M12, 73 mm | Rated current: 800 A | Switch-off I2t: 819000 A²s | Power loss: 150 W | Un: 1000 V
3NC3438-6UClass: aR, female thread both ends | Size: 3, M12, 73 mm | Rated current: 800 A | Switch-off I2t: 985000 A²s | Power loss: 145 W | Un: 1100 V
3NC3340-6UClass: aR, female thread both ends | Size: 3, M12, 73 mm | Rated current: 900 A | Switch-off I2t: 1160000 A²s | Power loss: 160 W | Un: 1000 V
3NC3341-6UClass: aR, female thread both ends | Size: 3, M12, 73 mm | Rated current: 1000 A | Switch-off I2t: 1670000 A²s | Power loss: 165 W | Un: 1000 V
3NC3342-6UClass: aR, female thread both ends | Size: 3, M12, 73 mm | Rated current: 1100 A | Switch-off I2t: 1910000 A²s | Power loss: 175 W | Un: 800 V
3NC3343-6UClass: aR, female thread both ends | Size: 3, M12, 73 mm | Rated current: 1250 A | Switch-off I2t: 2600000 A²s | Power loss: 185 W | Un: 800 V
3NC5840Class: aR, special design | Size: No bracket, Water-cooled busbars, 83 mm | Rated current: 600 A | Switch-off I2t: 888000 A²s | Power loss: 150 W | Un: 1000 V
3NC5841Class: aR, special design | Size: No bracket, Water-cooled busbars, 83 mm | Rated current: 630 A | Switch-off I2t: 888000 A²s | Power loss: 145 W | Un: 800 V
3NE6437-7Class: aR, special design | Size: No bracket, Water-cooled busbars, 83 mm | Rated current: 710 A | Switch-off I2t: 620000 A²s | Power loss: 150 W | Un: 900 V
3NE6437Class: aR, special design | Size: No bracket, Air-cooled rectifier, 89 mm | Rated current: 710 A | Switch-off I2t: 620000 A²s | Power loss: 150 W | Un: 900 V
3NC5838Class: aR, special design | Size: No bracket, Water-cooled busbars, 83 mm | Rated current: 800 A | Switch-off I2t: 1728000 A²s | Power loss: 170 W | Un: 1000 V
3NE6444Class: aR, special design | Size: No bracket, Air-cooled rectifier, 89 mm | Rated current: 900 A | Switch-off I2t: 1920000 A²s | Power loss: 170 W | Un: 900 V
3NE9450-7Class: aR, special design | Size: No bracket, Water-cooled busbars, 83 mm | Rated current: 1250 A | Switch-off I2t: 2480000 A²s | Power loss: 210 W | Un: 600 V
3NE9450Class: aR, special design | Size: No bracket, Air-cooled rectifier, 89 mm | Rated current: 1250 A | Switch-off I2t: 2480000 A²s | Power loss: 210 W | Un: 600 V
3NE4121-5Class: aR, special design | Size: Bracket, 6QG11 thyristor set | Rated current: 100 A | Switch-off I2t: 7400 A²s | Power loss: 35 W | Un: 1000 V
3NE4146-5Class: aR, special design | Size: Bracket, 6QG11 thyristor set | Rated current: 170 A | Switch-off I2t: 60500 A²s | Power loss: 43 W | Un: 800 V
3NE3525-5Class: aR, special design | Size: Bracket, 6QG10 thyristor set | Rated current: 200 A | Switch-off I2t: 44000 A²s | Power loss: 50 W | Un: 1000 V
3NC7327-2Class: aR, special design | Size: Railway supply rectifier | Rated current: 250 A | Switch-off I2t: 635000 A²s | Power loss: 25 W | Un: 680 V
3NE4327-6BClass: aR, special design | Size: 6QG12 thyristor set, 77 mm | Rated current: 250 A | Switch-off I2t: 29700 A²s | Power loss: 105 W | Un: 800 V
3NE4330-6BClass: aR, special design | Size: 6QG12 thyristor set, 77 mm | Rated current: 315 A | Switch-off I2t: 60700 A²s | Power loss: 120 W | Un: 800 V
3NC7331-2Class: aR, special design | Size: Railway supply rectifier | Rated current: 350 A | Switch-off I2t: 1430000 A²s | Power loss: 32 W | Un: 680 V
3NE4333-6BClass: aR, special design | Size: 6QG12 thyristor set, 77 mm | Rated current: 450 A | Switch-off I2t: 191000 A²s | Power loss: 140 W | Un: 800 V
3NE3535-5Class: aR, special design | Size: Bracket, 6QG10 thyristor set | Rated current: 450 A | Switch-off I2t: 395000 A²s | Power loss: 90 W | Un: 1000 V
3NE4334-6BClass: aR, special design | Size: 6QG12 thyristor set, 77 mm | Rated current: 500 A | Switch-off I2t: 276000 A²s | Power loss: 155 W | Un: 800 V
3NE4337-6Class: aR, special design | Size: 6QG12 thyristor set, 77 mm | Rated current: 710 A | Switch-off I2t: 923000 A²s | Power loss: 155 W | Un: 800 V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
