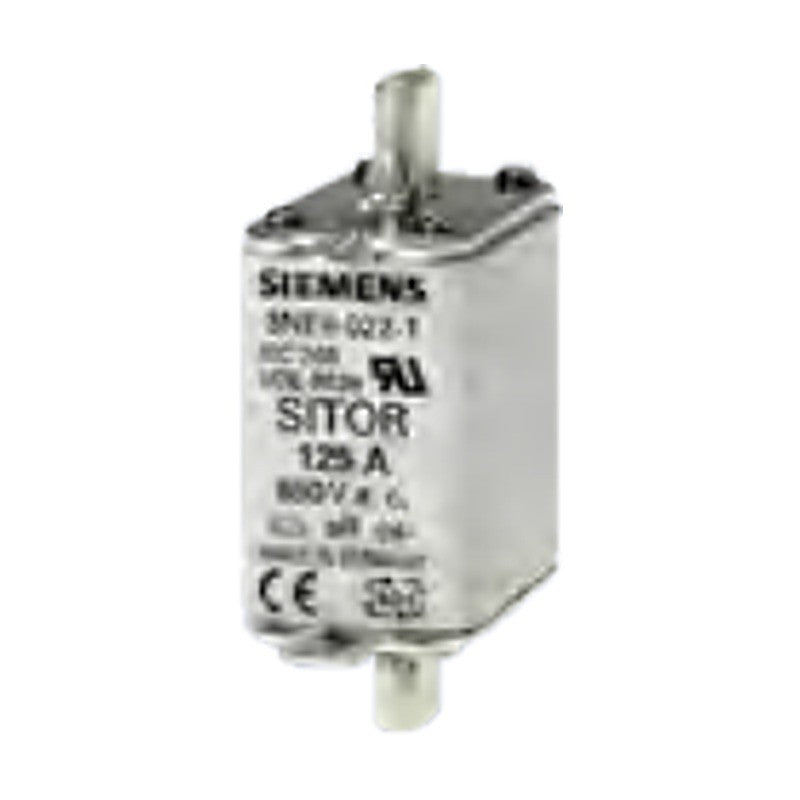

Siemens SENTRON SITOR LV HRC fuse links gS/gR (AC/DC, 3NE/3NC)

Siemens SENTRON SITOR LV HRC fuse links gS/gR (AC/DC, 3NE/3NC)

SENTRON SITOR semiconductor fuse links in LV HRC design for AC/DC, operational classes gS and gR, with blade contacts, bolt-on links or special designs.

Key features

  • Ultra-rapid SITOR fuse links for semiconductor protection
  • Low switch-off I2t values and power loss data per article
  • Operational classes gS, gR and aR
  • Blade contacts, slotted blade contacts, bolt-on links or female thread
  • For converters, UPS, soft starters and rectifier applications

Specifications

Brand Siemens SENTRON
Brand line SITOR
Design LV HRC (AC/DC)
Manufacturer Siemens
Product type Fuses & Fuse Holders
Source Siemens Catalog LV 10 · 2026, p. 584-598
3NE1813-0 Class: gS, blade contacts | Size: 000 | Rated current: 16 A | Switch-off I2t: 200 A²s | Power loss: 4 W | Un: 690 V
3NE1814-0 Class: gS, blade contacts | Size: 000 | Rated current: 20 A | Switch-off I2t: 430 A²s | Power loss: 5 W | Un: 690 V
3NE1815-0 Class: gS, blade contacts | Size: 000 | Rated current: 25 A | Switch-off I2t: 780 A²s | Power loss: 5 W | Un: 690 V
3NE1803-0 Class: gS, blade contacts | Size: 000 | Rated current: 35 A | Switch-off I2t: 1700 A²s | Power loss: 3.5 W | Un: 690 V
3NE1802-0 Class: gS, blade contacts | Size: 000 | Rated current: 40 A | Switch-off I2t: 3000 A²s | Power loss: 3 W | Un: 690 V
3NE1817-0 Class: gS, blade contacts | Size: 000 | Rated current: 50 A | Switch-off I2t: 4400 A²s | Power loss: 6 W | Un: 690 V
3NE1818-0 Class: gS, blade contacts | Size: 000 | Rated current: 63 A | Switch-off I2t: 9000 A²s | Power loss: 7 W | Un: 690 V
3NE1820-0 Class: gS, blade contacts | Size: 000 | Rated current: 80 A | Switch-off I2t: 18000 A²s | Power loss: 8 W | Un: 690 V
3NE1021-0 Class: gS, blade contacts | Size: 00 | Rated current: 100 A | Switch-off I2t: 33000 A²s | Power loss: 10 W | Un: 690 V
3NE1022-0 Class: gS, blade contacts | Size: 00 | Rated current: 125 A | Switch-off I2t: 63000 A²s | Power loss: 11 W | Un: 690 V
3NE1224-0 Class: gS, blade contacts | Size: 1 | Rated current: 160 A | Switch-off I2t: 60000 A²s | Power loss: 24 W | Un: 690 V
3NE1225-0 Class: gS, blade contacts | Size: 1 | Rated current: 200 A | Switch-off I2t: 100000 A²s | Power loss: 27 W | Un: 690 V
3NE1332-0 Class: gS, blade contacts | Size: 2 | Rated current: 400 A | Switch-off I2t: 590000 A²s | Power loss: 45 W | Un: 690 V
3NE1333-0 Class: gS, blade contacts | Size: 2 | Rated current: 450 A | Switch-off I2t: 750000 A²s | Power loss: 53 W | Un: 690 V
3NE1334-0 Class: gS, blade contacts | Size: 2 | Rated current: 500 A | Switch-off I2t: 950000 A²s | Power loss: 56 W | Un: 690 V
3NE1435-0 Class: gS, blade contacts | Size: 3 | Rated current: 560 A | Switch-off I2t: 1700000 A²s | Power loss: 50 W | Un: 690 V
3NE1436-0 Class: gS, blade contacts | Size: 3 | Rated current: 630 A | Switch-off I2t: 2350000 A²s | Power loss: 55 W | Un: 690 V
3NE1437-0 Class: gS, blade contacts | Size: 3 | Rated current: 710 A | Switch-off I2t: 3400000 A²s | Power loss: 58 W | Un: 690 V
3NE1438-0 Class: gS, blade contacts | Size: 3 | Rated current: 800 A | Switch-off I2t: 5000000 A²s | Power loss: 58 W | Un: 690 V
3NE8714-1 Class: gR, bolt-on links | Size: 000, M8, 80 mm | Rated current: 20 A | Switch-off I2t: 83 A²s | Power loss: 7 W | Un: 690 V/600 V (UL 700 V)
3NE8715-1 Class: gR, bolt-on links | Size: 000, M8, 80 mm | Rated current: 25 A | Switch-off I2t: 140 A²s | Power loss: 9 W | Un: 690 V/600 V (UL 700 V)
3NE8701-1 Class: gR, bolt-on links | Size: 000, M8, 80 mm | Rated current: 32 A | Switch-off I2t: 285 A²s | Power loss: 10 W | Un: 690 V/600 V (UL 700 V)
3NE8702-1 Class: gR, bolt-on links | Size: 000, M8, 80 mm | Rated current: 40 A | Switch-off I2t: 490 A²s | Power loss: 12 W | Un: 690 V/600 V (UL 700 V)
3NE8717-1 Class: gR, bolt-on links | Size: 000, M8, 80 mm | Rated current: 50 A | Switch-off I2t: 815 A²s | Power loss: 15 W | Un: 690 V/600 V (UL 700 V)
3NE8718-1 Class: gR, bolt-on links | Size: 000, M8, 80 mm | Rated current: 63 A | Switch-off I2t: 1550 A²s | Power loss: 16 W | Un: 690 V/700 V (UL 700 V)
3NE8020-3MK Class: gR, bolt-on links | Size: 00, M10, 80 mm | Rated current: 80 A | Switch-off I2t: 3200 A²s | Power loss: 23 W | Un: 690 V/440 V
3NE8021-3MK Class: gR, bolt-on links | Size: 00, M10, 80 mm | Rated current: 100 A | Switch-off I2t: 5200 A²s | Power loss: 29 W | Un: 690 V/440 V
3NE8810-0MK Class: gR, blade contacts | Size: 000 | Rated current: 6 A | Switch-off I2t: 37 A²s | Power loss: 2.7 W | Un: 690 V/400 V
3NE8812-0MK Class: gR, blade contacts | Size: 000 | Rated current: 10 A | Switch-off I2t: 50 A²s | Power loss: 4.5 W | Un: 690 V/400 V
3NE8813-0MK Class: gR, blade contacts | Size: 000 | Rated current: 16 A | Switch-off I2t: 73 A²s | Power loss: 6.7 W | Un: 690 V/400 V
3NE8814-0MK Class: gR, blade contacts | Size: 000 | Rated current: 20 A | Switch-off I2t: 90 A²s | Power loss: 8 W | Un: 690 V/400 V
3NE8815-0MK Class: gR, blade contacts | Size: 000 | Rated current: 25 A | Switch-off I2t: 150 A²s | Power loss: 8.1 W | Un: 690 V/400 V
3NE8015-1 Class: gR, blade contacts | Size: 00 | Rated current: 25 A | Switch-off I2t: 180 A²s | Power loss: 7 W | Un: 690 V/–
3NE8801-0MK Class: gR, blade contacts | Size: 000 | Rated current: 32 A | Switch-off I2t: 350 A²s | Power loss: 10.5 W | Un: 690 V/400 V
3NE8003-1 Class: gR, blade contacts | Size: 00 | Rated current: 35 A | Switch-off I2t: 400 A²s | Power loss: 9 W | Un: 690 V/–
3NE8802-0MK Class: gR, blade contacts | Size: 000 | Rated current: 40 A | Switch-off I2t: 480 A²s | Power loss: 12 W | Un: 690 V/400 V
3NE8017-1 Class: gR, blade contacts | Size: 00 | Rated current: 50 A | Switch-off I2t: 700 A²s | Power loss: 14 W | Un: 690 V/–
3NE8817-0MK Class: gR, blade contacts | Size: 000 | Rated current: 50 A | Switch-off I2t: 1050 A²s | Power loss: 14.5 W | Un: 690 V/400 V
3NE8018-1 Class: gR, blade contacts | Size: 00 | Rated current: 63 A | Switch-off I2t: 1400 A²s | Power loss: 16 W | Un: 690 V/–
3NE8818-0MK Class: gR, blade contacts | Size: 000 | Rated current: 63 A | Switch-off I2t: 1960 A²s | Power loss: 23 W | Un: 690 V/400 V
3NE1020-2 Class: gR, blade contacts | Size: 00 | Rated current: 80 A | Switch-off I2t: 5800 A²s | Power loss: 10.5 W | Un: 690 V/–
3NE1021-2 Class: gR, blade contacts | Size: 00 | Rated current: 100 A | Switch-off I2t: 11000 A²s | Power loss: 12 W | Un: 690 V/–
3NE1022-2 Class: gR, blade contacts | Size: 00 | Rated current: 125 A | Switch-off I2t: 23000 A²s | Power loss: 13.5 W | Un: 690 V/–
3NE4101 Class: gR, blade contacts | Size: 0 | Rated current: 32 A | Switch-off I2t: 280 A²s | Power loss: 12 W | Un: 1000 V/–
3NE4102 Class: gR, blade contacts | Size: 0 | Rated current: 40 A | Switch-off I2t: 500 A²s | Power loss: 13 W | Un: 1000 V/–
3NE4117 Class: gR, blade contacts | Size: 0 | Rated current: 50 A | Switch-off I2t: 800 A²s | Power loss: 16 W | Un: 1000 V/–
3NE1224-2 Class: gR, blade contacts | Size: 1 | Rated current: 160 A | Switch-off I2t: 18600 A²s | Power loss: 32 W | Un: 690 V/–
3NE1225-2 Class: gR, blade contacts | Size: 1 | Rated current: 200 A | Switch-off I2t: 51800 A²s | Power loss: 35 W | Un: 690 V/–
3NE1227-2 Class: gR, blade contacts | Size: 1 | Rated current: 250 A | Switch-off I2t: 80900 A²s | Power loss: 37 W | Un: 690 V/–
3NE1230-2 Class: gR, blade contacts | Size: 1 | Rated current: 315 A | Switch-off I2t: 168000 A²s | Power loss: 40 W | Un: 690 V/–
3NE1331-2 Class: gR, blade contacts | Size: 2 | Rated current: 350 A | Switch-off I2t: 177000 A²s | Power loss: 43 W | Un: 690 V/–
3NE1332-2 Class: gR, blade contacts | Size: 2 | Rated current: 400 A | Switch-off I2t: 224000 A²s | Power loss: 50 W | Un: 690 V/–
3NE1333-2 Class: gR, blade contacts | Size: 2 | Rated current: 450 A | Switch-off I2t: 276500 A²s | Power loss: 58 W | Un: 690 V/–
3NE1334-2 Class: gR, blade contacts | Size: 2 | Rated current: 500 A | Switch-off I2t: 398000 A²s | Power loss: 64 W | Un: 690 V/–
3NE1435-2 Class: gR, blade contacts | Size: 3 | Rated current: 560 A | Switch-off I2t: 890000 A²s | Power loss: 60 W | Un: 690 V/–
3NE1436-2 Class: gR, blade contacts | Size: 3 | Rated current: 630 A | Switch-off I2t: 1390000 A²s | Power loss: 60 W | Un: 690 V/–
3NE1447-2 Class: gR, blade contacts | Size: 3 | Rated current: 670 A | Switch-off I2t: 1640000 A²s | Power loss: 64 W | Un: 690 V/–
3NE1437-2 Class: gR, blade contacts | Size: 3 | Rated current: 710 A | Switch-off I2t: 1818000 A²s | Power loss: 72 W | Un: 690 V/–
3NE1437-1 Class: gR, blade contacts | Size: 3 | Rated current: 710 A | Switch-off I2t: 2460000 A²s | Power loss: 65 W | Un: 690 V/–
3NE1438-2 Class: gR, blade contacts | Size: 3 | Rated current: 800 A | Switch-off I2t: 2475000 A²s | Power loss: 84 W | Un: 690 V/–
3NE1438-1 Class: gR, blade contacts | Size: 3 | Rated current: 800 A | Switch-off I2t: 3350000 A²s | Power loss: 72 W | Un: 600 V/–
3NE1448-2 Class: gR, blade contacts | Size: 3 | Rated current: 850 A | Switch-off I2t: 3640000 A²s | Power loss: 76 W | Un: 690 V/–
3NE3201-0MK Class: gR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 32 A | Switch-off I2t: 4500 A²s | Power loss: 9 W | Un: 1000 V/600 V
3NE3202-0MK Class: gR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 40 A | Switch-off I2t: 6000 A²s | Power loss: 13 W | Un: 1000 V/600 V
3NE3217-0MK Class: gR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 50 A | Switch-off I2t: 8000 A²s | Power loss: 18 W | Un: 1000 V/600 V
3NE3218-0MK Class: gR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 63 A | Switch-off I2t: 9000 A²s | Power loss: 25 W | Un: 1000 V/600 V
3NC8423-0C Class: gR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 150 A | Switch-off I2t: 17600 A²s | Power loss: 40 W | Un: 690 V/–
3NC2423-0C Class: gR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 150 A | Switch-off I2t: 33000 A²s | Power loss: 35 W | Un: 500 V/–
3NE1224-3 Class: gR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 160 A | Switch-off I2t: 18600 A²s | Power loss: 32 W | Un: 690 V/–
3NC8425-0C Class: gR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 200 A | Switch-off I2t: 38400 A²s | Power loss: 55 W | Un: 690 V/–
3NE1225-3 Class: gR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 200 A | Switch-off I2t: 51800 A²s | Power loss: 35 W | Un: 690 V/–
3NC2425-0C Class: gR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 200 A | Switch-off I2t: 64000 A²s | Power loss: 40 W | Un: 500 V/–
3NC8427-0C Class: gR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 250 A | Switch-off I2t: 70400 A²s | Power loss: 72 W | Un: 690 V/–
3NE1227-3 Class: gR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 250 A | Switch-off I2t: 80900 A²s | Power loss: 37 W | Un: 690 V/–
3NC2427-0C Class: gR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 250 A | Switch-off I2t: 99000 A²s | Power loss: 50 W | Un: 500 V/–
3NC2428-0C Class: gR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 300 A | Switch-off I2t: 132000 A²s | Power loss: 65 W | Un: 500 V/–
3NE1230-3 Class: gR, slotted blade contacts | Size: 1, M10, 110 mm | Rated current: 315 A | Switch-off I2t: 168000 A²s | Power loss: 40 W | Un: 690 V/–
3NC8431-0C Class: gR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 350 A | Switch-off I2t: 176000 A²s | Power loss: 95 W | Un: 690 V/–
3NC2431-0C Class: gR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 350 A | Switch-off I2t: 249000 A²s | Power loss: 60 W | Un: 500 V/–
3NC8434-0C Class: gR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 500 A | Switch-off I2t: 448000 A²s | Power loss: 130 W | Un: 690 V/–
3NE5302-0MK06 Class: gR, slotted blade contacts | Size: 2, M10, 170 mm | Rated current: 40 A | Switch-off I2t: 900 A²s | Power loss: 26 W | Un: 1500 V/1000 V
3NE5317-0MK06 Class: gR, slotted blade contacts | Size: 2, M10, 170 mm | Rated current: 50 A | Switch-off I2t: 1800 A²s | Power loss: 27 W | Un: 1500 V/1000 V
3NE5318-0MK06 Class: gR, slotted blade contacts | Size: 2, M10, 170 mm | Rated current: 63 A | Switch-off I2t: 3100 A²s | Power loss: 34 W | Un: 1500 V/1000 V
3NC8423-3C Class: gR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 150 A | Switch-off I2t: 17600 A²s | Power loss: 40 W | Un: 690 V/–
3NC2423-3C Class: gR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 150 A | Switch-off I2t: 33000 A²s | Power loss: 35 W | Un: 500 V/–
3NC8425-3C Class: gR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 200 A | Switch-off I2t: 38400 A²s | Power loss: 55 W | Un: 690 V/–
3NC2425-3C Class: gR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 200 A | Switch-off I2t: 64000 A²s | Power loss: 40 W | Un: 500 V/–
3NC8427-3C Class: gR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 250 A | Switch-off I2t: 70400 A²s | Power loss: 72 W | Un: 690 V/–
3NC2427-3C Class: gR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 250 A | Switch-off I2t: 99000 A²s | Power loss: 50 W | Un: 500 V/–
3NC2428-3C Class: gR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 300 A | Switch-off I2t: 132000 A²s | Power loss: 65 W | Un: 500 V/–
3NC8431-3C Class: gR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 350 A | Switch-off I2t: 176000 A²s | Power loss: 95 W | Un: 690 V/–
3NE1331-3 Class: gR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 350 A | Switch-off I2t: 177000 A²s | Power loss: 43 W | Un: 690 V/–
3NC2431-3C Class: gR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 350 A | Switch-off I2t: 249000 A²s | Power loss: 60 W | Un: 500 V/–
3NE1332-3 Class: gR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 400 A | Switch-off I2t: 224000 A²s | Power loss: 50 W | Un: 690 V/–
3NE1333-3 Class: gR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 450 A | Switch-off I2t: 276500 A²s | Power loss: 58 W | Un: 690 V/–
3NE1334-3 Class: gR, slotted blade contacts | Size: 2, M10, 110 mm | Rated current: 500 A | Switch-off I2t: 398000 A²s | Power loss: 64 W | Un: 690 V/–
3NC8434-3C Class: gR, slotted blade contacts | Size: 3, M10, 110 mm | Rated current: 500 A | Switch-off I2t: 448000 A²s | Power loss: 130 W | Un: 690 V/–
3NE1435-3 Class: gR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 560 A | Switch-off I2t: 890000 A²s | Power loss: 60 W | Un: 690 V/–
3NE1436-3 Class: gR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 630 A | Switch-off I2t: 1390000 A²s | Power loss: 60 W | Un: 690 V/–
3NE1447-3 Class: gR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 670 A | Switch-off I2t: 1640000 A²s | Power loss: 64 W | Un: 690 V/–
3NE1437-3 Class: gR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 710 A | Switch-off I2t: 1818000 A²s | Power loss: 72 W | Un: 690 V/–
3NE1438-3 Class: gR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 800 A | Switch-off I2t: 2475000 A²s | Power loss: 84 W | Un: 690 V/–
3NE1448-3 Class: gR, slotted blade contacts | Size: 3, M12, 110 mm | Rated current: 850 A | Switch-off I2t: 3640000 A²s | Power loss: 76 W | Un: 690 V/–
3NB3350-1KK26 Class: gR, slotted blade contacts | Size: 2 x 3, M12, 110 mm | Rated current: 1000 A | Switch-off I2t: 1400000 A²s | Power loss: 138 W | Un: 690 V/–
3NB3351-1KK26 Class: gR, slotted blade contacts | Size: 2 x 3, M12, 110 mm | Rated current: 1100 A | Switch-off I2t: 3000000 A²s | Power loss: 110 W | Un: 690 V/–
3NB3352-1KK26 Class: gR, slotted blade contacts | Size: 2 x 3, M12, 110 mm | Rated current: 1250 A | Switch-off I2t: 4100000 A²s | Power loss: 104 W | Un: 690 V/–
3NB3354-1KK26 Class: gR, slotted blade contacts | Size: 2 x 3, M12, 110 mm | Rated current: 1350 A | Switch-off I2t: 4800000 A²s | Power loss: 126 W | Un: 690 V/–
3NB3355-1KK26 Class: gR, slotted blade contacts | Size: 2 x 3, M12, 110 mm | Rated current: 1400 A | Switch-off I2t: 5200000 A²s | Power loss: 127 W | Un: 690 V/–
3NB3357-1KK26 Class: gR, slotted blade contacts | Size: 2 x 3, M12, 110 mm | Rated current: 1600 A | Switch-off I2t: 6900000 A²s | Power loss: 152 W | Un: 690 V/–
3NB3358-1KK27 Class: gR, slotted blade contacts | Size: 3 x 3, M12, 110 mm | Rated current: 1700 A | Switch-off I2t: 6400000 A²s | Power loss: 179 W | Un: 690 V/–
3NB3358-1KK26 Class: gR, slotted blade contacts | Size: 2 x 3, M12, 110 mm | Rated current: 1700 A | Switch-off I2t: 10000000 A²s | Power loss: 143 W | Un: 690 V/–
3NB3362-1KK27 Class: gR, slotted blade contacts | Size: 3 x 3, M12, 110 mm | Rated current: 1900 A | Switch-off I2t: 8200000 A²s | Power loss: 196 W | Un: 690 V/–
3NE4117-5 Class: gR, special design | Size: Bracket, 6QG11 thyristor set, M10, 89 mm | Rated current: 50 A | Switch-off I2t: 1100 A²s | Power loss: 20 W | Un: 600 V
3NE9440-6 Class: gR, special design | Size: No bracket, M10, 89 mm | Rated current: 850 A | Switch-off I2t: 2480000 A²s | Power loss: 85 W | Un: 1000 V
