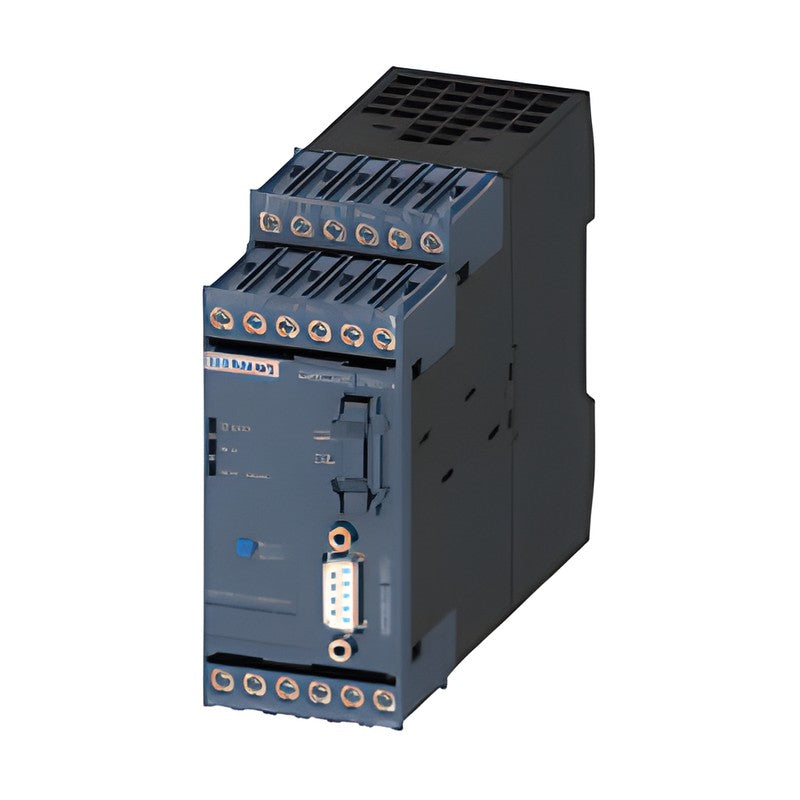

Siemens SIMOCODE pro 3UF71 Current & Current/Voltage Measuring Modules

Siemens SIMOCODE pro 3UF71 Current & Current/Voltage Measuring Modules

SIMOCODE pro current and current/voltage measuring modules from 0.3 A to 630 A for straight-through or busbar connection.

Key features

  • Current measuring modules 0.3 ... 630 A
  • 2nd-generation current/voltage modules for pro V, voltage measuring up to 690 V
  • Measurement of power, power factor and frequency with increased accuracy
  • Versions for dry-running protection of centrifugal pumps in hazardous areas
  • Busbar versions include terminal parts kit for contactor connection

Specifications

Brand Siemens
Product line SIMOCODE pro 3UF7
Function Current / voltage measurement
Terminals Screw terminals
Range 0.3 ... 630 A
Category Electronic Overload Relays
Source Siemens Catalog IC 10 · 2026, p. 913
3UF7100-1AA00-0 Type: Current measuring module | Current setting: 0.3 ... 3 A | Width: 45 mm | Connection: Straight-through
3UF7101-1AA00-0 Type: Current measuring module | Current setting: 2.4 ... 25 A | Width: 45 mm | Connection: Straight-through
3UF7102-1AA00-0 Type: Current measuring module | Current setting: 10 ... 100 A | Width: 55 mm | Connection: Straight-through
3UF7103-1AA00-0 Type: Current measuring module | Current setting: 20 ... 200 A | Width: 120 mm | Connection: Straight-through
3UF7103-1BA00-0 Type: Current measuring module | Current setting: 20 ... 200 A | Width: 120 mm | Connection: Busbar
3UF7104-1BA00-0 Type: Current measuring module | Current setting: 63 ... 630 A | Width: 145 mm | Connection: Busbar
3UF7110-1AA01-0 Type: Current/voltage, 2nd gen. | Current setting: 0.3 ... 4 A | Width: 45 mm | Connection: Straight-through
3UF7111-1AA01-0 Type: Current/voltage, 2nd gen. | Current setting: 3 ... 40 A | Width: 45 mm | Connection: Straight-through
3UF7112-1AA01-0 Type: Current/voltage, 2nd gen. | Current setting: 10 ... 115 A | Width: 55 mm | Connection: Straight-through
3UF7113-1AA01-0 Type: Current/voltage, 2nd gen. | Current setting: 20 ... 200 A | Width: 120 mm | Connection: Straight-through
3UF7113-1BA01-0 Type: Current/voltage, 2nd gen. | Current setting: 20 ... 200 A | Width: 120 mm | Connection: Busbar
3UF7114-1BA01-0 Type: Current/voltage, 2nd gen. | Current setting: 63 ... 630 A | Width: 145 mm | Connection: Busbar
3UF7120-1AA01-0 Type: Current/voltage, dry-running | Current setting: 0.3 ... 4 A | Width: 45 mm | Connection: Straight-through
3UF7121-1AA01-0 Type: Current/voltage, dry-running | Current setting: 3 ... 40 A | Width: 45 mm | Connection: Straight-through
3UF7122-1AA01-0 Type: Current/voltage, dry-running | Current setting: 10 ... 115 A | Width: 55 mm | Connection: Straight-through
3UF7123-1AA01-0 Type: Current/voltage, dry-running | Current setting: 20 ... 200 A | Width: 120 mm | Connection: Straight-through
3UF7123-1BA01-0 Type: Current/voltage, dry-running | Current setting: 20 ... 200 A | Width: 120 mm | Connection: Busbar
3UF7124-1BA01-0 Type: Current/voltage, dry-running | Current setting: 63 ... 630 A | Width: 145 mm | Connection: Busbar
Electronic Overload RelaysSiemens
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIMOCODE pro 3UF71 Current & Current/Voltage Measuring Modules

Brand Siemens·Electronic Overload Relays

Available part numbers (18)

3UF7100-1AA00-0, 3UF7101-1AA00-0, 3UF7102-1AA00-0, 3UF7103-1AA00-0, 3UF7103-1BA00-0, 3UF7104-1BA00-0, 3UF7110-1AA01-0, 3UF7111-1AA01-0, 3UF7112-1AA01-0, 3UF7113-1AA01-0 + 8 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3UF7100-1AA00-0Type: Current measuring module | Current setting: 0.3 ... 3 A | Width: 45 mm | Connection: Straight-through
3UF7101-1AA00-0Type: Current measuring module | Current setting: 2.4 ... 25 A | Width: 45 mm | Connection: Straight-through
3UF7102-1AA00-0Type: Current measuring module | Current setting: 10 ... 100 A | Width: 55 mm | Connection: Straight-through
3UF7103-1AA00-0Type: Current measuring module | Current setting: 20 ... 200 A | Width: 120 mm | Connection: Straight-through
3UF7103-1BA00-0Type: Current measuring module | Current setting: 20 ... 200 A | Width: 120 mm | Connection: Busbar
3UF7104-1BA00-0Type: Current measuring module | Current setting: 63 ... 630 A | Width: 145 mm | Connection: Busbar
3UF7110-1AA01-0Type: Current/voltage, 2nd gen. | Current setting: 0.3 ... 4 A | Width: 45 mm | Connection: Straight-through
3UF7111-1AA01-0Type: Current/voltage, 2nd gen. | Current setting: 3 ... 40 A | Width: 45 mm | Connection: Straight-through
3UF7112-1AA01-0Type: Current/voltage, 2nd gen. | Current setting: 10 ... 115 A | Width: 55 mm | Connection: Straight-through
3UF7113-1AA01-0Type: Current/voltage, 2nd gen. | Current setting: 20 ... 200 A | Width: 120 mm | Connection: Straight-through
3UF7113-1BA01-0Type: Current/voltage, 2nd gen. | Current setting: 20 ... 200 A | Width: 120 mm | Connection: Busbar
3UF7114-1BA01-0Type: Current/voltage, 2nd gen. | Current setting: 63 ... 630 A | Width: 145 mm | Connection: Busbar
3UF7120-1AA01-0Type: Current/voltage, dry-running | Current setting: 0.3 ... 4 A | Width: 45 mm | Connection: Straight-through
3UF7121-1AA01-0Type: Current/voltage, dry-running | Current setting: 3 ... 40 A | Width: 45 mm | Connection: Straight-through
3UF7122-1AA01-0Type: Current/voltage, dry-running | Current setting: 10 ... 115 A | Width: 55 mm | Connection: Straight-through
3UF7123-1AA01-0Type: Current/voltage, dry-running | Current setting: 20 ... 200 A | Width: 120 mm | Connection: Straight-through
3UF7123-1BA01-0Type: Current/voltage, dry-running | Current setting: 20 ... 200 A | Width: 120 mm | Connection: Busbar
3UF7124-1BA01-0Type: Current/voltage, dry-running | Current setting: 63 ... 630 A | Width: 145 mm | Connection: Busbar
